Utilità
R2026aQuesta libreria contiene i blocchi necessari e comunemente utilizzati per impostare l'ambiente di simulazione, interfacciarsi con i modelli Simulink e generare componenti personalizzati al volo.
I blocchi libreria Network Couplers forniscono i punti di partenza per suddividere la rete Simscape™ in reti separate più piccole, interfacciate tra loro tramite collegamenti di Simulink.
Blocchi Simscape
 | Array Connection | Concatenate arrays of conserving connections into single array-of-nodes port (Da R2025a) |
 | Connection Label | Virtual connection between conserving ports |
 | Connection Port | Physical Modeling connector port for subsystem |
 | Probe | Output block variables as signals during simulation |
 | PS-Simulink Converter | Convert physical signal into Simulink output signal |
 | Simulink-PS Converter | Convert Simulink input signal into physical signal |
 | Simscape Bus | Bus for conserving connection lines |
 | Simscape Component | Deploy Simscape language component as block |
 | Solver Configuration | Physical network environment and solver configuration |
 | Variant Connector | Remove or disconnect physical components from network |
 | Network Coupler (Compressible Link) | Split network at a mechanical translational connection (Da R2022a) |
 | Network Coupler (Flexible Shaft) | Split network at a mechanical rotational connection (Da R2022a) |
 | Network Coupler (Inductor) | Split network at an electrical connection by replacing an inductor (Da R2022a) |
 | Network Coupler (Capacitor) | Split network at an electrical connection by replacing a capacitor (Da R2022a) |
 | Network Coupler (Current-Voltage) | Split network at an electrical connection (Da R2022a) |
 | Network Coupler (Voltage-Current) | Split network at an electrical connection (Da R2022a) |
 | Network Coupler (Voltage-Voltage) | Split network at an electrical connection (Da R2022a) |
 | Network Coupler (Thermal Mass) | Split network at a thermal connection (Da R2022a) |
 | Network Coupler (Constant Volume Chamber (IL)) | Split network at an isothermal liquid connection (Da R2022a) |
 | Network Coupler (Constant Volume Chamber (TL)) | Split network at a thermal liquid connection (Da R2022a) |
 | Prediction (discrete->continuous) | Prevent accuracy loss when connecting fixed-step network to variable-step network (Da R2022a) |
 | Prediction (slow->fast) | Prevent accuracy loss when connecting fixed-step networks with different step sizes (Da R2022a) |
 | Smoothing (continuous->discrete) | Apply output smoothing when connecting variable-step network to fixed-step network (Da R2022a) |
 | Smoothing (fast->slow) | Apply output smoothing when connecting fixed-step networks with different step sizes (Da R2022a) |
Blocchi
 | Spectrum Analyzer | Display frequency spectrum |
Funzioni
Argomenti
Tecniche di base
- Creazione di un nuovo modello Simscape
Guida rapida per la creazione di un nuovo modello. - Essential Physical Modeling Techniques
Brief summary of physical modeling rules and techniques. - Modeling Best Practices
How to use best practices in your model architecture to avoid numerical simulation issues.
Bus di collegamento
- Design Rigid Interface Specifications for Conserving Connections
Lock down connection types for Simscape Bus and Connection Port blocks.
Accoppiatori di rete
- Using Network Couplers to Split Physical Networks
General workflow and types of models that can benefit from splitting their network.
Varianti
- Using Variant Connectors to Implement Variations in Physical Networks
Implement variations in physical network.
Esempi in primo piano

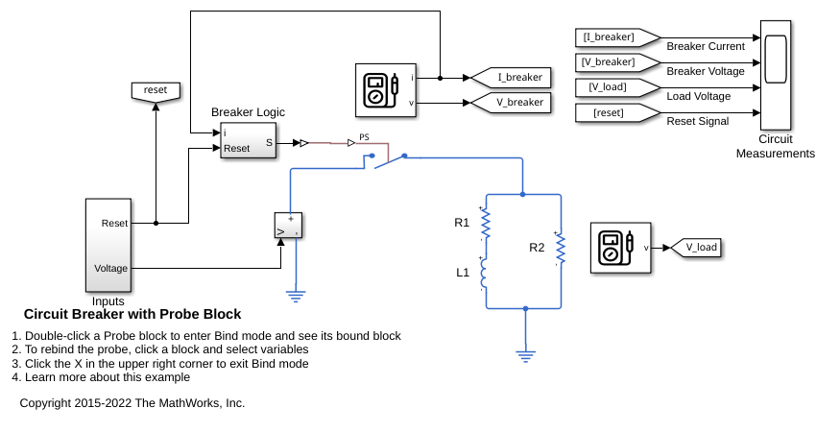

Circuit Breaker with Probe Block
Models a circuit breaker using a Simscape Probe block to access the current and voltage within the electrical switch block and another Simscape Probe block to access the voltage across a load.

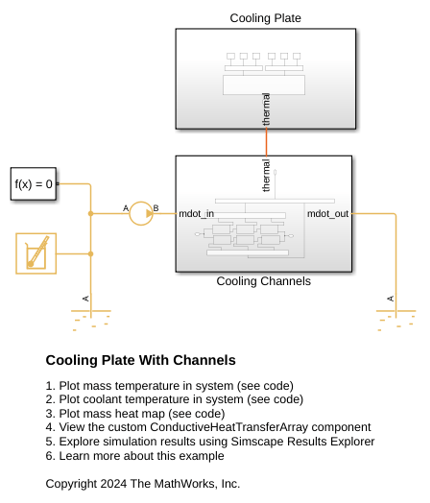

Cooling Plate with Channels
A discretized cooling plate with cooling channels, divided into six segments: three on the top and three on the bottom. Each cooling plate segment is modeled as a thermal mass, while cooling channels are modeled using the Pipe (TL). The ConductiveHeatTransferArray, a custom component, models thermal conduction between the cooling plate segments.
Configuring an EV Simulation for Multirate HIL
An electric vehicle model suitable for multirate Hardware-In-the-Loop (HIL) deployment. The example uses the Simscape™ Network Couplers Library to split the model into separate Simulink® subsystems that can be deployed at different sample rates. This allows you to run parts of the system (for example thermal components) with a slower sample time thereby reducing overall computational cost.

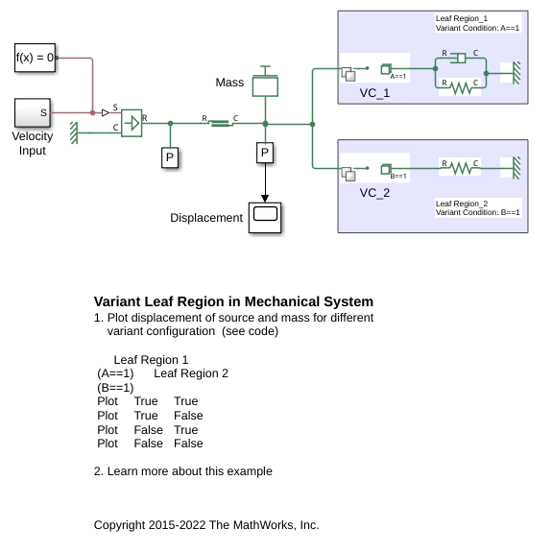

Variant Leaf Region in Mechanical System
Simulate the displacement of velocity sources and mass for different variant configurations using leaf type Variant Connector blocks. Variant Connector blocks allow you to activate or deactivate a set of components in the network during simulation without having to physically remove the components or exclude them from simulation.

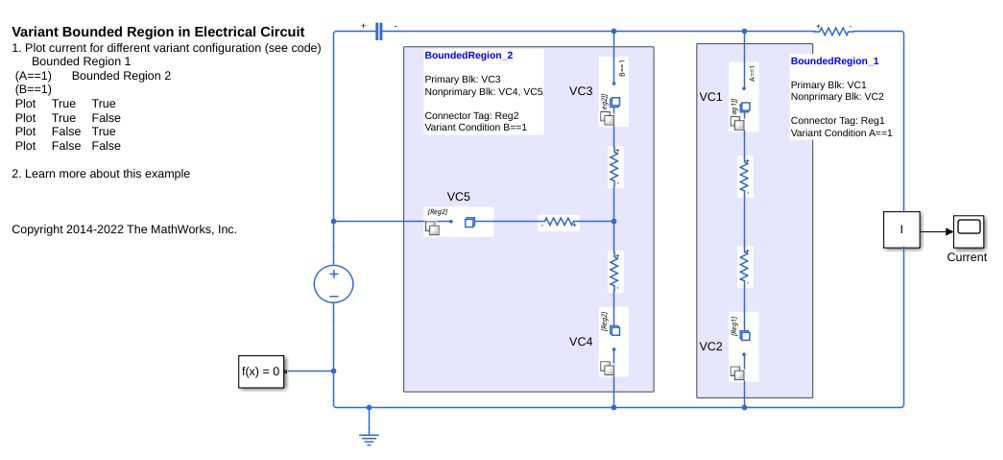

Variant Bounded Region in Electrical Circuit
Simulate the flow of a current in an electrical circuit for different variant configurations using primary and nonprimary type Variant Connector blocks. Variant Connector blocks allow you to activate or deactivate a set of components in the network during simulation without having to physically remove the components or exclude them from simulation.

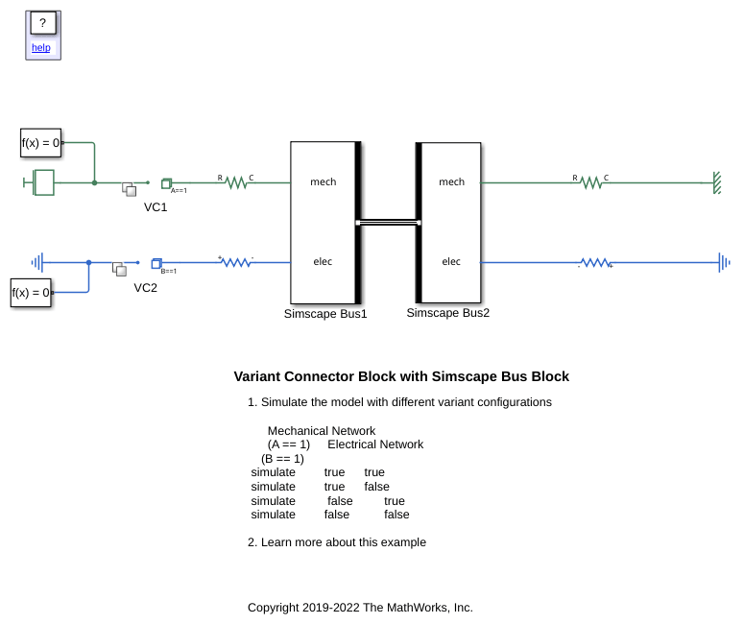

Variant Connector Block with Simscape Bus Block
Use Variant Connector blocks with the Simscape Bus block.

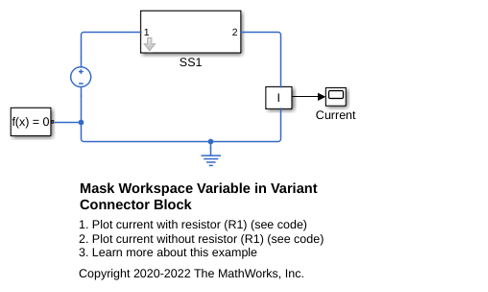

Mask Workspace Variable in Variant Connector Block
Use a mask workspace variable as a variant control variable in a Variant Connector block.
