IO Device Builder
L'applicazione IO Device Builder in Simulink® Support Package for Arduino® Hardware consente di creare rapidamente un System object™ per file sorgente (C/C++) personalizzati o di terze parti. È possibile utilizzare System object per creare un blocco Simulink utilizzando un blocco MATLAB® System.
Per utilizzare l'applicazione IO Device Builder, alla scheda Hardware nella barra degli strumenti di Simulink, andare a Prepare > Design > IO Device Builder. Una serie di istruzioni guida l'utente attraverso il processo di creazione di un System object e di un blocco Simulink.
Argomenti
- Get Started with IO Device Builder
Understand system requirements and work with IO Device Builder.
- Working with Arduino Libraries in IO Device Builder
Instructions to handle Arduino Libraries in IO Device Builder.
Informazioni complementari
Esempi in primo piano

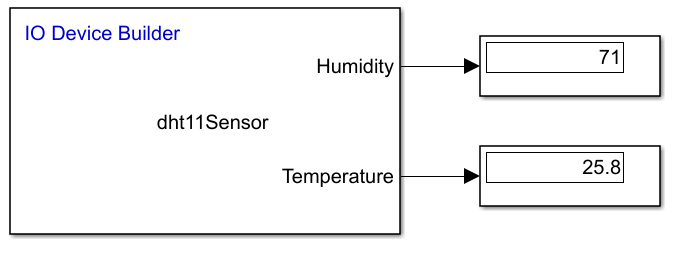

Create DHT11 Sensor Block to Measure Relative Humidity and Temperature Using IO Device Builder App
Use the IO Device Builder app to create DHT11 sensor for measuring relative humidity and temperature. In this example, the DHT11 sensor communicates with a microcontroller through a single-wire interface. The communication protocol is a proprietary one-wire protocol that uses a timing-based communication scheme. It detects water vapor by measuring the electrical resistance between two electrodes, and it measures temperature with a surface-mounted NTC temperature sensor (thermistor) built into the unit.
Create ADXL343 Sensor Block to Read Acceleration Using IO Device Builder App
Use the IO Device Builder app to create ADXL343 sensor to measure acceleration. In this example, the ADXL343 sensor values are retrieved by using the SPI bus requiring four wires (SCL, SDA, SDO and CS).
Create OLED Display Block to Display Acceleration Using IO Device Builder App
Use the IO Device Builder app to create ADXL343 sensor to measure acceleration and display the same in SH1106 OLED (Organic Light Emitting Diodes) display module.
Create OLED Display Block to Display Acceleration and Tap Count Using IO Device Builder App
Use the IO Device Builder app to create OLED Display block to measure acceleration, tap count and then display the same in OLED (Organic Light Emitting Diodes) display module.
Create OLED Display Block to Display Acceleration and Tap Count Using Arduino External Interrupt Block and IO Device Builder App
Use the IO Device Builder app to create OLED Display block to display acceleration and tap count using Arduino External Interrupt block.
