createBusPort

Create bus element port from bus block connected to port block

Since R2025a

Syntax

createBusPort(file,blk)

Description

createBusPort(file,blk) creates a bus element port in the model or subsystem file specified by file. The bus element port replaces the input or output port that connects to the Bus Selector or Bus Creator block specified by blk.

Examples

Create Output Bus Element Ports

To simplify your block diagram, replace output port blocks that connect to Bus Creator blocks. To group elements into buses at a model or subsystem interface, use Out Bus Element blocks.

Open a subsystem that contains a Bus Creator block connected to an Outport block.

openExample("simulink_features/SimulinkBusCapabilitiesExample")
open_system("BusCapabilities/PortConversion/Subsystem1")

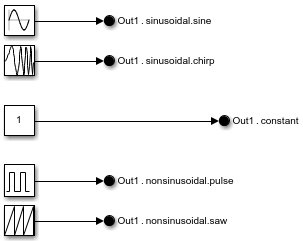

Replace the Bus Creator and Outport blocks with Out Bus Element blocks.

mdl = "BusCapabilities";
bcTop = "BusCapabilities/PortConversion/Subsystem1/BusCreator3";
createBusPort(mdl,bcTop)

Replace the Bus Creator and Out Bus Element blocks with lower-level Out Bus Element blocks.

bcNested1 = "BusCapabilities/PortConversion/Subsystem1/BusCreator1";
bcNested2 = "BusCapabilities/PortConversion/Subsystem1/BusCreator2";
createBusPort(mdl,bcNested1)
createBusPort(mdl,bcNested2)

Create Input Bus Element Ports

To simplify your block diagram, replace input port blocks that connect to Bus Selector blocks. To select bus elements at a model or subsystem interface, use In Bus Element blocks.

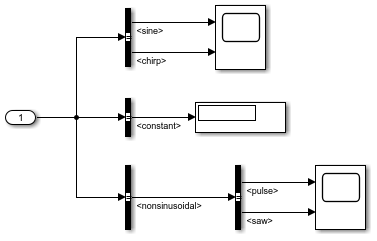

Open a subsystem that contains a Bus Selector block connected to an Inport block.

openExample("simulink_features/SimulinkBusCapabilitiesExample")
open_system("BusCapabilities/PortConversion/Subsystem2")

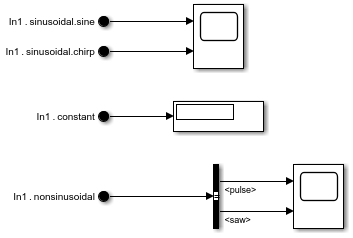

Replace the Bus Selector and Inport blocks with In Bus Element blocks.

mdl = "BusCapabilities";
bsTop1 = "BusCapabilities/PortConversion/Subsystem2/BusSelector1";
bsTop2 = "BusCapabilities/PortConversion/Subsystem2/BusSelector2";
bsTop3 = "BusCapabilities/PortConversion/Subsystem2/BusSelector3";
createBusPort(mdl,bsTop1)
createBusPort(mdl,bsTop2)
createBusPort(mdl,bsTop3)

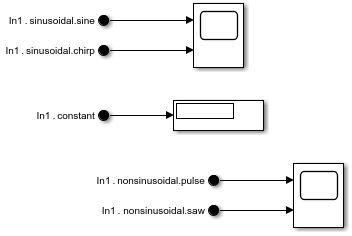

Replace the remaining Bus Selector block and related In Bus Element block with lower-level In Bus Element blocks.

bsNested = "BusCapabilities/PortConversion/Subsystem2/BusSelector4";
createBusPort(mdl,bsNested)

Input Arguments

file — Model or subsystem file

filename | handle

Model or subsystem file, specified as a filename or handle.

When you specify a filename, omit the file extension.

Example: createBusPort("mymodel","mymodel/Bus Creator")

Data Types: double | char | string

blk — Bus Creator or Bus Selector block

block path

Bus Creator or Bus Selector block connected to a port block, specified by the Bus Creator or Bus Selector block path.

Example: createBusPort("mymodel","mymodel/Bus Creator")

Data Types: char | string

Tips

• To convert multiple ports at a time, see simplifyInterfacesWithBusPorts.

• To convert ports interactively, see Simplify Subsystem and Model Interfaces with Bus Element Ports.

Version History

Introduced in R2025a
