Slider Gain

Vary scalar gain using slider

•

Libraries:
Simulink / Math Operations

Description

The Slider Gain block performs a scalar gain that you can modify during simulation. Modify the gain using the slider parameter.

Examples

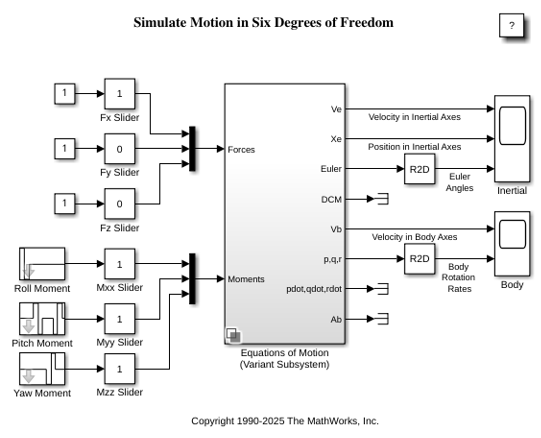

Simulate Motion in Six Degrees of Freedom (6DOF)

Model six degrees of freedom (6DOF) in Simulink®. The model in this example replicates the motions experienced by an object or vehicle in model in this example replicates axes of rotation (pitch, roll, and yaw) and three axes of translation (heave, surge, and sway). You can switch between using Euler angles and quaternions to model the equations of motion using the representation parameter of the Variant Subsystem block.

• Open Model

Ports

Input

Port_1 — Input signal

scalar | vector | matrix

The Slider Gain block accepts real or complex-valued scalar, vector, or matrix input. The block supports fixed-point data types.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point

Output

Port_1 — Input multiplied by gain

scalar | vector | matrix

The Slider Gain block outputs the input multiplied by a constant gain value. When the input to the block is real and gain is complex, the output is complex.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point

Parameters

Slider gain — Gain value

0 (default) | real value

Chose the gain value applied to the input.

Programmatic Use

Block Parameter: gain

Type: character vector

Values: real scalar

Default: '1'

Low — Lower limit of slider range

0 (default) | real value

Specify the lower limit of the slider range.

Programmatic Use

Block Parameter: low

Type: character vector

Values: real scalar

Default: '0'

High — Upper limit of slider range

2 (default) | real value

Specify the upper limit of the slider range.

Programmatic Use

Block Parameter: high

Type: character vector

Values: real scalar

Default: '2'

Block Characteristics

Data Types	Boolean | double | fixed point | integer | single
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	yes
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
