Set Up Xilinx Devices

Before you can use the features in the SoC Blockset™ Support Package for AMD FPGA and SoC Devices, you must establish communication between the host computer and the hardware board. After the installer completes the support package installation, it guides you through establishing communication with the hardware board.

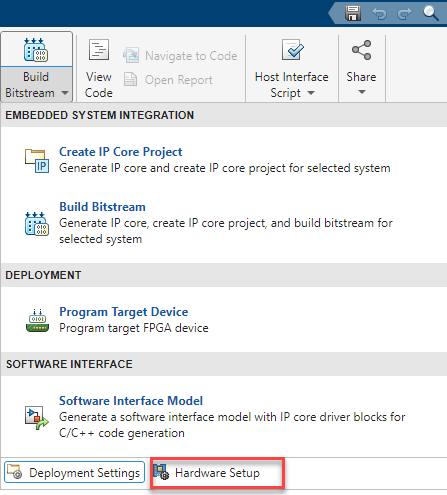

If the support package is already installed, you can start the hardware setup by opening the Add-On Manager.

In the Add-On Manager, start the hardware setup process by clicking the Setup button, .

Follow the instructions on each page of the Hardware Setup window. When the hardware setup process completes, you can open the examples to get familiar with the product and its features.

The setup process includes these steps if required for your board:

1. Download and install the third-party tools required for the SoC Blockset Support Package for AMD FPGA and SoC Devices.

2. Install a customized version of embedded operating system (OS) image on the hardware board.

3. Specify which hardware board and add-on card you are using.

4. Install and configure additional support packages and third-party tools required by hardware-software co-design workflow.

5. Configure the network interface card (NIC) in the host computer.

6. Write firmware for the hardware board to an SD card.

7. Configure your hardware board to start up from the SD card.

8. Connect your hardware board to the host computer.

9. Verify the connection between host and hardware board.

Notes

• The host computer can be a desktop or a laptop. It must have at least one dedicated Gigabit Ethernet NIC for connecting to the hardware board.

• These instructions assume that you are installing the support package on only one computer and have only one NIC.

• You can use a USB3 to Gigabit Ethernet LAN adapter instead of a NIC. The instructions are the same.

• Do not connect or turn on the board until you are prompted.

• Turn off antivirus, firewall, or other port-blocking software. It can interfere with communication to the hardware board.

• Because the software runs OS commands for configuring the NIC, you might require administrator privileges for the hardware setup. Start MATLAB^® using Run as administrator.

• If you are running utility software to configure the network (typically done on laptops), exit or uninstall the software. This type of software can interfere with the network configuration required to perform this setup.

Download and Install Third-Party Tools

The guided setup wizard displays the list of the third-party tools required for the SoC Blockset Support Package for AMD FPGA and SoC Devices. In the guided setup, click Install to automatically install the required tools.

Download and Install Avnet RFSoC Explorer

This step displays the Avnet^® RFSoC Explorer required for the OTAVA DTRX2 block. To automatically install the explorer, click Install. If you have a pre-installed version of explorer, you can verify the installation by clicking Verify. If you do not intend to work with the OTAVA DTRX2 block, skip the installation process by clicking Next.

Select Embedded OS Image

This step installs a customized version of the embedded OS image on the hardware board. You can either install a new MathWorks^® firmware image or update an existing firmware image.

• Install new MathWorks firmware — Install the new MathWorks firmware image to use MathWorks embedded OS firmware image with your hardware board. This options removes any existing software from the SD or MMC card.



• Update existing firmware — Update your existing firmware image to use your own embedded image. This option opens the OS Customizer tool. Use this tool to update the embedded OS image running on the hardware board with the required software for use with MATLAB or Simulink^®.



Select Hardware Board

Choose your hardware board and add-on card from the list. For the full list of supported boards, see Supported Third-Party Tools and Hardware.

You can generate code from your algorithm in Simulink or MATLAB and deploy it to the selected hardware board by using the SoC builder workflow or IP core generation workflow. For more information about these workflows, see SoC Generation Workflows.

For the IP core generation workflow, you must install additional MathWorks support packages.

• To generate code for the FPGA portion of the hardware board, you must install HDL Coder™ Support Package for Xilinx^® FPGA and SoC Devices.

• To generate code for the ARM^® portion of the hardware board, you must install Embedded Coder^® Support Package for AMD SoC Devices.

The table below lists the hardware boards and corresponding add-on cards available for selection through the hardware setup.

Note

In the hardware setup, select an add-on card only if you intend to use the IP core generation workflow. Set Add-On card to None if you intend to use the SoC builder workflow.

Board	Add-On Card
Xilinx Zynq® ZC702 Evaluation Kit	FMC-HDMI-CAM
Xilinx Zynq ZC706 Evaluation Kit	None
	FMCOMMS2/3/4
	FMCOMMS5
	FMC-HDMI-CAM
ZedBoard™	None
	FMCOMMS2/3/4
	FMC-HDMI-CAM
Xilinx Zynq UltraScale+™ MPSoC ZCU102 Evaluation Kit	None
	FMCOMMS2/3/4
	FMC-HDMI-CAM
Artix®-7 35T Arty FPGA Evaluation Kit	None
Xilinx Kintex®-7 KC705 Development Board	None
Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Kit	None
Xilinx Zynq UltraScale+ RFSoC ZCU216 Evaluation Kit	None
Xilinx Zynq UltraScale+ RFSoC ZCU208 Evaluation Kit	None
Versal® AI Core Series VCK190 Evaluation Kit	None
Xilinx Zynq UltraScale+ MPSoC ZCU106 Evaluation Kit	None
	FMC-HDMI-CAM
	IMX274MIPI-FMC
	USB Camera
PicoZed™	FMC-HDMI-CAM
ADI RF SOM	Not applicable

Setup for Hardware-Software Co-Design

This step is required only when you select an ADI RF SOM board or a Zynq SoC board with an FMCOMMS2/3/4 or FMCOMMS5 add-on card.

For the FPGA targeting and hardware-software co-design workflows, you must install additional MathWorks support packages.

• To generate code for the FPGA portion of the hardware board, you must install HDL Coder Support Package for Xilinx Zynq Platform (requires HDL Coder).

• To generate code for the ARM portion of the hardware board, you must install Embedded Coder Support Package for AMD SoC Devices (requires Embedded Coder, Simulink Coder™, and Embedded Coder Support Package for ARM Cortex^®-A Processors).

In addition to these support packages, you must also install and configure the Xilinx Vivado^® Design Suite with a supported version listed in Supported Third-Party Tools and Hardware.

If Xilinx Vivado is already installed on your system, you can set up HDL IP core repositories in MATLAB by following the instructions on the screen.

You can perform this step later by following the instructions in Installation for Hardware-Software Co-Design.

Select Network Configuration

This step is required only when you select a Zynq SoC or Versal board.

This step configures the host computer so that it can communicate with the hardware board. You must have a dedicated Gigabit Ethernet NIC for the hardware board, with an Ethernet cable connecting the card to your hardware board. If you also want simultaneous internet access, and you do not have a wireless connection, your host computer requires a second Ethernet NIC.

• Connect to LAN or home network — This option applies the dynamic network settings provided by a dynamic host configuration protocol (DHCP) service on the network.



• Connect directly to development computer — This option applies the static network settings based on the network settings of the host computer.



• Manually enter network settings — This option allows you to manually enter the network settings.



Select a Drive and Load Firmware

This step is required only when you select a Zynq SoC or Versal board.

The installer writes a firmware image to the SD card. This firmware image is included with the support package. The image includes the embedded software and the FPGA programming file for using the hardware as an I/O peripheral.

This step selects the location of the SD drive containing the card. Before downloading the firmware image to the card, unlock the SD card. Keep the card unlocked while the card is in the card reader of the hardware board.

Insert a 4 GB or larger SD card into the card reader on the host computer. The card must be formatted with FAT32 format. Select the appropriate drive from the list.

Write Firmware to SD Card

This step is required only when you select a Zynq SoC or Versal board.

To copy the programming file from the host computer to the SD card, click Write. Any existing data on the memory card is erased during this process.

Connect Hardware

After you have set up the board, follow the instructions for connecting the hardware board. These steps are labeled in the pictures of each board.

Connect SoC Hardware Boards

This section includes the instructions to connect a hardware board when you set Add-On card to None on the Select Hardware Board screen.

 Connect ZC706, ZedBoard, ZCU102, or ZCU106 Board

1. Remove the SD card from the host computer and insert it into the hardware board.

2. Configure the jumpers on the hardware board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card. Make sure that the board is turned off. To know more about the jumper settings for the supported boards, see Set Jumper Switches.

3. Connect a USB cable between the USB-UART port on the hardware board and the host computer.

4. Connect an Ethernet cable to the hardware board.

5. (Optional) Connect a USB cable between the JTAG port on the hardware board and the host computer.

6. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware board. Then, wait an additional 20 s for the board to boot its operating system and set up communication with the host computer. You see a green steady light. If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect ZC706 Board

Connect ZedBoard

Connect ZCU102 Board

Connect ZCU106 Board

 Connect Standalone FPGA Boards

1. Connect the power cable and turn on the power.

2. Connect a JTAG download cable to the board.

Connect Arty Board

Connect KC705 Board

 Connect ZCU111, ZCU216, or ZCU208 Board

1. Remove the SD card from the host computer and insert it into the hardware board.

2. Configure the jumpers on the hardware board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card. Make sure that the board is turned off. To know more about the jumper settings for the supported boards, see Set Jumper Switches.

3. Connect a USB cable to the hardware board.

4. Connect an Ethernet cable to the hardware board.

5. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware board. Then, wait an additional 20 s for the board to boot its operating system and set up communication with the host computer. You see a green steady light. If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect ZCU111 Board

Connect ZCU216 or ZCU208 Board

 Connect VCK190 Board

1. Remove the SD card from the host computer and insert it into the hardware board.

2. Insert a pre-programmed micro SD card into the Versal system controller micro SD card slot.

3. Connect a USB cable between the USB-UART port on the hardware board and the host computer.

4. Configure the jumpers on the hardware board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card. Make sure that the board is turned off. To know more about the jumper settings for the supported boards, see Set Jumper Switches.

5. Connect an Ethernet cable to the hardware board.

6. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware board. Then, wait an additional 20 s for the board to boot its operating system and set up communication with the host computer. You see a green steady light. If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect VCK190 Board

Connect Radio Hardware Boards

This section includes the instructions to connect a hardware board when you set Add-On card to FMCOMMS2/3/4 or FMCOMMS5 or you select the ADI RF SOM board on the Select Hardware Board screen.

 Connect ZC706, ZedBoard, or ZCU102 Board and FMCOMMS2/3/4 or FMCOMMS5 Card

1. Remove the SD card from the host computer and insert it into the hardware board.

2. Configure the jumpers on the hardware board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card. Make sure that the board is turned off. To know more about the jumper settings for the supported boards, see Set Jumper Switches.

3. Connect a USB cable between the USB-UART port on the hardware board and the host computer.

4. Connect an Ethernet cable to the hardware board.

5. Plug the RF card into the FMC connector.

6. Connect the antennas or loopback cable.

7. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware board. Then, wait an additional 20 s for the board to boot its operating system and set up communication with the host computer. You see a green steady light. If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect ZC706 Board and FMCOMMS2/3/4 Card

Connect ZC706 Board and FMCOMMS5 Card

Connect ZedBoard and FMCOMMS2/3/4 Card

Connect ZCU102 Board and FMCOMMS2/3/4 Card

 Connect ADI RF SOM Board

To use the development board as a radio hardware board, you must set its switch before connecting it to the host computer. This setting makes the board restart from the SD card. Make sure that the board is turned off.

1. Remove the SD card from the host computer and insert it into the hardware board.

2. Connect a USB cable between the USB-UART port on the hardware board and the host computer.

3. Connect an Ethernet cable to the Ethernet1 port of the carrier board.

4. Make sure that the ADI RF SOM hardware board is correctly installed in the carrier board.

5. Connect the U.FL to SMA coax connector cables to the TX1A, RX1A, TX2A, and RX2A ports on the ADI RF SOM hardware board. To know more about the mapping of port numbers to antennas, see Set Jumper Switches.

6. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware board. Then, wait an additional 20 s for the board to boot its operating system and set up communication with the host computer. You see a green steady light. If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect ADI RF SOM Board

Connect Vision Hardware Boards

This section includes the instructions to connect a hardware board when you set Add-On card to FMC-HDMI-CAM, IMX274MIPI-FMC, or USB Camera on the Select Hardware Board screen.

 Connect ZC702, ZC706, ZedBoard, ZCU102, ZCU106, or PicoZed Board and HDMI Card

1. Remove the SD card from the host computer and insert it into the Zynq board.

2. Configure the jumpers on the hardware board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card. Make sure that the board is turned off. To know more about the jumper settings for the supported boards, see Set Jumper Switches.

3. Connect a USB cable between the USB-UART port on the hardware board and the host computer.

4. Connect an Ethernet cable to the board. Connect the other end of the Ethernet cable to the NIC selected previously.

5. Plug the HDMI FMC card into the FMC connector on the Zynq board.

6. Connect an HDMI cable between the HDMI-Out port on the Zynq board and a monitor.

7. Connect an HDMI cable between the HDMI-In port on the Zynq board and an HD camera.

8. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware. Then, wait an additional 20 seconds for the board to boot its operating system and set up communication with the host machine.

Board	Ready Lights
ZC702 (near cell battery)	DONE (DS3) (Green, steady)
ZC706 (near power switch)	DONE (Green, steady)
ZedBoard (near DIP switches)	DONE (LD12) (Blue, steady)
ZCU102 (near push buttons)	DONE (Green, steady)
ZCU106	DONE (DS32) (Green, steady)
PicoZed 7030 (on carrier board, near JA1 PMOD connector)	FPGA DONE (Blue, steady)

If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect ZC702 Board and HDMI Card

Connect ZC706 Board and HDMI Card

Connect ZedBoard and HDMI Card

Connect ZCU102 Board and HDMI Card

Connect ZCU106 Board and HDMI Card

Connect PicoZed 7030 Board and HDMI Card

 Connect ZCU106 Board and MIPI Card

1. Remove the SD card from the host computer and insert it into the Zynq board.

2. Configure the jumpers on the hardware board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card. Make sure that the board is turned off. To know more about the jumper settings for the supported boards, see Set Jumper Switches.

3. Connect a USB cable between the USB-UART port on the hardware board and the host computer.

4. Connect an Ethernet cable to the board. Connect the other end of the Ethernet cable to the NIC selected previously.

5. Plug the IMX274MIPI FMC card into the HPC0 FMC connector on the Zynq board.

6. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware. Then, wait an additional 20 seconds for the board to boot its operating system and set up communication with the host machine.

Board	Ready Lights
ZCU106	DONE (DS32) (Green, steady)

If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect ZCU106 Board and MIPI Card

 Connect ZCU106 Board and USB Camera

1. Remove the SD card from the host computer and insert it into the Zynq board.

2. Configure the jumpers on the hardware board so that you can use it as a peripheral device. These jumper settings make it so that the board starts up from the SD card. Make sure that the board is turned off. To know more about the jumper settings for the supported boards, see Set Jumper Switches.

3. Connect a USB cable between the USB-UART port on the hardware board and the host computer.

4. Connect an Ethernet cable to the board. Connect the other end of the Ethernet cable to the NIC selected previously.

5. You can optionally use the JTAG port to connect the USB cable.

6. Plug a UVC USB 3.0 camera into the USB connector on the Zynq board.

7. Connect the power cable and turn on the power.

Wait until you see the LEDs indicating the readiness of the hardware. Then, wait an additional 20 seconds for the board to boot its operating system and set up communication with the host machine.

Board	Ready Lights
ZCU106	DONE (DS32) (Green, steady)

If the LEDs do not light up as indicated after one minute, press the reset switch and restart the board.

Connect ZCU106 Board and USB Camera

Verify Setup

This step is required only when you select a Zynq SoC or Versal board.

The guided setup runs the tests to verify the connection between the host computer and the hardware board based on the selected add-on card. Before you run the test, make sure that the board is turned on.

Click Verify to run the following verification tests:

Verify Setup for SoC Hardware Boards

The guided setup runs these tests when you set Add-On card to None on the Select Hardware Board screen.

• Test the network connection to the hardware board using a network ping.

• Generate and deploy a test model to the hardware board.

Verify Setup for Radio Hardware Boards

The guided setup runs these tests when you set Add-On card to FMCOMMS2/3/4 or FMCOMMS5 or you select the ADI RF SOM board on the Select Hardware Board screen.

• Test the network connection to the hardware board using a network ping.

• Test the data path between the host computer and the RF card.

Verify Setup for Vision Hardware Boards

The guided setup runs these tests when you set Add-On card to FMC-HDMI-CAM or IMX274MIPI-FMC on the Select Hardware Board screen.

• Test the network connection to the hardware board using a network ping.

If the connection is not successful, the most common reasons are that the board is not connected properly or it is not turned on. Check the cable connections and power switch and try again.

Open Examples

When the installer completes your hardware setup, you can either exit the installer or open the examples to get started.
