# compareHoldout

Compare accuracies of two classification models using new data

## Syntax

## Description

`compareHoldout`

statistically assesses the accuracies of
two classification models. The function first compares their predicted labels against
the true labels, and then it detects whether the difference between the
misclassification rates is statistically significant.

You can determine whether the accuracies of the classification models differ or
whether one model performs better than another. `compareHoldout`

can
conduct several McNemar test variations,
including the asymptotic test, the exact-conditional test, and the
mid-*p*-value test. For cost-sensitive assessment, available tests include a chi-square test
(requires Optimization Toolbox™) and a likelihood ratio test.

returns the test decision from testing the null hypothesis that the trained
classification models `h`

= compareHoldout(`C1`

,`C2`

,`T1`

,`T2`

,`ResponseVarName`

)`C1`

and `C2`

have
equal accuracy for predicting the true class labels in the
`ResponseVarName`

variable. The alternative hypothesis is
that the labels have unequal accuracy.

The first classification model `C1`

uses the predictor data
in `T1`

, and the second classification model
`C2`

uses the predictor data in `T2`

.
The tables `T1`

and `T2`

must contain the
same response variable but can contain different sets of predictors. By default,
the software conducts the mid-*p*-value McNemar test to compare
the accuracies.

`h`

= `1`

indicates rejecting the null
hypothesis at the 5% significance level. `h`

=
`0`

indicates not rejecting the null hypothesis at the 5%
level.

The following are examples of tests you can conduct:

Compare the accuracies of a simple classification model and a model that is more complex by passing the same set of predictor data (that is,

`T1`

=`T2`

).Compare the accuracies of two potentially different models using two potentially different sets of predictors.

Perform various types of Feature Selection. For example, you can compare the accuracy of a model trained using a set of predictors to the accuracy of one trained on a subset or different set of those predictors. You can choose the set of predictors arbitrarily, or use a feature selection technique such as PCA or sequential feature selection (see

`pca`

and`sequentialfs`

).

returns the test decision from testing the null hypothesis that the trained
classification models `h`

= compareHoldout(`C1`

,`C2`

,`T1`

,`T2`

,`Y`

)`C1`

and `C2`

have
equal accuracy for predicting the true class labels `Y`

. The
alternative hypothesis is that the labels have unequal accuracy.

The first classification model `C1`

uses the predictor data
`T1`

, and the second classification model
`C2`

uses the predictor data `T2`

. By
default, the software conducts the mid-*p*-value McNemar test
to compare the accuracies.

returns the test decision from testing the null hypothesis that the trained
classification models `h`

= compareHoldout(`C1`

,`C2`

,`X1`

,`X2`

,`Y`

)`C1`

and `C2`

have
equal accuracy for predicting the true class labels `Y`

. The
alternative hypothesis is that the labels have unequal accuracy.

The first classification model `C1`

uses the predictor data
`X1`

, and the second classification model
`C2`

uses the predictor data `X2`

. By
default, the software conducts the mid-*p*-value McNemar test
to compare the accuracies.

specifies options using one or more name-value pair arguments in addition to the
input argument combinations in previous syntaxes. For example, you can specify
the type of alternative hypothesis, specify the type of test, and supply a cost
matrix.`h`

= compareHoldout(___,`Name,Value`

)

## Examples

### Compare Accuracies of Full and Reduced Classification Models

Train two *k*-nearest neighbor classifiers, one using a subset of the predictors used for the other. Conduct a statistical test comparing the accuracies of the two models on a test set.

Load the `carsmall`

data set.

`load carsmall`

Create two tables of input data, where the second table excludes the predictor `Acceleration`

. Specify `Model_Year`

as the response variable.

T1 = table(Acceleration,Displacement,Horsepower,MPG,Model_Year); T2 = T1(:,2:end);

Create a partition that splits the data into training and test sets. Keep 30% of the data for testing.

rng(1) % For reproducibility CVP = cvpartition(Model_Year,'holdout',0.3); idxTrain = training(CVP); % Training-set indices idxTest = test(CVP); % Test-set indices

`CVP`

is a cross-validation partition object that specifies the training and test sets.

Train the `ClassificationKNN`

models using the `T1`

and `T2`

data.

C1 = fitcknn(T1(idxTrain,:),'Model_Year'); C2 = fitcknn(T2(idxTrain,:),'Model_Year');

`C1`

and `C2`

are trained `ClassificationKNN`

models.

Test whether the two models have equal predictive accuracies on the test set.

`h = compareHoldout(C1,C2,T1(idxTest,:),T2(idxTest,:),'Model_Year')`

`h = `*logical*
0

`h = 0`

indicates to not reject the null hypothesis that the two models have equal predictive accuracies.

### Compare Accuracies of Two Different Classification Models

Train two classification models using different algorithms. Conduct a statistical test comparing the misclassification rates of the two models on a test set.

Load the `ionosphere`

data set.

`load ionosphere`

Create a partition that evenly splits the data into training and test sets.

rng(1) % For reproducibility CVP = cvpartition(Y,'holdout',0.5); idxTrain = training(CVP); % Training-set indices idxTest = test(CVP); % Test-set indices

`CVP`

is a cross-validation partition object that specifies the training and test sets.

Train an SVM model and an ensemble of 100 bagged classification trees. For the SVM model, specify to use the radial basis function kernel and a heuristic procedure to determine the kernel scale.

C1 = fitcsvm(X(idxTrain,:),Y(idxTrain),'Standardize',true, ... 'KernelFunction','RBF','KernelScale','auto'); t = templateTree('Reproducible',true); % For reproducibility of random predictor selections C2 = fitcensemble(X(idxTrain,:),Y(idxTrain),'Method','Bag', ... 'Learners',t);

`C1`

is a trained `ClassificationSVM`

model. `C2`

is a trained `ClassificationBaggedEnsemble`

model.

Test whether the two models have equal predictive accuracies. Use the same test-set predictor data for each model.

h = compareHoldout(C1,C2,X(idxTest,:),X(idxTest,:),Y(idxTest))

`h = `*logical*
0

`h = 0`

indicates to not reject the null hypothesis that the two models have equal predictive accuracies.

### Compare Classification Model to More Complex Model

Train two classification models using the same algorithm, but adjust a hyperparameter to make the algorithm more complex. Conduct a statistical test to assess whether the simpler model has better accuracy on test data than the more complex model.

Load the `ionosphere`

data set.

`load ionosphere;`

Create a partition that evenly splits the data into training and test sets.

rng(1); % For reproducibility CVP = cvpartition(Y,'holdout',0.5); idxTrain = training(CVP); % Training-set indices idxTest = test(CVP); % Test-set indices

`CVP`

is a cross-validation partition object that specifies the training and test sets.

Train two SVM models: one that uses a linear kernel (the default for binary classification) and one that uses the radial basis function kernel. Use the default kernel scale of 1.

C1 = fitcsvm(X(idxTrain,:),Y(idxTrain),'Standardize',true); C2 = fitcsvm(X(idxTrain,:),Y(idxTrain),'Standardize',true,... 'KernelFunction','RBF');

`C1`

and `C2`

are trained `ClassificationSVM`

models.

Test the null hypothesis that the simpler model (`C1`

) is at most as accurate as the more complex model (`C2`

). Because the test-set size is large, conduct the asymptotic McNemar test, and compare the results with the mid-*p*-value test (the cost-insensitive testing default). Request to return *p*-values and misclassification rates.

Asymp = zeros(4,1); % Preallocation MidP = zeros(4,1); [Asymp(1),Asymp(2),Asymp(3),Asymp(4)] = compareHoldout(C1,C2,... X(idxTest,:),X(idxTest,:),Y(idxTest),'Alternative','greater',... 'Test','asymptotic'); [MidP(1),MidP(2),MidP(3),MidP(4)] = compareHoldout(C1,C2,... X(idxTest,:),X(idxTest,:),Y(idxTest),'Alternative','greater'); table(Asymp,MidP,'RowNames',{'h' 'p' 'e1' 'e2'})

`ans=`*4×2 table*
Asymp MidP
__________ __________
h 1 1
p 7.2801e-09 2.7649e-10
e1 0.13714 0.13714
e2 0.33143 0.33143

The *p*-value is close to zero for both tests, providing strong evidence to reject the null hypothesis that the simpler model is less accurate than the more complex model. No matter what test you specify, `compareHoldout`

returns the same type of misclassification measure for both models.

### Conduct Cost-Sensitive Comparison of Two Classification Models

For data sets with imbalanced class representations, or for data sets with imbalanced false-positive and false-negative costs, you can statistically compare the predictive performance of two classification models by including a cost matrix in the analysis.

Load the `arrhythmia`

data set. Determine the class representations in the data.

```
load arrhythmia;
Y = categorical(Y);
tabulate(Y);
```

Value Count Percent 1 245 54.20% 2 44 9.73% 3 15 3.32% 4 15 3.32% 5 13 2.88% 6 25 5.53% 7 3 0.66% 8 2 0.44% 9 9 1.99% 10 50 11.06% 14 4 0.88% 15 5 1.11% 16 22 4.87%

There are 16 classes, however some are not represented in the data set (for example, class 13). Most observations are classified as not having arrhythmia (class 1). The data set is highly discrete with imbalanced classes.

Combine all observations with arrhythmia (classes 2 through 15) into one class. Remove those observations with unknown arrhythmia status (class 16) from the data set.

idx = (Y ~= '16'); Y = Y(idx); X = X(idx,:); Y(Y ~= '1') = 'WithArrhythmia'; Y(Y == '1') = 'NoArrhythmia'; Y = removecats(Y);

Create a partition that evenly splits the data into training and test sets.

rng(1); % For reproducibility CVP = cvpartition(Y,'holdout',0.5); idxTrain = training(CVP); % Training-set indices idxTest = test(CVP); % Test-set indices

`CVP`

is a cross-validation partition object that specifies the training and test sets.

Create a cost matrix such that misclassifying a patient with arrhythmia into the "no arrhythmia" class is five times worse than misclassifying a patient without arrhythmia into the arrhythmia class. Classifying correctly incurs no cost. The rows indicate the true class and the columns indicate the predicted class. When you conduct a cost-sensitive analysis, a good practice is to specify the order of the classes.

cost = [0 1;5 0]; ClassNames = {'NoArrhythmia','WithArrhythmia'};

Train two boosting ensembles of 50 classification trees, one that uses AdaBoostM1 and another that uses LogitBoost. Because the data set contains missing values, specify to use surrogate splits. Train the models using the cost matrix.

t = templateTree('Surrogate','on'); numTrees = 50; C1 = fitcensemble(X(idxTrain,:),Y(idxTrain),'Method','AdaBoostM1', ... 'NumLearningCycles',numTrees,'Learners',t, ... 'Cost',cost,'ClassNames',ClassNames); C2 = fitcensemble(X(idxTrain,:),Y(idxTrain),'Method','LogitBoost', ... 'NumLearningCycles',numTrees,'Learners',t, ... 'Cost',cost,'ClassNames',ClassNames);

`C1`

and `C2`

are trained `ClassificationEnsemble`

models.

Compute the classification loss for the test data by using the `loss`

function. Specify `LossFun`

as `'classifcost'`

to compute the misclassification cost.

L1 = loss(C1,X(idxTest,:),Y(idxTest),'LossFun','classifcost')

L1 = 0.6642

L2 = loss(C2,X(idxTest,:),Y(idxTest),'LossFun','classifcost')

L2 = 0.8018

The misclassification cost for the AdaBoostM1 ensemble (`C1`

) is less than the cost for the LogitBoost ensemble (`C2`

).

Test whether the difference is statistically significant. Conduct the asymptotic, likelihood ratio, cost-sensitive test (the default when you pass in a cost matrix). Supply the cost matrix, and return the *p*-values and misclassification costs.

[h,p,e1,e2] = compareHoldout(C1,C2,X(idxTest,:),X(idxTest,:),Y(idxTest),... 'Cost',cost,'ClassNames',ClassNames)

`h = `*logical*
0

p = 0.1180

e1 = 0.6698

e2 = 0.8093

`h = 0`

indicates to not reject the null hypothesis that the two models have equal predictive accuracies.

The `loss`

function uses observation weights normalized by the prior probabilities (stored in the `Prior`

property of the trained model), but the `compareHoldout`

function does not use observation weights and prior probabilities. Therefore, the misclassification cost values (`L1`

and `L2`

) computed by the `loss`

function can be different from the values (`e1`

and `e2`

) computed by the `compareHoldout`

function.

### Select Features Using Statistical Accuracy Comparison

Reduce classification model complexity by selecting a subset of predictor variables (features) from a larger set. Then, statistically compare the out-of-sample accuracy between the two models.

Load the `ionosphere`

data set.

`load ionosphere;`

Create a partition that evenly splits the data into training and test sets.

rng(1); % For reproducibility CVP = cvpartition(Y,'holdout',0.5); idxTrain = training(CVP); % Training-set indices idxTest = test(CVP); % Test-set indices

`CVP`

is a cross-validation partition object that specifies the training and test sets.

Train an ensemble of 100 boosted classification trees using AdaBoostM1 and the entire set of predictors. Inspect the importance measure for each predictor.

t = templateTree('MaxNumSplits',1); % Weak-learner template tree object C2 = fitcensemble(X(idxTrain,:),Y(idxTrain),'Method','AdaBoostM1',... 'Learners',t); predImp = predictorImportance(C2); figure; bar(predImp); h = gca; h.XTick = 1:2:h.XLim(2)

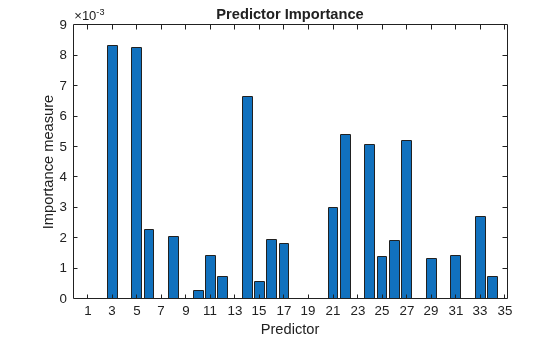

h = Axes with properties: XLim: [-0.2000 35.2000] YLim: [0 0.0090] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Use GET to show all properties

title('Predictor Importance'); xlabel('Predictor'); ylabel('Importance measure');

Identify the top five predictors in terms of their importance.

```
[~,idxSort] = sort(predImp,'descend');
idx5 = idxSort(1:5);
```

Train another ensemble of 100 boosted classification trees using AdaBoostM1 and the five predictors with the greatest importance.

C1 = fitcensemble(X(idxTrain,idx5),Y(idxTrain),'Method','AdaBoostM1',... 'Learners',t);

Test whether the two models have equal predictive accuracies. Specify the reduced test-set predictor data for `C1`

and the full test-set predictor data for `C2`

.

[h,p,e1,e2] = compareHoldout(C1,C2,X(idxTest,idx5),X(idxTest,:),Y(idxTest))

`h = `*logical*
0

p = 0.7744

e1 = 0.0914

e2 = 0.0857

`h = 0`

indicates to not reject the null hypothesis that the two models have equal predictive accuracies. This result favors the simpler ensemble, `C1`

.

## Input Arguments

`C1`

— First trained classification model

trained classification model object | trained, compact classification model object

First trained classification model, specified as any trained classification model object or compact classification model object described in this table.

`C2`

— Second trained classification model

trained classification model object | trained, compact classification model object

Second trained classification model, specified as any trained
classification model object or compact classification model object that is a
valid choice for `C1`

.

`T1`

— Test-set predictor data for first classification model

table

Test-set predictor data for the first classification model,
`C1`

, specified as a table. Each row of
`T1`

corresponds to one observation, and each column
corresponds to one predictor variable. Optionally, `T1`

can contain an additional column for the response variable.
`T1`

must contain all the predictors used to train
`C1`

. Multicolumn variables and cell arrays other
than cell arrays of character vectors are not allowed.

`T1`

and `T2`

must have the same
number of rows and the same response values. If `T1`

and
`T2`

contain the response variable used to train
`C1`

and `C2`

, then you do not
need to specify `ResponseVarName`

or
`Y`

.

**Data Types: **`table`

`T2`

— Test-set predictor data for second classification model

table

Test-set predictor data for the second classification model,
`C2`

, specified as a table. Each row of
`T2`

corresponds to one observation, and each column
corresponds to one predictor variable. Optionally, `T2`

can contain an additional column for the response variable.
`T2`

must contain all the predictors used to train
`C2`

. Multicolumn variables and cell arrays other
than cell arrays of character vectors are not allowed.

`T1`

and `T2`

must have the same
number of rows and the same response values. If `T1`

and
`T2`

contain the response variable used to train
`C1`

and `C2`

, then you do not
need to specify `ResponseVarName`

or
`Y`

.

**Data Types: **`table`

`X1`

— Test-set predictor data for first classification model

numeric matrix

Test-set predictor data for the first classification model, `C1`

,
specified as a numeric matrix.

Each row of `X1`

corresponds to one observation (also known as an instance
or example), and each column corresponds to one variable (also known as a predictor or
feature). The variables used to train `C1`

must compose
`X1`

.

The number of rows in `X1`

and `X2`

must equal the
number of rows in `Y`

.

**Data Types: **`double`

| `single`

`X2`

— Test-set predictor data for second classification model

numeric matrix

Test-set predictor data for the second classification model, `C2`

,
specified as a numeric matrix.

Each row of `X2`

corresponds to one observation (also known as an instance
or example), and each column corresponds to one variable (also known as a predictor or
feature). The variables used to train `C2`

must compose
`X2`

.

The number of rows in `X2`

and `X1`

must equal the
number of rows in `Y`

.

**Data Types: **`double`

| `single`

`ResponseVarName`

— Response variable name

name of a variable in `T1`

and
`T2`

Response variable name, specified as the name of a variable in
`T1`

and `T2`

. If
`T1`

and `T2`

contain the response
variable used to train `C1`

and `C2`

,
then you do not need to specify `ResponseVarName`

.

You must specify `ResponseVarName`

as a character
vector or string scalar. For example, if the response variable is stored as
`T1.Response`

, then specify it as
`'Response'`

. Otherwise, the software treats all
columns of `T1`

and `T2`

, including
`Response`

, as predictors.

The response variable must be a categorical, character, or string array, logical or numeric vector, or cell array of character vectors. If the response variable is a character array, then each element must correspond to one row of the array.

**Data Types: **`char`

| `string`

`Y`

— True class labels

categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

True class labels, specified as a categorical, character, or string array, logical or numeric vector, or cell array of character vectors.

When you specify `Y`

, `compareHoldout`

treats all variables
in the matrices `X1`

and `X2`

or the tables
`T1`

and `T2`

as predictor variables.

If `Y`

is a character array, then each element must correspond to one row
of the array.

The number of rows in the predictor data must equal the number of rows in
`Y`

.

**Data Types: **`categorical`

| `char`

| `string`

| `logical`

| `single`

| `double`

| `cell`

**Note**

`NaN`

s, `<undefined>`

values, empty
character vectors (`''`

), empty strings
(`""`

), and `<missing>`

values indicate
missing values. `compareHoldout`

removes missing values in
`Y`

and the corresponding rows of
`X1`

and `X2`

. Additionally,
`compareHoldout`

predicts classes whether
`X1`

and `X2`

have missing
observations.

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **```
compareHoldout(C1,C2,X1,X2,Y,'Alternative','greater','Test','asymptotic','Cost',[0
2;1 0])
```

tests whether the first set of predicted class labels is more
accurate than the second set, conducts the asymptotic McNemar test, and penalizes
misclassifying observations with the true label `ClassNames{1}`

twice as much as misclassifying observations with the true label
`ClassNames{2}`

.

`Alpha`

— Hypothesis test significance level

`0.05`

(default) | scalar value in the interval (0,1)

Hypothesis test significance level, specified as the comma-separated
pair consisting of `'Alpha'`

and a scalar value in
the interval (0,1).

**Example: **`'Alpha',0.1`

**Data Types: **`single`

| `double`

`Alternative`

— Alternative hypothesis to assess

`'unequal'`

(default) | `'greater'`

| `'less'`

Alternative hypothesis to assess, specified as the comma-separated pair consisting of
`'Alternative'`

and one of the values listed in this table.

Value | Alternative Hypothesis |
---|---|

`'unequal'` (default) | For predicting `Y` , the set of predictions
resulting from `C1` applied to `X1` and `C2` applied
to `X2` have unequal accuracies. |

`'greater'` | For predicting `Y` , the set of predictions
resulting from `C1` applied to `X1` is
more accurate than `C2` applied to `X2` . |

`'less'` | For predicting `Y` , the set of predictions
resulting from `C1` applied to `X1` is
less accurate than `C2` applied to `X2` . |

**Example: **`'Alternative','greater'`

`ClassNames`

— Class names

categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

Class names, specified as the comma-separated pair consisting of
`'ClassNames'`

and a categorical, character, or string array,
logical or numeric vector, or cell array of character vectors. You must set
`ClassNames`

using the data type of
`Y`

.

If `ClassNames`

is a character array, then each element must correspond to
one row of the array.

Use `ClassNames`

to:

Specify the order of any input argument dimension that corresponds to class order. For example, use

`ClassNames`

to specify the order of the dimensions of`Cost`

.Select a subset of classes for testing. For example, suppose that the set of all distinct class names in

`Y`

is`{'a','b','c'}`

. To train and test models using observations from classes`'a'`

and`'c'`

only, specify`'ClassNames',{'a','c'}`

.

The default is the set of all distinct class names in `Y`

.

**Example: **`'ClassNames',{'b','g'}`

**Data Types: **`categorical`

| `char`

| `string`

| `logical`

| `single`

| `double`

| `cell`

`Cost`

— Misclassification cost

square matrix | structure array

Misclassification cost, specified as the comma-separated pair consisting of
`'Cost'`

and a square matrix or structure array.

If you specify the square matrix

`Cost`

, then`Cost(i,j)`

is the cost of classifying a point into class`j`

if its true class is`i`

. That is, the rows correspond to the true class and the columns correspond to the predicted class. To specify the class order for the corresponding rows and columns of`Cost`

, additionally specify the`ClassNames`

name-value pair argument.If you specify the structure

`S`

, then`S`

must have two fields:`S.ClassNames`

, which contains the class names as a variable of the same data type as`Y`

. You can use this field to specify the order of the classes.`S.ClassificationCosts`

, which contains the cost matrix, with rows and columns ordered as in`S.ClassNames`

.

If you specify `Cost`

, then `compareHoldout`

cannot conduct
one-sided, exact, or mid-*p* tests. You must also specify
`'Alternative','unequal','Test','asymptotic'`

. For cost-sensitive
testing options, see the `CostTest`

name-value pair argument.

A best practice is to supply the same cost matrix used to train the classification models.

The default is `Cost(i,j) = 1`

if ```
i
~= j
```

, and `Cost(i,j) = 0`

if ```
i
= j
```

.

**Example: **`'Cost',[0 1 2 ; 1 0 2; 2 2 0]`

**Data Types: **`single`

| `double`

| `struct`

`CostTest`

— Cost-sensitive test type

`'likelihood'`

(default) | `'chisquare'`

Cost-sensitive test type, specified as the comma-separated pair
consisting of `'CostTest'`

and
`'chisquare'`

or `'likelihood'`

.
If you do not specify a cost matrix using the `Cost`

name-value pair argument, `compareHoldout`

ignores
`CostTest`

.

This table summarizes the available options for cost-sensitive testing.

Value | Asymptotic Test Type | Requirements |
---|---|---|

`'chisquare'` | Chi-square test | Optimization Toolbox to implement `quadprog` (Optimization Toolbox) |

`'likelihood'` | Likelihood ratio test | None |

For more details, see Cost-Sensitive Testing.

**Example: **`'CostTest','chisquare'`

`Test`

— Test to conduct

`'asymptotic'`

| `'exact'`

| `'midp'`

Test to conduct, specified as the comma-separated pair consisting of
`'Test'`

and `'asymptotic'`

,
`'exact'`

, or `'midp'`

.

This table summarizes the available options for cost-insensitive testing.

Value | Description |
---|---|

`'asymptotic'` | Asymptotic McNemar test |

`'exact'` | Exact-conditional McNemar test |

`'midp'` (default) | Mid-p-value McNemar test |

For more details, see McNemar Tests.

For cost-sensitive testing, `Test`

must be
`'asymptotic'`

. When you specify the
`Cost`

name-value pair argument and choose a
cost-sensitive test using the `CostTest`

name-value
pair argument, `'asymptotic'`

is the default.

**Example: **`'Test','asymptotic'`

## Output Arguments

`h`

— Hypothesis test result

`1`

| `0`

Hypothesis test result, returned as a logical value.

`h = 1`

indicates the rejection of the null
hypothesis at the `Alpha`

significance level.

`h = 0`

indicates failure to reject the null hypothesis at the
`Alpha`

significance level.

**Data Types: **`logical`

`p`

— *p*-value

scalar in the interval [0,1]

*p*-value of the test, returned as a scalar in the
interval [0,1]. `p`

is the probability that a random test
statistic is at least as extreme as the observed test statistic, given that
the null hypothesis is true.

`compareHoldout`

estimates `p`

using
the distribution of the test statistic, which varies with the type of test.
For details on test statistics derived from the available variants of the
McNemar test, see McNemar Tests. For details on test statistics
derived from cost-sensitive tests, see Cost-Sensitive Testing.

**Data Types: **`double`

`e1`

— Classification loss

numeric scalar

Classification loss, returned as a numeric scalar. `e1`

summarizes the accuracy of the first set of class labels predicting the true
class labels (`Y`

). `compareHoldout`

applies the first test-set predictor data (`X1`

) to the
first classification model (`C1`

) to estimate the first
set of class labels. Then, the function compares the estimated labels to
`Y`

to obtain the classification loss.

For cost-insensitive testing, `e1`

is the
misclassification rate. That is, `e1`

is the proportion
of misclassified observations, which is a scalar in the interval
[0,1].

For cost-sensitive testing, `e1`

is the
misclassification cost. That is, `e1`

is the weighted
average of the misclassification costs, in which the weights are the
respective estimated proportions of misclassified observations.

For more information, see Classification Loss.

**Data Types: **`double`

`e2`

— Classification loss

numeric scalar

Classification loss, returned as a numeric scalar. `e2`

summarizes the accuracy of the second set of class labels predicting the
true class labels (`Y`

).
`compareHoldout`

applies the second test-set
predictor data (`X2`

) to the second classification model
(`C2`

) to estimate the second set of class labels.
Then, the function compares the estimated labels to `Y`

to obtain the classification loss.

For cost-insensitive testing, `e2`

is the
misclassification rate. That is, `e2`

is the proportion
of misclassified observations, which is a scalar in the interval
[0,1].

For cost-sensitive testing, `e2`

is the
misclassification cost. That is, `e2`

is the weighted
average of the misclassification costs, in which the weights are the
respective estimated proportions of misclassified observations.

For more information, see Classification Loss.

**Data Types: **`double`

## Limitations

`compareHoldout`

does not compare ECOC models composed of linear or kernel classification models (that is,`ClassificationLinear`

or`ClassificationKernel`

model objects). To compare`ClassificationECOC`

models composed of linear or kernel classification models, use`testcholdout`

instead.Similarly,

`compareHoldout`

does not compare`ClassificationLinear`

or`ClassificationKernel`

model objects. To compare these models, use`testcholdout`

instead.

## More About

### Cost-Sensitive Testing

Conduct *cost-sensitive testing* when the cost of
misclassification is imbalanced. By conducting a cost-sensitive analysis, you can
account for the cost imbalance when you train the classification models and when you
statistically compare them.

If the cost of misclassification is imbalanced, then the misclassification rate tends to be a poorly performing classification loss. Use misclassification cost instead to compare classification models.

Misclassification costs are often imbalanced in applications. For example, consider classifying subjects based on a set of predictors into two categories: healthy and sick. Misclassifying a sick subject as healthy poses a danger to the subject's life. However, misclassifying a healthy subject as sick typically causes some inconvenience, but does not pose significant danger. In this situation, you assign misclassification costs such that misclassifying a sick subject as healthy is more costly than misclassifying a healthy subject as sick.

The definitions that follow summarize the cost-sensitive tests. In the definitions:

*n*and $${\widehat{\pi}}_{ijk}$$ are the number and estimated proportion of test-sample observations with the following characteristics._{ijk}*k*is the true class,*i*is the label assigned by the first classification model, and*j*is the label assigned by the second classification model. The unknown true value of $${\widehat{\pi}}_{ijk}$$ is*π*. The test-set sample size is $$\sum _{i,j,k}{n}_{ijk}={n}_{test}.$$ Additionally, $$\sum _{i,j,k}{\pi}_{ijk}=\sum _{i,j,k}{\widehat{\pi}}_{ijk}=1.$$_{ijk}*c*is the relative cost of assigning label_{ij}*j*to an observation with true class*i*.*c*= 0,_{ii}*c*≥ 0, and, for at least one (_{ij}*i*,*j*) pair,*c*> 0._{ij}All subscripts take on integer values from 1 through

*K*, which is the number of classes.The expected difference in the misclassification costs of the two classification models is

$$\delta ={\displaystyle \sum _{i=1}^{K}{\displaystyle \sum _{j=1}^{K}{\displaystyle \sum}_{k=1}^{K}\left({c}_{ki}-{c}_{kj}\right){\pi}_{ijk}}}.$$

The hypothesis test is

$$\begin{array}{c}{H}_{0}:\delta =0\\ {H}_{1}:\delta \ne 0\end{array}.$$

The available cost-sensitive tests are appropriate for two-tailed testing.

Available asymptotic tests that address imbalanced costs are a
*chi-square test* and a *likelihood ratio
test*.

Chi-square test — The chi-square test statistic is based on the Pearson and Neyman chi-square test statistics, but with a Laplace correction factor to account for any

*n*= 0. The test statistic is_{ijk}$${t}_{{\chi}^{2}}^{\ast}=\sum _{i\ne j}\sum _{k}\frac{{\left({n}_{ijk}+1-\left({n}_{test}+{K}^{3}\right){\widehat{\pi}}_{ijk}^{(1)}\right)}^{2}}{{n}_{ijk}+1}.$$

If $$1-{F}_{{\chi}^{2}}\left({t}_{{\chi}^{2}}^{\ast};1\right)<\alpha $$, then reject

*H*_{0}.$${\widehat{\pi}}_{ijk}^{(1)}$$ are estimated by minimizing $${t}_{{\chi}^{2}}^{\ast}$$ under the constraint that

*δ*= 0.$${F}_{{\chi}^{2}}(x;1)$$ is the

*χ*^{2}cdf with one degree of freedom evaluated at*x*.

Likelihood ratio test — The likelihood ratio test is based on

*N*, which are binomial random variables with sample size_{ijk}*n*and success probability_{test}*π*. The random variables represent the random number of observations with: true class_{ijk}*k*, label*i*assigned by the first classification model, and label*j*assigned by the second classification model. Jointly, the distribution of the random variables is multinomial.The test statistic is

$${t}_{LRT}^{\ast}=2\mathrm{log}\left[\frac{P\left(\underset{i,j,k}{\cap}{N}_{ijk}={n}_{ijk};{n}_{test},{\widehat{\pi}}_{ijk}={\widehat{\pi}}_{ijk}^{(2)}\right)}{P\left(\underset{i,j,k}{\cap}{N}_{ijk}={n}_{ijk};{n}_{test},{\widehat{\pi}}_{ijk}={\widehat{\pi}}_{ijk}^{(3)}\right)}\right].$$

If $$1-{F}_{{\chi}^{2}}\left({t}_{LRT}^{\ast};1\right)<\alpha ,$$ then reject

*H*_{0}.$${\widehat{\pi}}_{ijk}^{(2)}=\frac{{n}_{ijk}}{{n}_{test}}$$ is the unrestricted MLE of

*π*._{ijk}$${\widehat{\pi}}_{ijk}^{(3)}=\frac{{n}_{ijk}}{{n}_{test}+\lambda ({c}_{ki}-{c}_{kj})}$$ is the MLE under the null hypothesis that

*δ*= 0.*λ*is the solution to$$\sum _{i,j,k}\frac{{n}_{ijk}({c}_{ki}-{c}_{kj})}{{n}_{test}+\lambda ({c}_{ki}-{c}_{kj})}=0.$$

$${F}_{{\chi}^{2}}(x;1)$$ is the

*χ*^{2}cdf with one degree of freedom evaluated at*x*.

### McNemar Tests

*McNemar Tests* are hypothesis
tests that compare two population proportions while addressing the
issues resulting from two dependent, matched-pair samples.

One way to compare the predictive accuracies of two classification models is:

Partition the data into training and test sets.

Train both classification models using the training set.

Predict class labels using the test set.

Summarize the results in a two-by-two table similar to this figure.

*n*are the number of concordant pairs, that is, the number of observations that both models classify the same way (correctly or incorrectly)._{ii}*n*,_{ij}*i*≠*j*, are the number of discordant pairs, that is, the number of observations that models classify differently (correctly or incorrectly).

The misclassification rates for Models 1 and 2 are $${\widehat{\pi}}_{2\u2022}={n}_{2\u2022}/n$$ and $${\widehat{\pi}}_{\u20222}={n}_{\u20222}/n$$, respectively. A two-sided test for comparing the accuracy of the two models is

$$\begin{array}{c}{H}_{0}:{\pi}_{\u20222}={\pi}_{2\u2022}\\ {H}_{1}:{\pi}_{\u20222}\ne {\pi}_{2\u2022}\end{array}.$$

The null hypothesis suggests that the population exhibits marginal
homogeneity, which reduces the null hypothesis to $${H}_{0}:{\pi}_{12}={\pi}_{21}.$$ Also, under the null hypothesis,
*N*_{12} ~
Binomial(*n*_{12} +
*n*_{21},0.5) [1].

These facts are the basis for the available McNemar test variants: the
*asymptotic*, *exact-conditional*, and
*mid-p-value* McNemar tests. The definitions that follow summarize
the available variants.

Asymptotic — The asymptotic McNemar test statistics and rejection regions (for significance level

*α*) are:For one-sided tests, the test statistic is

$${t}_{a1}^{\ast}=\frac{{n}_{12}-{n}_{21}}{\sqrt{{n}_{12}+{n}_{21}}}.$$

If $$1-\Phi \left(\left|{t}_{1}^{\ast}\right|\right)<\alpha ,$$ where

*Φ*is the standard Gaussian cdf, then reject*H*_{0}.For two-sided tests, the test statistic is

$${t}_{a2}^{\ast}=\frac{{\left({n}_{12}-{n}_{21}\right)}^{2}}{{n}_{12}+{n}_{21}}.$$

If $$1-{F}_{{\chi}^{2}}\left({t}_{2}^{\ast};m\right)<\alpha $$, where $${F}_{{\chi}^{2}}(x;m)$$ is the

*χ*_{m}^{2}cdf evaluated at*x*, then reject*H*_{0}.

The asymptotic test requires large-sample theory, specifically, the Gaussian approximation to the binomial distribution.

The total number of discordant pairs, $${n}_{d}={n}_{12}+{n}_{21}$$, must be greater than 10 ([1], Ch. 10.1.4).

In general, asymptotic tests do not guarantee nominal coverage. The observed probability of falsely rejecting the null hypothesis can exceed

*α*, as suggested in simulation studies in [2]. However, the asymptotic McNemar test performs well in terms of statistical power.

Exact-Conditional — The exact-conditional McNemar test statistics and rejection regions (for significance level

*α*) are ([4], [5]):For one-sided tests, the test statistic is

$${t}_{1}^{\ast}={n}_{12}.$$

If $${F}_{\text{Bin}}\left({t}_{1}^{\ast};{n}_{d},0.5\right)<\alpha $$, where $${F}_{\text{Bin}}\left(x;n,p\right)$$ is the binomial cdf with sample size

*n*and success probability*p*evaluated at*x*, then reject*H*_{0}.For two-sided tests, the test statistic is

$${t}_{2}^{\ast}=\mathrm{min}({n}_{12},{n}_{21}).$$

If $${F}_{\text{Bin}}\left({t}_{2}^{\ast};{n}_{d},0.5\right)<\alpha /2$$, then reject

*H*_{0}.

The exact-conditional test always attains nominal coverage. Simulation studies in [2] suggest that the test is conservative, and then show that the test lacks statistical power compared to other variants. For small or highly discrete test samples, consider using the mid-

*p*-value test ([1], Ch. 3.6.3).Mid-

*p*-value test — The mid-*p*-value McNemar test statistics and rejection regions (for significance level*α*) are ([3]):For one-sided tests, the test statistic is

$${t}_{1}^{\ast}={n}_{12}.$$

If $${F}_{\text{Bin}}\left({t}_{1}^{\ast}-1;{n}_{12}+{n}_{21},0.5\right)+0.5{f}_{\text{Bin}}\left({t}_{1}^{\ast};{n}_{12}+{n}_{21},0.5\right)<\alpha $$, where $${F}_{\text{Bin}}\left(x;n,p\right)$$ and $${f}_{\text{Bin}}\left(x;n,p\right)$$ are the binomial cdf and pdf, respectively, with sample size

*n*and success probability*p*evaluated at*x*, then reject*H*_{0}.For two-sided tests, the test statistic is

$${t}_{2}^{\ast}=\mathrm{min}({n}_{12},{n}_{21}).$$

If $${F}_{\text{Bin}}\left({t}_{2}^{\ast}-1;{n}_{12}+{n}_{21}-1,0.5\right)+0.5{f}_{\text{Bin}}\left({t}_{2}^{\ast};{n}_{12}+{n}_{21},0.5\right)<\alpha /2$$, then reject

*H*_{0}.

The mid-

*p*-value test addresses the over-conservative behavior of the exact-conditional test. The simulation studies in [2] demonstrate that this test attains nominal coverage, and has good statistical power.

### Classification Loss

*Classification losses* indicate the accuracy of a
classification model or set of predicted labels. Two classification losses are the
misclassification rate and cost.

`compareHoldout`

returns the classification losses (see
`e1`

and `e2`

) under the alternative hypothesis
(that is, the unrestricted classification losses).
*n _{ijk}* is the number of test-sample observations
with: true class

*k*, label

*i*assigned by the first classification model, and label

*j*assigned by the second classification model. The corresponding estimated proportion is $${\widehat{\pi}}_{ijk}=\frac{{n}_{ijk}}{{n}_{test}}.$$ The test-set sample size is $$\sum _{i,j,k}{n}_{ijk}={n}_{test}.$$ The indices are taken from 1 through

*K*, the number of classes.

The

*misclassification rate*, or classification error, is a scalar in the interval [0,1] representing the proportion of misclassified observations. That is, the misclassification rate for the first classification model is$${e}_{1}={\displaystyle \sum _{j=1}^{K}{\displaystyle \sum _{k=1}^{K}{\displaystyle \sum _{i\ne k}^{}{\widehat{\pi}}_{ijk}}}}.$$

For the misclassification rate of the second classification model (

*e*_{2}), switch the indices*i*and*j*in the formula.Classification accuracy decreases as the misclassification rate increases to 1.

The

*misclassification cost*is a nonnegative scalar that is a measure of classification quality relative to the values of the specified cost matrix. Its interpretation depends on the specified costs of misclassification. The misclassification cost is the weighted average of the costs of misclassification (specified in a cost matrix,*C*) in which the weights are the respective estimated proportions of misclassified observations. The misclassification cost for the first classification model is$${e}_{1}={\displaystyle \sum _{j=1}^{K}{\displaystyle \sum _{k=1}^{K}{\displaystyle \sum _{i\ne k}^{}{\widehat{\pi}}_{ijk}{c}_{ki},}}}$$

where

*c*is the cost of classifying an observation into class_{kj}*j*if its true class is*k*. For the misclassification cost of the second classification model (*e*_{2}), switch the indices*i*and*j*in the formula.In general, for a fixed cost matrix, classification accuracy decreases as the misclassification cost increases.

## Tips

One way to perform cost-insensitive feature selection is:

Train the first classification model (

`C1`

) using the full predictor set.Train the second classification model (

`C2`

) using the reduced predictor set.Specify

`X1`

as the full test-set predictor data and`X2`

as the reduced test-set predictor data.Enter

`compareHoldout(C1,C2,X1,X2,Y,'Alternative','less')`

. If`compareHoldout`

returns`1`

, then there is enough evidence to suggest that the classification model that uses fewer predictors performs better than the model that uses the full predictor set.

Alternatively, you can assess whether there is a significant difference between the accuracies of the two models. To perform this assessment, remove the

`'Alternative','less'`

specification in step 4.`compareHoldout`

conducts a two-sided test, and`h = 0`

indicates that there is not enough evidence to suggest a difference in the accuracy of the two models.Cost-sensitive tests perform numerical optimization, which requires additional computational resources. The likelihood ratio test conducts numerical optimization indirectly by finding the root of a Lagrange multiplier in an interval. For some data sets, if the root lies close to the boundaries of the interval, then the method can fail. Therefore, if you have an Optimization Toolbox license, consider conducting the cost-sensitive chi-square test instead. For more details, see

`CostTest`

and Cost-Sensitive Testing.

## Alternative Functionality

To directly compare the accuracy of two sets of class labels
in predicting a set of true class labels, use `testcholdout`

.

## References

[1] Agresti, A. *Categorical Data
Analysis*, 2nd Ed. John Wiley & Sons, Inc.: Hoboken, NJ,
2002.

[2] Fagerlan, M.W., S. Lydersen, and P. Laake. “The
McNemar Test for Binary Matched-Pairs Data: Mid-p and Asymptotic Are Better Than Exact
Conditional.” *BMC Medical Research Methodology*. Vol. 13, 2013,
pp. 1–8.

[3] Lancaster, H.O. “Significance Tests in Discrete
Distributions.” *JASA*, Vol. 56, Number 294, 1961, pp.
223–234.

[4] McNemar, Q. “Note on the Sampling Error of the
Difference Between Correlated Proportions or Percentages.”
*Psychometrika*, Vol. 12, Number 2, 1947, pp.
153–157.

[5] Mosteller, F. “Some Statistical Problems in
Measuring the Subjective Response to Drugs.” *Biometrics*, Vol.
8, Number 3, 1952, pp. 220–226.

## Extended Capabilities

### GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

This function fully supports GPU arrays for

`ClassificationNeuralNetwork`

and`CompactClassificationNeuralNetwork`

models.This function supports GPU arrays with limitations for the classification models described in this table.

Full or Compact Model Object Limitations `ClassificationECOC`

or`CompactClassificationECOC`

Binary learners are subject to limitations depending on type:

Ensemble learners have the same limitations as

`ClassificationEnsemble`

.KNN learners have the same limitations as

`ClassificationKNN`

.SVM learners have the same limitations as

`ClassificationSVM`

.Tree learners have the same limitations as

`ClassificationTree`

.

`ClassificationEnsemble`

or`CompactClassificationEnsemble`

Weak learners are subject to limitations depending on type:

KNN learners have the same limitations as

`ClassificationKNN`

.Tree learners have the same limitations as

`ClassificationTree`

.Discriminant learners are not supported.

`ClassificationKNN`

Models trained using the

*K*d-tree nearest neighbor search method, function handle distance metrics, or tie inclusion are not supported.`ClassificationSVM`

or`CompactClassificationSVM`

One-class classification is not supported.

`ClassificationTree`

or`CompactClassificationTree`

Surrogate splits are not supported. `compareHoldout`

executes on a GPU in these cases only:Either or both of the input arguments

`X1`

and`X2`

are GPU arrays.Either or both of the input arguments

`T1`

and`T2`

contain`gpuArray`

predictor variables.Either or both of the input arguments

`C1`

and`C2`

were fitted with GPU array input arguments.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

## Version History

**Introduced in R2015a**

### R2024b: Specify GPU arrays for neural network models (requires Parallel Computing Toolbox)

`compareHoldout`

fully supports GPU arrays for `ClassificationNeuralNetwork`

and `CompactClassificationNeuralNetwork`

models.

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
