ClassificationPartitionedLinear
Cross-validated linear model for binary classification of high-dimensional data
Description
ClassificationPartitionedLinear
is a set of linear
classification models trained on cross-validated folds. You can estimate the quality of
classification, or how well the linear classification model generalizes, using one or
more kfold functions: kfoldPredict
, kfoldLoss
, kfoldMargin
, and kfoldEdge
.
Every kfold object function uses models trained on training-fold (in-fold) observations to predict the response for validation-fold (out-of-fold) observations. For example, suppose that you cross-validate using five folds. The software randomly assigns each observation into five groups of equal size (roughly). The training fold contains four of the groups (roughly 4/5 of the data), and the validation fold contains the other group (roughly 1/5 of the data). In this case, cross-validation proceeds as follows:
The software trains the first model (stored in
CVMdl.Trained{1}
) by using the observations in the last four groups, and reserves the observations in the first group for validation.The software trains the second model (stored in
CVMdl.Trained{2}
) by using the observations in the first group and the last three groups. The software reserves the observations in the second group for validation.The software proceeds in a similar manner for the third, fourth, and fifth models.
If you validate by using kfoldPredict
, the software computes
predictions for the observations in group i by using model
i. In short, the software estimates a response for every
observation by using the model trained without that observation.
Note
ClassificationPartitionedLinear
model objects do not store the
predictor data set.
Creation
You can create a ClassificationPartitionedLinear
object by using the
fitclinear
function and specifying one of
the name-value arguments CrossVal
,
CVPartition
, Holdout
,
KFold
, or Leaveout
.
Properties
Cross-Validation Properties
CrossValidatedModel
— Cross-validated model name
character vector
Cross-validated model name, specified as a character vector.
For example, 'Linear'
specifies a cross-validated
linear model for binary classification or regression.
Data Types: char
KFold
— Number of cross-validated folds
positive integer
Number of cross-validated folds, specified as a positive integer.
Data Types: double
ModelParameters
— Cross-validation parameter values
object
Cross-validation parameter values, e.g., the name-value pair
argument values used to cross-validate the linear model, specified
as an object. ModelParameters
does not contain
estimated parameters.
Access properties of ModelParameters
using
dot notation.
NumObservations
— Number of observations
positive numeric scalar
Number of observations in the training data, specified as a positive numeric scalar.
Data Types: double
Partition
— Data partition
cvpartition
model
Data partition indicating how the software splits the data into cross-validation folds,
specified as a cvpartition
model.
Trained
— Linear classification models trained on cross-validation folds
cell array of ClassificationLinear
model
objects
Linear classification models trained on cross-validation folds,
specified as a cell array of ClassificationLinear
models.
Trained
has k cells, where
k is the number of folds.
Data Types: cell
W
— Observation weights
numeric vector
Observation weights used to cross-validate the model, specified as a
numeric vector. W
has
NumObservations
elements.
The software normalizes W
so that the weights for
observations within a particular class sum up to the prior probability
of that class.
Data Types: single
| double
Y
— Observed class labels
categorical array | character array | logical vector | vector of numeric values | cell array of character vectors
Observed class labels used to cross-validate the model, specified as a
categorical or character array, logical or numeric vector, or cell array
of character vectors. Y
has
NumObservations
elements, and is the same data
type as the input argument Y
that you passed to
fitclinear
to
cross-validate the model. (The software treats string arrays as cell arrays of character
vectors.)
Each row of Y
represents the observed
classification of the corresponding observation in the predictor
data.
Data Types: categorical
| char
| logical
| single
| double
| cell
Other Classification Properties
CategoricalPredictors
— Categorical predictor indices
vector of positive integers | []
Categorical predictor
indices, specified as a vector of positive integers. CategoricalPredictors
contains index values indicating that the corresponding predictors are categorical. The index
values are between 1 and p
, where p
is the number of
predictors used to train the model. If none of the predictors are categorical, then this
property is empty ([]
).
Data Types: single
| double
ClassNames
— Unique class labels
categorical array | character array | logical vector | numeric vector | cell array of character vectors
This property is read-only.
Unique class labels used in training, specified as a categorical or
character array, logical or numeric vector, or cell array of
character vectors. ClassNames
has the same
data type as the class labels Y
.
(The software treats string arrays as cell arrays of character
vectors.)
ClassNames
also determines the class
order.
Data Types: categorical
| char
| logical
| single
| double
| cell
Cost
— Misclassification costs
square numeric matrix
This property is read-only.
Misclassification costs, specified as a square numeric matrix. Cost
has K rows
and columns, where K is the number of classes.
Cost(
is
the cost of classifying a point into class i
,j
)j
if
its true class is i
. The order of the rows
and columns of Cost
corresponds to the order of
the classes in ClassNames
.
Data Types: double
PredictorNames
— Predictor names
cell array of character vectors
Predictor names in order of their appearance in the predictor data, specified as a
cell array of character vectors. The length of PredictorNames
is
equal to the number of variables in the training data X
or
Tbl
used as predictor variables.
Data Types: cell
Prior
— Prior class probabilities
numeric vector
This property is read-only.
Prior class probabilities, specified as a numeric vector.
Prior
has as many elements as
classes in ClassNames
, and the order of the
elements corresponds to the elements of
ClassNames
.
Data Types: double
ResponseName
— Response variable name
character vector
Response variable name, specified as a character vector.
Data Types: char
ScoreTransform
— Score transformation function
'doublelogit'
| 'invlogit'
| 'ismax'
| 'logit'
| 'none'
| function handle | ...
Score transformation function to apply to predicted scores, specified as a function name or function handle.
For linear classification models and before transformation, the predicted
classification score for the observation x (row vector) is f(x) =
xβ + b, where β and b correspond to
Mdl.Beta
and Mdl.Bias
, respectively.
To change the score transformation function to, for example,
function
, use dot notation.
For a built-in function, enter this code and replace
function
with a value in the table.Mdl.ScoreTransform = 'function';
Value Description "doublelogit"
1/(1 + e–2x) "invlogit"
log(x / (1 – x)) "ismax"
Sets the score for the class with the largest score to 1, and sets the scores for all other classes to 0 "logit"
1/(1 + e–x) "none"
or"identity"
x (no transformation) "sign"
–1 for x < 0
0 for x = 0
1 for x > 0"symmetric"
2x – 1 "symmetricismax"
Sets the score for the class with the largest score to 1, and sets the scores for all other classes to –1 "symmetriclogit"
2/(1 + e–x) – 1 For a MATLAB® function, or a function that you define, enter its function handle.
Mdl.ScoreTransform = @function;
function
must accept a matrix of the original scores for each class, and then return a matrix of the same size representing the transformed scores for each class.
Data Types: char
| function_handle
Object Functions
kfoldEdge | Classification edge for cross-validated linear classification model |
kfoldLoss | Classification loss for cross-validated linear classification model |
kfoldMargin | Classification margins for cross-validated linear classification model |
kfoldPredict | Classify observations in cross-validated linear classification model |
Examples
Create Cross-Validated Binary Linear Classification Model
Load the NLP data set.
load nlpdata
X
is a sparse matrix of predictor data, and Y
is a categorical vector of class labels. There are more than two classes in the data.
Identify the labels that correspond to the Statistics and Machine Learning Toolbox™ documentation web pages.
Ystats = Y == 'stats';
Cross-validate a binary, linear classification model that can identify whether the word counts in a documentation web page are from the Statistics and Machine Learning Toolbox™ documentation.
rng(1); % For reproducibility CVMdl = fitclinear(X,Ystats,'CrossVal','on')
CVMdl = ClassificationPartitionedLinear CrossValidatedModel: 'Linear' ResponseName: 'Y' NumObservations: 31572 KFold: 10 Partition: [1x1 cvpartition] ClassNames: [0 1] ScoreTransform: 'none'
CVMdl
is a ClassificationPartitionedLinear
cross-validated model. Because fitclinear
implements 10-fold cross-validation by default, CVMdl.Trained
contains ten ClassificationLinear
models that contain the results of training linear classification models for each of the folds.
Estimate labels for out-of-fold observations and estimate the generalization error by passing CVMdl
to kfoldPredict
and kfoldLoss
, respectively.
oofLabels = kfoldPredict(CVMdl); ge = kfoldLoss(CVMdl)
ge = 7.6017e-04
The estimated generalization error is less than 0.1% misclassified observations.
Find Good Lasso Penalty Using Cross-Validation
To determine a good lasso-penalty strength for a linear classification model that uses a logistic regression learner, implement 5-fold cross-validation.
Load the NLP data set.
load nlpdata
X
is a sparse matrix of predictor data, and Y
is a categorical vector of class labels. There are more than two classes in the data.
The models should identify whether the word counts in a web page are from the Statistics and Machine Learning Toolbox™ documentation. So, identify the labels that correspond to the Statistics and Machine Learning Toolbox™ documentation web pages.
Ystats = Y == 'stats';
Create a set of 11 logarithmically-spaced regularization strengths from through .
Lambda = logspace(-6,-0.5,11);
Cross-validate the models. To increase execution speed, transpose the predictor data and specify that the observations are in columns. Estimate the coefficients using SpaRSA. Lower the tolerance on the gradient of the objective function to 1e-8
.
X = X'; rng(10); % For reproducibility CVMdl = fitclinear(X,Ystats,'ObservationsIn','columns','KFold',5,... 'Learner','logistic','Solver','sparsa','Regularization','lasso',... 'Lambda',Lambda,'GradientTolerance',1e-8)
CVMdl = ClassificationPartitionedLinear CrossValidatedModel: 'Linear' ResponseName: 'Y' NumObservations: 31572 KFold: 5 Partition: [1x1 cvpartition] ClassNames: [0 1] ScoreTransform: 'none'
numCLModels = numel(CVMdl.Trained)
numCLModels = 5
CVMdl
is a ClassificationPartitionedLinear
model. Because fitclinear
implements 5-fold cross-validation, CVMdl
contains 5 ClassificationLinear
models that the software trains on each fold.
Display the first trained linear classification model.
Mdl1 = CVMdl.Trained{1}
Mdl1 = ClassificationLinear ResponseName: 'Y' ClassNames: [0 1] ScoreTransform: 'logit' Beta: [34023x11 double] Bias: [-13.2936 -13.2936 -13.2936 -13.2936 -13.2936 -6.8954 -5.4359 -4.7170 -3.4108 -3.1566 -2.9792] Lambda: [1.0000e-06 3.5481e-06 1.2589e-05 4.4668e-05 1.5849e-04 5.6234e-04 0.0020 0.0071 0.0251 0.0891 0.3162] Learner: 'logistic'
Mdl1
is a ClassificationLinear
model object. fitclinear
constructed Mdl1
by training on the first four folds. Because Lambda
is a sequence of regularization strengths, you can think of Mdl1
as 11 models, one for each regularization strength in Lambda
.
Estimate the cross-validated classification error.
ce = kfoldLoss(CVMdl);
Because there are 11 regularization strengths, ce
is a 1-by-11 vector of classification error rates.
Higher values of Lambda
lead to predictor variable sparsity, which is a good quality of a classifier. For each regularization strength, train a linear classification model using the entire data set and the same options as when you cross-validated the models. Determine the number of nonzero coefficients per model.
Mdl = fitclinear(X,Ystats,'ObservationsIn','columns',... 'Learner','logistic','Solver','sparsa','Regularization','lasso',... 'Lambda',Lambda,'GradientTolerance',1e-8); numNZCoeff = sum(Mdl.Beta~=0);

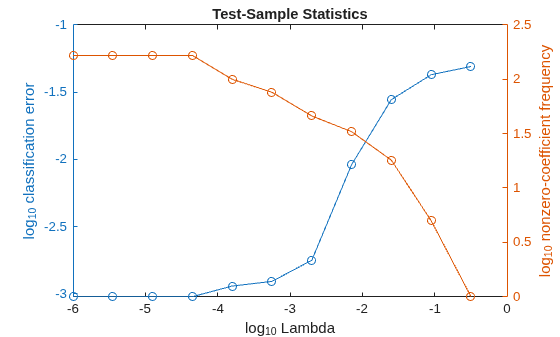

In the same figure, plot the cross-validated, classification error rates and frequency of nonzero coefficients for each regularization strength. Plot all variables on the log scale.
figure; [h,hL1,hL2] = plotyy(log10(Lambda),log10(ce),... log10(Lambda),log10(numNZCoeff)); hL1.Marker = 'o'; hL2.Marker = 'o'; ylabel(h(1),'log_{10} classification error') ylabel(h(2),'log_{10} nonzero-coefficient frequency') xlabel('log_{10} Lambda') title('Test-Sample Statistics') hold off
Choose the index of the regularization strength that balances predictor variable sparsity and low classification error. In this case, a value between to should suffice.
idxFinal = 7;
Select the model from Mdl
with the chosen regularization strength.
MdlFinal = selectModels(Mdl,idxFinal);
MdlFinal
is a ClassificationLinear
model containing one regularization strength. To estimate labels for new observations, pass MdlFinal
and the new data to predict
.
Extended Capabilities
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The object functions of the ClassificationPartitionedLinear
model fully support GPU arrays.
Version History
Introduced in R2016aR2024a: Specify GPU arrays for ClassificationPartitionedLinear
object
functions (requires Parallel Computing Toolbox)
You can fit a ClassificationPartitionedLinear
object with GPU arrays by using
fitclinear
.
ClassificationPartitionedLinear
object functions now support GPU array input
arguments so that they can execute on a GPU.
R2022a: Cost
property stores the user-specified cost matrix
Starting in R2022a, the Cost
property stores the user-specified cost
matrix, so that you can compute the observed misclassification cost using the specified cost
value. The software stores normalized prior probabilities (Prior
)
and observation weights (W
) that do not reflect the penalties described
in the cost matrix. To compute the observed misclassification cost, specify the
LossFun
name-value argument as "classifcost"
when you call the kfoldLoss
function.
Note that model training has not changed and, therefore, the decision boundaries between classes have not changed.
For training, the fitting function updates the specified prior probabilities by
incorporating the penalties described in the specified cost matrix, and then normalizes the
prior probabilities and observation weights. This behavior has not changed. In previous
releases, the software stored the default cost matrix in the Cost
property and stored the prior probabilities and observation weights used for training in the
Prior
and W
properties, respectively. Starting
in R2022a, the software stores the user-specified cost matrix without modification, and stores normalized
prior probabilities and observation weights that do not reflect the cost penalties. For more
details, see Misclassification Cost Matrix, Prior Probabilities, and Observation Weights.
Some object functions use the Cost
and W
properties:
The
kfoldLoss
function uses the cost matrix stored in theCost
property if you specify theLossFun
name-value argument as"classifcost"
or"mincost"
.The
kfoldLoss
andkfoldEdge
functions use the observation weights stored in theW
property.
If you specify a nondefault cost matrix when you train a classification model, the object functions return a different value compared to previous releases.
If you want the software to handle the cost matrix, prior
probabilities, and observation weights in the same way as in previous releases, adjust the prior
probabilities and observation weights for the nondefault cost matrix, as described in Adjust Prior Probabilities and Observation Weights for Misclassification Cost Matrix. Then, when you train a
classification model, specify the adjusted prior probabilities and observation weights by using
the Prior
and Weights
name-value arguments, respectively,
and use the default cost matrix.
See Also
ClassificationLinear
| fitclinear
| kfoldPredict
| kfoldLoss
Comando MATLAB
Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:
Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
