fairnessMetrics

Bias and group metrics for a data set or classification model

    Description

    fairnessMetrics computes fairness metrics (bias and group metrics) for a data set or binary classification model with respect to sensitive attributes. The data-level evaluation examines binary, true labels of the data. The model-level evaluation examines the predicted labels returned by the binary classification model, using both true labels and predicted labels.

    Bias metrics measure differences across groups, and group metrics contain information within the group. You can use the metrics to determine if your data or model contains bias toward a group within each sensitive attribute.

    After creating a fairnessMetrics object, use the report function to generate a fairness metrics report or use the plot function to create a bar graph of the metrics.

    Creation

    Description

    evaluator = fairnessMetrics(SensitiveAttributes,Y) computes fairness metrics for the true, binary class labels in the vector Y with respect to the sensitive attributes in the SensitiveAttributes matrix. The fairnessMetrics function returns the fairnessMetrics object evaluator, which stores bias metrics and group metrics in the BiasMetrics and GroupMetrics properties, respectively.

    evaluator = fairnessMetrics(Tbl,Y) computes fairness metrics using the sensitive attributes in the table Tbl and the class labels in the vector Y.

    evaluator = fairnessMetrics(Tbl,ResponseName) computes fairness metrics using the sensitive attributes and response variable in the table Tbl. The input argument ResponseName specifies the name of the variable in Tbl that contains the class labels.

    example

    evaluator = fairnessMetrics(___,SensitiveAttributeNames=sensitiveAttributeNames) specifies a subset of the variables in Tbl (whose names correspond to sensitiveAttributeNames) as sensitive attributes, or assigns names to the sensitive attributes in sensitiveAttributeNames. You can specify this argument in addition to any of the input argument combinations in the previous syntaxes.

    example

    evaluator = fairnessMetrics(___,Predictions=predictions) computes fairness metrics for a binary classification model if you specify predicted labels by using the predictions argument. fairnessMetrics uses both true labels and predicted labels for the model-level evaluation.

    example

    evaluator = fairnessMetrics(___,Name=Value) specifies additional options using one or more name-value arguments. For example, specify SensitiveAttributeNames="age",ReferenceGroup=30 to compute bias metrics for each group in the age variable with respect to the reference age group 30.

    Input Arguments

    expand all

    Sensitive attributes, specified as a vector or matrix. If you specify SensitiveAttributes as a matrix, each row of SensitiveAttributes corresponds to one observation, and each column corresponds to one sensitive attribute.

    You can use the sensitiveAttributeNames argument to assign names to the variables in SensitiveAttributes.

    Data Types: single | double | logical | char | string | categorical

    True, binary class labels, specified as a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors.

    • fairnessMetrics supports only binary classification. Y must contain exactly two distinct classes.

    • You can specify one of the two classes as a positive class by using the PositiveClass name-value argument.

    • The length of Y must be equal to the number of observations in SensitiveAttributes or Tbl.

    • If Y is a character array, then each label must correspond to one row of the array.

    Data Types: single | double | logical | char | string | cell | categorical

    Sample data, specified as a table. Each row of Tbl corresponds to one observation, and each column corresponds to one sensitive attribute. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

    Optionally, Tbl can contain columns for the true class labels, predicted class labels, and observation weights.

    • You must specify the true class label variable using ResponseName, the predicted class label variable using Predictions, and the observation weight variable using Weights. fairnessMetrics uses the remaining variables as sensitive attributes. To use a subset of the remaining variables in Tbl as sensitive attributes, specify the variables by using sensitiveAttributeNames.

    • The true class label variable must be a categorical, character, or string array, a logical or numeric vector, or a cell array of character vectors.

      • fairnessMetrics supports only binary classification. The true class label variable must contain exactly two distinct classes.

      • You can specify one of the two classes as a positive class by using the PositiveClass name-value argument.

    • The column for the weights must be a numeric vector.

    If Tbl does not contain the true class label variable, then specify the variable by using Y. The length of the response variable Y and the number of rows in Tbl must be equal. To use a subset of the variables in Tbl as sensitive attributes, specify the variables by using sensitiveAttributeNames.

    Data Types: table

    Name of the true class label variable, specified as a character vector or string scalar containing the name of the response variable in Tbl.

    Example: "trueLabel" indicates that the trueLabel variable in Tbl (Tbl.trueLabel) is the true class label variable.

    Data Types: char | string

    Names of the sensitive attribute variables, specified as a string array of unique names or cell array of unique character vectors. The functionality of sensitiveAttributeNames depends on the way you supply the sample data.

    • If you supply SensitiveAttributes and Y, then you can use sensitiveAttributeNames to assign names to the variables in SensitiveAttributes.

      • The order of the names in sensitiveAttributeNames must correspond to the column order of SensitiveAttributes. That is, sensitiveAttributeNames{1} is the name of SensitiveAttributes(:,1), sensitiveAttributeNames{2} is the name of SensitiveAttributes(:,2), and so on. Also, size(SensitiveAttributes,2) and numel(sensitiveAttributeNames) must be equal.

      • By default, sensitiveAttributeNames is {'x1','x2',...}.

    • If you supply Tbl, then you can use sensitiveAttributeNames to specify the variables to use as sensitive attributes. That is, fairnessMetrics uses only the variables in sensitiveAttributeNames to compute fairness metrics.

      • sensitiveAttributeNames must be a subset of Tbl.Properties.VariableNames and cannot include the name of a class label variable or observation weight variable.

      • By default, sensitiveAttributeNames is a set of all variable names in Tbl, except the variables specified by ResponseName, Predictions, and Weights.

    Example: SensitiveAttributeNames=["age","marital_status"]

    Data Types: string | cell

    Predicted class labels (model predictions), specified as [], a vector, or the name of a variable in Tbl.

    • []fairnessMetrics computes fairness metrics for the true class label variable (Y or the ResponseName variable in Tbl).

    • Name of a variable in Tbl — If you specify the input data as a table Tbl, then predictions can be the name of a variable in Tbl that contains predicted class labels. In this case, you must specify predictions as a character vector or string scalar. For example, if the class label vector Prediction is stored in Tbl.Pred, then specify predictions as "Pred".

    • Vector — The values in predictions must be members of the true class label variable, and predictions must have the same data type as the true class label variable. The length of predictions must be equal to the number of samples in Y or Tbl.

    Note

    If you specify predicted labels, fairnessMetrics computes fairness metrics for the binary classification model that returned the predicted labels.

    Example: Predictions="Pred"

    Data Types: single | double | logical | char | string | cell | categorical

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: Predictions="P",Weights="W" specifies the variables P and W in the table Tbl as the model predictions and observation weights, respectively.

    Label of the positive class, specified as a scalar. PositiveClass must have the same data type as the true class label variable.

    The default PositiveClass value is the second class of the binary labels, according to the order returned by the unique function with the "sorted" option specified for the true class label variable.

    Example: PositiveClass=categorical(">50K")

    Data Types: categorical | char | string | logical | single | double | cell

    Reference group for each sensitive attribute, specified as a numeric vector, string array, or cell array. Each element in the ReferenceGroup value must have the same data type as the corresponding sensitive attribute. If the sensitive attributes have mixed types, specify ReferenceGroup as a cell array. The number of elements in the ReferenceGroup value must match the number of sensitive attributes.

    The default ReferenceGroup value is a vector containing the mode of each sensitive attribute. The mode is the most frequently occurring value without taking into account observation weights.

    Example: ReferenceGroup={30,categorical("Married-civ-spouse")}

    Data Types: single | double | string | cell

    Observation weights, specified as a vector of scalar values or the name of a variable in Tbl. The software weights the observations in each row of SensitiveAttributes or Tbl with the corresponding value in Weights. The size of Weights must equal the number of rows in SensitiveAttributes or Tbl.

    If you specify the input data as a table Tbl, then Weights can be the name of a variable in Tbl that contains a numeric vector. In this case, you must specify Weights as a character vector or string scalar. For example, if the weights vector W is stored in Tbl.W, then specify Weights as "W".

    Example: Weights="W"

    Data Types: single | double | char | string

    Properties

    expand all

    This property is read-only.

    Bias metrics, specified as a table.

    fairnessMetrics computes the bias metrics for each group in each sensitive attribute, compared to the reference group of the attribute.

    Each row of BiasMetrics contains the bias metrics for a group in a sensitive attribute. The first and second variables in BiasMetrics correspond to the sensitive attribute name (SensitiveAttributeNames column) and the group name (Groups column), respectively. The rest of the variables correspond to the bias metrics in this table.

    Metric NameDescriptionEvaluation Type
    StatisticalParityDifferenceStatistical parity difference (SPD)Data-level or model-level evaluation
    DisparateImpactDisparate impact (DI)Data-level or model-level evaluation
    EqualOpportunityDifferenceEqual opportunity difference (EOD)Model-level evaluation
    AverageAbsoluteOddsDifferenceAverage absolute odds difference (AAOD)Model-level evaluation

    The supported bias metrics depend on whether you specify predicted labels by using the Predictions argument when you create a fairnessMetrics object.

    • Data-level evaluation — If you specify true labels and do not specify predicted labels, the BiasMetrics property contains only StatisticalParityDifference and DisparateImpact.

    • Model-level evaluation — If you specify both true labels and predicted labels, the BiasMetrics property contains all metrics listed in the table.

    For definitions of the bias metrics, see Bias Metrics.

    Data Types: table

    This property is read-only.

    Group metrics, specified as a table.

    The fairnessMetrics function computes the group metrics for each group in each sensitive attribute. Note that the function does not use the observation weights (specified by the Weights name-value argument) to count the number of samples in each group (GroupCount value). The function uses Weights to compute the other metrics.

    Each row of GroupMetrics contains the group metrics for a group in a sensitive attribute. The first and second variables in GroupMetrics correspond to the sensitive attribute name (SensitiveAttributeNames column) and the group name (Groups column), respectively. The rest of the variables correspond to the group metrics in this table.

    Metric NameDescriptionEvaluation Type
    GroupCountGroup count, or number of samples in the groupData-level or model-level evaluation
    GroupSizeRatioGroup count divided by the total number of samplesData-level or model-level evaluation
    TruePositivesNumber of true positives (TP)Model-level evaluation
    TrueNegativesNumber of true negatives (TN)Model-level evaluation
    FalsePositivesNumber of false positives (FP)Model-level evaluation
    FalseNegativesNumber of false negatives (FN)Model-level evaluation
    TruePositiveRateTrue positive rate (TPR), also known as recall or sensitivity, TP/(TP+FN)Model-level evaluation
    TrueNegativeRateTrue negative rate (TNR), or specificity, TN/(TN+FP)Model-level evaluation
    FalsePositiveRateFalse positive rate (FPR), also known as fallout or 1-specificity, FP/(TN+FP)Model-level evaluation
    FalseNegativeRateFalse negative rate (FNR), or miss rate, FN/(TP+FN)Model-level evaluation
    FalseDiscoveryRateFalse discovery rate (FDR), FP/(TP+FP)Model-level evaluation
    FalseOmissionRateFalse omission rate (FOR), FN/(TN+FN)Model-level evaluation
    PositivePredictiveValuePositive predictive value (PPV), or precision, TP/(TP+FP)Model-level evaluation
    NegativePredictiveValueNegative predictive value (NPV), TN/(TN+FN)Model-level evaluation
    RateOfPositivePredictionsRate of positive predictions (RPP), (TP+FP)/(TP+FN+FP+TN)Model-level evaluation
    RateOfNegativePredictionsRate of negative predictions (RNP), (TN+FN)/(TP+FN+FP+TN)Model-level evaluation
    AccuracyAccuracy, (TP+TN)/(TP+FN+FP+TN)Model-level evaluation

    The supported group metrics depend on whether you specify predicted labels by using the Predictions argument when you create a fairnessMetrics object.

    • Data-level evaluation — If you specify true labels and do not specify predicted labels, the GroupMetrics property contains only GroupCount and GroupSizeRatio.

    • Model-level evaluation — If you specify both true labels and predicted labels, the GroupMetrics property contains all metrics listed in the table.

    Data Types: table

    This property is read-only.

    Label of the positive class, specified as a scalar. (The software treats a string scalar as a character vector.)

    The PositiveClass name-value argument sets this property.

    Data Types: categorical | char | logical | single | double | cell

    This property is read-only.

    Reference group, specified as a numeric vector or cell array. (The software treats string arrays as cell arrays of character vectors.)

    The ReferenceGroup name-value argument sets this property.

    Data Types: single | double | cell

    This property is read-only.

    Name of the true class label variable, specified as a character vector containing the name of the response variable. (The software treats a string scalar as a character vector.)

    • If you specify the ResponseName argument, then the specified value determines this property.

    • If you specify Y, then the property value is 'Y'.

    Data Types: char

    This property is read-only.

    Names of the sensitive attribute variables, specified as a cell array of unique character vectors. (The software treats string arrays as cell arrays of character vectors.)

    The sensitiveAttributeNames argument sets this property.

    Data Types: cell

    Object Functions

    reportGenerate fairness metrics report
    plotPlot bar graph of fairness metric

    Examples

    collapse all

    Compute fairness metrics for true labels with respect to sensitive attributes by creating a fairnessMetrics object. Then, create a table of fairness metrics by using the report function, and plot bar graphs of the metrics by using the plot function.

    Load the sample data census1994, which contains the training data adultdata and the test data adulttest. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over $50,000 per year. Preview the first few rows of the training data set.

    load census1994
    head(adultdata)
        age       workClass          fnlwgt      education    education_num       marital_status           occupation        relationship     race      sex      capital_gain    capital_loss    hours_per_week    native_country    salary
        ___    ________________    __________    _________    _____________    _____________________    _________________    _____________    _____    ______    ____________    ____________    ______________    ______________    ______

        39     State-gov                77516    Bachelors         13          Never-married            Adm-clerical         Not-in-family    White    Male          2174             0                40          United-States     <=50K
        50     Self-emp-not-inc         83311    Bachelors         13          Married-civ-spouse       Exec-managerial      Husband          White    Male             0             0                13          United-States     <=50K
        38     Private             2.1565e+05    HS-grad            9          Divorced                 Handlers-cleaners    Not-in-family    White    Male             0             0                40          United-States     <=50K
        53     Private             2.3472e+05    11th               7          Married-civ-spouse       Handlers-cleaners    Husband          Black    Male             0             0                40          United-States     <=50K
        28     Private             3.3841e+05    Bachelors         13          Married-civ-spouse       Prof-specialty       Wife             Black    Female           0             0                40          Cuba              <=50K
        37     Private             2.8458e+05    Masters           14          Married-civ-spouse       Exec-managerial      Wife             White    Female           0             0                40          United-States     <=50K
        49     Private             1.6019e+05    9th                5          Married-spouse-absent    Other-service        Not-in-family    Black    Female           0             0                16          Jamaica           <=50K
        52     Self-emp-not-inc    2.0964e+05    HS-grad            9          Married-civ-spouse       Exec-managerial      Husband          White    Male             0             0                45          United-States     >50K


    Each row contains the demographic information for one adult. The information includes sensitive attributes, such as age, marital_status, relationship, race, and sex. The third column flnwgt contains observation weights, and the last column salary shows whether a person has a salary less than or equal to $50,000 per year (<=50K) or greater than $50,000 per year (>50K).

    This example evaluates the fairness of the salary variable with respect to age. Group the age variable into four bins.

    ageGroups = ["Age<30","30<=Age<45","45<=Age<60","Age>=60"];
    adultdata.age_group = discretize(adultdata.age, ...
        [min(adultdata.age) 30 45 60 max(adultdata.age)], ...
        categorical=ageGroups);

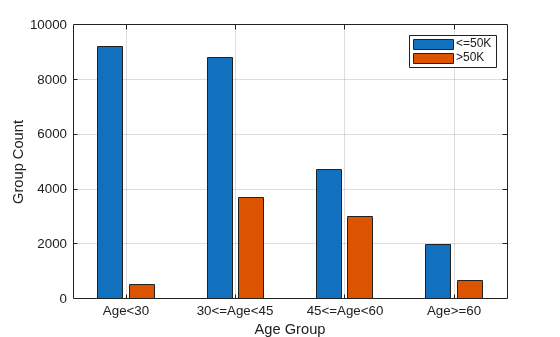

    Plot the counts of individuals in each class (<=50K and >50K) by age.

    figure
    gc = groupcounts(adultdata,["age_group","salary"]);
    bar([gc.GroupCount(1:2:end),gc.GroupCount(2:2:end)])
    xticklabels(ageGroups)
    xlabel("Age Group")
    ylabel("Group Count")
    legend(["<=50K",">50K"])
    grid on

    Figure contains an axes object. The axes object contains 2 objects of type bar. These objects represent <=50K, >50K.

    Compute fairness metrics for the salary variable with respect to the age_group variable by using fairnessMetrics.

    evaluator = fairnessMetrics(adultdata,"salary", ...
        SensitiveAttributeNames="age_group",Weights="fnlwgt")
    evaluator =
      fairnessMetrics with properties:

        SensitiveAttributeNames: 'age_group'
                 ReferenceGroup: '30<=Age<45'
                   ResponseName: 'salary'
                  PositiveClass: >50K
                    BiasMetrics: [4x4 table]
                   GroupMetrics: [4x4 table]



    evaluator is a fairnessMetrics object. By default, the fairnessMetrics function selects the majority group of the sensitive attribute (group with the largest number of individuals) as the reference group for the attribute. Also, the fairnessMetrics function orders the labels by using the unique function with the "sorted" option, and specifies the second class of the labels as the positive class. In this data set, the reference group of age_group is the group 30<=Age<45, and the positive class is >50K. evaluator stores bias metrics and group metrics in the BiasMetrics and GroupMetrics properties, respectively. Display the properties.

    evaluator.BiasMetrics
    ans=4×4 table
        SensitiveAttributeNames      Groups      StatisticalParityDifference    DisparateImpact
        _______________________    __________    ___________________________    _______________

               age_group           Age<30                 -0.24365                  0.17661
               age_group           30<=Age<45                    0                        1
               age_group           45<=Age<60             0.098497                   1.3329
               age_group           Age>=60                -0.05041                  0.82965


    evaluator.GroupMetrics
    ans=4×4 table
        SensitiveAttributeNames      Groups      GroupCount    GroupSizeRatio
        _______________________    __________    __________    ______________

               age_group           Age<30           9711           0.29824
               age_group           30<=Age<45      12489           0.38356
               age_group           45<=Age<60       7717             0.237
               age_group           Age>=60          2644          0.081201



    According to the bias metrics, the salary variable is biased toward the age group 45 to 60 years and biased against the age group less than 30 years, compared to the reference group (30<=Age<45).

    You can create a table that contains both bias metrics and group metrics by using the report function. Specify GroupMetrics as "all" to include all group metrics. You do not have to specify the BiasMetrics name-value argument because its default value is "all".

    metricsTbl = report(evaluator,GroupMetrics="all")
    metricsTbl=4×6 table
        SensitiveAttributeNames      Groups      StatisticalParityDifference    DisparateImpact    GroupCount    GroupSizeRatio
        _______________________    __________    ___________________________    _______________    __________    ______________

               age_group           Age<30                 -0.24365                  0.17661           9711           0.29824
               age_group           30<=Age<45                    0                        1          12489           0.38356
               age_group           45<=Age<60             0.098497                   1.3329           7717             0.237
               age_group           Age>=60                -0.05041                  0.82965           2644          0.081201



    Visualize the bias metrics by using the plot function.

    figure
    t = tiledlayout(2,1);
    nexttile
    plot(evaluator,"spd")
    xlabel("")
    ylabel("")
    nexttile
    plot(evaluator,"di")
    xlabel("")
    ylabel("")
    xlabel(t,"Fairness Metric Value")
    ylabel(t,"Age Group")

    Figure contains 2 axes objects. Axes object 1 with title Statistical Parity Difference contains an object of type bar. Axes object 2 with title Disparate Impact contains an object of type bar.

    The vertical line in each plot (x=0 for statistical parity difference and x=1 for disparate impact) indicates the metric value for the reference group. If the labels do not have a bias for a target group compared to the reference group, the metric value for the target group is the same as the metric value for the reference group.

    Compute fairness metrics for predicted labels with respect to sensitive attributes by creating a fairnessMetrics object. Then, create a table of fairness metrics by using the report function, and plot bar graphs of the metrics by using the plot function.

    Load the sample data census1994, which contains the training data adultdata and the test data adulttest. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over $50,000 per year. Preview the first few rows of the training data set.

    load census1994
    head(adultdata)
        age       workClass          fnlwgt      education    education_num       marital_status           occupation        relationship     race      sex      capital_gain    capital_loss    hours_per_week    native_country    salary
        ___    ________________    __________    _________    _____________    _____________________    _________________    _____________    _____    ______    ____________    ____________    ______________    ______________    ______

        39     State-gov                77516    Bachelors         13          Never-married            Adm-clerical         Not-in-family    White    Male          2174             0                40          United-States     <=50K
        50     Self-emp-not-inc         83311    Bachelors         13          Married-civ-spouse       Exec-managerial      Husband          White    Male             0             0                13          United-States     <=50K
        38     Private             2.1565e+05    HS-grad            9          Divorced                 Handlers-cleaners    Not-in-family    White    Male             0             0                40          United-States     <=50K
        53     Private             2.3472e+05    11th               7          Married-civ-spouse       Handlers-cleaners    Husband          Black    Male             0             0                40          United-States     <=50K
        28     Private             3.3841e+05    Bachelors         13          Married-civ-spouse       Prof-specialty       Wife             Black    Female           0             0                40          Cuba              <=50K
        37     Private             2.8458e+05    Masters           14          Married-civ-spouse       Exec-managerial      Wife             White    Female           0             0                40          United-States     <=50K
        49     Private             1.6019e+05    9th                5          Married-spouse-absent    Other-service        Not-in-family    Black    Female           0             0                16          Jamaica           <=50K
        52     Self-emp-not-inc    2.0964e+05    HS-grad            9          Married-civ-spouse       Exec-managerial      Husband          White    Male             0             0                45          United-States     >50K


    Each row contains the demographic information for one adult. The information includes sensitive attributes, such as age, marital_status, relationship, race, and sex. The third column flnwgt contains observation weights, and the last column salary shows whether a person has a salary less than or equal to $50,000 per year (<=50K) or greater than $50,000 per year (>50K).

    Train a classification tree using the training data set adultdata. Specify the response variable, predictor variables, and observation weights by using the variable names in the adultdata table.

    predictorNames = ["capital_gain","capital_loss","education", ...
        "education_num","hours_per_week","occupation","workClass"];
    Mdl = fitctree(adultdata,"salary", ...
        PredictorNames=predictorNames,Weights="fnlwgt");

    Predict the test sample labels by using the trained tree Mdl.

    labels = predict(Mdl,adulttest);

    This example evaluates the fairness of the predicted labels with respect to age and marital status. Group the age variable into four bins.

    ageGroups = ["Age<30","30<=Age<45","45<=Age<60","Age>=60"];
    adulttest.age_group = discretize(adulttest.age, ...
        [min(adulttest.age) 30 45 60 max(adulttest.age)], ...
        categorical=ageGroups);

    Plot the counts of individuals in each predicted class (<=50K and >50K) by age.

    figure
    gs_age = groupcounts({adulttest.age_group,labels});
    b_age = bar([gs_age(1:2:end),gs_age(2:2:end)]);
    xticklabels(ageGroups)
    xlabel("Age Group")
    ylabel("Group Count")
    legend(["<=50K",">50K"])
    grid minor

    Figure contains an axes object. The axes object contains 2 objects of type bar. These objects represent <=50K, >50K.

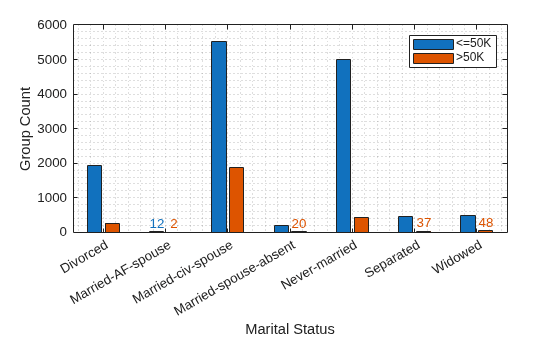

    Plot the counts of individuals by marital status. Display the count values near the tips of the bars if the values are smaller than 100.

    figure
    gs_status = groupcounts({adulttest.marital_status,labels});
    b_status = bar([gs_status(1:2:end),gs_status(2:2:end)]);
    xticklabels(unique(adulttest.marital_status))
    xlabel("Marital Status")
    ylabel("Group Count")
    legend(["<=50K",">50K"])
    grid minor

    xtips1 = b_status(1).XEndPoints;
    ytips1 = b_status(1).YEndPoints;
    labels1 = string(b_status(1).YData);
    ind1 = ytips1 < 100;
    text(xtips1(ind1),ytips1(ind1),labels1(ind1), ...
        HorizontalAlignment="center",VerticalAlignment="bottom", ...
        Color=b_status(1).FaceColor)
    xtips2 = b_status(2).XEndPoints;
    ytips2 = b_status(2).YEndPoints;
    labels2 = string(b_status(2).YData);
    ind2 = ytips2 < 100;
    text(xtips2(ind2),ytips2(ind2),labels2(ind2), ...
        HorizontalAlignment="center",VerticalAlignment="bottom", ...
        Color=b_status(2).FaceColor)

    Figure contains an axes object. The axes object contains 7 objects of type bar, text. These objects represent <=50K, >50K.

    Compute fairness metrics for the predictions (labels) with respect to the age_group and marital_status variables by using fairnessMetrics.

    MdlEvaluator = fairnessMetrics(adulttest,"salary", ...
        SensitiveAttributeNames=["age_group","marital_status"], ...
        Predictions=labels,Weights="fnlwgt")
    MdlEvaluator =
      fairnessMetrics with properties:

        SensitiveAttributeNames: {'age_group'  'marital_status'}
                 ReferenceGroup: {'30<=Age<45'  'Married-civ-spouse'}
                   ResponseName: 'salary'
                  PositiveClass: >50K
                    BiasMetrics: [11x6 table]
                   GroupMetrics: [11x19 table]



    MdlEvaluator is a fairnessMetrics object. By default, the fairnessMetrics function selects the majority group of each sensitive attribute (group with the largest number of individuals) as the reference group for the attribute. Also, the fairnessMetrics function orders the labels by using the unique function with the "sorted" option, and specifies the second class of the labels as the positive class. In this data set, the reference groups of age_group and marital_status are the groups 30<=Age<45 and Married-civ-spouse, respectively, and the positive class is >50K. MdlEvaluator stores bias metrics and group metrics in the BiasMetrics and GroupMetrics properties, respectively.

    Create a table with fairness metrics by using the report function. Specify BiasMetrics as ["eod","aaod"] to include the equal opportunity difference (EOD) and average absolute odds difference (AAOD) metrics in the report table. The fairnessMetrics function computes the two metrics by using the true positive rates (TPR) and false positive rates (FPR). Specify GroupMetrics as ["tpr","fpr"] to include TPR and FPR values in the table.

    metricsTbl = report(MdlEvaluator, ...
        BiasMetrics=["eod","aaod"],GroupMetrics=["tpr","fpr"])
    metricsTbl=11×6 table
        SensitiveAttributeNames           Groups            EqualOpportunityDifference    AverageAbsoluteOddsDifference    TruePositiveRate    FalsePositiveRate
        _______________________    _____________________    __________________________    _____________________________    ________________    _________________

            age_group              Age<30                           -0.041586                        0.044576                  0.41333             0.041053
            age_group              30<=Age<45                               0                               0                  0.45491             0.088618
            age_group              45<=Age<60                        0.061227                        0.031446                  0.51614             0.086954
            age_group              Age>=60                           0.001949                       0.0099106                  0.45686             0.070746
            marital_status         Divorced                          0.078378                        0.043429                  0.54262             0.075653
            marital_status         Married-AF-spouse                 0.073013                        0.078573                  0.53726                    0
            marital_status         Married-civ-spouse                       0                               0                  0.46424             0.084133
            marital_status         Married-spouse-absent             -0.06725                        0.048036                  0.39699             0.055311
            marital_status         Never-married                     0.083467                        0.054954                  0.54771             0.057692
            marital_status         Separated                         0.027103                        0.026543                  0.49135             0.058151
            marital_status         Widowed                            0.12427                        0.079864                  0.58851             0.048675



    Plot the EOD and AAOD values for the sensitive attribute age_group. Because age_group is the first element in the SensitiveAttributeNames property of MdlEvaluator, it is the default value for the property. Therefore, you do not have to specify the SensitiveAttributeName argument of the plot function.

    figure
    t = tiledlayout(1,2);
    nexttile
    plot(MdlEvaluator,"eod")
    title("EOD")
    xlabel("")
    ylabel("")
    nexttile
    plot(MdlEvaluator,"aaod")
    title("AAOD")
    xlabel("")
    ylabel("")
    yticklabels("")
    xlabel(t,"Fairness Metric Value")
    ylabel(t,"Age Group")

    Figure contains 2 axes objects. Axes object 1 with title EOD contains an object of type bar. Axes object 2 with title AAOD contains an object of type bar.

    The vertical line at x=0 indicates the metric value for the reference group (30<=Age<45). If the labels do not have a bias for a target group compared to the reference group, the metric value for the target group is the same as the metric value for the reference group. According to the EOD values (differences in TPR), the predictions for the salary variable are most biased toward the group 45<=Age<60 compared to the reference group. According to the AAOD values (averaged differences in TPR and FPR), the predictions are most biased toward the group Age<30.

    Plot the EOD and AAOD values for the sensitive attribute marital_status by specifying the SensitiveAttributeName argument of the plot function as marital_status.

    figure
    t = tiledlayout(1,2);
    nexttile
    plot(MdlEvaluator,"eod",SensitiveAttributeName="marital_status")
    title("EOD")
    xlabel("")
    ylabel("")
    nexttile
    plot(MdlEvaluator,"aaod",SensitiveAttributeName="marital_status")
    title("AAOD")
    xlabel("")
    ylabel("")
    yticklabels("")
    xlabel(t,"Fairness Metric Value")
    ylabel(t,"Marital Status")

    Figure contains 2 axes objects. Axes object 1 with title EOD contains an object of type bar. Axes object 2 with title AAOD contains an object of type bar.

    The vertical line at x=0 indicates the metric value for the reference group (Married-civ-spouse). According to the EOD values, the predictions for the salary variable are most biased toward the group Widowed compared to the reference group. According to the AAOD values, the predictions are similarly biased toward the groups Widowed and Married-AF-spouse.

    Train two classification models, and compare the model predictions by using fairness metrics.

    Read the sample file CreditRating_Historical.dat into a table. The predictor data consists of financial ratios and industry sector information for a list of corporate customers. The response variable consists of credit ratings assigned by a rating agency.

    creditrating = readtable("CreditRating_Historical.dat");

    Because each value in the ID variable is a unique customer ID—that is, length(unique(creditrating.ID)) is equal to the number of observations in creditrating—the ID variable is a poor predictor. Remove the ID variable from the table, and convert the Industry variable to a categorical variable.

    creditrating.ID = [];
    creditrating.Industry = categorical(creditrating.Industry);

    In the Rating response variable, combine the AAA, AA, A, and BBB ratings into a category of "good" ratings, and the BB, B, and CCC ratings into a category of "poor" ratings.

    Rating = categorical(creditrating.Rating);
    Rating = mergecats(Rating,["AAA","AA","A","BBB"],"good");
    Rating = mergecats(Rating,["BB","B","CCC"],"poor");
    creditrating.Rating = Rating;

    Train a support vector machine (SVM) model on the creditrating data. For better results, standardize the predictors before fitting the model. Use the trained model to predict labels and compute the misclassification rate for the training data set.

    predictorNames = ["WC_TA","RE_TA","EBIT_TA","MVE_BVTD","S_TA"];
    SVMMdl = fitcsvm(creditrating,"Rating", ...
        PredictorNames=predictorNames,Standardize=true);
    SVMPredictions = resubPredict(SVMMdl);
    resubLoss(SVMMdl)
    ans = 0.0872


    Train a generalized additive model (GAM).

    GAMMdl = fitcgam(creditrating,"Rating", ...
        PredictorNames=predictorNames);
    GAMPredictions = resubPredict(GAMMdl);
    resubLoss(GAMMdl)
    ans = 0.0542


    GAMMdl achieves better accuracy on the training data set.

    Compute fairness metrics with respect to the sensitive attribute Industry by using the model predictions for both models.

    SVMEvaluator = fairnessMetrics(creditrating,"Rating", ...
        SensitiveAttributeNames="Industry",Predictions=SVMPredictions);
    GAMEvaluator = fairnessMetrics(creditrating,"Rating", ...
        SensitiveAttributeNames="Industry",Predictions=GAMPredictions);

    Display the bias metrics by using the report function.

    report(SVMEvaluator)
    ans=12×6 table
        SensitiveAttributeNames    Groups    StatisticalParityDifference    DisparateImpact    EqualOpportunityDifference    AverageAbsoluteOddsDifference
        _______________________    ______    ___________________________    _______________    __________________________    _____________________________

               Industry              1                -0.028441                 0.92261                 -0.094905                      0.094505
               Industry              2                 -0.04014                 0.89078                  -0.16287                       0.11858
               Industry              3                        0                       1                         0                             0
               Industry              4                 -0.04905                 0.86654                  -0.17921                       0.13518
               Industry              5                -0.015615                 0.95751                 -0.071714                      0.065046
               Industry              6                 -0.03818                 0.89611                 -0.024637                      0.025143
               Industry              7                 -0.01514                  0.9588                 -0.032729                      0.028961
               Industry              8                0.0078632                  1.0214                 -0.082943                      0.054485
               Industry              9                -0.013863                 0.96228                  -0.18214                       0.13879
               Industry              10               0.0090218                  1.0245                  -0.15659                       0.11502
               Industry              11               -0.004188                  0.9886                -0.0038408                      0.010149
               Industry              12               -0.041572                 0.88689                 -0.088521                      0.072354


    report(GAMEvaluator)
    ans=12×6 table
        SensitiveAttributeNames    Groups    StatisticalParityDifference    DisparateImpact    EqualOpportunityDifference    AverageAbsoluteOddsDifference
        _______________________    ______    ___________________________    _______________    __________________________    _____________________________

               Industry              1                0.0058208                   1.017                -0.083315                        0.068815
               Industry              2                0.0063339                  1.0185                -0.094291                        0.071588
               Industry              3                        0                       1                        0                               0
               Industry              4               -0.0043007                 0.98742                 -0.14862                        0.097716
               Industry              5                0.0041607                  1.0122                -0.049115                        0.047334
               Industry              6                -0.024515                 0.92829                -0.011797                        0.011068
               Industry              7                 0.007326                  1.0214                -0.021219                        0.011016
               Industry              8                 0.036581                   1.107                -0.033395                         0.02428
               Industry              9                 0.042266                  1.1236                 -0.11705                         0.08944
               Industry              10                0.050095                  1.1465                 -0.10458                        0.080427
               Industry              11                0.001453                  1.0042                -0.012269                       0.0089321
               Industry              12               -0.028589                 0.91638                -0.078527                        0.061535



    Among the bias metrics, compare the equal opportunity difference (EOD) values. Create bar graphs of the EOD values by using the plot function.

    figure
    t = tiledlayout(2,1);
    ax1 = nexttile;
    plot(SVMEvaluator,"eod")
    xlabel("")
    ylabel("")
    title("SVM")

    ax2 = nexttile;
    plot(GAMEvaluator,"eod")
    xlabel("")
    ylabel("")
    title("GAM")

    linkaxes([ax1 ax2],"x")
    xlabel(t,"Equal Opportunity Difference")
    ylabel(t,"Industry")

    Figure contains 2 axes objects. Axes object 1 with title SVM contains an object of type bar. Axes object 2 with title GAM contains an object of type bar.

    To better understand the distributions of EOD values, plot the values using box plots.

    figure
    boxchart([SVMEvaluator.BiasMetrics.EqualOpportunityDifference ...
        GAMEvaluator.BiasMetrics.EqualOpportunityDifference])
    xticklabels(["SVM","GAM"])
    ylabel("Equal Opportunity Difference")

    Figure contains an axes object. The axes object contains an object of type boxchart.

    The EOD values for GAM are closer to 0 compared to the values for SVM.

    More About

    expand all

    Algorithms

    fairnessMetrics considers NaN, '' (empty character vector), "" (empty string), <missing>, and <undefined> values in Tbl, Y, and SensitiveAttributes to be missing values. fairnessMetrics does not use observations with missing values.

    References

    [1] Mehrabi, Ninareh, et al. “A Survey on Bias and Fairness in Machine Learning.” ArXiv:1908.09635 [cs.LG], Sept. 2019. arXiv.org.

    [2] Saleiro, Pedro, et al. “Aequitas: A Bias and Fairness Audit Toolkit.” ArXiv:1811.05577 [cs.LG], April 2019. arXiv.org.

    Version History

    Introduced in R2022b
