## Introduction to Fairness in Binary Classification

The functions `fairnessMetrics`

, `fairnessWeights`

,
and `disparateImpactRemover`

in Statistics and Machine Learning Toolbox™ allow you to detect and mitigate societal bias in binary classification. First,
use `fairnessMetrics`

to evaluate the fairness of a data set or
classification model with bias and group metrics. Then, use
`fairnessWeights`

to reweight observations, or use
`disparateImpactRemover`

to remove the disparate impact of a sensitive
attribute.

`fairnessMetrics`

— The`fairnessMetrics`

function computes fairness metrics (bias metrics and group metrics) for a data set or classification model with respect to sensitive attributes. The data-level evaluation examines binary, true labels of the data. The model-level evaluation examines the predicted labels returned by the binary classification model, using both true labels and predicted labels. You can use the metrics to determine if your data or model contains bias toward a group within each sensitive attribute.`fairnessWeights`

— The`fairnessWeights`

function computes fairness weights with respect to a sensitive attribute and the response variable. For every combination of a group in the sensitive attribute and a class label in the response variable, the software computes a weight value. The function then assigns each observation its corresponding weight. The returned weights introduce fairness across the sensitive attribute groups. Pass the weights to an appropriate training function, such as`fitcsvm`

, using the`Weights`

name-value argument.`disparateImpactRemover`

— The`disparateImpactRemover`

function tries to remove the disparate impact of a sensitive attribute on model predictions by using the sensitive attribute to transform the continuous predictors in the data set. The function returns the transformed data set and a`disparateImpactRemover`

object that contains the transformation. Pass the transformed data set to an appropriate training function, such as`fitcsvm`

, and pass the object to the`transform`

object function to apply the transformation to a new data set, such as a test data set.

### Reduce Statistical Parity Difference Using Fairness Weights

Train a neural network model, and compute the statistical parity difference (SPD) for each group in the sensitive attribute. To reduce the SPD values, compute fairness weights, and retrain the neural network model.

Read the sample file `CreditRating_Historical.dat`

into a table. The predictor data consists of financial ratios and industry sector information for a list of corporate customers. The response variable consists of credit ratings assigned by a rating agency.

`creditrating = readtable("CreditRating_Historical.dat");`

Because each value in the `ID`

variable is a unique customer ID—that is, `length(unique(creditrating.ID))`

is equal to the number of observations in `creditrating`

—the `ID`

variable is a poor predictor. Remove the `ID`

variable from the table, and convert the `Industry`

variable to a `categorical`

variable.

creditrating.ID = []; creditrating.Industry = categorical(creditrating.Industry);

In the `Rating`

response variable, combine the `AAA`

, `AA`

, `A`

, and `BBB`

ratings into a category of "good" ratings, and the `BB`

, `B`

, and `CCC`

ratings into a category of "poor" ratings.

Rating = categorical(creditrating.Rating); Rating = mergecats(Rating,["AAA","AA","A","BBB"],"good"); Rating = mergecats(Rating,["BB","B","CCC"],"poor"); creditrating.Rating = Rating;

Train a neural network model on the `creditrating`

data. For better results, standardize the predictors before fitting the model. Use the trained model to predict labels for the training data set.

rng("default") % For reproducibility netMdl = fitcnet(creditrating,"Rating",Standardize=true); netPredictions = predict(netMdl,creditrating);

Compute fairness metrics with respect to the `Industry`

sensitive attribute by using the model predictions. In particular, find the statistical parity difference (SPD) for each group in `Industry`

.

netEvaluator = fairnessMetrics(creditrating,"Rating", ... SensitiveAttributeNames="Industry",Predictions=netPredictions); report(netEvaluator,BiasMetrics="StatisticalParityDifference")

`ans=`*12×3 table*
SensitiveAttributeNames Groups StatisticalParityDifference
_______________________ ______ ___________________________
Industry 1 0.074295
Industry 2 0.093076
Industry 3 0
Industry 4 0.10045
Industry 5 0.064073
Industry 6 0.0025249
Industry 7 0.03256
Industry 8 0.096638
Industry 9 0.16632
Industry 10 0.15954
Industry 11 0.021766
Industry 12 0.037885

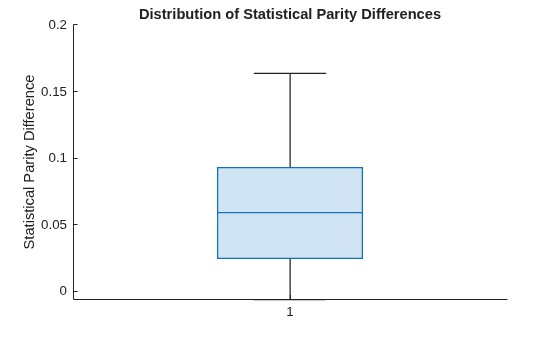

To better understand the distribution of SPD values, plot the values using a box plot.

spdValues = netEvaluator.BiasMetrics.StatisticalParityDifference; boxchart(spdValues) ylabel("Statistical Parity Difference") title("Distribution of Statistical Parity Differences")

The median SPD value is around 0.06, which is higher than the value 0 of a fair model.

Compute fairness weights, and refit a neural network model using the weights. As before, standardize the predictors. Then, predict labels for the training data by using the new model.

weights = fairnessWeights(creditrating,"Industry","Rating"); rng("default") % For reproducibility newNetMdl = fitcnet(creditrating,"Rating",Weights=weights, ... Standardize=true); newNetPredictions = predict(newNetMdl,creditrating);

Compute the new SPD values.

newNetEvaluator = fairnessMetrics(creditrating,"Rating", ... SensitiveAttributeNames="Industry",Predictions=newNetPredictions); report(newNetEvaluator,BiasMetrics="StatisticalParityDifference")

`ans=`*12×3 table*
SensitiveAttributeNames Groups StatisticalParityDifference
_______________________ ______ ___________________________
Industry 1 0.051552
Industry 2 0.058633
Industry 3 0
Industry 4 0.065591
Industry 5 0.026786
Industry 6 -0.0080011
Industry 7 0.013594
Industry 8 0.065071
Industry 9 0.11039
Industry 10 0.11254
Industry 11 0.01661
Industry 12 0.0030654

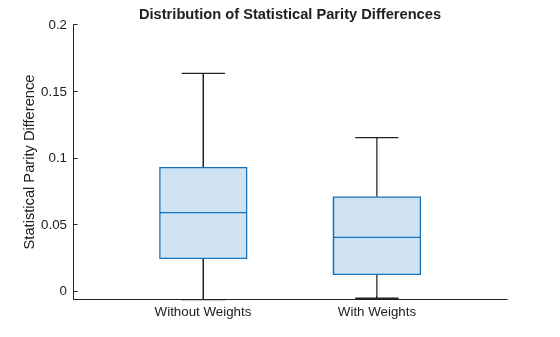

Display the two distributions of SPD values. The left box plot shows the SPD values computed using the original model. The right box plot shows the SPD values computed using the new model trained with fairness weights.

spdValuesUpdated = newNetEvaluator.BiasMetrics.StatisticalParityDifference; boxchart([spdValues spdValuesUpdated]) xticklabels(["Without Weights","With Weights"]) ylabel("Statistical Parity Difference") title("Distribution of Statistical Parity Differences")

The new SPD values have a median around 0.04, which is closer to 0 than the previous median of 0.6. The maximum value of the new SPD values, which is around 0.11, is also closer to 0 than the previous maximum value, which is around 0.16.

### Reduce Disparate Impact of Predictions

Train a binary classifier, classify test data using the model, and compute the disparate impact for each group in the sensitive attribute. To reduce the disparate impact values, use `disparateImpactRemover`

, and then retrain the binary classifier. Transform the test data set, reclassify the observations, and compute the disparate impact values.

Load the sample data `census1994`

, which contains the training data `adultdata`

and the test data `adulttest`

. The data sets consist of demographic information from the US Census Bureau that can be used to predict whether an individual makes over $50,000 per year. Preview the first few rows of the training data set.

```
load census1994
head(adultdata)
```

age workClass fnlwgt education education_num marital_status occupation relationship race sex capital_gain capital_loss hours_per_week native_country salary ___ ________________ __________ _________ _____________ _____________________ _________________ _____________ _____ ______ ____________ ____________ ______________ ______________ ______ 39 State-gov 77516 Bachelors 13 Never-married Adm-clerical Not-in-family White Male 2174 0 40 United-States <=50K 50 Self-emp-not-inc 83311 Bachelors 13 Married-civ-spouse Exec-managerial Husband White Male 0 0 13 United-States <=50K 38 Private 2.1565e+05 HS-grad 9 Divorced Handlers-cleaners Not-in-family White Male 0 0 40 United-States <=50K 53 Private 2.3472e+05 11th 7 Married-civ-spouse Handlers-cleaners Husband Black Male 0 0 40 United-States <=50K 28 Private 3.3841e+05 Bachelors 13 Married-civ-spouse Prof-specialty Wife Black Female 0 0 40 Cuba <=50K 37 Private 2.8458e+05 Masters 14 Married-civ-spouse Exec-managerial Wife White Female 0 0 40 United-States <=50K 49 Private 1.6019e+05 9th 5 Married-spouse-absent Other-service Not-in-family Black Female 0 0 16 Jamaica <=50K 52 Self-emp-not-inc 2.0964e+05 HS-grad 9 Married-civ-spouse Exec-managerial Husband White Male 0 0 45 United-States >50K

Each row contains the demographic information for one adult. The last column `salary`

shows whether a person has a salary less than or equal to $50,000 per year or greater than $50,000 per year.

Remove observations from `adultdata`

and `adulttest`

that contain missing values.

adultdata = rmmissing(adultdata); adulttest = rmmissing(adulttest);

Specify the continuous numeric predictors to use for model training.

predictors = ["age","education_num","capital_gain","capital_loss", ... "hours_per_week"];

Train an ensemble classifier using the training set `adultdata`

. Specify `salary`

as the response variable and `fnlwgt`

as the observation weights. Because the training set is imbalanced, use the `RUSBoost`

algorithm. After training the model, predict the salary (class label) of the observations in the test set `adulttest`

.

rng("default") % For reproducibility mdl = fitcensemble(adultdata,"salary",Weights="fnlwgt", ... PredictorNames=predictors,Method="RUSBoost"); labels = predict(mdl,adulttest);

Transform the training set predictors by using the `race`

sensitive attribute.

[remover,newadultdata] = disparateImpactRemover(adultdata, ... "race",PredictorNames=predictors); remover

remover = disparateImpactRemover with properties: RepairFraction: 1 PredictorNames: {1x5 cell} SensitiveAttribute: 'race'

`remover`

is a `disparateImpactRemover`

object, which contains the transformation of the `remover.PredictorNames`

predictors with respect to the `remover.SensitiveAttribute`

variable.

Apply the same transformation stored in `remover`

to the test set predictors. **Note:** You must transform both the training and test data sets before passing them to a classifier.

```
newadulttest = transform(remover,adulttest, ...
PredictorNames=predictors);
```

Train the same type of ensemble classifier as `mdl`

, but use the transformed predictor data. As before, predict the salary (class label) of the observations in the test set `adulttest`

.

rng("default") % For reproducibility newMdl = fitcensemble(newadultdata,"salary",Weights="fnlwgt", ... PredictorNames=predictors,Method="RUSBoost"); newLabels = predict(newMdl,newadulttest);

Compare the disparate impact values for the predictions made by the original model (`mdl`

) and the predictions made by the model trained with the transformed data (`newMdl`

). For each group in the sensitive attribute, the disparate impact value is the proportion of predictions in that group with a positive class value ($${p}_{g+}$$) divided by the proportion of predictions in the reference group with a positive class value ($${p}_{r+}$$). An ideal classifier makes predictions where, for each group, $${p}_{g+}$$ is close to $${p}_{r+}$$ (that is, where the disparate impact value is close to 1).

Compute the disparate impact values for the `mdl`

predictions made using the original predictor data. Include the observation weights. You can use the `report`

object function to display bias metrics, such as disparate impact, that are stored in the `evaluator`

object.

evaluator = fairnessMetrics(adulttest,"salary", ... SensitiveAttributeNames="race",Predictions=labels, ... Weights="fnlwgt"); evaluator.PositiveClass

`ans = `*categorical*
>50K

evaluator.ReferenceGroup

ans = 'White'

`report(evaluator,BiasMetrics="DisparateImpact")`

`ans=`*5×3 table*
SensitiveAttributeNames Groups DisparateImpact
_______________________ __________________ _______________
race Amer-Indian-Eskimo 0.41702
race Asian-Pac-Islander 1.719
race Black 0.60571
race Other 0.66958
race White 1

Several of the disparate impact values are below the industry standard of 0.8, and one value is above 1.25. These values indicate bias in the predictions with respect to the positive class `>50K`

and the sensitive attribute `race`

.

Compute the disparate impact values for the `newMdl`

predictions.

newEvaluator = fairnessMetrics(newadulttest,"salary", ... SensitiveAttributeNames="race",Predictions=newLabels, ... Weights="fnlwgt"); newEvaluator.PositiveClass

`ans = `*categorical*
>50K

newEvaluator.ReferenceGroup

ans = 'White'

`report(newEvaluator,BiasMetrics="DisparateImpact")`

`ans=`*5×3 table*
SensitiveAttributeNames Groups DisparateImpact
_______________________ __________________ _______________
race Amer-Indian-Eskimo 0.92804
race Asian-Pac-Islander 0.9697
race Black 0.66629
race Other 0.86039
race White 1

The disparate impact values for the `newMdl`

predictions are closer to 1 than the disparate impact values for the `mdl`

predictions. One value is still below 0.8.

Visually compare the disparate impact values by using a bar graph.

bar([evaluator.BiasMetrics.DisparateImpact, ... newEvaluator.BiasMetrics.DisparateImpact]) xticklabels(evaluator.BiasMetrics.Groups) ylabel("Disparate Impact") legend(["Original","Transformed"], ... Location="eastoutside")

The `disparateImpactRemover`

function seems to have improved the model predictions on the test set with respect to the disparate impact metric.

Check whether the transformed predictors negatively affect the accuracy of the model predictions. Compute the accuracy of the test set predictions for the two models `mdl`

and `newMdl`

.

`accuracy = 1-loss(mdl,adulttest,"salary")`

accuracy = 0.8024

`newAccuracy = 1-loss(newMdl,newadulttest,"salary")`

newAccuracy = 0.7955

The model trained using the transformed predictors (`newMdl`

) achieves similar test set accuracy compared to the model trained with the original predictors (`mdl`

).
