predict
Predict responses for new observations from linear incremental learning model
Since R2020b
Syntax
Description
[
also returns classification scores for all classes when label
,score
] = predict(___)Mdl
is an incremental learning model for classification, using any of the input argument combinations in the previous syntaxes.
Examples
Predict Class Labels
Load the human activity data set.
load humanactivity
For details on the data set, enter Description
at the command line.
Responses can be one of five classes: Sitting, Standing, Walking, Running, or Dancing. Dichotomize the response by identifying whether the subject is moving (actid
> 2).
Y = actid > 2;
Fit a linear classification model to the entire data set.
TTMdl = fitclinear(feat,Y)
TTMdl = ClassificationLinear ResponseName: 'Y' ClassNames: [0 1] ScoreTransform: 'none' Beta: [60x1 double] Bias: -0.2005 Lambda: 4.1537e-05 Learner: 'svm'
TTMdl
is a ClassificationLinear
model object representing a traditionally trained linear classification model.
Convert the traditionally trained linear classification model to a binary classification linear model for incremental learning.
IncrementalMdl = incrementalLearner(TTMdl)
IncrementalMdl = incrementalClassificationLinear IsWarm: 1 Metrics: [1x2 table] ClassNames: [0 1] ScoreTransform: 'none' Beta: [60x1 double] Bias: -0.2005 Learner: 'svm'
IncrementalMdl
is an incrementalClassificationLinear
model object prepared for incremental learning using SVM.
The
incrementalLearner
function initializes the incremental learner by passing learned coefficients to it, along with other informationTTMdl
learned from the training data.IncrementalMdl
is warm (IsWarm
is1
), which means that incremental learning functions can start tracking performance metrics.The
incrementalLearner
configures the model to be trained using the adaptive scale-invariant solver, whereasfitclinear
trainedTTMdl
using the BFGS solver.
An incremental learner created from converting a traditionally trained model can generate predictions without further processing.
Predict class labels for all observations using both models.
ttlabels = predict(TTMdl,feat); illables = predict(IncrementalMdl,feat); sameLabels = sum(ttlabels ~= illables) == 0
sameLabels = logical
1
Both models predict the same labels for each observation.
Specify Observation Orientation in Data
If you orient the observations along the columns of the predictor data matrix, you can experience an efficiency boost during incremental learning.
Load and shuffle the 2015 NYC housing data set. For more details on the data, see NYC Open Data.
load NYCHousing2015 rng(1) % For reproducibility n = size(NYCHousing2015,1); shuffidx = randsample(n,n); NYCHousing2015 = NYCHousing2015(shuffidx,:);
Extract the response variable SALEPRICE
from the table. Apply the log transform to SALEPRICE
.
Y = log(NYCHousing2015.SALEPRICE + 1); % Add 1 to avoid log of 0
NYCHousing2015.SALEPRICE = [];
Create dummy variable matrices from the categorical predictors.
catvars = ["BOROUGH" "BUILDINGCLASSCATEGORY" "NEIGHBORHOOD"]; dumvarstbl = varfun(@(x)dummyvar(categorical(x)),NYCHousing2015,... 'InputVariables',catvars); dumvarmat = table2array(dumvarstbl); NYCHousing2015(:,catvars) = [];
Treat all other numeric variables in the table as linear predictors of sales price. Concatenate the matrix of dummy variables to the rest of the predictor data, and transpose the data to speed up computations.
idxnum = varfun(@isnumeric,NYCHousing2015,'OutputFormat','uniform'); X = [dumvarmat NYCHousing2015{:,idxnum}]';
Configure a linear regression model for incremental learning with no estimation period.
Mdl = incrementalRegressionLinear('Learner','leastsquares','EstimationPeriod',0);
Mdl
is an incrementalRegressionLinear
model object.
Perform incremental learning and prediction by following this procedure for each iteration:
Simulate a data stream by processing a chunk of 100 observations at a time.
Fit the model to the incoming chunk of data. Specify that the observations are oriented along the columns of the data. Overwrite the previous incremental model with the new model.
Predict responses using the fitted model and the incoming chunk of data. Specify that the observations are oriented along the columns of the data.
% Preallocation numObsPerChunk = 100; n = numel(Y); nchunk = floor(n/numObsPerChunk); r = nan(n,1); figure h = plot(r); h.YDataSource = 'r'; ylabel('Residuals') xlabel('Iteration') % Incremental fitting for j = 2:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; Mdl = fit(Mdl,X(:,idx),Y(idx),'ObservationsIn','columns'); yhat = predict(Mdl,X(:,idx),'ObservationsIn','columns'); r(idx) = Y(idx) - yhat; refreshdata drawnow end
Mdl
is an incrementalRegressionLinear
model object trained on all the data in the stream.

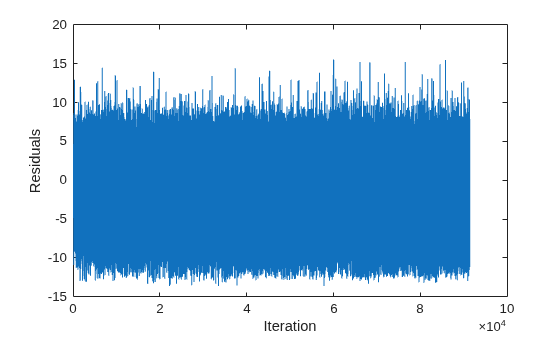

The residuals appear symmetrically spread around 0 throughout incremental learning.
Compute Posterior Class Probabilities
To compute posterior class probabilities, specify a logistic regression incremental learner.
Load the human activity data set. Randomly shuffle the data.
load humanactivity n = numel(actid); rng(10); % For reproducibility idx = randsample(n,n); X = feat(idx,:); Y = actid(idx);
For details on the data set, enter Description
at the command line.
Responses can be one of five classes: Sitting, Standing, Walking, Running, or Dancing. Dichotomize the response by identifying whether the subject is moving (actid
> 2).
Y = Y > 2;
Create an incremental logistic regression model for binary classification. Prepare it for predict
by specifying the class names and arbitrary coefficient and bias values.
p = size(X,2); Beta = randn(p,1); Bias = randn(1); Mdl = incrementalClassificationLinear('Learner','logistic','Beta',Beta,... 'Bias',Bias,'ClassNames',unique(Y));
Mdl
is an incrementalClassificationLinear
model. All its properties are read-only. Instead of specifying arbitrary values, you can take either of these actions to prepare the model:
Train a logistic regression model for binary classification using
fitclinear
on a subset of the data (if available), and then convert the model to an incremental learner by usingincrementalLearner
.Incrementally fit
Mdl
to data by usingfit
.
Simulate a data stream, and perform the following actions on each incoming chunk of 50 observations.
Call
predict
to predict classification scores for the observations in the incoming chunk of data. The classification scores are posterior class probabilities for logistic regression learners.Call
rocmetrics
to compute the area under the ROC curve (AUC) using the incoming chunk of data, and store the result.Call
fit
to fit the model to the incoming chunk. Overwrite the previous incremental model with a new one fitted to the incoming observations.
numObsPerChunk = 50; nchunk = floor(n/numObsPerChunk); auc = zeros(nchunk,1); % Incremental learning for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; [~,posteriorProb] = predict(Mdl,X(idx,:)); rocObj = rocmetrics(Y(idx),posteriorProb,Mdl.ClassNames); auc(j) = rocObj.AUC(1); Mdl = fit(Mdl,X(idx,:),Y(idx)); end
Mdl
is an incrementalClassificationLinear
model object trained on all the data in the stream.

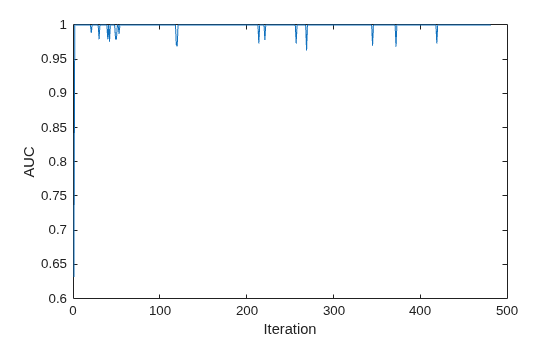

Plot the AUC on the incoming chunks of data.
plot(auc) ylabel('AUC') xlabel('Iteration')
The plot suggests that the classifier predicts moving subjects well during incremental learning.
Input Arguments
Mdl
— Incremental learning model
incrementalClassificationLinear
model object | incrementalRegressionLinear
model object
Incremental learning model, specified as an incrementalClassificationLinear
or incrementalRegressionLinear
model object. You can create Mdl
directly or by converting a supported, traditionally trained machine learning model using the incrementalLearner
function. For more details, see the corresponding reference page.
You must configure Mdl
to predict labels for a batch of observations.
If
Mdl
is a converted, traditionally trained model, you can predict labels without any modifications.Otherwise,
Mdl
must satisfy the following criteria, which you can specify directly or by fittingMdl
to data usingfit
orupdateMetricsAndFit
.If
Mdl
is anincrementalRegressionLinear
model, its model coefficientsMdl.Beta
and biasMdl.Bias
must be nonempty arrays.If
Mdl
is anincrementalClassificationLinear
model, its model coefficientsMdl.Beta
and biasMdl.Bias
must be nonempty arrays and the class names inMdl.ClassNames
must contain two classes.Regardless of object type, if you configure the model so that functions standardize predictor data, the predictor means
Mdl.Mu
and standard deviationsMdl.Sigma
must be nonempty arrays.
X
— Batch of predictor data
floating-point matrix
Batch of predictor data for which to predict labels, specified as a floating-point matrix of n observations and Mdl.NumPredictors
predictor variables. The value of dimension
determines the orientation of the variables and observations.
Note
predict
supports only floating-point
input predictor data. If your input data includes categorical data, you must prepare an encoded
version of the categorical data. Use dummyvar
to convert each categorical variable
to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any
other numeric predictors. For more details, see Dummy Variables.
Data Types: single
| double
dimension
— Predictor data observation dimension
'rows'
(default) | 'columns'
Predictor data observation dimension, specified as 'columns'
or 'rows'
.
Example: 'ObservationsIn','columns'
Data Types: char
| string
Output Arguments
label
— Predicted responses (labels)
categorical array | character array | string vector | logical vector | cell array of character vectors | floating-point vector
Predicted responses (labels), returned as a categorical or character array;
floating-point, logical, or string vector; or cell array of character vectors with
n rows. n is the number of observations in
X
, and label(
is the predicted response for observation
j
)
.j
For regression problems,
label
is a floating-point vector.For classification problems,
label
has the same data type as the class names stored inMdl.ClassNames
. (The software treats string arrays as cell arrays of character vectors.)The
predict
function classifies an observation into the class yielding the highest score. For an observation withNaN
scores, the function classifies the observation into the majority class, which makes up the largest proportion of the training labels.
score
— Classification scores
floating-point matrix
Classification scores, returned as an n-by-2 floating-point
matrix when Mdl
is an
incrementalClassificationLinear
model. n is the
number of observations in X
.
score(
is the score for classifying observation j
,k
)
into class j
.
k
Mdl.ClassNames
specifies the order of the classes.
If Mdl.Learner
is 'svm'
,
predict
returns raw classification scores. If
Mdl.Learner
is 'logistic'
, classification scores
are posterior probabilities.
More About
Classification Score
For linear incremental learning models for binary classification, the raw classification score for classifying the observation x, a row vector, into the positive class is
where
β0 is the scalar bias
Mdl.Bias
.β is the column vector of coefficients
Mdl.Beta
.
The raw classification score for classifying x into the negative class is –f(x). The software classifies observations into the class that yields the positive score.
If the linear classification model consists of logistic regression learners, then the software applies the 'logit'
score transformation to the raw classification scores.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Use
saveLearnerForCoder
,loadLearnerForCoder
, andcodegen
(MATLAB Coder) to generate code for thepredict
function. Save a trained model by usingsaveLearnerForCoder
. Define an entry-point function that loads the saved model by usingloadLearnerForCoder
and calls thepredict
function. Then usecodegen
to generate code for the entry-point function.To generate single-precision C/C++ code for
predict
, specify the name-value argument"DataType","single"
when you call theloadLearnerForCoder
function.This table contains notes about the arguments of
predict
. Arguments not included in this table are fully supported.Argument Notes and Limitations Mdl
For usage notes and limitations of the model object, see
incrementalClassificationLinear
orincrementalRegressionLinear
.X
Batch-to-batch, the number of observations can be a variable size.
The number of predictor variables must equal to
Mdl.NumPredictors
.X
must besingle
ordouble
.
The following restrictions apply:
If you configure
Mdl
to shuffle data (Mdl.Shuffle
istrue
, orMdl.Solver
is'sgd'
or'asgd'
), thepredict
function randomly shuffles each incoming batch of observations before it fits the model to the batch. The order of the shuffled observations might not match the order generated by MATLAB®. Therefore, if you fitMdl
before generating predictions, the predictions computed in MATLAB and those computed by the generated code might not be equal.Use a homogeneous data type for all floating-point input arguments and object properties, specifically, either
single
ordouble
.
For more information, see Introduction to Code Generation.
Version History
Introduced in R2020b
