FDCAN Read

R2026b

Read data from CAN FD Bus

Since R2023a

expand all in page
  • FDCAN Read block

Libraries:
STM32 Microcontroller Blockset / STM32G0xx Based Boards
STM32 Microcontroller Blockset / STM32G4xx Based Boards
STM32 Microcontroller Blockset / STM32H5xx Based Boards
STM32 Microcontroller Blockset / STM32H7xx Based Boards
STM32 Microcontroller Blockset / STM32L5xx Based Boards
STM32 Microcontroller Blockset / STM32U5xx Based Boards
STM32 Microcontroller Blockset / STM32H7RSxx Based Boards
STM32 Microcontroller Blockset / STM32N6xx Based Boards

Description

The FDCAN Read block reads messages from a Controller Area Network (CAN) network connected to the hardware.

The FDCAN Read block outputs a CAN data when operation mode is set to Data. The block outputs values received as [64x1] array of type uint8 when output type is set to Unpacked.

The block outputs Simulink® bus signal when output type is set to Packed. To extract data from Simulink bus signal, connect it to CAN FD Unpack block.

Select the Operation mode and its properties using the block parameters dialog box. Configure the properties of FDCAN module in the configuration parameters.

Examples

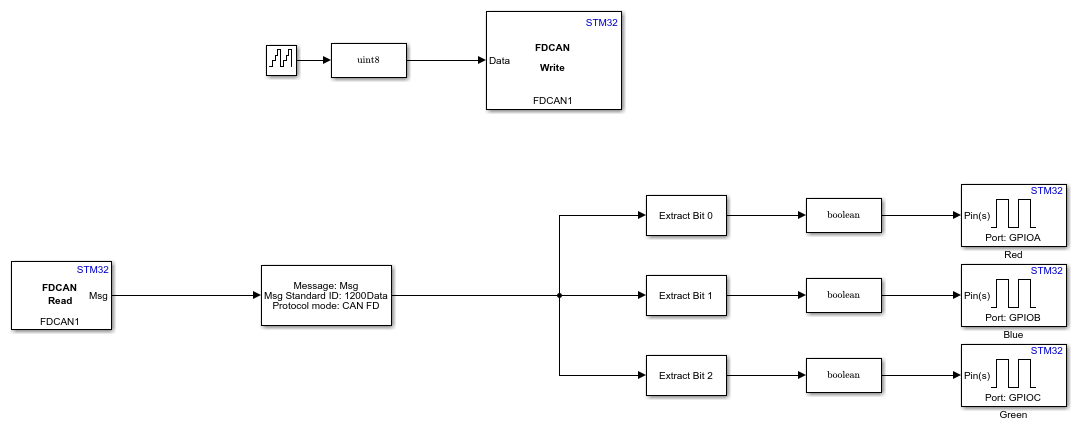

Send and Receive CAN or FDCAN Messages on a STM32 processor

Send and Receive CAN or FDCAN Messages on a STM32 processor

Exchange data between STM32 processor based boards using CAN or FDCAN communication.

Ports

Output

expand all

The block outputs messages in uint8 or CAN Msg format.

The maximum size of the data is [64x1] of uint8 format. The number of bytes defined in the length signifies the valid data of the output.

  • If Output type is set to Unpacked, the received message data is an 64-by-1 array of type uint8.

  • If Output type is set to Packed, the data port is renamed to Msg and the received message data is output as a Simulink bus signal.

This port outputs 0 if the received CAN message is a remote frame.

Data Types: uint8 | CAN Msg

The port outputs FDCAN module status.

  • The status is 1, if FDCAN module in restricted operation mode.

  • The status is 0, if FDCAN module is not in restricted operation mode.

Dependencies

To enable this parameter, set operation mode to Read restricted operation mode status.

Data Types: uint8

The port outputs message read status.

  • The status is 0, if the block reads new message.

  • The status is 1, if the block reads no new message.

Dependencies

To enable this parameter, select Output Status parameter.

Data Types: uint8

The port outputs FDCAN module status.

  • The status is 1, if FDCAN module is in sleep mode.

  • The status is 0, if FDCAN module is not in sleep mode.

Dependencies

To enable this parameter, set operation mode to Read sleep status.

Data Types: uint8

The CAN receive block outputs the CAN received message in Simulink bus signal. To extract data from Simulink bus signal, connect it to CAN FD Unpack block.

The port outputs message read status.

  • The status is 1, if the message read is not successful

  • The status is 0, if the message read is successful.

Dependencies

To enable this parameter, set Output type to Packed.

Data Types: CAN Msg

The port outputs the length of the received CAN message in bytes.

Dependencies

To enable this parameter, set Output type to Unpacked.

Data Types: uint8

The port outputs CAN message identifier.

Dependencies

To enable this parameter, set Output type to Unpacked.

Data Types: uint32

The port outputs CAN message identifier type

  • 0 - if its 11-bit standard identifier

  • 1 - if its 29-bit standard identifier

Dependencies

To enable this parameter, set Output type to Unpacked.

Data Types: uint32

Remote message flag. The port outputs 1 if the received CAN message is a remote frame.

Dependencies

To enable this parameter, select Output remote parameter.

Frame type output message. The port outputs 1, if it receives FDCAN message frame and 0, if it receives Classic message frame.

Dependencies

To enable this parameter, select Output frame type parameter.

Data Types: uint8

Bitrate switching output message.

  • 0 - when CAN FD frames are transmitted without bit rate switching.

  • 1 - when CAN FD frames are transmitted with bit rate switching.

Dependencies

To enable this parameter, select Output bitrate switching parameter.

Data Types: uint8

The port outputs the received FIFO fill level.

Dependencies

To enable this parameter, select Output receive FIFO level parameter.

Parameters

expand all

Module to which the FDCAN device is connected.

Programmatic Use

Block Parameter: FDCANModule

Select the CAN read operation mode.

  • Data - Data to read FDCAN data/message

  • Read sleep status - Read the sleep/power status of FDCAN module. In Read sleep status operation mode, the block outputs a logical status if the FDCAN peripheral is in sleep mode.

    In this operation mode, the block configures an output port Sleep.

  • Read restricted operation mode status - To read if the CAN module is in restricted mode. In Read restricted operation mode status operation mode, the block outputs a logical status if the FDCAN peripheral in restricted operation mode.

    In this operation mode, the block configures an output port Restricted mode.

  • Read last error code - Provides the status set by hardware for last message sent or received on CAN bus. In Read last error code operation mode, the block outputs a logical status if the CAN peripheral is in wakeup state.

    The following are the error codes and there respective status.

    • 000 - No Error

    • 001 - Stuff Error

    • 010 - Form Error

    • 011 - Acknowledgment Error

    • 100 - Bit recessive Error

    • 101 - Bit dominant Error

    • 110 - CRC Error

    • 111 - Set by software

Programmatic Use

Block Parameter: OperationReadMode

Select an output type to read message.

  • Unpacked – In Unpacked output type, the block outputs values received as [8x1] array of type uint8. In unpacked type for the FDCAN Read block, you can enable all the output ports(ID, ID type, Data, Status, Remote, Frame type, bitrate switching, Length, FIFO level).

  • Packed – In Packed output type, the block outputs Simulink bus signal. To extract data from Simulink bus signal, connect it to CAN Unpack block.

Programmatic Use

Block Parameter: OutputTypeReadMode

The CAN Read block outputs a CAN message from read source. You can configure read source filter configuration in the configuration parameters.

Programmatic Use

Block Parameter: ReadSource

Specify the FDCAN Read block buffer number.

Dependencies

To enable this parameter, set the read source to Buffers.

Programmatic Use

Block Parameter: BufferNumber

When you select the Output Identifier Type parameter, the block configures an output port, Id Type. The port outputs the standard or extended message status.

Dependencies

To enable this parameter, set the Output type as unpacked.

Programmatic Use

Block Parameter: OutputIdType

When you select the Output Remote parameter, the block configures an output port, Remote. The port outputs the message remote frame status.

Dependencies

To enable this parameter, set the Output type as unpacked.

Programmatic Use

Block Parameter: OutputRemoteFrame

When you select the Output Remote parameter, the block configures an output port, Frame Type. The port outputs the 0 (Classic) or 1 (FD) message status.

Dependencies

To enable this parameter, set the Output type as unpacked.

Programmatic Use

Block Parameter: OutputFrameType

When you select the Output bit rate switching parameter, the block configures an output port, Bitrate switching. The port outputs the 0 (disabled) or 1 (enabled) message status.

Dependencies

To enable this parameter, set the Output type as unpacked.

Programmatic Use

Block Parameter: OutputBRS

When you select the Output receive FIFO fill level parameter, the block configures an output port, FIFO level. The port outputs the received FIFO level message.

Programmatic Use

Block Parameter: OutputRxFifoLevel

When you select the Output Status parameter, the block configures an output port, Status. The port outputs the status message.

Programmatic Use

Block Parameter: OutputStatus

Specify how often the block receives message, in seconds. When you specify this parameter as -1, Simulink determines the best sample time for the block based on the block context within the model.

Programmatic Use

Block Parameter: SampleTime

Specify the time in seconds to block the FDCAN read. For nonblocking, set to 0. You configure Timeout to be the maximum time (in seconds) to wait to complete a read operation.

Programmatic Use

Block Parameter: Timeout

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"stm32g0xxblockslib/FDCAN Read"
"stm32g4xxblockslib/FDCAN Read"
"stm32h5xxblockslib/FDCAN Read"
"stm32h7xxblockslib/FDCAN Read"
"stm32l5xxblockslib/FDCAN Read"
"stm32u5xxblockslib/FDCAN Read"
"stm32h7rsxxblockslib/FDCAN Read"
"stm32n6xxblockslib/FDCAN Read"

Example: add_block("stm32g0xxblockslib/FDCAN Read","myModel/myBlock",MakeNameUnique="on")
