downsample

Decrease sample rate of tireData object by integer factor

Since R2024a

collapse all in page

    Syntax

    obj = downsample(obj,n)
    obj = downsample(___,offset)

    Description

    This function requires Extended Tire Features for Vehicle Dynamics Blockset.

    obj = downsample(obj,n) decreases the sample rate of each data channel in the tireData object specified by obj, keeping the first sample and then every nth sample specified by n.

    example

    obj = downsample(___,offset) offsets the downsampled sequence by the number of samples specified by offset.

    Examples

    collapse all

    This example uses:

    Open Live Script

    Use the downsample function to decrease the sample rate of imported tire measurement data.

    Import and View Tire Measurement Data

    Import tire measurement data into a tireData object, td.

    td = tireData("example_data.tdx");

    Multiple Fz conditions are included in the data. Use the split function to separate the data by tire data channel Fz, resulting in four tireData objects.

    td = split(td,"Fz");

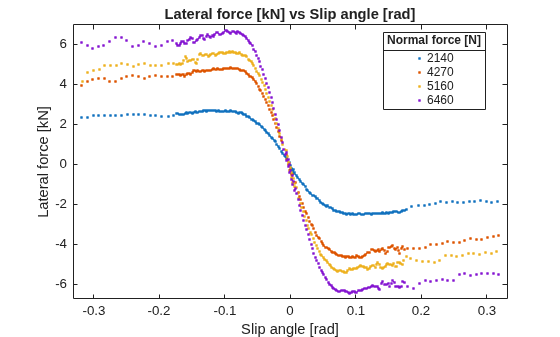

    Use the plot function to view the lateral force versus the slip angle using the normal force to assign colors and legend values.

    plot(td,DataVariableNames=["alpha","Fy"],ColorBy="Fz");

    Downsample Tire Measurement Data

    Use the downsample function to decrease the sample rate of all the data channels in the tireData object array td.

    tdDown = downsample(td,5);

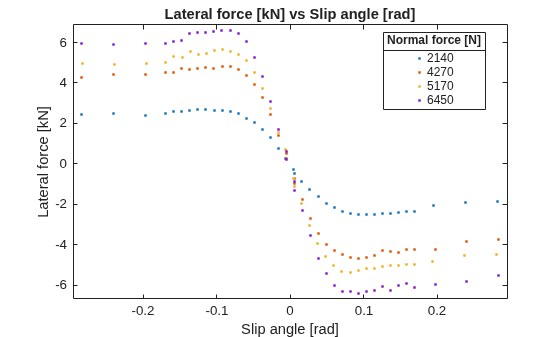

    Plot the resulting tireData objects in tdDown to visualize the modified data set.

    plot(tdDown,DataVariableNames=["alpha","Fy"],ColorBy="Fz");

    Downsample Tire Measurement Data with Offset

    Specify offset to define the number of samples to offset the downsampled sequence.

    tdDown = downsample(td,5,10);

    Plot the resulting tireData objects in tdDown to visualize the modified data set.

    plot(tdDown,DataVariableNames=["alpha","Fy"],ColorBy="Fz")

    Input Arguments

    collapse all

    Tire data, specified as a tireData object or an array of tireData objects.

    Downsampling factor, specified as a positive integer.

    Data Types: int8 | int16 | int32 | int64

    Number of samples to offset the downsampled sequence, specified as a positive integer.

    Data Types: int8 | int16 | int32 | int64

    Output Arguments

    collapse all

    Downsampled tire data, returned as a tireData object or an array of tireData objects.

    Version History

    Introduced in R2024a
