Find Local Maxima

Find local maxima in matrices

  • Find Local Maxima block

Libraries:
Computer Vision Toolbox / Statistics

Description

The Find Local Maxima block finds the local maxima in a given input matrix. The block finds the local maxima of values within a region specified by the neighborhood size. The block compares the values in the search region to a user-specified threshold and identifies a value that is greater than or equal to the threshold as the local maximum. After finding the local maximum, the block sets all the matrix values in the neighborhood, including the maximum value, to zero. This step ensures that subsequent searches do not include this maximum. The process repeats until the block either finds all valid maxima or the specified number of local maxima.

The threshold and the neighborhood size must be chosen such that the block detects only the true local maxima and eliminates false peaks.

The input to this block can also be a Hough matrix generated from the Hough Transform block. The Find Local Maxima block outputs the one-based [x y] coordinates of the detected local maxima. The data sent to all input ports must be the same data type.

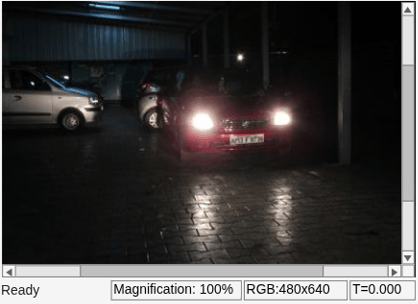

Examples

Ports

Input

expand all

Input, specified as the M-by-N matrix in which you want to detect the local maxima. If the input is a Hough matrix output from the Hough Transform block, select the Input is Hough matrix spanning full theta range parameter that renames this port as Hough.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fixed point

Threshold for the detecting local maxima, specified as a scalar.

Dependencies

To enable this port, set the Source of threshold value parameter to Input port.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fixed point

Output

expand all

Coordinates of the local maxima, returned as a P-by-2 matrix of one-based [x y] coordinates. P represents the number of local maxima.

Data Types: single | double | uint8 | uint16 | uint32

Number of local maxima, returned as a scalar.

Dependencies

To enable this port, clear the check box for the Output variable size signal parameter.

Data Types: single | double | uint8 | uint16 | uint32

Parameters

expand all

Specify the maximum number of local maxima to detect in the input matrix. The value must be a positive integer greater than 0.

Specify the size of the neighborhood region as a two-element vector in the form [r c]. The vector specifies the window size r×c, within which the block determines the local maxima. The window size must be greater than or equal to 1×1.

Specify the source for entering the threshold value. When you select the Input port, the block enables the Th port. When you select the Specify via dialog, the block enables the Threshold parameter.

Specify a scalar value that represents the threshold for detecting the local maxima.

Dependencies

To enable this parameter, set the Source of threshold value parameter to Specify via dialog.

Select the parameter, if the input to this block is the Hough matrix output from the Hough Transform block. The Find Local Maxima block assumes that the input is a Hough matrix that is antisymmetric about the rho axis, with values of theta from -pi/2 to pi/2 radians. As a result, if the local maximum is near the boundary and its neighborhood region is outside the Hough matrix, the block detects only one local maximum. The block ignores the corresponding antisymmetric maximum.

Specify the data type for the coordinates of local maximums returned at the output port Idx.

Specify if the model supports input signals of varying length.

Specify the data type for the number of local maximums returned at the output port Count.

Dependencies

To enable this parameter, clear the Output variable size signal parameter.

Block Characteristics

Data Types

double | fixed point | integer | single

Multidimensional Signals

no

Variable-Size Signals

yes

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced before R2006a
