System-Level Simulation

5G NR multinode communications

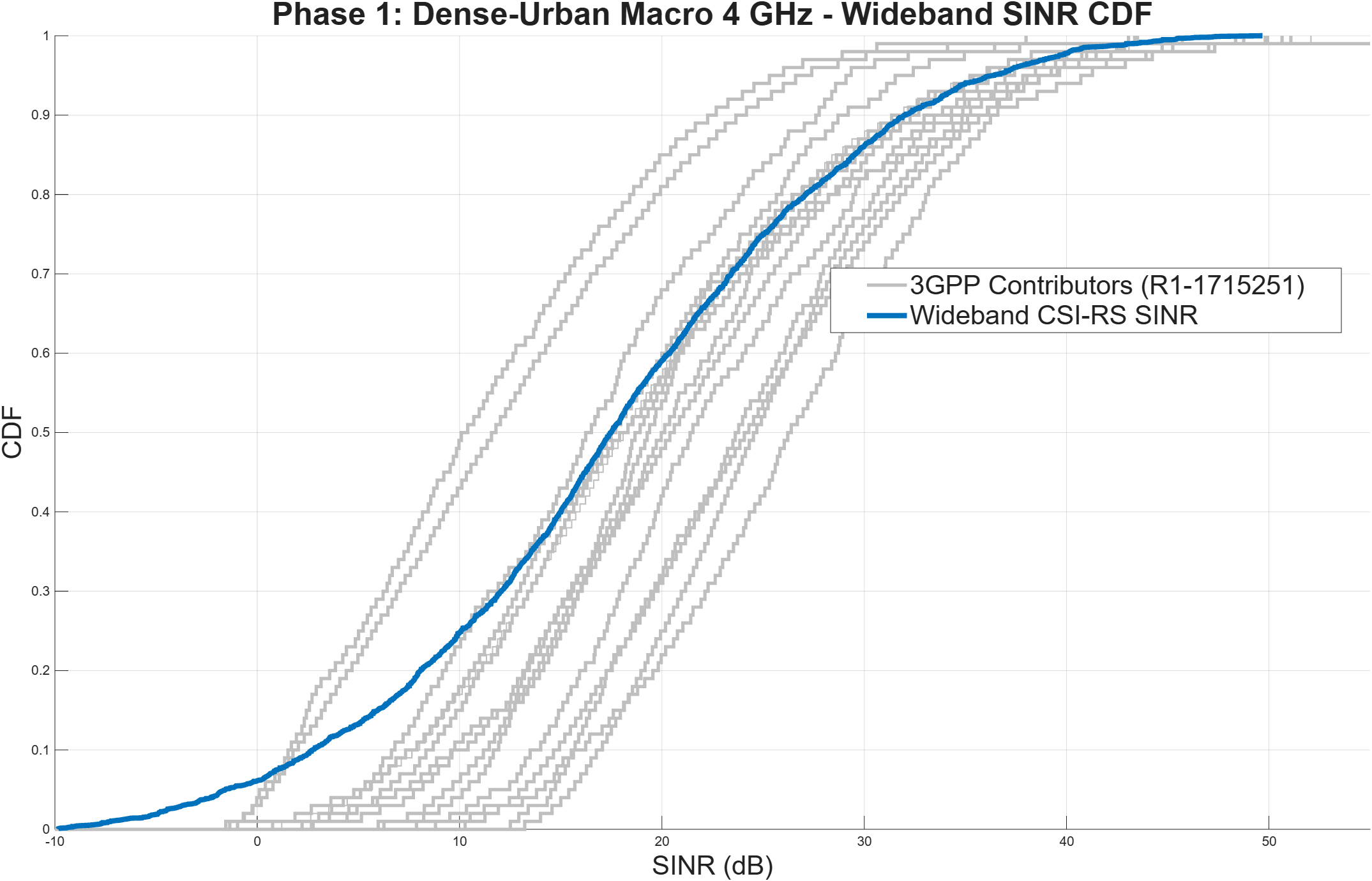

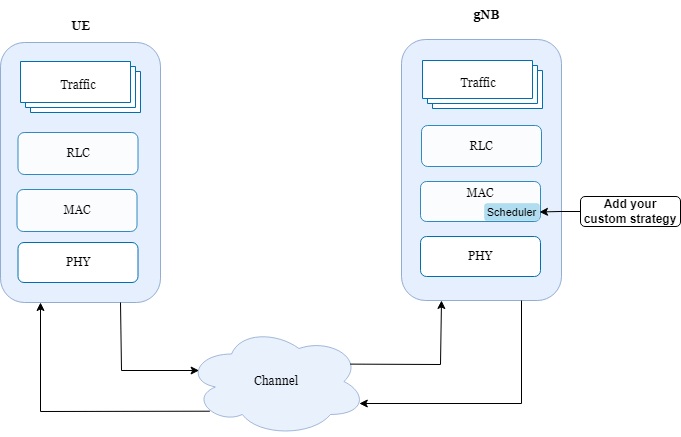

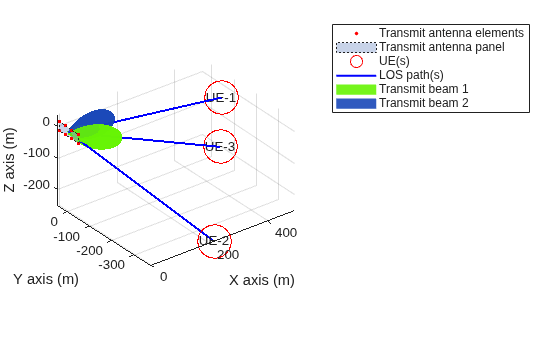

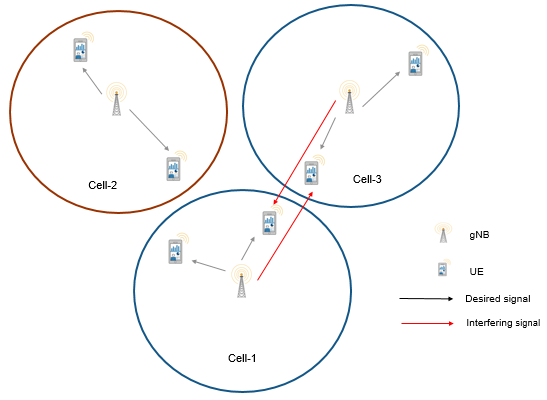

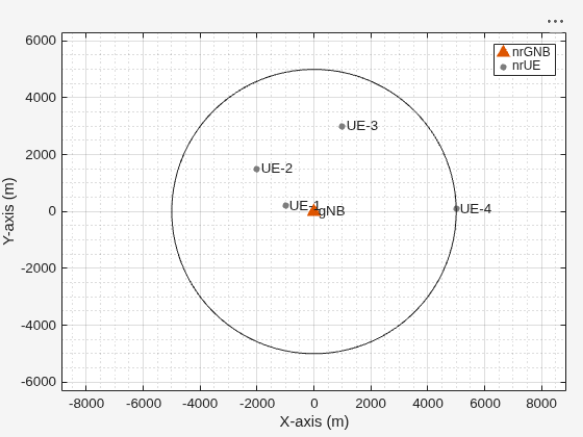

5G Toolbox™ system-level simulations model multinode networks. The simulations operate across a protocol stack that includes physical (PHY), medium access control (MAC), radio link control (RLC), and application layers. Model a New Radio (NR) waveform by using 5G Toolbox PHY and channel modeling features. You can evaluate the network performance with different data traffic models, MAC scheduling strategies, and PHY algorithms. You can also analyze the effect of intercell interference, measure quantities like throughput, scheduling fairness, block error rate (BLER), and spectrum efficiency, and use visualization capabilities to explore the performance of the network. In addition, you can export protocol packets to packet capture (PCAP) and packet capture next generation (PCAPNG) files for network analysis.

Functions

pcapWriterPCAP file writer of protocol packets
pcapngWriterPCAPNG file writer of protocol packets
networkTrafficFTPFTP application traffic pattern generator
networkTrafficOnOffOn-Off application traffic pattern generator
networkTrafficVoIPVoIP application traffic pattern generator
