area

Calculate area of 2-D shapes in square meters

collapse all in page

Syntax

area(shape)
a = area(shape)

Description

area(shape) calculates area in sq.m of the specified shape.

example

a = area(shape) calculates and returns area in sq.m of the specified shape.

example

Examples

collapse all

Open Live Script

Create a rectangle with a length of 0.15 m, and a width of 0.15 m.

r  = antenna.Rectangle(Length=0.15,Width=0.15);

Create a second rectangle with a length of 0.05 m, and a width of 0.05 m. Set the center of the second rectangle at half the length of the first rectangle r.

n = antenna.Rectangle(Center=[0.075,0],Length=0.05,Width=0.05);

Create and view a notched rectangle by subtracting n from r.

rn  = r-n;
show(rn)

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Calculate the area of the notched rectangle.

area(rn)
ans =
0.0212
Open Live Script

This example shows how to calculate the area of a custom shape created using an rectangle and a circle.

Create a rectangular and a circular shape.

r = shape.Rectangle;
c = shape.Circle;

Intersect these two shapes to create a custom shape.

s = r & c;
show(s)

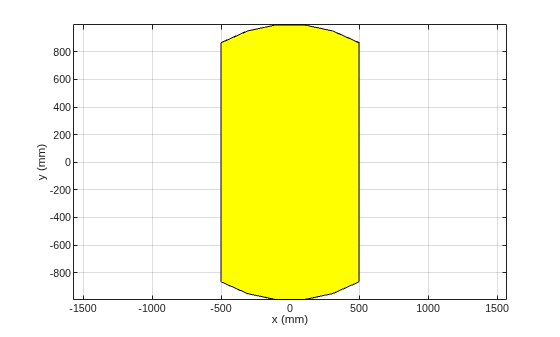

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch.

Calculate the area in sq.m of the resultant shape.

area(s)
ans =
1.9056

Input Arguments

collapse all

Shape to calculate the area, specified as a 2-D shape object from the following:

  • antenna.Rectangle, antenna.Circle, antenna.Ellipse, antenna.Polygon, or antenna.Triangle.

  • shape.Rectangle, shape.Circle, shape.Ellipse, or shape.Polygon

Example: area(antenna.Rectangle(Length=2,Width=4))

Example: area(shape.Polygon)

Output Arguments

collapse all

Area in sq.m of the specified shape returned as a double.

Example: 3.11

Data Types: double
