scale

Change size of shape by fixed factor

collapse all in page

Syntax

scale(shape,factor)
c = scale(shape,factor)

Description

scale(shape,factor) scales the shape by a constant scaling factor and plots the resultant shape.

example

c = scale(shape,factor) scales the shape by a constant scaling factor and returns a shape object.

Examples

collapse all

Open Live Script

Create a rectangular shape.

r  = antenna.Rectangle;
show(r)
axis equal

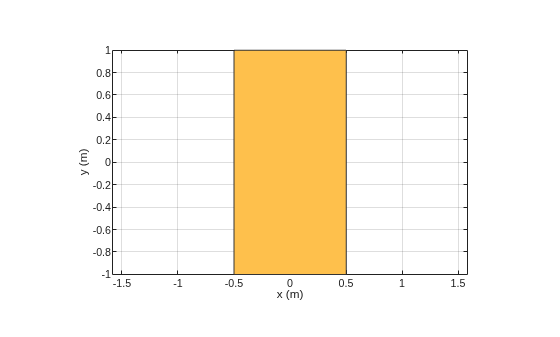

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, myrectangle.

Shrink the rectangle by 50%.

scale(r,0.5);

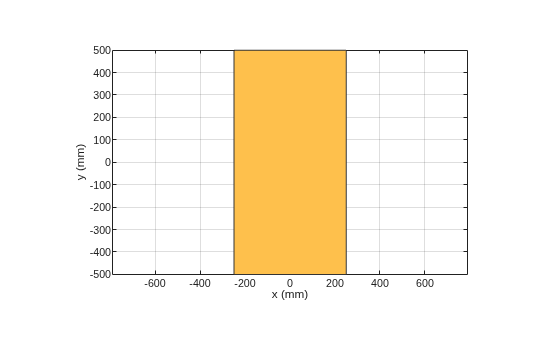

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, myrectangle.

Input Arguments

collapse all

2-D and 3-D geometric shapes created using shape objects in Custom 2-D and 3-D Antenna catalog.

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

Constant factor to change shape size, specified as a scalar.

Example: 2

Data Types: double

Output Arguments

collapse all

Resultant shape obtained after the scaling operation on the input shape, returned as a shape object.

Example: antenna.Rectangle

Example: shape.Polygon

Example: shape.Box

Version History

Introduced in R2017a
