loopRectangular

Create rectangular loop antenna

Description

The default loopRectangular object is a rectangular loop antenna on the xy- plane resonating around 53.36 MHz.

The thickness of the loop is related to the diameter of an equivalent cylinder loop by the equation

t=2d=4r

, where:

  • d is the diameter of equivalent cylindrical loop

  • r is the radius of equivalent cylindrical loop

For a given cylinder radius, use the cylinder2strip utility function to calculate the equivalent width. The default circular loop antenna is fed at the positive y-axis. The point of the y-axis is the midpoint of the inner and outer perimeter of the loop.

Creation

Description

lr = loopRectangular creates a rectangular loop antenna in the xy-plane with default property values. By default, the dimensions are chosen for an operating frequency of around 53.36 MHz.

lr = loopRectangular(PropertyName=Value) sets properties using one or more name–value arguments. PropertyName is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as PropertyName1=Value1,...,PropertyNameN=ValueN. Properties that you do not specify, retain their default values.

For example, lr = loopRectangular(Length=3) creates a rectangular loop antenna with a length of 3 m.

example

Properties

expand all

Loop length along x-axis, specified as a scalar in meters.

Example: 3

Data Types: double

Loop width along y-axis, specified as a scalar in meters.

Example: 2

Data Types: double

Loop thickness, specified as a scalar in meters.

Example: 2

Data Types: double

Type of the metal used as a conductor, specified as a metal object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Lumped elements added to the antenna feed, specified as a lumpedElement object. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed.

Example: lumpedElement(Impedance=75)

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

axialRatioCalculate and plot axial ratio of antenna or array
bandwidthCalculate and plot absolute bandwidth of antenna or array
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
designCreate antenna, array, or AI-based antenna resonating at specified frequency
efficiencyCalculate and plot radiation efficiency of antenna or array
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
feedCurrentCalculate current at feed for antenna or array
impedanceCalculate and plot input impedance of antenna or scan impedance of array
infoDisplay information about antenna, array, or platform
memoryEstimateEstimate memory required to solve antenna or array mesh
meshGenerate and view mesh for antennas, arrays, and custom shapes
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
msiwriteWrite antenna or array analysis data to MSI planet file
optimizeOptimize antenna and array catalog elements using SADEA or TR-SADEA algorithm
patternPlot radiation pattern of antenna, array, or embedded element of array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
peakRadiationCalculate and mark maximum radiation points of antenna or array on radiation pattern
rcsCalculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
resonantFrequencyCalculate and plot resonant frequency of antenna
returnLossCalculate and plot return loss of antenna or scan return loss of array
showDisplay antenna, array structures, shapes, or platform
sparametersCalculate S-parameters for antenna or array
stlwriteWrite mesh information to STL file
vswrCalculate and plot voltage standing wave ratio (VSWR) of antenna or array element
wireStackCreate single or multi-feed wire antenna

Examples

collapse all

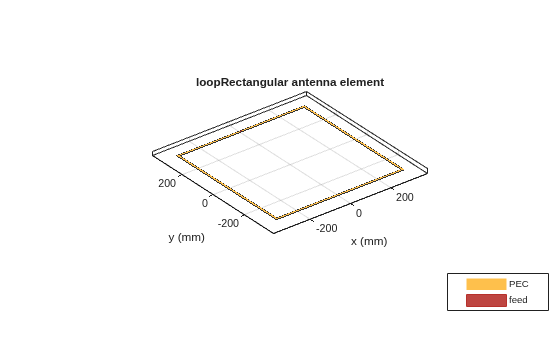

Create and view a rectangular loop antenna with 0.64m length, 0.64m width.

r = loopRectangular(Length=0.64,Width=0.64)
r =
  loopRectangular with properties:

       Length: 0.6400
        Width: 0.6400
    Thickness: 0.0100
    Conductor: [1×1 metal]
         Tilt: 0
     TiltAxis: [1 0 0]
         Load: [1×1 lumpedElement]

show(r)

Figure contains an axes object. The axes object with title loopRectangular antenna element, xlabel x (mm), ylabel y (mm) contains 3 objects of type patch, surface. These objects represent PEC, feed.

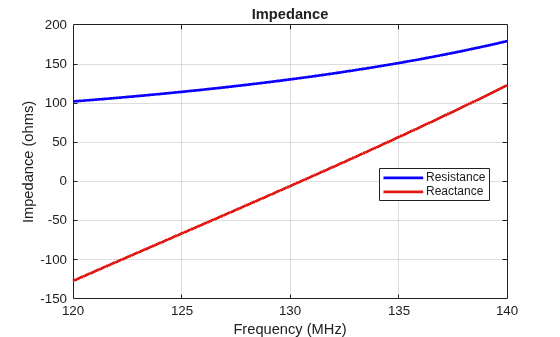

Calculate the impedance of a rectangular loop antenna over a frequency range of 120MHz-140MHz.

r = loopRectangular(Length=0.64,Width=0.64)
r =
  loopRectangular with properties:

       Length: 0.6400
        Width: 0.6400
    Thickness: 0.0100
    Conductor: [1×1 metal]
         Tilt: 0
     TiltAxis: [1 0 0]
         Load: [1×1 lumpedElement]

impedance(r,linspace(120e6,140e6,31))

Figure contains an axes object. The axes object with title Impedance, xlabel Frequency (MHz), ylabel Impedance (ohms) contains 2 objects of type line. These objects represent Resistance, Reactance.

References

[1] Balanis, C.A. Antenna Theory. Analysis and Design, 3rd Ed. New York: Wiley, 2005.

Version History

Introduced in R2015a
