# pattern

Display antenna radiation pattern in Site Viewer

## Syntax

``pattern(tx)``
``pattern(tx,frequency)``
``pattern(rx,frequency)``
``pattern(___,Name=Value)``

## Description

````pattern(tx)` displays the 3-D antenna radiation pattern for the specified transmitter site in the current Site Viewer. By default, the function calculates the pattern using the frequency stored in `TransmitterFrequency` property of the transmitter site. The antenna gain (dBi) in a particular direction determines the color of the pattern.```

example

````pattern(tx,frequency)` displays the 3-D radiation pattern for the specified transmitter site at the specified frequency.```
````pattern(rx,frequency)` displays the 3-D radiation pattern for the specified receiver site at the specified frequency.```

example

````pattern(___,Name=Value)` displays the 3-D radiation pattern with additional options specified by name-value arguments.```

example

## Examples

collapse all

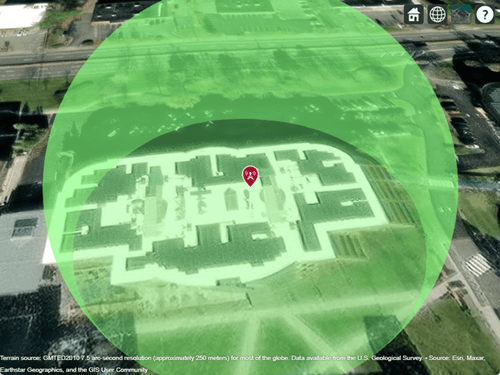

Define and visualize the radiation pattern of a single transmitter site.

```tx = txsite; pattern(tx)```

Design a receiver site using a dipole antenna at a height of 30 meters.

```d = dipole; rx = rxsite("Name","Mathworks Lakeside", ... "Latitude",42.30321,"Longitude",-71.3764, ... "Antenna",d,"AntennaHeight",30);```

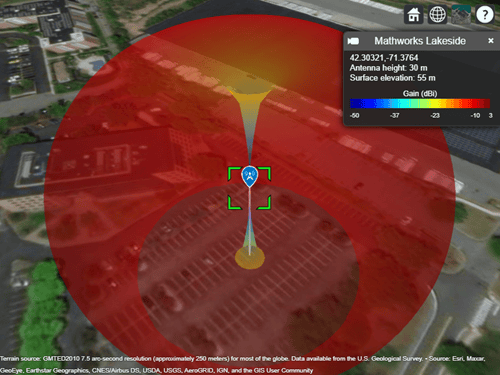

Visualize the pattern of the receiver site at 75 MHz.

`pattern(rx,75e6)`

Create a directional antenna.

```yagiAntenna = design(yagiUda,4.5e9); yagiAntenna.Tilt = 90; yagiAntenna.TiltAxis = "y";```

Create transmitter and receiver sites at a frequency of 4.5 GHz. Use the Yagi antenna as the transmitter antenna. Design a dipole at 4.5 GHz and use this as the receiver antenna.

```fq = 4.5e9; tx = txsite(Name="MathWorks",Latitude=42.3001,Longitude=-71.3503, ... Antenna=yagiAntenna,AntennaAngle=90,AntennaHeight=30, ... TransmitterFrequency=fq,TransmitterPower=10); rx = rxsite(Antenna=design(dipole,fq));```

Position the receiver 200 meters from the transmitter.

```[lat,lon] = location(tx,200,90); rx.Latitude = lat; rx.Longitude = lon;```

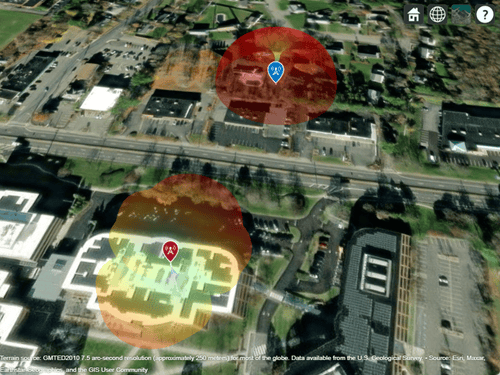

Display both transmitter and receiver patterns. Zoom out so you can see both of the patterns.

```pattern(tx,Transparency=0.2) pattern(rx,fq)```

Import and view an STL file. The file models a small conference room with one table and four chairs.

`viewer = siteviewer("SceneModel","conferenceroom.stl");`

Design an inverted-F antenna mounted over a rectangular ground plane that resonates at 2.4 GHz. Create a transmitter site that uses the antenna. Specify the position using Cartesian coordinates in meters.

```ant = design(invertedF,2.4e9); ant.Tilt = 180; tx = txsite("cartesian", ... "AntennaPosition",[0; 0; 2.1], ... "Antenna",ant);```

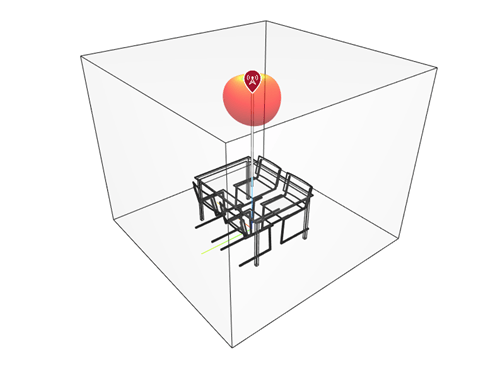

Visualize the pattern of the site. Specify the size of the pattern plot as `0.4` meters.

`pattern(tx,"Transparency",0.6,"Size",0.4)`

Pan by left-clicking, zoom by right-clicking or by using the scroll wheel, and rotate the visualization by clicking the middle button and dragging or by pressing Ctrl and left-clicking and dragging.

## Input Arguments

collapse all

Transmitter site, specified as a `txsite` object.

Receiver site, specified as an `rxsite` object.

Frequency to calculate radiation pattern, specified as a positive scalar.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `pattern(tx,Size=2)` specifies the size of the pattern plot.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `pattern(tx,'Size',2)` specifies the size of the pattern plot.

Size of the pattern plot, in meters, specified as a numeric scalar. The size of the pattern plot is the distance between the antenna position and the point on the plot with the highest gain.

The default value depends on the `CoordinateSystem` property of the `siteviewer` object. When `CoordinateSystem` is `'geographic'`, the default size is 50 meters. When `CoordinateSystem` is `'cartesian'`, the default size is approximately 1/6 of the scene model size.

Data Types: `double`

Transparency of the pattern plot, specified as a scalar the range [0, 1], where `0` is completely transparent and `1` is completely opaque.

Data Types: `double`

Colormap for the pattern plot, specified as a predefined colormap name or an M-by-3 array of RGB (red, blue, green) triplets that define M individual colors.

You can view a colorbar that indicates the mapping of gain values into the colormap by clicking the transmitter or receiver site.

Data Types: `double`

Resolution of 3-D map, specified as `"low"`, `"medium"`, or `"high"`. The resolution controls the visual quality and the time required to plot the pattern. The value `"low"` corresponds to the fastest and the least detailed pattern.

Data Types: `double`

Map for visualization of surface data, specified as a `siteviewer` object.1

Data Types: `char` | `string`

## Version History

Introduced in R2018b
