Link-Level Simulation
Bluetooth® Toolbox features and reference examples enable you to model end-to-end communication links and analyze the link-level performance of the Bluetooth basic rate/enhanced data rate (BR/EDR) and low energy (LE) communication systems.
Use the link-level simulation capabilities of the toolbox to:
Perform link-level simulation of Bluetooth high data throughput (HDT) waveforms using higher modulation schemes and analyze the data rates and bit error rate (BER) performance.
Perform link-level Bluetooth BR/EDR and LE simulation and evaluate the performance in the presence of radio frequency (RF) impairments, path loss, WLAN and 5G New Radio (NR) interference.
Compute the packet error rate (PER) and BER values for the Bluetooth BR/EDR and LE waveforms.
To explore features and examples related to RF impairments and corrections, see RF Component Modeling.
Functions
bluetoothWaveformGenerator | Generate Bluetooth BR/EDR PHY waveform |
bluetoothIdealReceiver | Decode Bluetooth BR/EDR PHY waveform |
bleWaveformGenerator | Generate Bluetooth LE PHY waveform |
bleIdealReceiver | Decode Bluetooth LE PHY waveform |
bluetoothPathLoss | Estimate path loss between Bluetooth BR/EDR or LE devices (Since R2022b) |
Objects
bluetoothWaveformConfig | Bluetooth BR/EDR waveform generator configuration parameters |
bluetoothPhyConfig | Bluetooth BR/EDR PHY configuration parameters |
bluetoothFrequencyHop | Bluetooth BR/EDR channel index for frequency hopping |
bluetoothPathLossConfig | Bluetooth BR/EDR or LE path loss configuration parameters (Since R2022b) |
Topics
- Add RF Impairments and Fading Channel Model to Bluetooth LE Waveform in an Indoor Environment
Use the Bluetooth waveform generation and channel modeling capabilities to generate a Bluetooth LE waveform and distort it by adding RF impairments and fading channel model.
- Generate and Attenuate Bluetooth BR/EDR Waveform in Industrial Environment
Use the Bluetooth PHY modeling capabilities to generate and attenuate Bluetooth BR/EDR waveform in an industrial environment.
Featured Examples

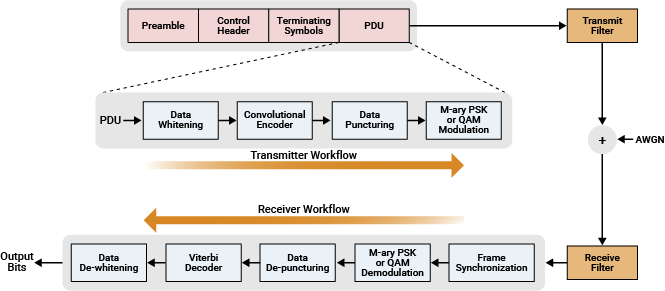

Explore Link-Level Simulation of Bluetooth Low Energy HDT PHY Waveforms
Explore link-level simulation of Bluetooth LE HDT PHY waveforms.
PHY Simulation of Bluetooth BR/EDR and LE in Presence of Bluetooth, 5G NR, or WLAN Interference
Perform end-to-end PHY simulation of Bluetooth BR/EDR and LE in the presence of WLAN, NR, or Bluetooth interference.
Link-Level Bluetooth BR/EDR PHY Simulation with Multipath Fading Channel, RF Impairments, and Corrections
Perform end-to-end Bluetooth BR/EDR PHY simulation in the presence of multipath fading channel, RF impairments, and corrections.
Link-Level Bluetooth LE PHY Simulation with Multipath Fading Channel, RF Impairments, and Corrections
Perform end-to-end Bluetooth LE PHY simulation in the presence of multipath fading channel, RF impairments, and corrections.
Link-Level Bluetooth LE PHY Simulation Using Path Loss Model, RF Impairments, and AWGN
Perform end-to-end Bluetooth LE PHY simulation in the presence of path loss model, RF impairments, and AWGN.
Link-Level Bluetooth LE PHY Simulation with AWGN, RF Impairments and Corrections
Perform end-to-end Bluetooth LE PHY simulation in the presence of RF impairments and AWGN and measure bit error rate (BER) and packet error rate (PER).
Link-Level Bluetooth BR/EDR PHY Simulation with Path Loss, RF Impairments, and AWGN
Perform end-to-end Bluetooth BR/EDR PHY simulation in the presence of path loss model, RF impairments, and AWGN.
Link-Level Bluetooth BR/EDR PHY Simulation with AWGN, RF Impairments and Corrections
Perform end-to-end Bluetooth BR/EDR PHY simulation in the presence of RF impairments and AWGN.
Bluetooth LE Bit Error Rate Simulation with AWGN
Measure the bit error rate (BER) for different Bluetooth LE PHY modes.
