Modulation using OQPSK method
Communications Toolbox / Modulation / Digital Baseband Modulation / PM
The OQPSK Modulator Baseband block modulates the input signal using the offset quadrature phase shift keying (OQPSK) method and applies pulse shape filtering to the waveform. The output is a baseband representation of the modulated signal.
For information about delays incurred by modulatordemodulator pair processing, see Modulation Delays.
Port_1 ( In1 )
— Input dataInput data, specified as an integer or bit column vector.
The input signal is processed based on the setting selected for Input type.
Data Types: double
Port_1 ( Out1 )
— Output baseband waveformOutput baseband waveform, returned as a column vector of complex data.
Input type
— Input typeInteger
(default)  Bit
Input type, specified as Integer
or
Bit
.
When you set Input type to
Integer
, the input can be a
scalar value or column vector, the length of which is the number
of input symbols.
When you set Input type to
Bit
, the input width must be an
integer multiple of two.
The output sample period is the period of each integer or bit pair in the input divided by Samples per symbol.
Phase offset (rad)
— Phase of zeroth point of constellation shifted from π/40
(default)  scalarPhase of zeroth point of constellation shifted from π/4 radians, specified as a scalar.
Symbol mapping
— Signal constellation bit mappingGray
(default)  Binary
 custom 4element numeric vector of integers with values from 0 to
3Signal constellation bit mapping, specified as
Gray
, Binary
,
or a custom 4element numeric vector of integers with values from 0 to
3.
Setting  Constellation Mapping for Integers  Constellation Mapping for Bits  Comment



 The signal constellation mapping is Grayencoded.


 The signal constellation mapping for the input integer

Custom 4element numeric vector of integers with values from 0 to 3

 Elements [a b c d] must be composed of the set of values [0, 1, 2, 3] in any order.
Pulse shape
— Filtering pulse shapeHalf sine
(default)  Normal raised cosine
 Root raised cosine
 Custom
Select the filtering pulse shape: Half
sine
, Normal raised cosine
,
Root raised cosine
, or
Custom
.
Rolloff factor
— Raised cosine filter rolloff factor0.2
(default)  scalarRaised cosine filter rolloff factor, specified as a scalar in the
range [0
, 1
].
This property appears when Pulse shape is Normal raised
cosine
or Root raised
cosine
.
Data Types: double
Filter span (in symbols)
— Filter length10
(default)  scalarFilter length in symbols, specified as a scalar. An ideal raised cosine filter has an infinite impulse response. However, to realize a practical implementation of this filter, the object truncates the impulse response to Filter span (in symbols) symbols.
This property appears when Pulse shape is Normal raised
cosine
or Root raised
cosine
.
Data Types: double
Filter numerator
— Filter numerator[0.7071 0.7071]
(default)  row vectorFilter numerator, specified as a row vector.
This parameter appears when Pulse shape is Custom
.
Data Types: double
Samples per symbol
— Number of samples per symbol4
(default)  positive even integerNumber of samples per symbol, specified as a positive even integer.
Data Types: double
Rate options
— Processing rate optionEnforce singlerate
processing
(default)  Allow multirate processing
Enforce singlerate processing
— Executes the model, ensuring that the input and output
signals have the same port sample time. The block implements
the rate change by making a size change at the output when
compared to the input. For integer inputs, the output width
equals Samples per symbol times the number of
symbols.

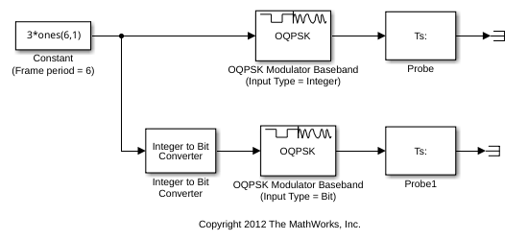

For more information, see SingleRate Processing with OQPSK Modulator Block.

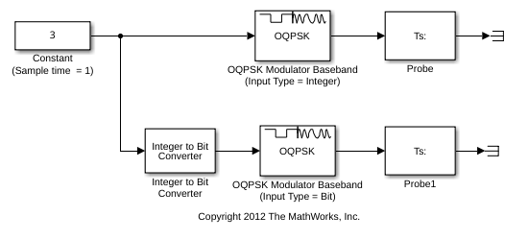

Allow multirate processing
— Executes the model, allowing the input and output
signals to have different port sample times. The output
sample time equals the symbol period divided by Samples per symbol.
For more information, see SingleRate Processing with OQPSK Modulator Block.
Output data type
— Output data typedouble
(default)  single
Select the output data type: double
or
single
.
Data Types

Multidimensional Signals

VariableSize Signals

Digital modulation and demodulation blocks incur delays between their inputs and outputs that result in an offset in the arrival time of the received data. Data that enters a modulation or demodulation block at time T appears in the output at time T+delay. Take system delays into account when comparing transmitted data with received data, such as in overlaid plots or when computing error statistics. As shown here, the OQPSK modulationdemodulation delay varies depending on the pulse shaping filter, input/output data setting, and simulation configuration.
Pulse Shape  Rate Options  Treat Each Discrete Rate as a Separate Task?  Input/Output Data (*)  EndtoEnd Delay Incurred by an OQPSK ModulatorDemodulator Block Pair (in samples)

Half sine or
Custom  Enforce singlerate
operation  N/A  Integer  1
Bit  2
Allow multirate
processing  false (single tasking)  Integer  length(data) + 1 + 1
Bit  length(data) + 2 + 2
true (multitasking)  Integer  length(data) + 1 + 2
Bit  length(data) + 2 + 4
Normal raised cosine or
Root raised cosine  Enforce singlerate
operation  N/A  Integer  Filter span (in symbols)
Bit  2*Filter span (in symbols)
Allow multirate
processing  false (single tasking)  Integer  length(data) + Filter span (in symbols) + 1
Bit  length(data) + 2*Filter span (in symbols) + 2
true (multitasking)  Integer  2*length(data) + Filter span (in symbols) + 2
Bit  2*length(data) + 2*Filter span (in symbols) + 4
(*) The data type parameter is Input type for modulation and Output type for demodulation.
