Spectrum Estimator

Estimate power spectrum or power-density spectrum

Library

Estimation / Power Spectrum Estimation

dspspect3

Description

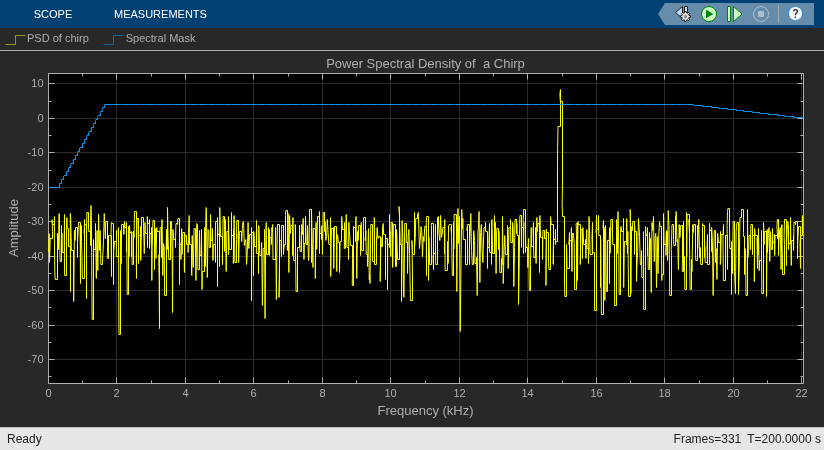

The Spectrum Estimator block outputs the power spectrum or power-density spectrum of a real or complex input signal, using the Welch method of averaged modified periodograms and the filter bank approach.

When you choose the filter bank approach, the block uses an analysis filter bank to estimate the power spectrum. The filter bank approach produces a spectral estimate with a higher resolution, a more accurate noise floor, and more precise peaks than the Welch method, with low or no spectral leakage. They come at the expense of increased computation and slower tracking.

When you choose the Welch method, the block computes the averaged modified periodograms to compute the spectral estimate. The block buffers the input data into overlapping segments. Use the block parameters to set the length of the data segments, the amount of data overlap between consecutive segments, and other features of the power spectrum.

For more information on the Welch method and the filter bank method, see Algorithms.

Each column of the input signal is treated as a separate channel. If the input is a two-dimensional signal, the first dimension represents the channel length (or frame size) and the second dimension represents the number of channels. If the input is a one-dimensional signal, then it is interpreted as a single channel.

Parameters

Main Tab

Method

Specify the spectral estimation method.

Filter bank (default) — An analysis filter bank splits the broadband input signal into multiple narrow subbands. The block computes the power in each narrow frequency band, and the computed value is the spectral estimate over the respective frequency band.
Welch — The block uses the Welch averaged modified periodograms method to compute the power spectrum over the narrow subbands.

Number of taps per band

Specify the number of filter coefficients, or taps, for each frequency band. This value corresponds to the number of filter coefficients per polyphase branch. The total number of filter coefficients is equal to Number of taps per band times the FFT length.

This parameter applies when you set Method to Filter bank. The default is 12.

Spectrum type

Type of spectrum to compute. You can set this parameter to:

Power (default) — Compute the power spectrum.
Power density — Compute the power spectral density.

This parameter is nontunable.

Frequency resolution method

Frequency resolution method. You can set this parameter to:

Auto (default) — The Spectrum Estimator block computes the resolution bandwidth (RBW) so that the frequency span fits 1024 RBW intervals.
- Welch method — The window length, winLen, is calculated using $w i n L e n = N E N B W \times F s / R B W$ . NENBW is the equivalent noise bandwidth of the window and Fs is the sample rate.
- Filter bank method — The FFT length is the ceiling of the ratio of Sample rate (Hz) to the computed resolution bandwidth.
RBW — Specify the resolution bandwidth, which is used to determine the window length (Welch method) or the FFT length (filter bank method). When the block uses the Welch method, the behavior is equivalent to that of the Spectrum Analyzer block. The window length is calculated using $w i n L e n = N E N B W \times F s / R B W$ . NENBW is the equivalent noise bandwidth of the window and Fs is the sample rate. The FFT length is equal to the ceiling of the ratio of Sample rate (Hz) to RBW (Hz).
Window length — Specify the window or segment length to use in the Welch algorithm. This option appears when you set Method to Welch.
Number of frequency bands — Specify the number of polyphase branches of the analysis filter bank. This value corresponds to the FFT length that the filter bank uses. This option appears when you set Method to Filter bank.

This parameter is nontunable.

RBW (Hz)

Resolution bandwidth, specified as a positive scalar in Hz. The default is 5. This parameter applies when you set Frequency resolution method to RBW. The ceiling of the ratio of the frequency span to RBW must be greater than 2.

This parameter is nontunable.

Number of bands source

Source of the number of frequency bands. This parameter applies when you set Method to Filter bank and Frequency resolution method to Number of frequency bands. You can set this parameter to:

Same as input frame length (default) — The FFT length is set to the frame size of the input.
Specify on dialog — The FFT length is the value you specify in Number of bands.

This parameter is nontunable.

Number of bands

Number of frequency bands, or the FFT length the filter bank uses to compute the power spectral estimate, specified as a positive scalar. The default is 1024. This parameter applies when you set Method to Filter bank, Frequency resolution method to Number of frequency bands, and Number of bands source to Specify on dialog. This parameter is nontunable.

Window length source

Source of the window length value. This parameter applies when you set Method to Welch and Frequency resolution method to Window length. You can set this parameter to:

Same as input frame length (default) — Window length is set to the frame size of the input. Specify this option to obtain behavior equivalent to that of the Periodogram block.
Specify on dialog — Window length is the value you specify in the Window length parameter.

This parameter is nontunable.

Window length

Length of the window used to compute the spectrum estimate, specified as a positive integer scalar greater than 2. The default is 1024. This parameter applies when you set Method to Welch, Frequency resolution method to Window length, and Window length source to Specify on dialog. This parameter is nontunable.

FFT length source

Source of the FFT length value. This parameter applies when you set Method to Welch and Frequency resolution method to Window length. You can set this parameter to:

Auto (default) — The block sets the FFT length to the frame size of the input.
Property — The block sets the FFT length to the value you specify in FFT length.

This parameter is nontunable.

FFT length

Length of the FFT used to compute the spectrum estimates, specified as a positive integer scalar. This parameter applies when you set Method to Welch, Frequency resolution method to Window length, and FFT length source to Property. The default is 1024. This parameter is nontunable.

Inherit sample rate from input

When you select this check box, the block sample rate is computed as N/T_s, where N is the frame size of the input signal and T_s is the sample time of the input signal.

This check box applies when you do one of the following:

Set Method to Welch and Frequency resolution method to Window length.
Set Method to Filter bank and Frequency resolution method to Number of frequency bands.

When you clear this check box, the block sample rate is the value you specify in Sample rate (Hz). By default, this check box is selected. This parameter is nontunable.

Sample rate (Hz)

Sample rate of the input signal, specified as a positive scalar. The default is 44100. This parameter applies when you do one of the following:

Set Frequency resolution method to Auto or RBW.
Set Method to Welch, Frequency resolution method to Window length, and clear the Inherit sample rate from input check box.
Set Method to Filter bank, Frequency resolution method to Number of frequency bands, and clear the Inherit sample rate from input check box.

This parameter is nontunable.

Window function

Sidelobe attenuation of window (dB)

Sidelobe attenuation of the window, specified as a real positive scalar greater than or equal to 45, in dB. The default is 60. This parameter appears when you set Method to Welch and Window function to Chebyshev or Kaiser. This parameter is nontunable.

Averaging method

Specify the averaging method as Exponential (default) or Running. In the exponential method, the block computes the average over samples weighted by an exponentially decaying forgetting factor. In the running averaging method, the block computes an equally weighted average of specified number of spectrum estimates defined by Number of spectral averages parameter.

Number of spectral averages

Number of spectral averages, specified as a positive integer scalar. The default is 1. The spectrum estimator computes the current power spectrum estimate by averaging the last N power spectrum estimates, where N is the number of spectral averages defined in Number of spectral averages. This parameter is nontunable.

This parameter applies when Averaging method is set to Running.

Specify forgetting factor from input port

Select this check box to specify the forgetting factor from an input port. When you do not select this check box, the forgetting factor is specified through the Forgetting factor parameter.

This parameter applies when Averaging method is set to Exponential.

Forgetting factor

Specify the exponential weighting forgetting factor as a scalar value greater than zero and smaller than or equal to one. The default is 0.9.

This parameter applies when you set Averaging method to Exponential and clear the Specify forgetting factor from input port parameter.

Advanced Tab

Window overlap (%)

Percentage of overlap between successive data windows, specified as a scalar from 0 and 100. The default value is 0. To enable this parameter, on the Main Tab, set Method to Welch. This parameter is nontunable.

Reference load (ohms)

Load used as a reference to compute the power values, specified as a real positive scalar expressed in ohms. The default value is 1. This parameter is nontunable.

Frequency range

Frequency range of the spectrum estimator. You can set this parameter to:

One-sided — The spectrum estimator computes the one-sided spectrum of a real input signal. When the FFT length, NFFT, is even, the spectrum estimate has length (NFFT/2) + 1 and is computed over the frequency range [0 SampleRate/2]. SampleRate is the sample rate of the input signal. When NFFT is odd, the spectrum estimate has length (NFFT + 1)/2 and is computed over the frequency range [0 SampleRate/2).
Two-sided — The spectrum estimator computes the two-sided spectrum of a complex or real input signal. The length of the spectrum estimate is equal to the FFT length. The spectrum estimate is computed over the frequency range [0 SampleRate), where SampleRate is the sample rate of the input signal.
Centered (default) — The spectrum estimator computes the centered two-sided spectrum of a complex or real input signal. The length of the spectrum estimate is equal to the FFT length. The spectrum estimate is computed over the frequency range (-SampleRate/2 SampleRate/2] when the FFT length is even and (-SampleRate/2 SampleRate/2) when the FFT length is odd.

This parameter is nontunable.

Power units

Units used to measure power. You can set this parameter to:

'Watts' (default) — The spectrum estimator measures power in watts.
'dBw' — The spectrum estimator measures power in decibel-watts.
'dBm' — The spectrum estimator measures power in decibel-milliwatts.

This parameter is nontunable.

Output max-hold spectrum

When you select this check box, the block computes the max-hold spectrum of the input signal by keeping, at each frequency bin, the maximum value of all the power spectrum estimates. By default, this check box is not selected. This parameter is nontunable.

Output min-hold spectrum

When you select this check box, the block computes the min-hold spectrum of the input signal by keeping, at each frequency bin, the minimum value of all the power spectrum estimates. By default, this check box is not selected. This parameter is nontunable.

Output frequency vector

When you select this check box, the block outputs the frequency vector. By default, this check box is not selected. This parameter is nontunable.

Output effective RBW

When you select this check box, the block computes the effective resolution bandwidth. By default, this check box is not selected. This parameter is nontunable.

Simulate using

Type of simulation to run. You can set this parameter to:

Interpreted execution (default) — Simulate model using the MATLAB^® interpreter. This option shortens startup time.
Code generation — Simulate model using generated C code. The first time you run a simulation, Simulink^® generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time but provides faster subsequent simulations.

Supported Data Types

Port	Supported Data Types
Input	Double-precision floating point Single-precision floating point
Output	Double-precision floating point Single-precision floating point

Algorithms

expand all

Welch's Method of Averaged Modified Periodograms

When you choose the Welch method, the power spectrum estimate is averaged modified periodograms.

Given the signal input, x:

Multiply x by the window and scale the result by the window power.
Compute the FFT of the signal, Y, and take the square magnitude using Z = Y.*conj(Y).
Compute the current power spectrum estimate by taking the moving average of the last N number of Z's, and scaling the answer by the sample rate. For details on the moving average methods, see Averaging Method.

Filter Bank

The filter-bank-based spectrum estimator uses an analysis filter bank to estimate the power spectrum. The filter bank splits a broadband input signal, x(n), of sample rate fs into multiple narrow band signals, y₀(m), y₁(m), … , y_M-1(m), of sample rate fs/M.

The variable M represents the number of frequency bands in the filter bank. When you specify FFT length, M equals the FFT length. When you do not specify FFT length, M is equal to the number of rows in the input signal. The number of taps per frequency band sets the number of filter coefficients for each frequency band of the filter bank. The total number of filter coefficients is equal to number of taps per band times the number of frequency bands M. For more information on the analysis filter bank and how it is implemented, see the More About and the Algorithm sections in dsp.Channelizer.

After the broadband input signal is split into multiple narrow bands, the spectrum estimator computes the power in each narrow band using the following equation. Each Z_i value becomes the estimate of the power over that narrow frequency band.

$Z_{i} = \frac{1}{L} \sum_{m = 0}^{L - 1} {| y_{i} [m] |}^{2}$

L is length of the narrow band signal y_i(m), where i = 1, 2, …, M−1.

The power values in all the narrow bands (denoted by Z_i) form the Z vector.

$Z = [Z_{0}, Z_{1}, Z_{2}, \dots, Z_{M - 1}]$

The filter bank estimator algorithm averages the current Z vector with the previous Z vectors using one of the two moving average methods: running or exponential weighting. The output of the averaging operation forms the spectral estimate vector. For details on the two averaging methods, see Averaging Method.

Averaging Method

The moving average is calculated using one of the two methods:

Running — For each frame of input, average the last N-scaled Z vectors, which are computed by the algorithm. The variable N is the value you specify for the number of spectral averages. If the algorithm does not have enough Z vectors, the algorithm uses zeros to fill the empty elements.
Exponential — The moving average algorithm using the exponential weighting method updates the weights and computes the moving average recursively for each Z vector that comes in by using the following recursive equations:
$\begin{array}{l} w_{N} = λ w_{N - 1} + 1 \\ {\bar{z}}_{N} = (1 - \frac{1}{w_{N}}) {\bar{z}}_{N - 1} + (\frac{1}{w_{N}}) z_{N} \end{array}$
- λ — Forgetting factor
- $w_{N}$ — Weighting factor applied to the current Z vector
- $z_{N}$ — Current Z vector
- ${\bar{z}}_{N - 1}$ — Moving average until the previous Z vector
- $(1 - \frac{1}{w_{N}}) {\bar{z}}_{N - 1}$ — Effect of the previous Z vectors on the average
- ${\bar{z}}_{N}$ — Moving average including the current Z vector

References

[1] Hayes, Monson H. Statistical Digital Signal Processing and Modeling. Hoboken, NJ: John Wiley & Sons, 1996.

[2] Kay, Steven M. Modern Spectral Estimation: Theory and Application. Englewood Cliffs, NJ: Prentice Hall, 1999.

[3] Stoica, Petre, and Randolph L. Moses. Spectral Analysis of Signals. Englewood Cliffs, NJ: Prentice Hall, 2005.

[4] Welch, P. D. “The Use of Fast Fourier Transform for the Estimation of Power Spectra: A Method Based on Time Averaging Over Short, Modified Periodograms.” IEEE Transactions on Audio and Electroacoustics. Vol. 15, No. 2, June 1967, pp. 70–73.

[5] Bluetooth Specification Version 4.2. Bluetooth SIG. December 2014, p. 217. Specification of the Bluetooth System

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2015b

expand all

R2024a: Change in the default value of Simulate using parameter

The default value of the Simulate using parameter is now Interpreted execution. With this change, the block uses the MATLAB interpreter for simulation by default.
