# diffuseblm

Bayesian linear regression model with diffuse conjugate prior for data likelihood

## Description

The Bayesian linear regression model object `diffuseblm` specifies that the joint prior distribution of (β,σ2) is proportional to 1/σ2 (the diffuse prior model).

The data likelihood is $\prod _{t=1}^{T}\varphi \left({y}_{t};{x}_{t}\beta ,{\sigma }^{2}\right),$ where ϕ(yt;xtβ,σ2) is the Gaussian probability density evaluated at yt with mean xtβ and variance σ2. The resulting marginal and conditional posterior distributions are analytically tractable. For details on the posterior distribution, see Analytically Tractable Posteriors.

In general, when you create a Bayesian linear regression model object, it specifies the joint prior distribution and characteristics of the linear regression model only. That is, the model object is a template intended for further use. Specifically, to incorporate data into the model for posterior distribution analysis, pass the model object and data to the appropriate object function.

## Creation

### Syntax

``PriorMdl = diffuseblm(NumPredictors)``
``PriorMdl = diffuseblm(NumPredictors,Name,Value)``

### Description

example

````PriorMdl = diffuseblm(NumPredictors)` creates a Bayesian linear regression model object (`PriorMdl`) composed of `NumPredictors` predictors and an intercept, and sets the `NumPredictors` property. The joint prior distribution of (β, σ2) is the diffuse model. `PriorMdl` is a template that defines the prior distributions and the dimensionality of β.```

example

````PriorMdl = diffuseblm(NumPredictors,Name,Value)` sets properties (except `NumPredictors`) using name-value pair arguments. Enclose each property name in quotes. For example, `diffuseblm(2,'VarNames',["UnemploymentRate"; "CPI"])` specifies the names of the two predictor variables in the model.```

## Properties

expand all

You can set writable property values when you create the model object by using name-value pair argument syntax, or after you create the model object by using dot notation. For example, to exclude an intercept from the model, enter

`PriorMdl.Intercept = false;`

Number of predictor variables in the Bayesian multiple linear regression model, specified as a nonnegative integer.

`NumPredictors` must be the same as the number of columns in your predictor data, which you specify during model estimation or simulation.

When specifying `NumPredictors`, exclude any intercept term from the value.

After creating a model, if you change the value of `NumPredictors` using dot notation, then `VarNames` reverts to its default value.

Data Types: `double`

Flag for including a regression model intercept, specified as a value in this table.

ValueDescription
`false`Exclude an intercept from the regression model. Therefore, β is a `p`-dimensional vector, where `p` is the value of `NumPredictors`.
`true`Include an intercept in the regression model. Therefore, β is a (`p` + 1)-dimensional vector. This specification causes a T-by-1 vector of ones to be prepended to the predictor data during estimation and simulation.

If you include a column of ones in the predictor data for an intercept term, then set `Intercept` to `false`.

Example: `'Intercept',false`

Data Types: `logical`

Predictor variable names for displays, specified as a string vector or cell vector of character vectors. `VarNames` must contain `NumPredictors` elements. `VarNames(j)` is the name of the variable in column `j` of the predictor data set, which you specify during estimation, simulation, or forecasting.

The default is `{'Beta(1)','Beta(2),...,Beta(p)}`, where `p` is the value of `NumPredictors`.

Example: `'VarNames',["UnemploymentRate"; "CPI"]`

Data Types: `string` | `cell` | `char`

## Object Functions

 `estimate` Estimate posterior distribution of Bayesian linear regression model parameters `simulate` Simulate regression coefficients and disturbance variance of Bayesian linear regression model `forecast` Forecast responses of Bayesian linear regression model `plot` Visualize prior and posterior densities of Bayesian linear regression model parameters `summarize` Distribution summary statistics of standard Bayesian linear regression model

## Examples

collapse all

Consider the multiple linear regression model that predicts U.S. real gross national product (`GNPR`) using a linear combination of industrial production index (`IPI`), total employment (`E`), and real wages (`WR`).

`${\text{GNPR}}_{t}={\beta }_{0}+{\beta }_{1}{\text{IPI}}_{t}+{\beta }_{2}{\text{E}}_{t}+{\beta }_{3}{\text{WR}}_{t}+{\epsilon }_{t}.$`

For all $t$ time points, ${\epsilon }_{t}$ is a series of independent Gaussian disturbances with a mean of 0 and variance ${\sigma }^{2}$.

Suppose that the regression coefficients $\beta =\left[{\beta }_{0},...,{\beta }_{3}{\right]}^{\prime }$ and the disturbance variance ${\sigma }^{2}$ are random variables, and you have no prior knowledge of their values or distribution. That is, you want to use the noninformative Jeffreys prior: the joint prior distribution is proportional to $1/{\sigma }^{2}$.

These assumptions and the data likelihood imply an analytically tractable posterior distribution.

Create a diffuse prior model for the linear regression parameters, which is the default prior model type. Specify the number of predictors `p`.

```p = 3; Mdl = bayeslm(p)```
```Mdl = diffuseblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} | Mean Std CI95 Positive Distribution ----------------------------------------------------------------------------- Intercept | 0 Inf [ NaN, NaN] 0.500 Proportional to one Beta(1) | 0 Inf [ NaN, NaN] 0.500 Proportional to one Beta(2) | 0 Inf [ NaN, NaN] 0.500 Proportional to one Beta(3) | 0 Inf [ NaN, NaN] 0.500 Proportional to one Sigma2 | Inf Inf [ NaN, NaN] 1.000 Proportional to 1/Sigma2 ```

`Mdl` is a `diffuseblm` Bayesian linear regression model object representing the prior distribution of the regression coefficients and disturbance variance. At the command window, `bayeslm` displays a summary of the prior distributions. Because the prior is noninformative and the data have not been incorporated yet, the summary is trivial.

You can set writable property values of created models using dot notation. Set the regression coefficient names to the corresponding variable names.

`Mdl.VarNames = ["IPI" "E" "WR"]`
```Mdl = diffuseblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} | Mean Std CI95 Positive Distribution ----------------------------------------------------------------------------- Intercept | 0 Inf [ NaN, NaN] 0.500 Proportional to one IPI | 0 Inf [ NaN, NaN] 0.500 Proportional to one E | 0 Inf [ NaN, NaN] 0.500 Proportional to one WR | 0 Inf [ NaN, NaN] 0.500 Proportional to one Sigma2 | Inf Inf [ NaN, NaN] 1.000 Proportional to 1/Sigma2 ```

Consider the linear regression model in Create Diffuse Prior Model.

Create a diffuse prior model for the linear regression parameters. Specify the number of predictors, `p`, and the names of the regression coefficients.

```p = 3; PriorMdl = bayeslm(p,'ModelType','diffuse','VarNames',["IPI" "E" "WR"]);```

Load the Nelson-Plosser data set. Create variables for the response and predictor series.

```load Data_NelsonPlosser X = DataTable{:,PriorMdl.VarNames(2:end)}; y = DataTable{:,'GNPR'};```

Estimate the marginal posterior distributions of $\beta$ and ${\sigma }^{2}$.

`PosteriorMdl = estimate(PriorMdl,X,y);`
```Method: Analytic posterior distributions Number of observations: 62 Number of predictors: 4 | Mean Std CI95 Positive Distribution ------------------------------------------------------------------------------------ Intercept | -24.2536 9.5314 [-43.001, -5.506] 0.006 t (-24.25, 9.37^2, 58) IPI | 4.3913 0.1535 [ 4.089, 4.693] 1.000 t (4.39, 0.15^2, 58) E | 0.0011 0.0004 [ 0.000, 0.002] 0.999 t (0.00, 0.00^2, 58) WR | 2.4682 0.3787 [ 1.723, 3.213] 1.000 t (2.47, 0.37^2, 58) Sigma2 | 51.9790 10.0034 [35.965, 74.937] 1.000 IG(29.00, 0.00069) ```

`PosteriorMdl` is a `conjugateblm` model object storing the joint marginal posterior distribution of $\beta$ and ${\sigma }^{2}$ given the data. `estimate` displays a summary of the marginal posterior distributions to the command window. Rows of the summary correspond to regression coefficients and the disturbance variance, and columns to characteristics of the posterior distribution. The characteristics include:

• `CI95`, which contains the 95% Bayesian equitailed credible intervals for the parameters. For example, the posterior probability that the regression coefficient of `WR` is in [1.723, 3.213] is 0.95.

• `Positive`, which contains the posterior probability that the parameter is greater than 0. For example, the probability that the intercept is greater than 0 is 0.006.

• `Distribution`, which contains descriptions of the posterior distributions of the parameters. For example, the marginal posterior distribution of `IPI` is t with a mean of 4.39, a standard deviation of 0.15, and 58 degrees of freedom.

Access properties of the posterior distribution using dot notation. For example, display the marginal posterior means by accessing the `Mu` property.

`PosteriorMdl.Mu`
```ans = 4×1 -24.2536 4.3913 0.0011 2.4682 ```

Consider the linear regression model in Create Diffuse Prior Model.

Create a diffuse prior model for the linear regression parameters. Specify the number of predictors `p`, and the names of the regression coefficients.

```p = 3; PriorMdl = bayeslm(p,'ModelType','diffuse','VarNames',["IPI" "E" "WR"])```
```PriorMdl = diffuseblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} | Mean Std CI95 Positive Distribution ----------------------------------------------------------------------------- Intercept | 0 Inf [ NaN, NaN] 0.500 Proportional to one IPI | 0 Inf [ NaN, NaN] 0.500 Proportional to one E | 0 Inf [ NaN, NaN] 0.500 Proportional to one WR | 0 Inf [ NaN, NaN] 0.500 Proportional to one Sigma2 | Inf Inf [ NaN, NaN] 1.000 Proportional to 1/Sigma2 ```

Load the Nelson-Plosser data set. Create variables for the response and predictor series.

```load Data_NelsonPlosser X = DataTable{:,PriorMdl.VarNames(2:end)}; y = DataTable{:,'GNPR'};```

Estimate the conditional posterior distribution of $\beta$ given the data and ${\sigma }^{2}=2$, and return the estimation summary table to access the estimates.

`[Mdl,Summary] = estimate(PriorMdl,X,y,'Sigma2',2);`
```Method: Analytic posterior distributions Conditional variable: Sigma2 fixed at 2 Number of observations: 62 Number of predictors: 4 | Mean Std CI95 Positive Distribution -------------------------------------------------------------------------------- Intercept | -24.2536 1.8696 [-27.918, -20.589] 0.000 N (-24.25, 1.87^2) IPI | 4.3913 0.0301 [ 4.332, 4.450] 1.000 N (4.39, 0.03^2) E | 0.0011 0.0001 [ 0.001, 0.001] 1.000 N (0.00, 0.00^2) WR | 2.4682 0.0743 [ 2.323, 2.614] 1.000 N (2.47, 0.07^2) Sigma2 | 2 0 [ 2.000, 2.000] 1.000 Fixed value ```

`estimate` displays a summary of the conditional posterior distribution of $\beta$. Because ${\sigma }^{2}$ is fixed at 2 during estimation, inferences on it are trivial.

Extract the mean vector and covariance matrix of the conditional posterior of $\beta$ from the estimation summary table.

`condPostMeanBeta = Summary.Mean(1:(end - 1))`
```condPostMeanBeta = 4×1 -24.2536 4.3913 0.0011 2.4682 ```
`CondPostCovBeta = Summary.Covariances(1:(end - 1),1:(end - 1))`
```CondPostCovBeta = 4×4 3.4956 0.0350 -0.0001 0.0241 0.0350 0.0009 -0.0000 -0.0013 -0.0001 -0.0000 0.0000 -0.0000 0.0241 -0.0013 -0.0000 0.0055 ```

Display `Mdl`.

`Mdl`
```Mdl = diffuseblm with properties: NumPredictors: 3 Intercept: 1 VarNames: {4x1 cell} | Mean Std CI95 Positive Distribution ----------------------------------------------------------------------------- Intercept | 0 Inf [ NaN, NaN] 0.500 Proportional to one IPI | 0 Inf [ NaN, NaN] 0.500 Proportional to one E | 0 Inf [ NaN, NaN] 0.500 Proportional to one WR | 0 Inf [ NaN, NaN] 0.500 Proportional to one Sigma2 | Inf Inf [ NaN, NaN] 1.000 Proportional to 1/Sigma2 ```

Because `estimate` computes the conditional posterior distribution, it returns the original prior model, not the posterior, in the first position of the output argument list.

Consider the linear regression model in Estimate Marginal Posterior Distributions.

Create a prior model for the regression coefficients and disturbance variance, then estimate the marginal posterior distributions.

```p = 3; PriorMdl = bayeslm(p,'ModelType','diffuse','VarNames',["IPI" "E" "WR"]); load Data_NelsonPlosser X = DataTable{:,PriorMdl.VarNames(2:end)}; y = DataTable{:,'GNPR'}; PosteriorMdl = estimate(PriorMdl,X,y);```
```Method: Analytic posterior distributions Number of observations: 62 Number of predictors: 4 | Mean Std CI95 Positive Distribution ------------------------------------------------------------------------------------ Intercept | -24.2536 9.5314 [-43.001, -5.506] 0.006 t (-24.25, 9.37^2, 58) IPI | 4.3913 0.1535 [ 4.089, 4.693] 1.000 t (4.39, 0.15^2, 58) E | 0.0011 0.0004 [ 0.000, 0.002] 0.999 t (0.00, 0.00^2, 58) WR | 2.4682 0.3787 [ 1.723, 3.213] 1.000 t (2.47, 0.37^2, 58) Sigma2 | 51.9790 10.0034 [35.965, 74.937] 1.000 IG(29.00, 0.00069) ```

Extract the posterior mean of $\beta$ from the posterior model, and the posterior covariance of $\beta$ from the estimation summary returned by `summarize`.

```estBeta = PosteriorMdl.Mu; Summary = summarize(PosteriorMdl); estBetaCov = Summary.Covariances{1:(end - 1),1:(end - 1)};```

Suppose that if the coefficient of real wages is below 2.5, then a policy is enacted. Although the posterior distribution of `WR` is known, and you can calculate probabilities directly, you can estimate the probability using Monte Carlo simulation instead.

Draw `1e6` samples from the marginal posterior distribution of $\beta$.

```NumDraws = 1e6; rng(1); BetaSim = simulate(PosteriorMdl,'NumDraws',NumDraws);```

`BetaSim` is a 4-by- `1e6` matrix containing the draws. Rows correspond to the regression coefficient and columns to successive draws.

Isolate the draws corresponding to the coefficient of real wages, and then identify which draws are less than 2.5.

```isWR = PosteriorMdl.VarNames == "WR"; wrSim = BetaSim(isWR,:); isWRLT2p5 = wrSim < 2.5;```

Find the marginal posterior probability that the regression coefficient of `WR` is below 2.5 by computing the proportion of draws that are less than 2.5.

`probWRLT2p5 = mean(isWRLT2p5)`
```probWRLT2p5 = 0.5341 ```

The posterior probability that the coefficient of real wages is less than 2.5 is about `0.53`.

The marginal posterior distribution of the coefficient of `WR` is a ${t}_{58}$, but centered at 2.47 and scaled by 0.37. Directly compute the posterior probability that the coefficient of `WR` is less than 2.5.

```center = estBeta(isWR); stdBeta = sqrt(diag(estBetaCov)); scale = stdBeta(isWR); t = (2.5 - center)/scale; dof = 68; directProb = tcdf(t,dof)```
```directProb = 0.5333 ```

The posterior probabilities are nearly identical.

Consider the linear regression model in Estimate Marginal Posterior Distributions.

Create a prior model for the regression coefficients and disturbance variance, then estimate the marginal posterior distributions. Hold out the last 10 periods of data from estimation so you can use them to forecast real GNP. Turn the estimation display off.

```p = 3; PriorMdl = bayeslm(p,'ModelType','diffuse','VarNames',["IPI" "E" "WR"]); load Data_NelsonPlosser fhs = 10; % Forecast horizon size X = DataTable{1:(end - fhs),PriorMdl.VarNames(2:end)}; y = DataTable{1:(end - fhs),'GNPR'}; XF = DataTable{(end - fhs + 1):end,PriorMdl.VarNames(2:end)}; % Future predictor data yFT = DataTable{(end - fhs + 1):end,'GNPR'}; % True future responses PosteriorMdl = estimate(PriorMdl,X,y,'Display',false);```

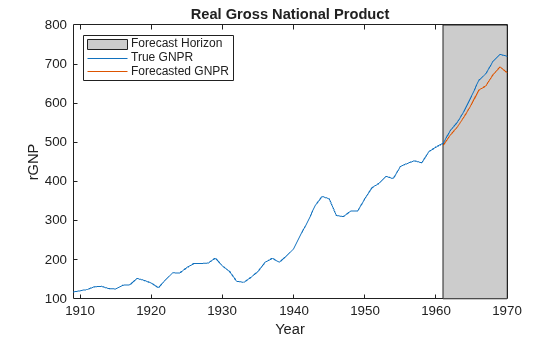

Forecast responses using the posterior predictive distribution and the future predictor data `XF`. Plot the true values of the response and the forecasted values.

```yF = forecast(PosteriorMdl,XF); figure; plot(dates,DataTable.GNPR); hold on plot(dates((end - fhs + 1):end),yF) h = gca; hp = patch([dates(end - fhs + 1) dates(end) dates(end) dates(end - fhs + 1)],... h.YLim([1,1,2,2]),[0.8 0.8 0.8]); uistack(hp,'bottom'); legend('Forecast Horizon','True GNPR','Forecasted GNPR','Location','NW') title('Real Gross National Product'); ylabel('rGNP'); xlabel('Year'); hold off```

`yF` is a 10-by-1 vector of future values of real GNP corresponding to the future predictor data.

Estimate the forecast root mean squared error (RMSE).

`frmse = sqrt(mean((yF - yFT).^2))`
```frmse = 25.5489 ```

The forecast RMSE is a relative measure of forecast accuracy. Specifically, you estimate several models using different assumptions. The model with the lowest forecast RMSE is the best-performing model of the ones being compared.

expand all

## Alternatives

The `bayeslm` function can create any supported prior model object for Bayesian linear regression.

### Topics

Introduced in R2017a
