Alpha values giving distinct alpha shapes
returns the values of the alpha radius that produce distinct alpha shapes.
a = alphaSpectrum(
a is in descending sorted order. Each element in
a represents a value of the alpha radius that results in a
distinct shape. The length of
a is equal to the number of unique
shapes. Values of alpha that lie between the values in
a do not
produce unique alpha shapes.
Create and plot a set of 2-D points.

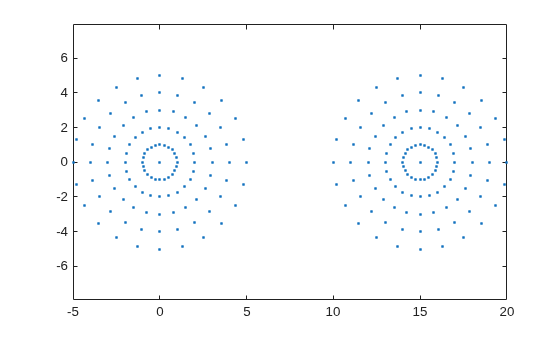

th = (pi/12:pi/12:2*pi)'; x1 = [reshape(cos(th)*(1:5), numel(cos(th)*(1:5)),1); 0]; y1 = [reshape(sin(th)*(1:5), numel(sin(th)*(1:5)),1); 0]; x = [x1; x1+15;]; y = [y1; y1]; plot(x,y,'.') axis equal
Create an alpha shape for the point cloud using the default alpha radius.
shp = alphaShape(x,y);
Find the spectrum of critical alpha values that produces unique alpha shapes for the point cloud.
alphaspec = alphaSpectrum(shp);
Plot the alpha shape corresponding to the smallest alpha value in the spectrum.
shp.Alpha = alphaspec(length(alphaspec)); plot(shp)

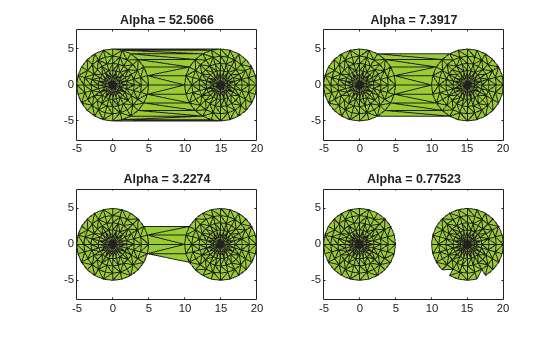

Compare this alpha shape to the one produced by the next smallest critical alpha value. The alpha shapes are unique.
shp.Alpha = alphaspec(length(alphaspec)-1); plot(shp)
a— Alpha values for distinct alpha shapes
Alpha values for distinct alpha shapes, returned as a column vector in descending sorted order.
