errorbar
Line plot with error bars
Syntax
Description
errorbar(___,
sets the orientation
of the error bars. Specify ornt
)ornt
as
"horizontal"
for horizontal error bars or
"both"
for both horizontal and vertical error bars. The
default for ornt
is "vertical"
, which
draws vertical error bars. Use this option after any of the previous input
argument combinations.
errorbar(___,
sets the line
style, marker symbol, and color. For example, LineSpec
)"ro"
plots a
dashed, red line with circle markers. The line style affects only the line and
not the error bars.
errorbar(___,
modifies the
appearance of the line and error bars using one or more namevalue pair
arguments. For example, Name,Value
)"CapSize",10
sets the lengths of the
caps at the end of each error bar to 10 points.
errorbar(
creates
the plot in the axes specified by ax
,___)ax
instead of
in the current axes. Specify the axes as the first input argument.
returns one e
= errorbar(___)ErrorBar
object for each plotted line. Use
e
to modify properties of a specific ErrorBar
object after it is created. For a list of
properties, see ErrorBar Properties.
Examples

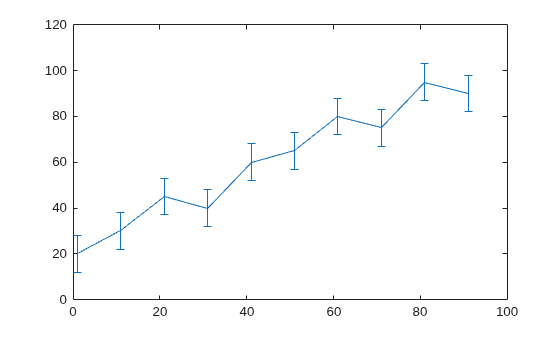

Plot Vertical Error Bars of Equal Length
Create vectors x
and y
. Plot y
versus x
. At each data point, display vertical error bars that are equal in length.
x = 1:10:100; y = [20 30 45 40 60 65 80 75 95 90]; err = 8*ones(size(y)); errorbar(x,y,err)
Plot Vertical Error Bars that Vary in Length

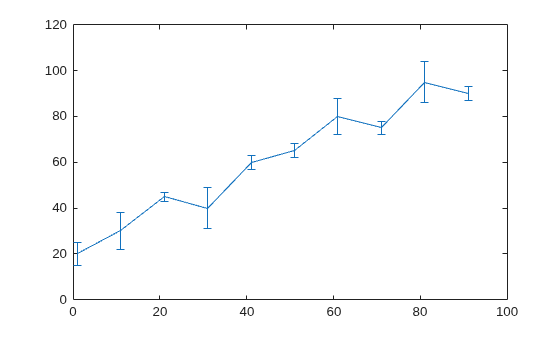

Create a line plot with error bars at each data point. Vary the lengths of the error bars.
x = 1:10:100; y = [20 30 45 40 60 65 80 75 95 90]; err = [5 8 2 9 3 3 8 3 9 3]; errorbar(x,y,err)
Plot Horizontal Error Bars

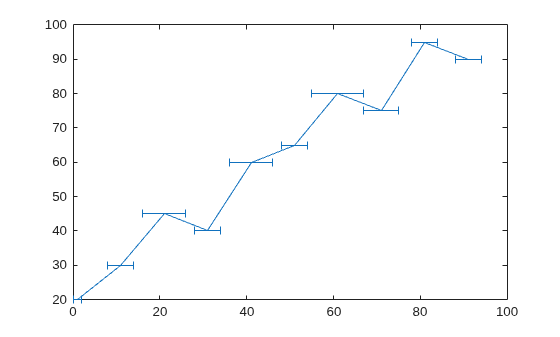

Create a line plot with horizontal error bars at each data point.
x = 1:10:100;
y = [20 30 45 40 60 65 80 75 95 90];
err = [1 3 5 3 5 3 6 4 3 3];
errorbar(x,y,err,'horizontal')
Plot Vertical and Horizontal Error Bars

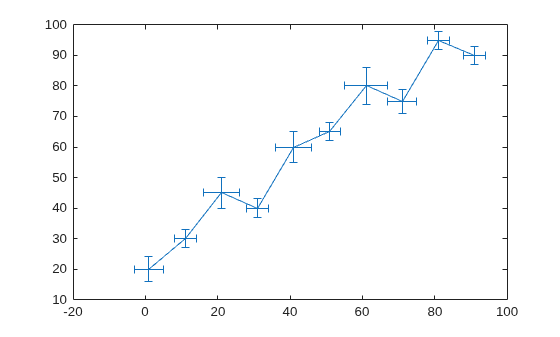

Create a line plot with both vertical and horizontal error bars at each data point.
x = 1:10:100;
y = [20 30 45 40 60 65 80 75 95 90];
err = [4 3 5 3 5 3 6 4 3 3];
errorbar(x,y,err,'both')

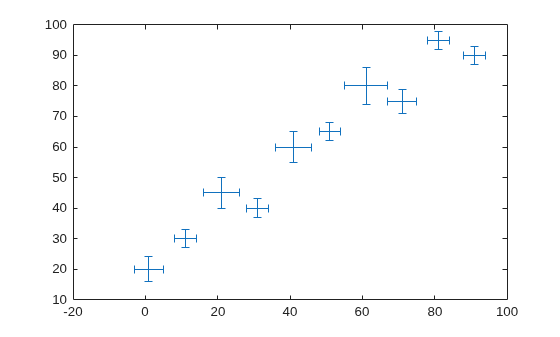

Plot Error Bars with No Line
Plot vectors y
versus x

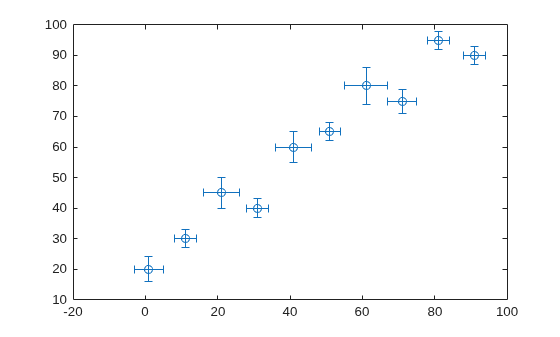

. At each data point, display a circle marker with both vertical and horizontal error bars. Do not display the line that connects the data points by omitting the line style option for the linespec
input argument.
x = 1:10:100; y = [20 30 45 40 60 65 80 75 95 90]; err = [4 3 5 3 5 3 6 4 3 3]; errorbar(x,y,err,"both","o")
Alternatvely, omit the markers and plot the error bars by themselves. To do this, specify the LineStyle
namevalue argument as "none"
.
errorbar(x,y,err,"both","LineStyle","none")
Control Error Bars Lengths in All Directions

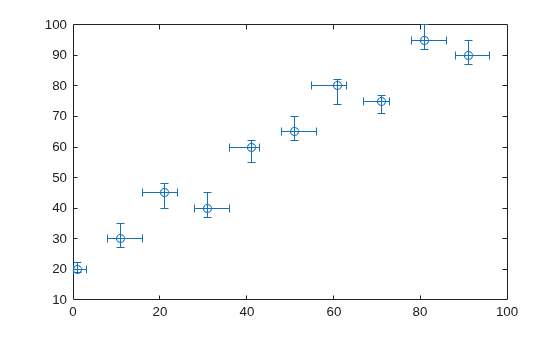

Display both vertical and horizontal error bars at each data point. Control the lower and upper lengths of the vertical error bars using the yneg
and ypos
input argument options, respectively. Control the left and right lengths of the horizontal error bars using the xneg
and xpos
input argument options, respectively.
x = 1:10:100;
y = [20 30 45 40 60 65 80 75 95 90];
yneg = [1 3 5 3 5 3 6 4 3 3];
ypos = [2 5 3 5 2 5 2 2 5 5];
xneg = [1 3 5 3 5 3 6 4 3 3];
xpos = [2 5 3 5 2 5 2 2 5 5];
errorbar(x,y,yneg,ypos,xneg,xpos,'o')
Plot Datetime Values with Error Bars

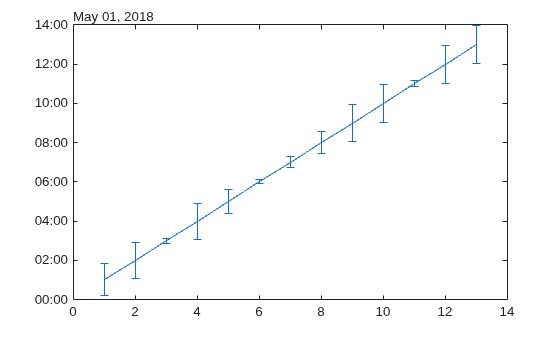

Create a plot of datetime values with error bars in duration units.
x = 1:13; y = datetime(2018,5,1,1:13,0,0); err = hours(rand(13,1)); errorbar(x,y,err)
Add Colored Markers to Each Data Point

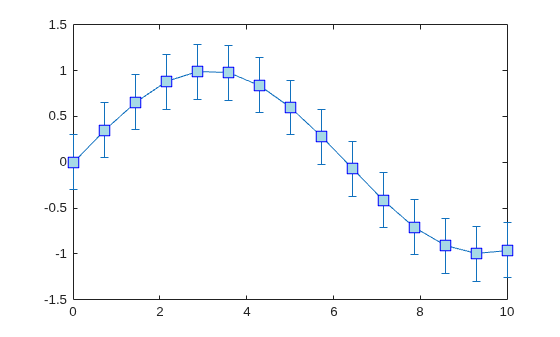

Create a line plot with error bars. At each data point, display a marker. Change the appearance of the marker using namevalue arguments. Use MarkerSize
to specify the marker size in points. Use MarkerEdgeColor
and MarkerFaceColor
to specify the marker outline and fill colors, respectively. You can specify colors by name, such as "blue"
, RGB triplets, or hexadecimal color codes.
x = linspace(0,10,15); y = sin(x/2); err = 0.3*ones(size(y)); errorbar(x,y,err,"s","MarkerSize",10,... "MarkerEdgeColor","blue","MarkerFaceColor",[0.65 0.85 0.90])
Change Cap Size and Prevent Overlap With Plot Box

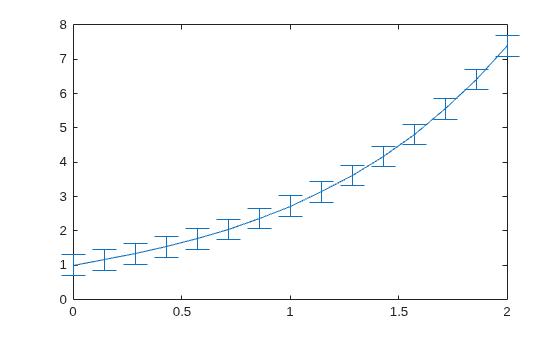

Control the size of the caps at the end of each error bar by setting the CapSize
property to a positive value in points.
x = linspace(0,2,15);
y = exp(x);
err = 0.3*ones(size(y));
e = errorbar(x,y,err,'CapSize',18);

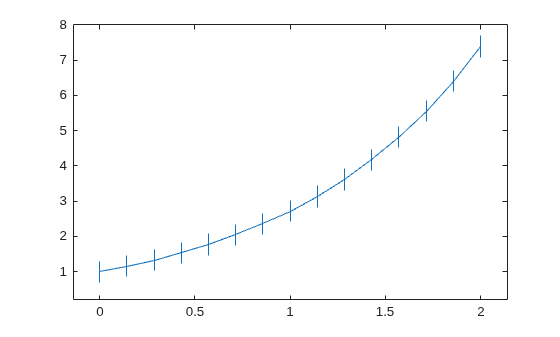

To remove the caps, set the cap size to zero. Then add a margin of padding around the inside of the plot box by calling the axis padded
command. Adding this margin keeps the error bars from overlapping with the plot box.
e.CapSize = 0;
axis padded
Modify Error Bars After Creation

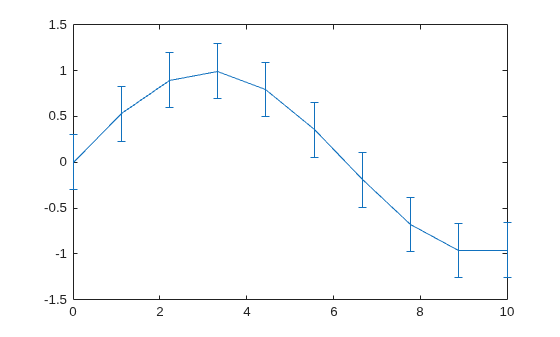

Create a line plot with error bars. Assign the errorbar object to the variable e
.
x = linspace(0,10,10); y = sin(x/2); err = 0.3*ones(size(y)); e = errorbar(x,y,err)
e = ErrorBar with properties: Color: [0 0.4470 0.7410] LineStyle: '' LineWidth: 0.5000 Marker: 'none' XData: [0 1.1111 2.2222 3.3333 4.4444 5.5556 6.6667 7.7778 8.8889 10] YData: [0 0.5274 0.8962 0.9954 0.7952 0.3558 0.1906 0.6797 0.9643 0.9589] XNegativeDelta: [1x0 double] XPositiveDelta: [1x0 double] YNegativeDelta: [0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000] YPositiveDelta: [0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000 0.3000] Use GET to show all properties
Use e
to access properties of the errorbar object after it is created.

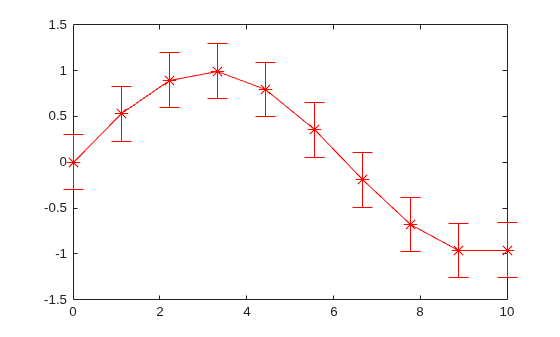

e.Marker = '*'; e.MarkerSize = 10; e.Color = 'red'; e.CapSize = 15;
Input Arguments
y
— ycoordinates
vector  matrix
ycoordinates, specified as a vector or matrix. The
size and shape of y
depend on the size and shape of your
data and the type of plot you want to make. This table describes the most
common types of plots you can create.
Type of Plot  Coordinates and Error Bar Lengths

One line with error bars  Specify all coordinates and error bar lengths
as any combination of row and column vectors of the
same length. For example, plot one line with error
bars. Adjust the xaxis limits
with the
y = 1:5; err = [0.3 0.1 0.3 0.1 0.3]; errorbar(y,err) xlim([0.9 5.1]) Optionally specify
x = [0; 1; 2; 3; 4]; y = 1:5; err = [0.3 0.1 0.3 0.1 0.3]; errorbar(x,y,err) xlim([0.1 4.1])
Multiple lines with error bars  Specify one or more of the coordinate inputs or error bar lengths as matrices. All matrices must be the same size and orientation. If any inputs are specified as vectors, they must have the same number of elements, and they must have the same length as one of the dimensions of the matrices. MATLAB^{®} plots one line for each column in the matrices in these situations:
For example, plot five lines that
each have two error bars. Adjust the
xaxis limits with the
y = [1 2 3 4 5; 2 3 4 5 6]; err = [0.2 0.1 0.3 0.1 0.2; 0.1 0.3 0.4 0.3 0.1]; errorbar(y,err) xlim([0.95 2.05]) Using the same
x = [0 1 2 3 4; 10 11 12 13 14]; y = [1 2 3 4 5]; err = [0.2 0.1 0.3 0.1 0.2; 0.1 0.3 0.4 0.3 0.1]; errorbar(x,y,err) xlim([0.5 14.5])
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 logical
 categorical
 datetime
 duration
x
— xcoordinates
vector  matrix
xcoordinates, specified as a vector or matrix. The
size and shape of x
depend on the size and shape of your
data and the type of plot you want to make. This table describes the most
common types of plots you can create.
Type of Plot  Coordinates and Error Bar Lengths

One line with error bars  Specify all coordinates and error bar lengths
as any combination of row and column vectors of the
same length. For example, plot one line with error
bars. Adjust the xaxis limits
with the
x = 0:4; y = [1; 2; 3; 4; 5]; err = [0.2 0.1 0.3 0.1 0.2]; errorbar(x,y,err) xlim([0.1 4.1])
Multiple lines with error bars  Specify one or more of the coordinate inputs or error bar lengths as matrices. All matrices must have the same size and orientation. If any inputs are specified as vectors, they must have the same number of elements, and they have the same length as of one of the dimensions of the matrices. MATLAB plots one line for each column in the matrices in these situations:
Otherwise, MATLAB plots one line for each row in the
matrices. For example, plot five lines that each
have two error bars. Adjust the
xaxis limits with the
x = [1 1 1 1 1; 2 2 2 2 2]; y = [1 2 3 4 5; 2 3 4 5 6]; err = [0.2 0.1 0.3 0.1 0.2; 0.1 0.3 0.4 0.3 0.1]; errorbar(x,y,err) xlim([0.95 2.05]) Using the same
x = 0:4; y = [1 2 3 4 5; 2 3 4 5 6]; err = [0.2 0.1 0.3 0.1 0.2; 0.1 0.3 0.4 0.3 0.1]; errorbar(x,y,err) xlim([0.1 4.1])
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 logical
 categorical
 datetime
 duration
err
— Error bar lengths for symmetrical error bars
vector  matrix
Error bar lengths for symmetrical error bars, specified as a vector or
matrix. If you do not want to draw an error bar at a particular data point,
then specify the length as NaN
. The size and shape of
err
depend on the size and shape of the coordinate
inputs and how you want to distribute the error bars. This table describes
the most common types of plots you can create.
Type of Plot  x and y  err

One line with error bars
 Specify a row or column vector of the same
length as
x = [0; 1; 2; 3; 4]; y = 1:5; err = [0.2 0.1 0.3 0.1 0.2]; errorbar(x,y,err) xlim([0.1 4.1])
Multiple lines with error bars  At least one of x or
y is a matrix  Specify a vector that is the same length as one
of the dimensions of the When you
specify a vector, the error bars are shared among
all the lines. For example, plot two lines that
share the same five error bars. Adjust the
xaxis limits with the
x = 1:5; y = [1 2 3 4 5; 2 3 4 5 6]; err = [0.2 0.1 0.3 0.1 0.2]; errorbar(x,y,err) xlim([0.90 5.1]) To display different error bars for each
line, specify a matrix that has the same size and
orientation as the
x = 1:5; y = [1 2 3 4 5; 2 3 4 5 6]; err = [0.2 0.1 0.3 0.1 0.2; 0.1 0.3 0.4 0.3 0.1]; errorbar(x,y,err) xlim([0.90 5.1])
The data type of the error bar lengths must be compatible with the corresponding plot data. For example, if you plot datetime
values, the error bars for those values must be duration
values.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 logical
 duration
neg,pos
— Error bar lengths in negative and positive directions
pair of vectors  pair of matrices  vector and matrix
Error bar lengths in the negative and positive directions, specified as a pair of vectors, a pair of matrices, or a vector and a matrix, separated by a comma. The negative direction is either below or to the left of the data points, depending on the orientation of the error bars. The positive direction is either above or to the right of the data points.
If you want to omit the negative or positive part of the error bar at a
particular data point, then specify the length at that point as
NaN
. To omit the negative or positive part at all
data points, specify an empty array for neg
or
pos
.
The size and shape of neg
and pos
depend on the size and shape of the coordinate inputs and how you want to
distribute the error bars. This table describes the most common types of
plots you can create.
Type of Plot  x and y  neg and pos

One line with error bars
 Specify row or column vectors of the same length as
x = [0; 1; 2; 3; 4]; y = 1:5; neg = [0.2; 0.1; 0.3; 0.05; 0.3]; pos = [0.1 0.05 0.1 0.2 0.3]; errorbar(x,y,neg,pos) xlim([0.1 4.1])
Multiple lines with error bars  At least one of x or
y is a matrix  Specify vectors that are the same length as one of
the dimensions of the When you specify vectors, those
error bar lengths are shared among all the lines. For
example, plot two lines that share the same negative and
positive error bar lengths. Adjust the
xaxis limits with the
x = 0:4; y = [1 2 3 4 5; 6 7 8 9 10]; neg = [0.2; 0.1; 0.3; 0.05; 0.3]; pos = [0.1 0.05 0.1 0.2 0.3]; errorbar(x,y,neg,pos) xlim([0.1 4.1]) To display different positive and negative
error bar lengths for each line, specify matrices that
are the same size and orientation as the
x = 0:4; y = [1 2 3 4 5; 6 7 8 9 10]; neg = [0.2 0.1 0.3 0.05 0.3; 3 5 3 2 2]; pos = [0.2 0.3 0.4 0.1 0.2; 4 3 3 7 3]; errorbar(x,y,neg,pos) xlim([0.1 4.1])
The data type of the error bar lengths must be compatible with the corresponding plot data. For example, if you plot datetime
values, the error bars for those values must be duration
values.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 logical
 duration
yneg,ypos
— Vertical error bar lengths in negative and positive directions
pair of vectors  pair of matrices  vector and matrix
Vertical error bar lengths in the negative and positive directions, specified as a pair of vectors, a pair of matrices, or a vector and a matrix, separated by a comma. The negative direction is below data points, and the positive direction is above data points.
If you want to omit the negative or positive part of the error bar at a
particular data point, then specify the length at that point as
NaN
. To omit the negative or positive part at all
data points, specify an empty array for yneg
or
ypos
.
The size and shape of yneg
and ypos
depend on the size and shape of the coordinate inputs and how you want to
distribute the error bars. This table describes the most common types of
plots you can create.
Type of Plot  x and y  yneg and
ypos

One line with error bars
 Specify row or column vectors of the same length as
x = [0; 1; 2; 3; 4]; y = 1:5; yneg = [0.2; 0.1; 0.3; 0.05; 0.3]; ypos = [0.1 0.05 0.1 0.2 0.3]; xneg = [0.1; 0.1; 0.1; 0.1; 0.1]; xpos = [0.1 0.1 0.1 0.1 0.1]; errorbar(x,y,yneg,ypos,xneg,xpos) xlim([0.2 4.2])
Multiple lines with error bars  At least one of x or
y is a matrix  Specify vectors that are the same length as one of
the dimensions of the When you specify vectors, those
error bar lengths are shared among all the lines. For
example, plot two lines that share the same negative and
positive vertical error bar lengths. Specify
x = 0:4; y = [1 2 3 4 5; 6 7 8 9 10]; yneg = [0.2; 0.3; 0.3; 0.1; 0.3]; ypos = [0.1 0.4 0.1 0.2 0.3]; errorbar(x,y,yneg,ypos,[],[]) xlim([0.2 4.2]) To display different positive and negative
vertical lengths for each line, specify matrices that
have the same size and orientation as the
x = 0:4; y = [1 2 3 4 5; 6 7 8 9 10]; yneg = [0.3 1 0.2 0.5 0.3; 0.3 0.2 0.3 1 0.5]; ypos = [1 0.4 0.3 0.2 0.3; 0.4 0.5 0.2 0.4 1]; errorbar(x,y,yneg,ypos,[],[]) xlim([0.2 4.2])
The data type of the error bar lengths must be compatible with the corresponding plot data. For example, if you plot datetime
values, the error bars for those values must be duration
values.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 logical
 duration
xneg,xpos
— Horizontal error bar lengths in negative and positive directions
pair of vectors  pair of matrices  vector and matrix
Horizontal error bar lengths in the negative and positive directions, specified as a pair of vectors, a pair of matrices, or a vector and a matrix, separated by a comma. The negative direction is to the left of the data points, and the positive direction is to the right of the data points.
If you want to omit the negative or positive part of the error bar at a
particular data point, specify the length at that point as
NaN
. To omit the negative or positive part at all
data points, then specify an empty array for xneg
or
xpos
.
The size and shape of xneg
and xpos
depends on the size and shape of the coordinate inputs and how you want to
distribute the error bars. This table describes the most common types of
plots you can create.
Type of Plot  x and y  xneg and
xpos

One line with error bars
 Specify row or column vectors of the same length as
x = [0; 1; 2; 3; 4]; y = 1:5; yneg = [0.2; 0.1; 0.3; 0.05; 0.3]; ypos = [0.1 0.05 0.1 0.2 0.3]; xneg = [0.1; 0.1; 0.1; 0.1; 0.1]; xpos = [0.1 0.1 0.1 0.1 0.1]; errorbar(x,y,yneg,ypos,xneg,xpos) xlim([0.2 4.2])
Multiple lines with error bars  At least one of x or
y is a matrix  Specify vectors that are the same length as one of
the dimensions of the When you specify vectors, those
error bar lengths are shared among all the lines. For
example, plot two lines that share the same negative and
positive horizontal error bar lengths. Specify
x = 0:4; y = [1 2 3 4 5; 6 7 8 9 10]; xneg = [0.2; 0.3; 0.3; 0.1; 0.3]; xpos = [0.1 0.4 0.1 0.2 0.3]; errorbar(x,y,[],[],xneg,xpos) xlim([0.5 4.5]) ylim([0.5 10.5]) To display different positive and negative
horizontal lengths for each line, specify matrices that
have the same size and orientation as the
x = 0:4; y = [1 2 3 4 5; 6 7 8 9 10]; xneg = [0.3 1 0.2 0.5 0.3; 0.3 0.2 0.3 1 0.5]; xpos = [1 0.4 0.3 0.2 0.3; 0.4 0.5 0.2 0.4 1]; errorbar(x,y,[],[],xneg,xpos) xlim([0.5 5.5]) ylim([0.5 10.5])
The data type of the error bar lengths must be compatible with the corresponding plot data. For example, if you plot datetime
values, the error bars for those values must be duration
values.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 logical
 duration
ornt
— Error bar orientation
"vertical"
(default)  "horizontal"
 "both"
Error bar orientation, specified as one of these values:
"vertical"
— Vertical error bars"horizontal"
— Horizontal error bars"both"
— Vertical and horizontal error bars
Example: errorbar(x,y,err,"horizontal")
LineSpec
— Line style, marker, and color
string scalar  character vector
Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.
Example: "or"
is a red dashed line with circle markers.
Line Style  Description  Resulting Line

""  Solid line

""  Dashed line

":"  Dotted line

"."  Dashdotted line

Marker  Description  Resulting Marker

"o"  Circle

"+"  Plus sign

"*"  Asterisk

"."  Point

"x"  Cross

"_"  Horizontal line

""  Vertical line

"square"  Square

"diamond"  Diamond

"^"  Upwardpointing triangle

"v"  Downwardpointing triangle

">"  Rightpointing triangle

"<"  Leftpointing triangle

"pentagram"  Pentagram

"hexagram"  Hexagram

Color Name  Short Name  RGB Triplet  Appearance

"red"  "r"  [1 0 0]

"green"  "g"  [0 1 0]

"blue"  "b"  [0 0 1]

"cyan"
 "c"  [0 1 1]

"magenta"  "m"  [1 0 1]

"yellow"  "y"  [1 1 0]

"black"  "k"  [0 0 0]

"white"  "w"  [1 1 1]

ax
— Axes object
current axes (default)  axes object
Axes object. If you do not specify the axes, then errorbar
plots
into the current axes.
NameValue Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Namevalue arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: errorbar(y,err,"LineWidth",2)
specifies a line width of 2
points.
The properties listed here are only a subset. For a complete list, see ErrorBar Properties.
CapSize
— Length of caps at end of error bars
6
(default)  nonnegative value in points
Length of caps at end of error bars, specified as a nonnegative value in points. To remove the
caps from the error bars, set CapSize
to
0
.
Example: errorbar(x,y,err,"CapSize",10)
LineWidth
— Line width
0.5
(default)  positive value
Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.
The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.
More About
Specifying Coordinates as Combinations of Vectors and Matrices
errorbar
accepts combinations of vectors
and matrices for plotting multiple sets of coordinates in the same axes.
Specify a vector and a matrix when the coordinates in one dimension are shared. The length of the vector must match one of the dimensions of the matrix. The rows (or columns) of the matrix are plotted against the vector. For example, you can specify the xcoordinates as an melement vector and the ycoordinates as an mbyn matrix. MATLAB displays n plots in the same axes that share the same xcoordinates.
Specify two matrices when the coordinates are different among all the plots in both dimensions. Both matrices must have the same size and orientation. The columns of the matrices are plotted against each other.
Extended Capabilities
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The errorbar
function
supports GPU array input with these usage notes and limitations:
This function accepts GPU arrays, but does not run on a GPU.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
Usage notes and limitations:
This function operates on distributed arrays, but executes in the client MATLAB.
For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006aR2022b: Plot multiple data sets at once using matrices
The errorbar
function now accepts the same combinations of
matrices and vectors as the plot
function does. As a result,
you can plot multiple data sets at once rather than calling the
hold
function between plotting commands.
Comando MATLAB
Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:
Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
