interp3
Interpolation for 3D gridded data in meshgrid format
Syntax
Description
returns
interpolated values of a function of three variables at specific query
points using linear interpolation. The results always pass through
the original sampling of the function. Vq
= interp3(X,Y,Z
,V
,Xq,Yq,Zq
)X
, Y
,
and Z
contain the coordinates of the sample points. V
contains
the corresponding function values at each sample point. Xq
, Yq
,
and Zq
contain the coordinates of the query points.
also
specifies Vq
= interp3(___,method
,extrapval
)extrapval
, a scalar value that is assigned
to all queries that lie outside the domain of the sample points.
If you omit the extrapval
argument for queries
outside the domain of the sample points, then based on the method
argument interp3
returns
one of the following:
The extrapolated values for the
'spline'
and'makima'
methodsNaN
values for other interpolation methods
Examples
Interpolate Using Default Method
Load the points and values of the flow function, sampled at 10 points in each dimension.
[X,Y,Z,V] = flow(10);
The flow
function returns the grid in the arrays, X
, Y
, Z
. The grid covers the region, $$0.1\le X\le 10$$, $$3\le Y\le 3$$, $$3\le Z\le 3$$, and the spacing is $$\Delta X=0.5$$, $$\Delta Y=0.7$$, and $$\Delta Z=0.7$$.
Now, plot slices through the volume of the sample at: X=6
, X=9
, Y=2
, and Z=0
.
figure
slice(X,Y,Z,V,[6 9],2,0);
shading flat
Create a query grid with spacing of 0.25.
[Xq,Yq,Zq] = meshgrid(.1:.25:10,3:.25:3,3:.25:3);
Interpolate at the points in the query grid and plot the results using the same slice planes.

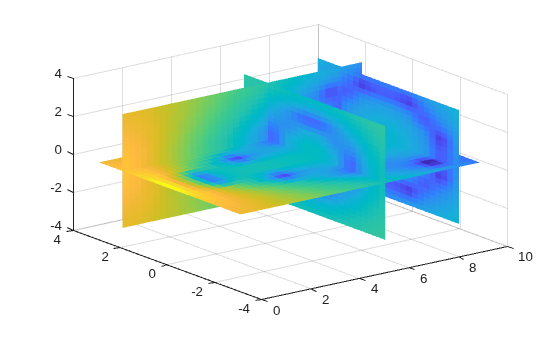

Vq = interp3(X,Y,Z,V,Xq,Yq,Zq);
figure
slice(Xq,Yq,Zq,Vq,[6 9],2,0);
shading flat
Interpolate Using Cubic Method
Load the points and values of the flow function, sampled at 10 points in each dimension.
[X,Y,Z,V] = flow(10);
The flow
function returns the grid in the arrays, X
, Y
, Z
. The grid covers the region, $$0.1\le X\le 10$$, $$3\le Y\le 3$$, $$3\le Z\le 3$$, and the spacing is $$\Delta X=0.5$$, $$\Delta Y=0.7$$, and $$\Delta Z=0.7$$.
Plot slices through the volume of the sample at: X=6
, X=9
, Y=2
, and Z =0
.
figure

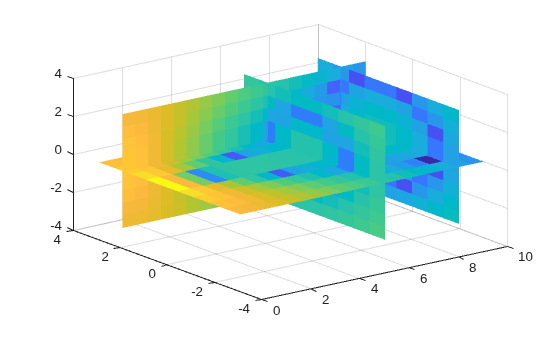

slice(X,Y,Z,V,[6 9],2,0);
shading flat
Create a query grid with spacing of 0.25.
[Xq,Yq,Zq] = meshgrid(.1:.25:10,3:.25:3,3:.25:3);
Interpolate at the points in the query grid using the 'cubic'
interpolation method. Then plot the results.

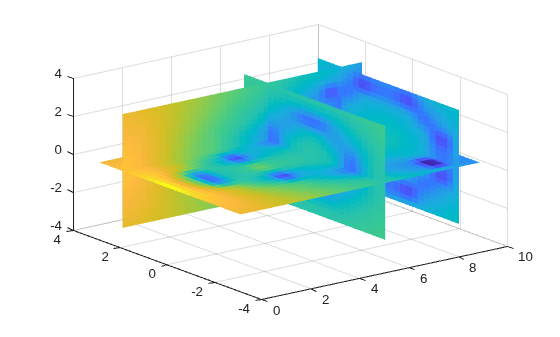

Vq = interp3(X,Y,Z,V,Xq,Yq,Zq,'cubic'); figure slice(Xq,Yq,Zq,Vq,[6 9],2,0); shading flat
Evaluate Outside the Domain of X, Y, and Z
Create the grid vectors, x
, y
, and z
. These vectors define the points associated with values in V
.
x = 1:100; y = (1:50)'; z = 1:30;
Define the sample values to be a 50by100by30 random number array, V
. Use the rand
function to create the array.
rng('default')
V = rand(50,100,30);
Evaluate V
at three points outside the domain of x
, y
, and z
. Specify extrapval = 1
.
xq = [0 0 0];
yq = [0 0 51];
zq = [0 101 102];
vq = interp3(x,y,z,V,xq,yq,zq,'linear',1)
vq = 1×3
1 1 1
All three points evaluate to 1
because they are outside the domain of x
, y
, and z
.
Input Arguments
X,Y,Z
— Sample grid points
arrays  vectors
Sample grid points, specified as real arrays or vectors. The sample grid points must be unique.
If
X
,Y
, andZ
are arrays, then they contain the coordinates of a full grid (in meshgrid format). Use themeshgrid
function to create theX
,Y
, andZ
arrays together. These arrays must be the same size.If
X
,Y
, andZ
are vectors, then they are treated as a grid vectors. The values in these vectors must be strictly monotonic, either increasing or decreasing.
Example: [X,Y,Z] = meshgrid(1:30,10:10,1:5)
Data Types: single
 double
V
— Sample values
array
Sample values, specified as a real or complex array. The size
requirements for V
depend on the size of X
, Y
,
and Z
:
If
X
,Y
, andZ
are arrays representing a full grid (inmeshgrid
format), then the size ofV
matches the size ofX
,Y
, orZ
.If
X
,Y
, andZ
are grid vectors, thensize(V) = [length(Y) length(X) length(Z)]
.
If V
contains complex numbers, then interp3
interpolates
the real and imaginary parts separately.
Example: rand(10,10,10)
Data Types: single
 double
Complex Number Support: Yes
Xq,Yq,Zq
— Query points
scalars  vectors  arrays
Query points, specified as a real scalars, vectors, or arrays.
If
Xq
,Yq
, andZq
are scalars, then they are the coordinates of a single query point in R^{3}.If
Xq
,Yq
, andZq
are vectors of different orientations, thenXq
,Yq
, andZq
are treated as grid vectors in R^{3}.If
Xq
,Yq
, andZq
are vectors of the same size and orientation, thenXq
,Yq
, andZq
are treated as scattered points in R^{3}.If
Xq
,Yq
, andZq
are arrays of the same size, then they represent either a full grid of query points (inmeshgrid
format) or scattered points in R^{3}.
Example: [Xq,Yq,Zq] = meshgrid((1:0.1:10),(5:0.1:0),3:5)
Data Types: single
 double
k
— Refinement factor
1
(default)  real, nonnegative, integer scalar
Refinement factor, specified as a real, nonnegative, integer
scalar. This value specifies the number of times to repeatedly divide
the intervals of the refined grid in each dimension. This results
in 2^k1
interpolated points between sample values.
If k
is 0
, then Vq
is
the same as V
.
interp3(V,1)
is the same as interp3(V)
.
The following illustration depicts k=2
in
one plane of R^{3}.
There are 72 interpolated values in red and 9 sample values in black.
Example: interp3(V,2)
Data Types: single
 double
method
— Interpolation method
'linear'
(default)  'nearest'
 'cubic'
 'spline'
 'makima'
Interpolation method, specified as one of the options in this table.
Method  Description  Continuity  Comments

'linear'  The interpolated value at a query point is based on linear interpolation of the values at neighboring grid points in each respective dimension. This is the default interpolation method.  C^{0}

'nearest'  The interpolated value at a query point is the value at the nearest sample grid point.  Discontinuous

'cubic'  The interpolated value at a query point is based on a cubic interpolation of the values at neighboring grid points in each respective dimension. The interpolation is based on a cubic convolution.  C^{1}

'makima'  Modified Akima cubic Hermite interpolation. The interpolated value at a query point is based on a piecewise function of polynomials with degree at most three evaluated using the values of neighboring grid points in each respective dimension. The Akima formula is modified to avoid overshoots.  C^{1}

'spline'  The interpolated value at a query point is based on a cubic interpolation of the values at neighboring grid points in each respective dimension. The interpolation is based on a cubic spline using notaknot end conditions.  C^{2}

extrapval
— Function value outside domain of X
, Y
, and Z
scalar
Function value outside domain of X
, Y
,
and Z
, specified as a real or complex scalar. interp3
returns
this constant value for all points outside the domain of X
, Y
,
and Z
.
Example: 5
Example: 5+1i
Data Types: single
 double
Complex Number Support: Yes
Output Arguments
Vq
— Interpolated values
scalar  vector  array
Interpolated values, returned as a real or complex scalar, vector,
or array. The size and shape of Vq
depends on the
syntax you use and, in some cases, the size and value of the input
arguments.
Syntaxes  Special Conditions  Size of Vq  Example

interp3(X,Y,Z,V,Xq,Yq,Zq) interp3(V,Xq,Yq,Zq) and variations of these syntaxes that include method or extrapval  Xq , Yq , and Zq are
scalars.  Scalar  size(Vq) = [1 1] when you pass Xq , Yq ,
and Zq as scalars.
Same as above  Xq , Yq , and Zq are
vectors of the same size and orientation.  Vector of same size and orientation as Xq , Yq ,
and Zq  If size(Xq) = [100 1] , and size(Yq)
= [100 1] , and size(Zq) = [100
1] , then size(Vq) = [100 1] .
Same as above  Xq , Yq , and Zq are
vectors of mixed orientation.  size(Vq) = [length(Y) length(X) length(Z)]  If size(Xq) = [1 100] ,and size(Yq)
= [50 1] , and size(Zq) = [1 5] ,then size(Vq) = [50 100 5] .
Same as above  Xq , Yq , and Zq are
arrays of the same size.  Array of the same size as Xq , Yq ,
and Zq  If size(Xq) = [50 25] ,and size(Yq)
= [50 25] , and size(Zq) = [50 25] , then size(Vq) = [50 25] .
interp3(V,k) and variations of this syntax that include method or extrapval  None  Array in which the length of the  If size(V) = [10 12 5] ,and k
= 3 , then size(Vq) = [73 89 33] .
More About
Strictly Monotonic
A set of values that are always increasing
or decreasing, without reversals. For example, the sequence, a
= [2 4 6 8]
is strictly monotonic and increasing. The sequence, b
= [2 4 4 6 8]
is not strictly monotonic because there is
no change in value between b(2)
and b(3)
.
The sequence, c = [2 4 6 8 6]
contains a reversal
between c(4)
and c(5)
, so it
is not monotonic at all.
Full Grid (in meshgrid Format)
For interp3
, a full grid
consists of three arrays whose elements represent a grid of points
that define a region in R^{3}.
The first array contains the xcoordinates, the
second array contains the ycoordinates, and the
third array contains the zcoordinates. The values
in each array vary along a single dimension and are constant along
the other dimensions.
The values in the xarray are strictly monotonic,
increasing, and vary along the second dimension. The values in the yarray
are strictly monotonic, increasing, and vary along the first dimension.
The values in the zarray are strictly monotonic,
increasing, and vary along the third dimension. Use the meshgrid
function to create a full grid
that you can pass to interp3
.
Grid Vectors
For interp3
, grid vectors
consist of three vectors of mixedorientation that define the points
on a grid in R^{3}.
For example, the following code creates the grid vectors for the region, 1 ≤ x ≤ 3, 4 ≤ y ≤ 5, and 6 ≤ z ≤ 8:
x = 1:3; y = (4:5)'; z = 6:8;
Scattered Points
For interp3
, scattered
points consist of three arrays or vectors, Xq
, Yq
,
and Zq
, that define a collection of points scattered
in R^{3}.
The ith array contains the coordinates in the ith dimension.
For example, the following code specifies the points, (1, 19, 10), (6, 40, 1), (15, 33, 22), and (0, 61, 13).
Xq = [1 6; 15 0]; Yq = [19 40; 33 61]; Zq = [10 1; 22 13];
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Xq
,Yq
, andZq
must be the same size. Usemeshgrid
to evaluate on a grid.For best results, provide
X
,Y
, andZ
as vectors. The values in these vectors must be strictly monotonic and increasing.Code generation does not support the
'makima'
interpolation method.For the
'cubic'
interpolation method, if the grid does not have uniform spacing, an error results. In this case, use the'spline'
interpolation method.For best results when you use the
'spline'
interpolation method:Use
meshgrid
to create the inputsXq
,Yq
, andZq
.Use a small number of interpolation points relative to the dimensions of
V
. Interpolating over a large set of scattered points can be inefficient.
ThreadBased Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports threadbased environments. For more information, see Run MATLAB Functions in ThreadBased Environment.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
Usage notes and limitations:
V
must be a double or single 3D array.V
can be real or complex.X
,Y
, andZ
must:Have the same type (double or single).
Be finite vectors or 3D arrays with increasing and nonrepeating elements in corresponding dimensions.
Align with Cartesian axes when
X
,Y
, andZ
are 3D arrays (as if they were produced bymeshgrid
).Have dimensions consistent with
V
.
Xq
,Yq
, andZq
must be vectors or arrays of the same type (double or single). IfXq
,Yq
, andZq
are arrays, then they must have the same size. If they are vectors with different lengths, then one of them must have a different orientation.method
must be'linear'
or'nearest'
.The extrapolation for the outofboundary input is not supported.
For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006a
Apri esempio
Si dispone di una versione modificata di questo esempio. Desideri aprire questo esempio con le tue modifiche?
Comando MATLAB
Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:
Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
