findEdgeID

Find edge ID of edge

Since R2019b

Description

example

edgeID = findEdgeID(poseGraph,nodePairs) finds the edge ID for a specified edge. Edges are defined by the IDs of the two nodes that connect them.

Examples

collapse all

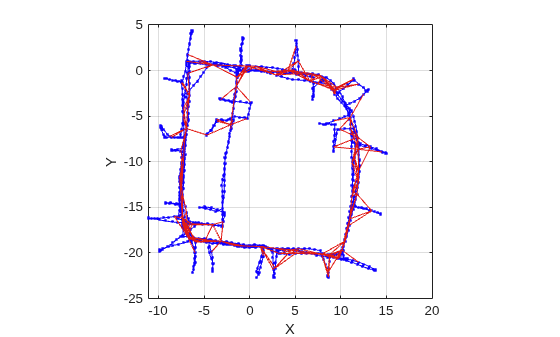

Load the Intel Research Lab Dataset that contains a 2-D pose graph. Optimize the pose graph. Plot the pose graph with IDs off. Red lines indicate loop closures identified in the dataset.

load intel-2d-posegraph.mat pg
optimizedPG = optimizePoseGraph(pg);
show(optimizedPG,IDs="off");

Find the loop closure edge ID for the specified edge node pair in pose graph.

nodePair = [133 1085];
edgeID = findEdgeID(optimizedPG,nodePair)
edgeID = 1386

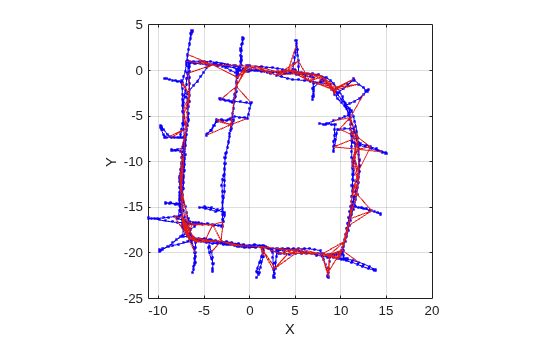

Remove the loop closure edge from the pose graph.

removeEdges(optimizedPG,edgeID)
show(optimizedPG,IDs="off");

Input Arguments

collapse all

Pose graph, specified as a poseGraph or poseGraph3D object.

Edge node pairs in pose graph, specified as a two-element vector that lists the IDs of the two nodes that the edge connects.

Output Arguments

collapse all

Edge IDs, returned as a positive integer or vector of positive integers. The pose graph can contain multiple edges between each node pair, so multiple edge IDs may be returned for a single edge ID.

Extended Capabilities

Version History

Introduced in R2019b
