Electromagnetics
Perform electrostatic, magnetostatic, DC conduction, or harmonic analysis for the design of electrical and electronic components. For details about partial differential equations for electromagnetics, see:
The solver returns one of the results objects containing the solution values, such as electric or magnetic potentials, fields, and flux densities, at mesh nodes. After solving the problem, you can interpolate returned results to arbitrary spatial locations instead of mesh nodes.
Functions
generateMaxwellStressTensor | Compute Maxwell stress tensor at nodal locations (Since R2024a) |
interpolateMaxwellStressTensor | Interpolate Maxwell stress tensor at arbitrary spatial locations (Since R2024a) |
interpolateElectricPotential | Interpolate electric potential in electrostatic or DC conduction result at arbitrary spatial locations |
interpolateElectricField | Interpolate electric field in electrostatic or DC conduction result at arbitrary spatial locations |
interpolateElectricFlux | Interpolate electric flux density in electrostatic result at arbitrary spatial locations |
interpolateMagneticPotential | Interpolate magnetic potential in magnetostatic result at arbitrary spatial locations |
interpolateMagneticField | Interpolate magnetic field in magnetostatic result at arbitrary spatial locations |
interpolateMagneticFlux | Interpolate magnetic flux density in magnetostatic result at arbitrary spatial locations |
interpolateHarmonicField | Interpolate electric or magnetic field in harmonic result at arbitrary spatial locations (Since R2022a) |
interpolateCurrentDensity | Interpolate current density in DC conduction result at arbitrary spatial locations (Since R2022b) |
Objects
ElectrostaticResults | Electrostatic solution and derived quantities |
MagnetostaticResults | Magnetostatic solution and derived quantities |
HarmonicResults | Harmonic electromagnetic solution (Since R2022a) |
ConductionResults | DC conduction solution (Since R2022b) |
Topics
- Electrostatic Potential in Air-Filled Frame
Find the electrostatic potential in an air-filled annular quadrilateral frame by using the unified workflow.
- Electrostatic Analysis of Transformer Bushing Insulator
Compute an electric field intensity in a bushing insulator.
- Magnetic Flux Density in Electromagnet
Compute a magnetic flux density in a solenoid with an iron core using a 3-D model and a 2-D axisymmetric model.
- Magnetic Flux Density in H-Shaped Magnet
Compute a magnetic flux density in a ferromagnetic frame.
- Nonlinear Magnetic Permeability from B-H Curve
Compute a magnetic flux density in a ferromagnetic frame with nonlinear relative permeability.
- Current Density Between Two Metallic Conductors
Find the electric potential and the components of the current density between two circular metallic conductors.
- Magnetic Field in Two-Pole Electric Motor
Find the static magnetic field induced by the stator windings in a two-pole electric motor.
- Scattering Problem
Compute reflected waves from an object illuminated by incident waves.
Featured Examples
Finite Element Analysis of Electrostatically Actuated MEMS Device
Perform coupled electro-mechanical finite element analysis of an electrostatically actuated micro-electro-mechanical (MEMS) device.

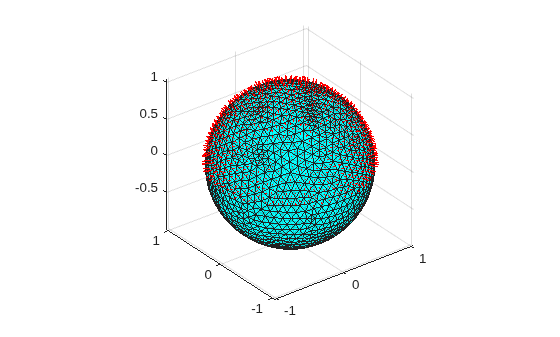

Uniformly Charged Sphere: Force Exerted by Southern Hemisphere on Northern Hemisphere
Find the force that the southern hemisphere of the uniformly charged sphere exerts on its northern hemisphere.
