pcbTraceCustom

Create custom trace

Since R2025a

Description

Use the pcbTraceCustom object to create custom traces for transmission lines.

Creation

Syntax

trace = pcbTraceCustom

trace = pcbTraceCustom(PropertyName=Value)

Description

trace = pcbTraceCustom creates a trace in microstrip form with default properties.

trace = pcbTraceCustom(PropertyName=Value) sets Properties using one or more property name-value arguments. For example, trace = pcbTraceCustom(TraceType = traceTapered) creates a custom trace with a tapered trace.

Properties

TraceShape — Shape of trace

traceStep (default) | shape object

Trace shape specified as a shape object.

Note

traceLine, traceRectangular, and tracePoint shapes are not supported.

Example: trace = pcbTraceCustom(TraceShape=traceRectanglular)

Data Types: string

Height — Height of trace from ground plane

0.254e-3 (default) | scalar

Height of the trace above the ground plane specified in meters.

Example: trace = pcbTraceCustom(Height=0.259e-3)

Data Types: double

GroundPlaneWidth — Width of ground plane

0.020 (default) | scalar

Width of the ground plane specified in meters.

Example: trace = pcbTraceCustom(Height=0.025)

Data Types: double

Conductor — Type of metal used in conducting layers

'PEC' (default) | metal object

Type of metal used in conducting layers, specified as a metal object. For more information see metal. The type of metal in a micrpcbTraceCustom object with default properties is PEC.

Example: m = metal('Copper');trace = pcbTraceCustom(Conductor=m)

Data Types: string

Substrate — Type of dielectric material

'Teflon' (default) | dielectric object

Type of dielectric material used as a substrate, specified as a dielectric object. For more information, see dielectric. The dielectric material in a pcbTraceCustom object with default properties is Teflon.

Example: d = dielectric('FR4');trace = pcbTraceCustom(Substrate=d)

Data Types: string

Object Functions

show	Display PCB component structure or PCB shape
sparameters	Calculate S-parameters for RF PCB objects
mesh	Change and view mesh properties of metal or dielectric in PCB component
current	Calculate and plot current distribution
charge	Calculate and plot charge distribution
layout	Plot all metal layers and board shape
shapes	Extract all metal layer shapes of PCB component

Examples

Create and Visualize a Custom PCB Trace

This example shows the creation of a default custom PCB Trace object

Create the object

trace = pcbTraceCustom;

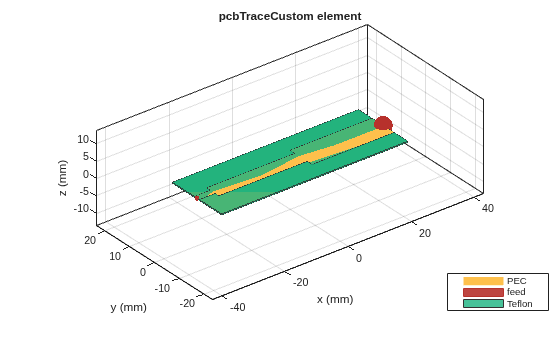

Visualize the object

show(trace)

Create and Vizualize a PCB Custom Trace with a Tapered Trace

This example shows how to create a PCB custom trace with a specified property

Create the object

Set the Trace Shape property to a tapered trace

trace = pcbTraceCustom(TraceShape=traceTapered)

trace =
  pcbTraceCustom with properties:

          TraceShape: [1×1 traceTapered]
              Height: 2.5400e-04
    GroundPlaneWidth: 0.0200
           Substrate: [1×1 dielectric]
           Conductor: [1×1 metal]

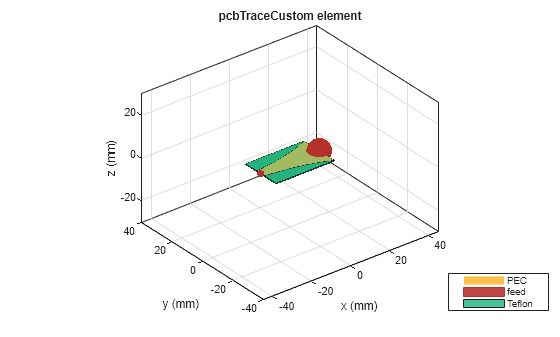

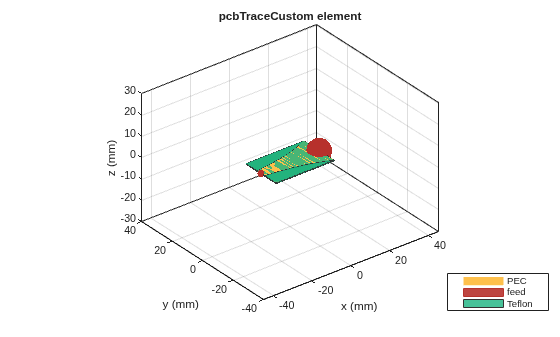

Vizualize the object

Use the show function to vizualize the object

show(trace)

Version History

Introduced in R2025a
