SimBiology.Rule

Hold rule for species and parameters

Description

The SimBiology.Rule object represents a rule, which is a mathematical expression that modifies a species amount or a parameter value. For details, see Definitions and Evaluations of Rules in SimBiology Models.

Use dot notation to query the object properties or change properties that are not read-only. You can also use the get and set commands.

The SimBiology Model Builder app also enables you to add reactions and rules to your model and edit them. For an example, see Incorporate Inhibitor PD Using Mathematical Equation.

Creation

Use addrule to create and add a rule to a SimBiology^® model.

Properties

Active — Flag to use rule object during simulation

true or 1 (default) | false or 0

Flag to use the rule object during simulation, specified as a numeric or logical 1 (true) or 0 (false). Use this property to test a model with and without a rule.

Data Types: double | logical

Name — SimBiology.Rule object name

character vector | string

SimBiology.Rule object name, specified as a character vector or string.

For details on requirements and recommendations for naming SimBiology components, see Guidelines for Naming Model Components.

Data Types: char | string

Notes — Additional information

empty character array (default) | character vector | string

Additional information that you can add for SimBiology.Rule, specified as a character vector or string.

Data Types: char | string

Parent — Parent object

Read-only: SimBiology.Model object

This property is read-only.

Parent object, specified as a SimBiology.Model object.

Rule — MATLAB^® expression defining how species and parameters interact

empty character array (default) | character vector | string

MATLAB expression defining how species and parameters interact with one another, specified as a character vector or string. For example, a rule could state that the total number of species A and species B must be some value.

The Rule property is a MATLAB expression that defines the change in the Value property of a species object quantity or a parameter object when the rule is evaluated.

You can add a rule to a model object with addrule and remove the rule with delete.

Note

If you set the Rule property for an algebraic rule, rate rule, or repeated assignment rule, and the rule expression is not continuous and differentiable, see Using Events to Address Discontinuities in Rule and Reaction Rate Expressions before simulating your model.

Data Types: char | string

RuleType — Type of rule

'initialAssignment' (default) | 'repeatedAssignment' | 'repeatedAssignment' | 'algebraic' | 'rate'

Type of rule, specified as one of the following:

• 'initialAssignment' — Specify the initial value of a parameter, species, or compartment capacity, as a function of other model component values in the model.

• 'repeatedAssignment' — Specify a value that holds at all times during simulation, and is a function of other model component values in the model.

• 'algebraic' — Specify mathematical constraints on one or more parameters, species, or compartments that must hold during a simulation.

• 'rate' — Specify the time derivative of a parameter value, species amount, or compartment capacity.

Data Types: char | string

Tag — Object label

empty character array (default) | character vector | string

Object label, specified as a character vector or string.

Tip

Use this property to group objects and then use sbioselect to retrieve. For example, use the Tag property of reaction objects to group synthesis or degradation reactions. You can then retrieve all synthesis reactions using sbioselect. Similarly, for species objects you can enter and store classification information, for example, membrane protein, transcription factor, enzyme classifications, or whether a species is an independent variable. You can also enter the full form of the name of the species.

Data Types: char | string

Type — Object type

Read-only: 'rule' (default)

This property is read-only.

Object type, specified as 'rule'. When you create a SimBiology object, the value of Type is automatically defined.

Data Types: char

UserData — Data to associate with object

scalar | vector | string | ...

Data to associate with the object, specified as a numeric scalar, vector, string, or any other MATLAB data type.

The object does not use this data directly, but you can access it using dot notation or get.

Object Functions

copyobj	Copy SimBiology object and its children
delete	Delete SimBiology object
display	Display summary of SimBiology object
findUsages	Find out how a species, parameter, or compartment is used in a model
get	Get SimBiology object properties
rename	Rename SimBiology model component and update expressions
set	Set SimBiology object properties

Examples

Create a Rate Rule for an Exponential Rate of Change

This example shows how to change the amount of a species similar to a first-order reaction using the first-order rate rule. For example, suppose the species x decays exponentially. The rate of change of species x is:

$dx/dt=-k*x$

The analytical solution is:

$C_t=C_0*e^{-kt}$

where $C_t$ is the amount of species at time t, and $C_0$ is the initial amount. Use the following commands to set up a SimBiology model accordingly and simulate it.

m = sbiomodel('m');
c = addcompartment(m,'comp');
s = addspecies(m,'x','InitialAmount',2);
p = addparameter(m,'k','Value',1);

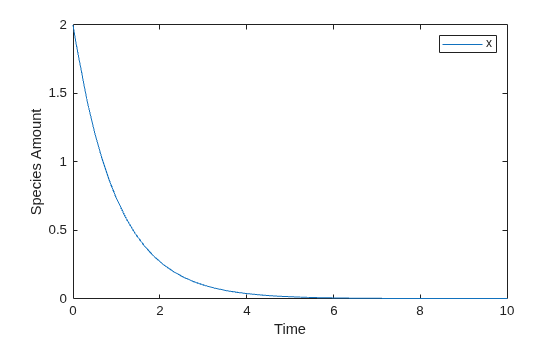

r = addrule(m,'x = -k * x','RuleType','rate');
[t,sd,species] = sbiosimulate(m);
plot(t,sd);
legend(species);
xlabel('Time');
ylabel('Species Amount');

If the amount of a species x is determined by a rate rule and x is also in a reaction, x must have its BoundaryCondition property set to true. For example, with a reaction a -> x and a rate rule $$\frac{dx}{dt}=k*x$$, set the BoundaryCondition property of species x to true so that a differential rate term is not created from the reaction. The amount of x is determined solely by a differential rate term from the rate rule. If the BoundaryCondition property is set to false, you will get the following error message such as Invalid rule variable 'x' in rate rule or reaction.

Create a Rate Rule for the Rate of Change That Is Determined by Another Species

This example shows how to create a rate rule where a species from one reaction can determine the rate of another reaction if it is in the second reaction rate equation. Similarly, a species from a reaction can determine the rate of another species if it is in the rate rule that defines that other species. Suppose you have a SimBiology model with three species (a, b, and c), one reaction (a -> b), and two parameters (k1 and k2). The rate equation is defined as $$b=-k_1*a$$, and rate rule is $$dc/dt=k_2*a$$. The solution for the species in the reaction are:

$$a=a_o{e}^{-k_{1}t}$$, $$b=a_o(1-e^{-k_{1}t})$$.

Since the rate rule $$dc/dt=k_2*a$$ is dependent on the reaction, $$dc/dt=k_2(a_o{e}^{-k_{1}t})$$. The solution is:

$$c=c_o+k_2{a}_o/k_1(1-e^{-k_{1}t})$$

Enter the following commands to set up a SimBiology model accordingly and simulate it.

m = sbiomodel('m');
c = addcompartment(m,'comp');
s1 = addspecies(m,'a','InitialAmount',10,'InitialAmountUnits','mole');
s2 = addspecies(m,'b','InitialAmount',0,'InitialAmountUnits','mole');
s3 = addspecies(m,'c','InitialAmount',5,'InitialAmountUnits','mole');
rxn = addreaction(m,'a -> b');
kl = addkineticlaw(rxn,'MassAction');
p1 = addparameter(kl,'k1','Value',1,'ValueUnits','1/second');

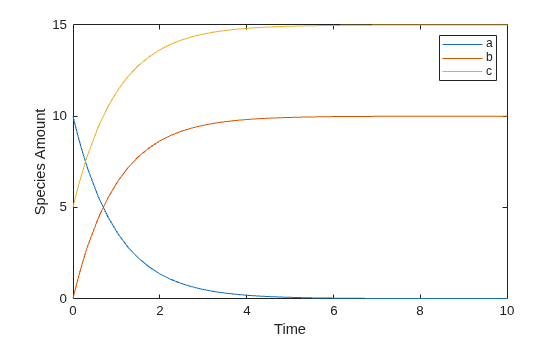

rule = addrule(m,'c = k2 * a','RuleType','rate');
kl.ParameterVariableNames = 'k1';
p2 = addparameter(m,'k2','Value',1,'ValueUnits','1/second');
[t,sd,species] = sbiosimulate(m);
plot(t,sd);
legend(species);
xlabel('Time');
ylabel('Species Amount');

More About

Constraints on Varying Species Using a Rate Rule

If the model has a species defined in concentration, being varied by a rate rule, and it is in a compartment with varying volume, you can only use rate or initialAssignment rules to vary the compartment volume.

Conversely, if you are varying a compartment's volume using a repeatedAssignment or algebraic rules, then you cannot vary a species (defined in concentration) within that compartment, with a rate rule.

The reason for these constraints is that, if a species is defined in concentration and it is in a compartment with varying volume, the time derivative of that species is a function of the compartment's rate of change. For compartments varied by rate rules, the solver has that information.

Note that if you specify the species in amounts there are no constraints.
