Record
Libraries:
Simulink /
Sinks
Alternative Configurations of Record Block:
XY Graph
Description
You can use the Record block or the XY Graph block to record data to the workspace, to a file, or to both the workspace and a file. When you log data to a file, you can choose to log to a MAT file, an MLDATX file, or an Excel® file. Signals connected to a Record block always log to the Simulation Data Inspector. If you decide that you need to save data after simulation, you can export data from the Record block to the workspace or to any supported file type.
You can also use the Record block to visualize connected signals. To view data for signals connected to the Record block, double-click the block. You have access to simulation controls, such as the Run button, while viewing data in the Record block.
By default, the Record block displays all connected signals on a sparklines plot. A sparkline is added for each connected signal. After sparklines fill the visible space, a scrollbar allows you to continue plotting signals.
Build Visualizations
The Record block supports most visualizations available in the Simulation Data Inspector. When a different visualization makes sense for your data, you can modify the plot layout and plot types using the Layouts option and the plot types selector, labeled Sparklines by default. Use the Layouts list to select a layout of subplots. To change the plot type of a subplot, select the subplot then select the desired plot type from the plot types selector.
For more information, see Log Data to the Workspace and a File Using the Record Block. For examples that show how to use each visualization type, see:
Sparklines — View Many Signals Together Using Sparklines
XY — Visualize Simulation Data on XY Plot and Analyze Data Using XY Plot
Map — View and Replay Map Data
Time plot and text editor — Create Plots Using the Simulation Data Inspector
The Record block does not support the array visualization available in the Simulation Data Inspector. The Record block supports logging multidimensional signal data, including variable-size signals, but does not support visualizing multidimensional data. To visualize the data for a multidimensional signal using the Record block, convert the signal with multidimensional sample values to a set of signals, called channels, that each have scalar sample values. For more information, see Analyze Multidimensional Signal Data.
Examples
Log Data to the Workspace and a File Using the Record Block
Use the Record block to log data to the workspace, to a file, or to both the workspace and a file.

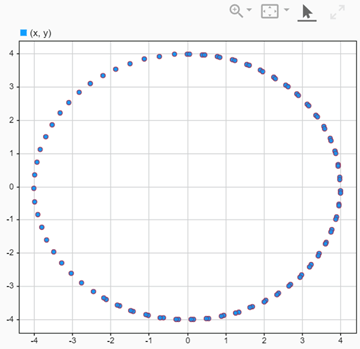

Plot a Circle Using the XY Graph Block
Plot x and y data for a circle using the XY Graph block.
Load Data Using Playback Block
Load data from the workspace, a file, and the Simulation Data Inspector using the Playback block.
Ports
Input
Port_1 — Signal to record
scalar | vector | matrix | array | bus
Signal to record. You can add ports to the Record block by dragging lines to the edge of the block or by using the Ports parameter.
The Record block supports logging variable-size signals but does not support visualizing variable-size signals.
The XY Graph block is an alternative configuration of the Record block that visualizes data connected to two input ports on an XY plot. The first input port provides the x data for the XY plot, and the second input port provides the y data.
Tips
To log frame-based data, specify the Input Processing parameter for each port that receives a frame-based signal.
When you connect a nonscalar signal to an input port of the XY Graph block, you must manually configure which channels or elements of the nonscalar signal provide the x and y data for the XY plot.
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
| enumerated
| bus
| image
Complex Number Support: Yes
Parameters
To modify Record block parameters, use the Property Inspector.
Main
Number of input ports — Number of input ports
1
(default) | integer in the range [1,100
]
Number of input ports, specified as an integer between 1
and
100
, inclusive.
The XY Graph block is an alternative configuration of the Record block that visualizes data connected to two input ports on an XY plot. The first input port provides the x data for the XY plot, and the second input port provides the y data.
Programmatic Use
Block Parameter:
'NumPorts' |
Type:
integer | character vector |
Values: integer in the range
[1 ,100 ] |
Default:
1 |
Port — Port for which to specify input processing mode
1
(default) | integer
Use the Port and Input Processing parameters together to specify the input processing mode for a port. The input processing mode determines how the Record block interprets matrix data:
Sample-based — Each element in the matrix is a separate channel.
Frame-based — Each column in the matrix is a separate channel.
To use frame-based input processing, the signal must have a discrete sample rate, and the sample values must be nonscalar with fixed dimensions.
By default, each port processes the input signal as sample-based.
To change the input processing mode for a port:
Select the port number using the Port parameter.
Select the input processing mode using the Input Processing parameter.
Programmatic Use
Programmatically specify the input processing mode for each port by specifying
the FrameSettings
parameter as a row vector with as many elements
as block ports. The element index corresponds to the port number on the block.
Specify 1
to use frame-based input processing for the port and
0
to use sample-based processing.
Block Parameter:
'FrameSettings' |
Type: logical array |
Values:
1 -by-n row vector, where
n is equal to the number of ports |
Default:
0 |
Input Processing — Input processing mode for selected port
Elements as channels (sample-based)
(default) | Columns as channels (frame-based)
Use the Port and Input Processing parameters together to specify the input processing mode for a port. The input processing mode determines how the Record block interprets matrix data:
Sample-based — Each element in the matrix is a separate channel.
Frame-based — Each column in the matrix is a separate channel.
To use frame-based input processing, the signal must have a discrete sample rate, and the sample values must be nonscalar with fixed dimensions.
By default, each port processes the input signal as sample-based.
To change the input processing mode for a port:
Select the port number using the Port parameter.
Select the input processing mode using the Input Processing parameter.
Programmatic Use
Programmatically specify the input processing mode for each port by specifying
the FrameSettings
parameter as a row vector with as many elements
as block ports. The element index corresponds to the port number on the block.
Specify 1
to use frame-based input processing for the port and
0
to use sample-based processing.
Block Parameter:
'FrameSettings' |
Type: logical array |
Values:
1 -by-n row vector, where
n is equal to the number of ports |
Default:
0 |
Record
Record to Workspace — Workspace logging option
off
(default) | on
Workspace logging option. By default, the Record block logs data to
the Simulation Data Inspector only. Select Record to Workspace to
log data for signals connected to the Record block to the MATLAB® workspace in a Simulink.SimulationData.Dataset
object.
Use the Workspace Variable Name parameter to specify the name
of the Dataset
object that contains the logged Record
block data.
Tips
When you log data to the workspace, the way you access the data depends on your model configuration. By default, models provide all logged data in a single output variable as a
Simulink.SimulationOutput
object. You can access the Record block data using theget
function or a dot with the Record block workspace variable name. When the Single simulation output option is disabled, logging data appears in separate variables in the workspace, and you access the Record block data directly.Logging intervals specified using the Logging intervals configuration parameter apply to data logged to the workspace using the Record block.
You can use a single Record block to log data to the Simulation Data Inspector, to the workspace, and to a file.
Programmatic Use
Block Parameter:
'RecordToWorkspace' |
Type: character vector | boolean | numeric |
Values:
'on' | 'off' | true or
1 | false or 0 |
Default:
'off' |
Workspace Variable Name — Name for workspace variable that contains logged block data
recordout
(default) | character vector | string
Name for the workspace variable that contains the logged block data.
Dependencies
To enable this parameter, select the Record to Workspace parameter.
Programmatic Use
Block Parameter:
'VariableName' |
Type: character vector | string |
Default:
'recordout' |
Record to File — Log to file option
off
(default) | on
Log to file option. By default, the Record block logs data to the Simulation Data Inspector only. Select Record to File to log data for signals connected to the Record block to a file.
Tips
Use the File Name parameter to specify a name for the file.
Use the File Type parameter to specify whether to log data to an MLDATX file, a MAT file, or an Excel file.
Use the File Location parameter to specify the path to the file.
Logging intervals specified using the Logging intervals configuration parameter do not apply to data logged to a file using the Record block.
Programmatic Use
Block Parameter:
'RecordToFile' |
Type: character vector | boolean | numeric |
Values:
'on' | 'off' | true or
1 | false or 0 |
Default:
'off' |
File Name — Name of file with logged data
recording.mldatx
(default) | character vector | string
Name of the file that contains the logged data. The name does not need to include the file extension. If you do include the file extension in the name, ensure the name uses a valid extension for the specified File Type.
Tips
If you do not change the name or location of the file you log to from one run to the next, the Record block overwrites prior data in the file.
When you want to save the file in a location other than your working directory, use the File Location parameter to specify the path to the directory where you want to save the file.
Dependencies
To enable this parameter, select the Record to File parameter.
Programmatic Use
Use the FileName
parameter to specify the File
Name, File Type, and File
Location parameters. Include the extension for the desired file type in
the name you pass to set_param
. When you want to save the file
somewhere other than the current working directory, specify the path with the file
name and extension.
Block Parameter:
'FileName' |
Type: character vector | string |
Default:
'recording.mldatx' |
File Type — Type of file for logged data
*.mldatx
(default) | *.mat
| *.xslx
Use the File Type parameter to specify whether you want to log data to an MLDATX file, a MAT file, or an Excel file.
Tips
When you log data to an Excel file, the data is formatted as described in Microsoft Excel Import, Export, and Logging Format.
When you log data to an Excel file, you can specify whether to share time columns using the Time parameter and which signal attributes to log using the Attributes parameter.
Dependencies
To enable this parameter, select Record to File.
Programmatic Use
Use the FileName
parameter to specify the File
Name, File Type, and File
Location parameters. Include the extension for the desired file type in
the name you pass to set_param
. When you want to save the file
somewhere other than the current working directory, specify the path with the file
name and extension.
Block Parameter:
'FileName' |
Type: character vector | string |
Default:
'recording.mldatx' |
File Location — Path to file with logged data
working directory (default) | character vector | string
Use the File Location parameter to specify the location where you want to save the file with the logged data when you want to save the file somewhere other than the working directory. Ensure you have write permissions in the directory you specify.
Dependencies
To enable this parameter, select Record to File.
Programmatic Use
Use the FileName
parameter to specify the File
Name, File Type, and File
Location parameters. Include the extension for the desired file type in
the name you pass to set_param
. When you want to save the file
somewhere other than the current working directory, specify the path with the file
name and extension.
Block Parameter:
'FileName' |
Type: character vector | string |
Default:
'recording.mldatx' |
Time — Options for exporting time data to Excel file
Shared Time Columns
(default) | Individual Time Columns
Use the Time parameter to specify how to log signal time data when you log the Record block data to an Excel file.
Shared Time Columns
— When time data is identical for multiple signals, the signals share a single time column in the logging file. The logging file may still include multiple time columns if the Record block logs data for signals with unique time data.Individual Time Columns
— Each logged signal always has its own time column in the logging file.
Dependencies
To enable this parameter, select Record to File and specify
File Type as *.xlsx
.
Attributes — Signal attributes to export to Excel file
Data Type
| Units
| Port Index
| Block Path
| Interpolation
Select one or more signal attribute options to include in the logging file when you log data to an Excel file. Selected signal attributes appear in the signal column above the first data point according to the format described in Microsoft Excel Import, Export, and Logging Format.
Dependencies
To enable this parameter, select Record to File and specify
File Type as *.xlsx
.
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Alternative Configurations
XY Graph — Log and visualize two input signals on XY plot
The XY Graph block in the Simulink® Sinks library is an alternative configuration of the Record block that visualizes two input signals on an XY plot. The first input port provides the x data for the XY plot. The second input port provides the y data.
The XY Graph block supports logging and visualizing data for nonscalar inputs. However, the XY visualization does not support multidimensional data. When you connect nonscalar signals to the XY Graph block, you must manually configure which channels or elements of the nonscalar signal provide the x and y data for the XY plot.
Libraries:
Simulink /
Sinks
HDL Coder /
Sinks
Tips
To open the Record block in a new window, right-click the block, then select Open In New Window.
To open the Record block in a new tab, right-click the block, then select Open In New Tab.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block is ignored for code generation.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
Architecture | Description |
---|---|
No HDL | Do not generate HDL code for this block. |
PreserveUpstreamLogic | Control the removal of unconnected logic. The default is
|
PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
This block is ignored for code generation.
Version History
Introduced in R2021aR2023b: Log unbounded variable-size signals
In normal and accelerator mode simulations, the Record block supports logging unbounded variable-size signals but does not support visualizing unbounded-variable-size signals. Logging is not supported for nonvirtual buses that contain unbounded variable-size signals.
R2023a: Log nonvirtual buses that contain variable-size signals
In normal and accelerator mode simulations, the Record block supports logging:
Nonvirtual buses that contain variable-size signals directly or in nested buses
Buses with nested nonvirtual buses that contain variable-size signals
In normal mode simulations only, the Record block supports logging:
Arrays of buses with nonvirtual buses that contain variable-size signals
The Record block does not support visualizing variable-size signals.
R2022b: Scale individual signals
You can set the display scale and offset for an individual signal in the Record block.
Time plots and sparklines — Scale and offset the display of y values.
XY plots — Scale and offset the display of the x values and y values independently.
Maps — Scale and offset the longitude and latitude independently.
Cursors continue to show the unscaled values.
R2021b: XY Graph block replaced with alternative configuration of the Record block
The XY Graph block is replaced with a Record block that is preconfigured to display two input signals on an XY plot. Using the updated XY Graph block, you can:
View data on the XY plot during simulation.
Record the XY plot data to the workspace, a file, or the workspace and a file.
Zoom, pan, fit to view, and adjust the axis limits for the XY plot without having to simulate again.
Analyze the XY trace by using cursors and by adding a trend line.
Add additional ports and subplots to visualize additional simulation data alongside the XY plot on several visualization types, including time plots, maps, or additional XY plots.
Visualize multiple traces on the XY plot.
Upon simulation, the prior version of the XY Graph block opened a new window to display the connected signal data during simulation. To view data on the updated XY Graph block, double-click the block in the model. To view the XY plot in a new window, right-click the block and select Open in New Window.
XY Graph blocks in existing models are automatically replaced with the new XY Graph block. XY Graph viewers are also replaced with the new XY Graph block. Goto and From blocks connect signals to the XY Graph block that replaces the XY Graph viewer.
Signals connected to an XY Graph block always stream to the Simulation Data Inspector.
R2021a: Logging intervals configuration parameter applies to data logged to the workspace using the Record block
The Logging intervals configuration parameter applies to data logged to the workspace using the Record block.
The Logging intervals parameter does not affect data logged to a file using the Record block or how signals are displayed in the Record block. You can also access complete signal data for signals connected to the Record block in the Simulation Data Inspector.
Comando MATLAB
Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:
Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
