Run and Verify Generated IP Core

R2026b

Prototype, simulate, and verify generated IP core on your target FPGA device

Run and verify the generated bitstream from your IP core design on the target hardware. This step uses the FPGA-ready bitstream created during IP core generation and deploys it to the FPGA portion of the device. The result is a validated design executing on the target FPGA.

For more details about the workflow, see Targeting FPGA and SoC Hardware Overview (HDL Coder).

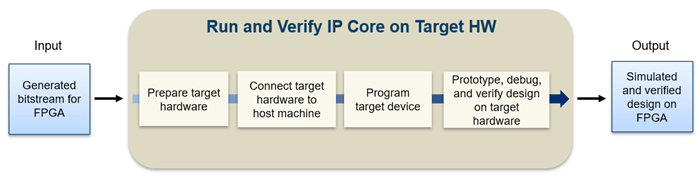

Run and Verify IP Core on Target Hardware Workflow

Objects

expand all

FPGA I/O

`fpga`	Data transfer object to enable data read and write operations from MATLAB to target FPGA or SoC device
`hdlcoder.DUTPort`	DUT port from an HDL Coder generated IP core, saved as an object array
`xilinxsoc`	Connection to processor on Xilinx SoC board to perform basic Linux shell operations or program the board (Since R2022a)
`jtagchain`	Detect and program FPGA through JTAG interface (Since R2026b)

Functions

expand all

FPGA I/O

`addRegisterInterface`	Write data to IP core or read data from IP core using AXI4 or AXI4-Lite interface
`addAXI4StreamInterface`	Write data to IP core or read data from IP core using AXI4-Stream interface
`addMemoryInterface`	Access memory regions on your FPGA or SoC hardware (Since R2023a)
`mapPort`	Maps a DUT port to specified AXI4 interface in HDL IP core
`writePort`	Write data to a DUT port from MATLAB
`readPort`	Reads output data and returns it with the port data type and dimension
`writeMemory`	Write data to memory regions on FPGA or SoC hardware (Since R2023a)
`readMemory`	Read data from memory regions on FPGA or SoC hardware (Since R2023a)
`readMemoryOffset`	Read data from memory regions on FPGA or SoC hardware by using offset address (Since R2023b)
`writeMemoryOffset`	Write data to memory regions on FPGA or SoC hardware by using the offset address (Since R2023b)
`release`	Release the hardware resources associated with the fpga object
`system`	Run command in Linux shell on SoC board (Since R2022a)
`getFile`	Transfer file from SoC board to host computer (Since R2022a)
`putFile`	Transfer file from host computer to SoC board (Since R2022a)
`deleteFile`	Delete file on SoC board (Since R2022a)
`dir`	List directory contents on SoC board (Since R2022a)
`programFPGA`	Program FPGA and set corresponding device tree from processor on SoC board (Since R2022a)

Topics

Program Target FPGA Boards or SoC Devices (HDL Coder)
How to program the target Altera^® or AMD^® Hardware.
Choose a Method to Interact with IP Cores on Target Hardware (HDL Coder)
Choose a software interface method to interact with IP cores running on target hardware.
Generate and Manage FPGA I/O Host Interface Scripts (HDL Coder)
Understand what a host interface script is and learn how to generate and manage host interface scripts.
Use FPGA I/O to Rapidly Prototype HDL IP Core (HDL Coder)
Create and author a host interface script by configuring interfaces and port mapping information to control HDL IP core.
Debug and Control Generated HDL IP Core by Using JTAG AXI Manager (HDL Coder)
Specify automatic insertion of the HDL Verifier AXI Manager IP into a reference design.
Debug Write Registers Using Readback in Generated IP Cores (HDL Coder)
This example describes the different techniques to read the input registers such as AXI4 or AXI4-Lite in your design.
Debug IP Core Using FPGA Data Capture (HDL Coder)
This example shows how to debug an IP core you generate in HDL Coder™ using only FPGA Data Capture as well as both AXI Manager and FPGA Data Capture together.
Use Test Points to Debug Signals with HDL Coder (HDL Coder)
An example that shows how to add test points to signals in your model and debug these signals in the generated HDL code.
Debug IP Core Using Hardware-Software Deployment (HDL Coder)
Debug a Zynq^® design using HDL Coder™ and Embedded Coder^® features.
Prototype IP Core on Zynq with MATLAB FPGA I/O Host Interface
Implement a QPSK communication algorithm on a AMD Zynq radio using MATLAB for signal transmission and reception.

Featured Examples

Prototype Generated IP Core on Hardware using FPGA I/O

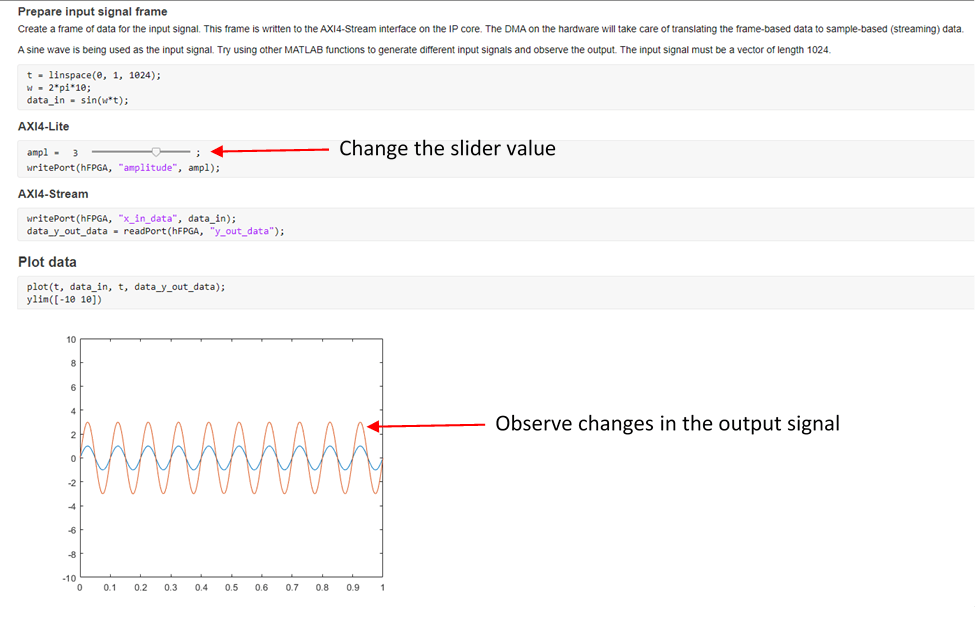

Use MATLAB® to prototype an algorithm running on FPGA hardware from your host computer. The example demonstrates the workflow on the Versal AI Core Series VCK190 Evaluation Kit, but can be run on any Xilinx® Zynq®, UltraScale+™, or Versal® board supported by HDL Coder.
