RegressionPartitionedGP

Cross-validated Gaussian process regression (GPR) model

Since R2022b

Description

RegressionPartitionedGP is a set of Gaussian process regression models trained on cross-validated folds. Estimate the quality of the cross-validated regression by using one or more kfold functions: kfoldPredict, kfoldLoss, and kfoldfun.

Every kfold object function uses models trained on training-fold (in-fold) observations to predict the response for validation-fold (out-of-fold) observations. For example, suppose you cross-validate using five folds. The software randomly assigns each observation into five groups of equal size (roughly). The training fold contains four of the groups (roughly 4/5 of the data), and the validation fold contains the other group (roughly 1/5 of the data). In this case, cross-validation proceeds as follows:

1. The software trains the first model (stored in CVMdl.Trained{1}) by using the observations in the last four groups, and reserves the observations in the first group for validation.

2. The software trains the second model (stored in CVMdl.Trained{2}) by using the observations in the first group and the last three groups. The software reserves the observations in the second group for validation.

3. The software proceeds in a similar manner for the third, fourth, and fifth models.

If you validate by using kfoldPredict, the software computes predictions for the observations in group i by using the ith model. In short, the software estimates a response for every observation by using the model trained without that observation.

Creation

You can create a RegressionPartitionedGP object in two ways:

• Create a cross-validated model from a GPR model object RegressionGP by using the crossval object function.

• Create a cross-validated model by using the fitrgp function and specifying one of the name-value arguments CrossVal, CVPartition, Holdout, KFold, or Leaveout.

Regardless of whether you train a full or cross-validated GPR model first, you cannot specify an ActiveSet value in the call to fitrgp.

Properties

Cross-Validation Properties

CrossValidatedModel — Cross-validated model name

'GP'

This property is read-only.

Cross-validated model name, specified as 'GP'.

Data Types: char

KFold — Number of cross-validated folds

positive integer

This property is read-only.

Number of cross-validated folds, specified as a positive integer.

Data Types: double

ModelParameters — Cross-validation parameter values

EnsembleParams object

This property is read-only.

Cross-validation parameter values, specified as an EnsembleParams object. The parameter values correspond to the values of the name-value arguments used to cross-validate the GPR model. ModelParameters does not contain estimated parameters.

You can access the properties of ModelParameters using dot notation.

Partition — Data partition

cvpartition model

This property is read-only.

Data partition indicating how the software splits the data into cross-validation folds, specified as a cvpartition model.

Trained — Compact models trained on cross-validation folds

cell array of CompactRegressionGP model objects

This property is read-only.

Compact models trained on cross-validation folds, specified as a cell array of CompactRegressionGP model objects. Trained has k cells, where k is the number of folds.

Data Types: cell

Other Regression Properties

CategoricalPredictors — Categorical predictor indices

vector of positive integers | []

This property is read-only.

Categorical predictor indices, specified as a vector of positive integers. CategoricalPredictors contains index values indicating that the corresponding predictors are categorical. The index values are between 1 and p, where p is the number of predictors used to train the model. If none of the predictors are categorical, then this property is empty ([]).

Data Types: double

NumObservations — Number of observations

numeric scalar

This property is read-only.

Number of observations in the training data stored in X and Y, specified as a numeric scalar.

Data Types: double

PredictorNames — Predictor variable names

cell array of character vectors

This property is read-only.

Predictor variable names, specified as a cell array of character vectors. The order of the elements in PredictorNames corresponds to the order in which the predictor names appear in the training data.

Data Types: cell

ResponseName — Response variable name

character vector

This property is read-only.

Response variable name, specified as a character vector.

Data Types: char

ResponseTransform — Response transformation function

'none' (default) | function handle

Response transformation function, specified as 'none' or a function handle. In general, ResponseTransform describes how the software transforms raw response values.

For GPR model objects, ResponseTransform is 'none' by default. Regardless of the ResponseTransform value, the software does not use a response transformation when making predictions.

Data Types: char | function_handle

W — Observation weights

numeric vector

This property is read-only.

Observation weights, specified as an n-by-1 numeric vector, where n is the number of observations (NumObservations). The software normalizes the observation weights so that the elements of W sum to 1.

For GPR model objects, the software ignores observation weights when training a model or making predictions.

Data Types: double

X — Predictors

numeric matrix | table

This property is read-only.

Predictors used to cross-validate the model, specified as a numeric matrix or table.

Each row of X corresponds to one observation, and each column corresponds to one variable.

Data Types: single | double | table

Y — Response

numeric vector

This property is read-only.

Response used to cross-validate the model, specified as a numeric vector.

Each row of Y represents the observed response of the corresponding row of X.

Data Types: single | double

Object Functions

kfoldLoss	Loss for cross-validated partitioned regression model
kfoldPredict	Predict responses for observations in cross-validated regression model
kfoldfun	Cross-validate function for regression

Examples

Cross-Validate Gaussian Process Regression Model

Compute the cross-validation mean squared error of a Gaussian process regression (GPR) model. Compare the predicted response values to the true response values.

Simulate 1000 observations from the model $$y=1+0.05x+sin(x)/x+0.2ϵ$$ where:

• x is a 1000-by-1 vector of evenly spaced values between –10 and 10.

• $$ϵ$$ is a 1000-by-1 vector of random normal errors with mean 0 and standard deviation 0.2.

rng("default"); % For reproducibility
n = 1000;
x = linspace(-10,10,n)';
y = 1 + 0.05*x + sin(x)./x + 0.2*randn(n,1);

Create a 5-fold cross-validated GPR model. Use a linear basis function, the exact fitting method to estimate model parameters, and the exact method to make predictions.

cvMdl = fitrgp(x,y,Basis="linear", ...
      FitMethod="exact",PredictMethod="exact", ...
      KFold=5);

cvMdl is a RegressionPartitionedGP object that contains five trained CompactRegressionGP model objects (cvMdl.Trained). Each of the five GPR models is trained using approximately 4/5 of the observations in x.

Compute the average mean squared error.

kfoldLoss(cvMdl)

ans = 0.0401

Predict the response values using the cross-validated model. The predicted response values are the predictions on the holdout (validation) observations. In other words, the software obtains each prediction by using a model that was trained without the corresponding observation.

ypred = kfoldPredict(cvMdl);

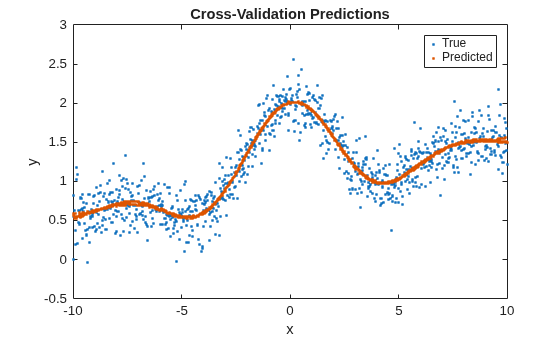

Plot the true response values and the predicted response values for the cross-validated model.

plot(x,y,".");
hold on
plot(x,ypred,".");
xlabel("x")
ylabel("y")
title("Cross-Validation Predictions")
legend(["True","Predicted"])
hold off

The five CompactRegressionGP models seem generally to agree, but some of the predictions differ close to the endpoints of the predictor data range (around –10 and 10).

You cannot use the cross-validated model directly to make predictions on new data. If you want to predict response values for a new data set, you can train a new GPR model using all the data in x and then use the predict object function. For example, predict response values for each even integer between –10 and 10.

mdl = fitrgp(x,y,Basis="linear", ...
    FitMethod="exact",PredictMethod="exact");
xnew = (-10:2:10)';
prednew = predict(mdl,xnew)

prednew = 11×1

    0.5473
    0.7012
    0.6395
    0.5945
    1.3450
    2.0073
    1.5643
    0.9842
    1.2214
    1.4962
      ⋮

Alternatively, you can use the individual compact models in the Trained property of the cross-validated model and then combine the predictions (for example, through averaging). For example, predict average response values for each even integer between –10 and 10.

preds = zeros(length(xnew),cvMdl.KFold);
for i = 1:cvMdl.KFold
    preds(:,i) = predict(cvMdl.Trained{i},xnew);
end
meanpreds = mean(preds,2)

meanpreds = 11×1

    0.5462
    0.7012
    0.6395
    0.5949
    1.3451
    2.0067
    1.5640
    0.9851
    1.2213
    1.4963
      ⋮

Version History

Introduced in R2022b
