coeffs

Filter coefficients

Description

example

s = coeffs(sysobj) returns the coefficients of filter System object™, sysobj, in the structure s.

s = coeffs(sysobj,'Arithmetic',arithType) returns filter coefficients for the filter System object sysobj with the arithmetic specified in arithType.

Examples

collapse all

FIRHalfbandInterp = dsp.FIRHalfbandInterpolator('Specification',...
    'Filter order and transition width','FilterOrder',26);
C = coeffs(FIRHalfbandInterp);
C.Numerator
ans = 1×27

    0.0525         0   -0.0379         0    0.0537         0   -0.0771         0    0.1172         0   -0.2060         0    0.6345    1.0000    0.6345         0   -0.2060         0    0.1172         0   -0.0771         0    0.0537         0   -0.0379         0    0.0525

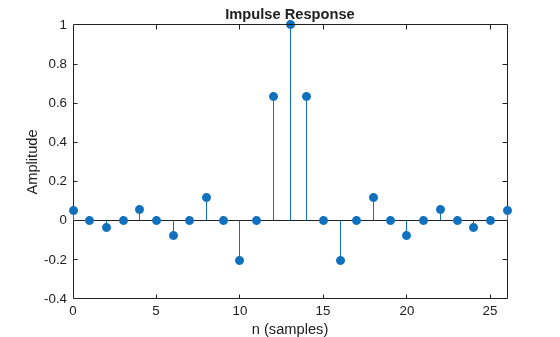

% Impulse response of the filter
fvtool(FIRHalfbandInterp,'impulse')

Input Arguments

collapse all

Specify the arithmetic used during analysis. When the arithmetic input is not specified and the filter System object is unlocked, the analysis tool assumes a double-precision filter. The 'Arithmetic' property set to 'Fixed' applies only to filter System objects with fixed-point properties.

Output Arguments

collapse all

Structure with a single field, Numerator, containing filter coefficients.

Introduced in R2011a
