# dsp.HighpassFilter

FIR or IIR highpass filter

## Description

The `dsp.HighpassFilter`

System object™ independently filters each channel of the input over time using the given design
specifications. You can set the `FilterType`

property of
`dsp.HighpassFilter`

to `'FIR'`

or `'IIR'`

to implement the object as an FIR or IIR highpass filter.

When the `FilterType`

property is set to `'FIR'`

,
using this object is an alternative to using the `firceqrip`

and
`firgr`

functions with `dsp.FIRFilter`

. The
`dsp.HighpassFilter`

object condenses the two-step process into one. You can
use `measure`

to verify that the design meets the prescribed specifications.

To filter each channel of your input:

Create the

`dsp.HighpassFilter`

object and set its properties.Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

This object supports C/C++ code generation and SIMD code generation under certain
conditions. This object also supports code generation for ARM^{®}
Cortex^{®}-M and ARM
Cortex-A processors. For more information, see Code Generation.

## Creation

### Description

returns a minimum
order FIR highpass filter, `HPF`

= dsp.HighpassFilter`HPF`

, with the default filter settings.
Calling the object with the default property settings filters the input data with a
stopband frequency of `8`

kHz, a passband frequency of
`12`

kHz, a stopband attenuation of `80`

dB, and a
passband ripple of `0.1`

dB.

returns a highpass filter with additional properties specified by one or more
`HPF`

= dsp.HighpassFilter(`Name=Value`

)`Name-Value`

pair arguments. `Name`

is the
property name and `Value`

is the corresponding value. For example,
`StopbandFrequency=8000`

sets the stopband frequency specification of
the filter to 8000 Hz.

## Properties

Unless otherwise indicated, properties are *nontunable*, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
`release`

function unlocks them.

If a property is *tunable*, you can change its value at
any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`FilterType`

— Filter type

`'FIR'`

(default) | `'IIR'`

Filter type, specified as one of these options:

`'FIR'`

— The object designs an FIR highpass filter.`'IIR'`

— The object designs an IIR highpass (biquad) filter.

`DesignForMinimumOrder`

— Flag to design minimum order filter

`true`

(default) | `false`

Flag to design minimum order filter, specified as:

`true`

–– The object designs the minimum order filter that meets the filter design specifications.`false`

–– The object designs the filter with the order that you specify in the`FilterOrder`

property.

`FilterOrder`

— Order of the FIR or IIR filter

`50`

(default) | positive integer

Order of the FIR or IIR filter, specified as a positive integer.

#### Dependencies

To enable this property, set `DesignForMinimumOrder`

to
`false`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`StopbandFrequency`

— Filter stopband edge frequency

`8000`

(default) | real positive scalar

Filter stopband edge frequency, specified as a real positive scalar in Hz or in normalized frequency units* (since R2023a)*.

If you set the
`NormalizedFrequency`

property to:

`false`

–– The value of the stopband edge frequency is in Hz. The value must be less than the passband edge frequency and half the`SampleRate`

property value.`true`

–– The value of the stopband edge frequency is in normalized frequency units. The value must be a positive scalar less than the passband edge frequency and less than`1.0`

.

* (since R2023a)*

#### Dependencies

To enable this property, set the `DesignForMinimumOrder`

property to `true`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`PassbandFrequency`

— Filter passband edge frequency

`12000`

(default) | real positive scalar

Filter passband edge frequency, specified as a real positive scalar in Hz or in normalized frequency units* (since R2023a)*.

If you set the
`NormalizedFrequency`

property to:

`false`

–– The value of the passband edge frequency is in Hz. The value must be less than half the`SampleRate`

property value and greater than the`StopbandFrequency`

property value.`true`

–– The value of the passband edge frequency is in normalized frequency units. The value must be a positive scalar less than`1.0`

and greater than the`StopbandFrequency`

property value.

* (since R2023a)*

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`StopbandAttenuation`

— Minimum attenuation in the stopband

`80`

(default) | real positive scalar

Minimum attenuation in the stopband, specified as a real positive scalar in dB.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`PassbandRipple`

— Maximum ripple of filter response in the passband

`0.1`

(default) | real positive scalar

Maximum ripple of filter response in the passband, specified as a real positive scalar in dB.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`NormalizedFrequency`

— Flag to set frequencies in normalized units

`false`

(default) | `true`

*Since R2023a*

Flag to set frequencies in normalized units, specified as one of these values:

`true`

–– The passband edge and stopband edge frequencies must be in the normalized frequency units and less than`1.0`

.`false`

–– The passband edge and stopband edge frequencies are in Hz. You can specify the input sample rate through the`SampleRate`

property.

**Data Types: **`logical`

`SampleRate`

— Input sample rate

`44100`

(default) | positive real scalar

Input sample rate in Hz, specified as a positive real scalar.

#### Dependency

To enable this property, set
`NormalizedFrequency`

to `false`

.* (since R2023a)*

**Data Types: **`single`

| `double`

**Fixed-Point Properties**

`RoundingMethod`

— Rounding method for output fixed-point operations

`'Floor'`

(default) | `'Ceiling'`

| `'Convergent'`

| `'Nearest'`

| `'Round'`

| `'Simplest'`

| `'Zero'`

Rounding method for output fixed-point operations, specified as a character vector. For more information on the rounding modes, see Precision and Range.

`CoefficientsDataType`

— Word and fraction lengths of coefficients

`numerictype([],16)`

(default) | `numerictype`

object

Word and fraction lengths of coefficients, specified as a
`numerictype`

object. The default,
`numerictype(1,16)`

corresponds to a signed numeric type object with
16-bit coefficients and a fraction length determined based on the coefficient values, to
give the best possible precision.

This property is not tunable.

Word length of the output is same as the word length of the input. Fraction length of the output is computed such that the entire dynamic range of the output can be represented without overflow. For details on how the fraction length of the output is computed, see Fixed-Point Precision Rules for Avoiding Overflow in FIR Filters.

## Usage

### Syntax

### Description

### Input Arguments

`x`

— Noisy data input

vector | matrix

Noisy data input, specified as a vector or a matrix. If the input signal is a matrix, each column of the matrix is treated as an independent channel. The number of rows in the input signal denote the channel length. This object accepts variable-size inputs. After the object is locked, you can change the size of each input channel, but you cannot change the number of channels.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

| `fi`

**Complex Number Support: **Yes

### Output Arguments

`y`

— Filtered output

vector | matrix

Filtered output, returned as a vector or a matrix. The output has the same size, data type, and complexity characteristics as the input.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

| `fi`

**Complex Number Support: **Yes

## Object Functions

To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named `obj`

, use
this syntax:

release(obj)

### Specific to `dsp.HighpassFilter`

`freqz` | Frequency response of discrete-time filter System object |

`fvtool` | Visualize frequency response of DSP filters |

`impz` | Impulse response of discrete-time filter System object |

`info` | Information about filter System object |

`coeffs` | Returns the filter System object coefficients in a structure |

`cost` | Estimate cost of implementing filter System object |

`grpdelay` | Group delay response of discrete-time filter System object |

`outputDelay` | Determine output delay of single-rate or multirate filter |

`generatehdl` | Generate HDL code for quantized DSP filter (requires Filter Design HDL Coder) |

`measure` | Measure frequency response characteristics of filter System object |

## Examples

### Impulse and Frequency Response of FIR and IIR Highpass Filters

Create a minimum order FIR highpass filter for data sampled at 44.1 kHz. Specify a passband frequency of 12 kHz, a stopband frequency of 8 kHz, a passband ripple of 0.1 dB, and a stopband attenuation of 80 dB.

Fs = 44.1e3; filtertype = 'FIR'; Fpass = 12e3; Fstop = 8e3; Rp = 0.1; Astop = 80; FIRHPF = dsp.HighpassFilter(SampleRate=Fs,... FilterType=filtertype,... PassbandFrequency=Fpass,... StopbandFrequency=Fstop,... PassbandRipple=Rp,... StopbandAttenuation=Astop);

Design a minimum order IIR highpass filter with the same properties as the FIR highpass filter. Use `clone`

to create a system object with the same properties as the FIR Highpass filter. Change the `FilterType`

property of the cloned filter to `IIR`

.

```
IIRHPF = clone(FIRHPF);
IIRHPF.FilterType = 'IIR';
```

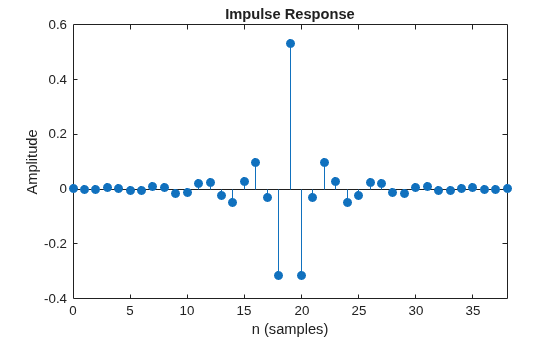

Plot the impulse response of the FIR highpass filter. The zeroth order coefficient is delayed by 19 samples, which is equal to the group delay of the filter. The FIR highpass filter is a causal FIR filter

`fvtool(FIRHPF,Analysis='impulse')`

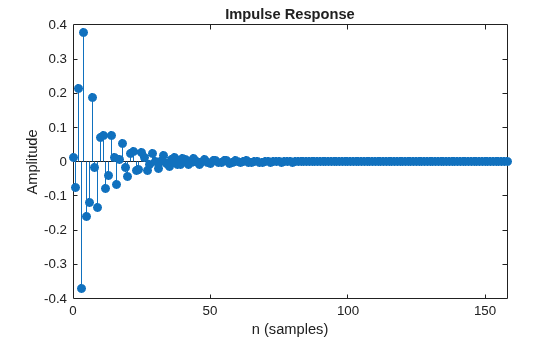

Plot the impulse response of the IIR highpass filter.

`fvtool(IIRHPF,Analysis='impulse')`

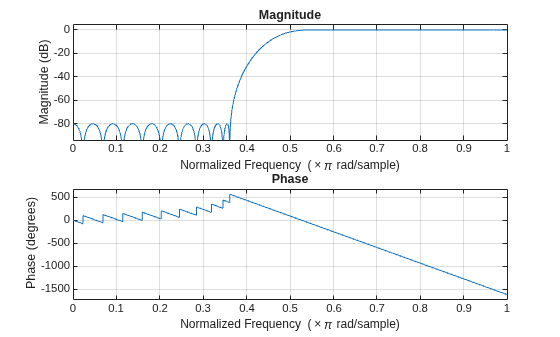

Plot the magnitude and phase response of the FIR highpass filter.

`fvtool(FIRHPF,Analysis='freq')`

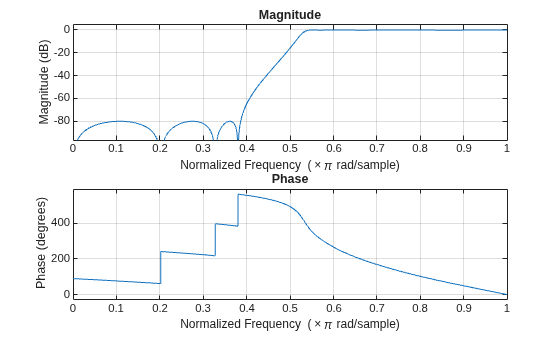

Plot the magnitude and phase response of the IIR highpass filter.

`fvtool(IIRHPF,Analysis='freq')`

Calculate the cost of implementing the FIR highpass filter.

cost(FIRHPF)

`ans = `*struct with fields:*
NumCoefficients: 39
NumStates: 38
MultiplicationsPerInputSample: 39
AdditionsPerInputSample: 38

Calculate the cost of implementing the IIR highpass filter. The IIR filter is more efficient to implement than its FIR counterpart.

cost(IIRHPF)

`ans = `*struct with fields:*
NumCoefficients: 18
NumStates: 14
MultiplicationsPerInputSample: 18
AdditionsPerInputSample: 14

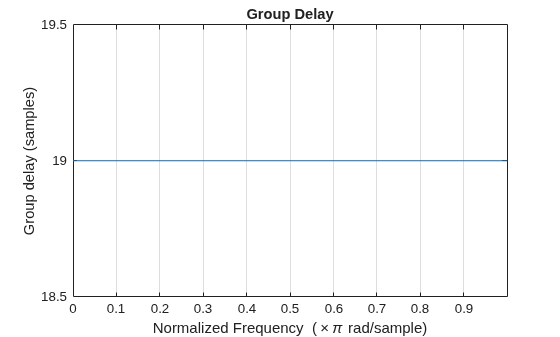

Calculate the group delay of the FIR highpass filter.

grpdelay(FIRHPF)

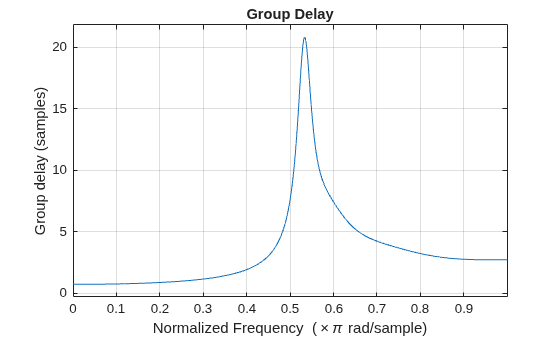

Calculate the group delay of the IIR highpass filter. The FIR filter has a constant group delay (linear phase) while its IIR counterpart does not.

grpdelay(IIRHPF)

### Filter White Gaussian Noise Signal with FIR Highpass Filter

Create a highpass filter using the `dsp.HighpassFilter`

object. Setting the `NormalizedFrequency`

property to `true`

designs the filter with frequency specifications in normalized frequency units.

LPF = dsp.HighpassFilter(NormalizedFrequency=true)

LPF = dsp.HighpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true StopbandFrequency: 0.3628 PassbandFrequency: 0.5442 StopbandAttenuation: 80 PassbandRipple: 0.1000 NormalizedFrequency: true Use get to show all properties

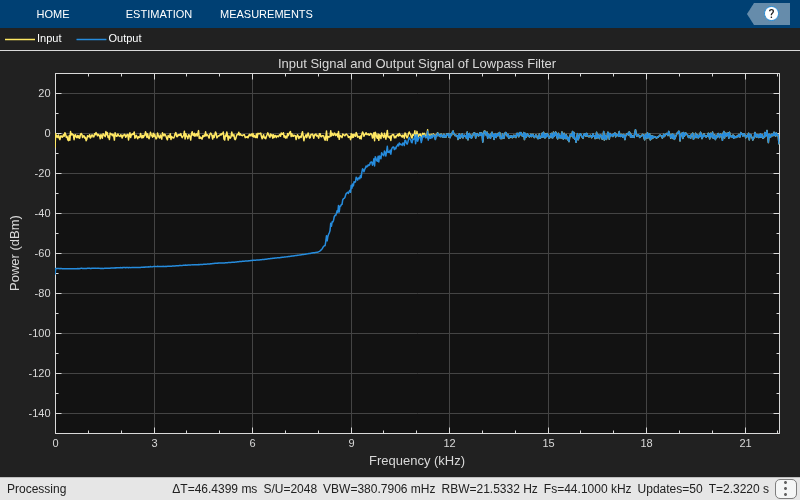

Create a `spectrumAnalyzer`

object to visualize the input and output signal spectra. With a sample rate of 44.1e3 Hz, the stopband frequency and the passband frequency of the filter translate to 8000 Hz and 12000 Hz, respectively.

SA = spectrumAnalyzer(SampleRate=44.1e3,... PlotAsTwoSidedSpectrum=false,ShowLegend=true,... YLimits=[-150 30],... Title='Input Signal and Output Signal of Lowpass Filter'); SA.ChannelNames = {'Input','Output'};

Run the highpass filter algorithm to filter the white Gaussian noisy input signal. View the input and output signals using the spectrum analyzer.

for k = 1:100 Input = randn(1024,1); Output = LPF(Input); SA([Input,Output]); end

### Filter White Gaussian Noise with an IIR Highpass Filter

Set up the IIR highpass filter. The sampling rate of the white Gaussian noise is 44,100 Hz. The passband frequency of the filter is 12 kHz, the stopband frequency is 8 kHz, the passband ripple is 0.1 dB, and the stopband attenuation is 80 dB.

Fs = 44.1e3; filtertype = 'IIR'; Fpass = 12e3; Fstop = 8e3; Rp = 0.1; Astop = 80; hpf = dsp.HighpassFilter(SampleRate=Fs,... FilterType=filtertype,... PassbandFrequency=Fpass,... StopbandFrequency=Fstop,... PassbandRipple=Rp,... StopbandAttenuation=Astop);

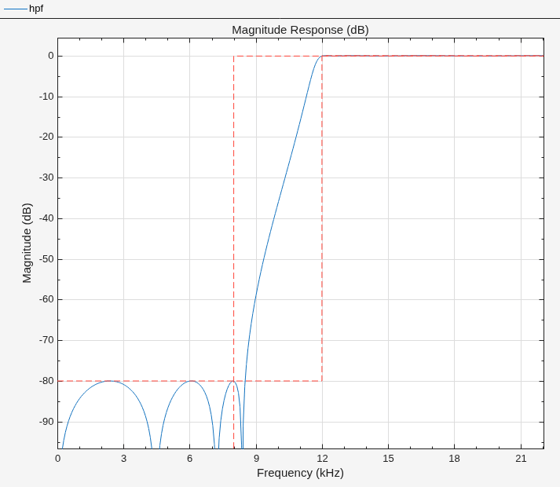

View the magnitude response of the highpass filter.

fvtool(hpf)

Create a spectrum analyzer object.

sa = spectrumAnalyzer(SampleRate=44.1e3,... PlotAsTwoSidedSpectrum=false,ShowLegend=true,... YLimits=[-150 30],... Title='Input Signal and Output Signal of IIR Highpass Filter'); sa.ChannelNames = {'Input','Output'};

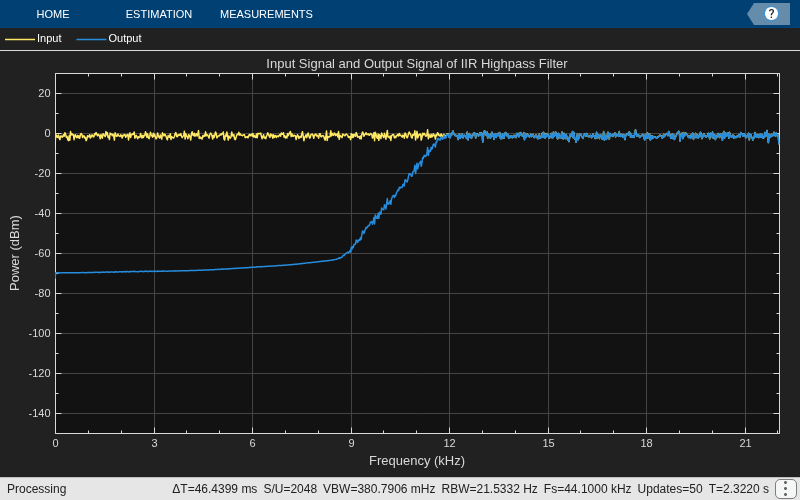

Filter the white Gaussian noisy input signal. View the input and output signals using the spectrum analyzer.

for k = 1:100 Input = randn(1024,1); Output = hpf(Input); sa([Input,Output]); end

### Measure Frequency Response Characteristics of Highpass Filter

Measure the frequency response characteristics of a highpass filter. Create a `dsp.HighpassFilter`

System object with default properties. Measure the frequency response characteristics of the filter.

HPF = dsp.HighpassFilter

HPF = dsp.HighpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true StopbandFrequency: 8000 PassbandFrequency: 12000 StopbandAttenuation: 80 PassbandRipple: 0.1000 NormalizedFrequency: false SampleRate: 44100 Use get to show all properties

HPFMeas = measure(HPF)

HPFMeas = Sample Rate : 44.1 kHz Stopband Edge : 8 kHz 6-dB Point : 10.418 kHz 3-dB Point : 10.8594 kHz Passband Edge : 12 kHz Stopband Atten. : 81.8558 dB Passband Ripple : 0.08066 dB Transition Width : 4 kHz

## Algorithms

### FIR Highpass Filter

For the minimum order design, the algorithm uses generalized Remez FIR filter design algorithm. For the specified order design, the algorithm uses the constrained equiripple FIR filter design algorithm. The designed filter is then implemented as a linear phase Type-1 filter with a `Direct form`

structure.

### IIR Highpass Filter

In the IIR configuration, the algorithm uses the elliptic design method to compute the SOS and scale values required to meet the filter design specifications. The algorithm uses the SOS and scale values to setup a `Direct form I`

biquadratic IIR filter, which forms the basis of the IIR version of the highpass filter.

## References

[1] Shpak, D.J., and A. Antoniou. "A generalized Remez method for the design of FIR
digital filters." *IEEE ^{®} Transactions on Circuits and Systems*. Vol. 37, Issue 2, Feb. 1990,
pp. 161–174.

[2] Selesnick, I.W., and C. S. Burrus. "Exchange algorithms that complement the
Parks-McClellan algorithm for linear-phase FIR filter design." *IEEE Transactions on Circuits and Systems*. Vol. 44, Issue 2, Feb. 1997,
pp. 137–143.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).

This object supports code generation for ARM Cortex-M and ARM Cortex-A processors. To learn more about ARM Cortex code generation, see Code Generation for ARM Cortex-M and ARM Cortex-A Processors.

This object also supports SIMD code generation using Intel^{®} AVX2 code replacement library under these conditions:

`FilterType`

is set to`'FIR'`

.Input signal has a data type of

`single`

or`double`

.

The SIMD technology significantly improves the performance of the generated code. For more information, see SIMD Code Generation. To generate SIMD code from this object, see Use Intel AVX2 Code Replacement Library to Generate SIMD Code from MATLAB Algorithms.

### HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

This object supports HDL code generation with the Filter Design HDL Coder™ product. For workflows and limitations, see Generate HDL Code for Filter System Objects (Filter Design HDL Coder).

## Version History

**Introduced in R2015a**

### R2023a: Support for normalized frequencies

When you set the `NormalizedFrequency`

property to
`true`

, you must specify the passband and stopband frequencies in
normalized frequency units (0 to 1).

When you set the `NormalizedFrequency`

property to
`true`

while creating the object, the passband and stopband frequency
values are automatically set to normalized frequency units using the default sample rate of
44100 Hz.

hpFilter = dsp.HighpassFilter(NormalizedFrequency=true)

hpFilter = dsp.HighpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true StopbandFrequency: 0.3628 PassbandFrequency: 0.5442 StopbandAttenuation: 80 PassbandRipple: 0.1000 NormalizedFrequency: true

When you set the `NormalizedFrequency`

property to
`true`

after you create the object, the passband and stopband frequencies
must be manually set to the normalized frequency values before you run the object
algorithm.

hpFilter = dsp.HighpassFilter

hpFilter = dsp.HighpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true StopbandFrequency: 8000 PassbandFrequency: 12000 StopbandAttenuation: 80 PassbandRipple: 0.1000 NormalizedFrequency: false SampleRate: 44100

`NormalizedFrequency`

to
`true`

and manually convert the frequency values in Hz to normalized
values using the input sample rate in Hz. For example, if the input sample rate is 44100 Hz,
the corresponding values in normalized units are computed using these equations.hpFilter.NormalizedFrequency = true; hpFilter.StopbandFrequency = 8000/(44100/2); hpFilter.PassbandFrequency = 12000/(44100/2)

hpFilter = dsp.HighpassFilter with properties: FilterType: 'FIR' DesignForMinimumOrder: true StopbandFrequency: 0.3628 PassbandFrequency: 0.5442 StopbandAttenuation: 80 PassbandRipple: 0.1000 NormalizedFrequency: true

## Apri esempio

Si dispone di una versione modificata di questo esempio. Desideri aprire questo esempio con le tue modifiche?

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
