# outputDelay

## Syntax

## Description

returns the system output delay of the single-rate or multirate filter object. A multirate
filter is any cascade combining upsampling, downsampling, and convolution filters (FIR or
IIR). Single-rate filters are special cases of multirate filters with a rate conversion
factor of 1. The delay `D`

= outputDelay(`sysobj`

)`D`

results from the group delay of the
convolution stages within the filter.

Use this syntax when `sysobj`

is a linear-phase single-rate filter.
To determine if a filter object has linear phase, use the `islinphase`

function.

`[`

also returns the input frequency band `D`

,`FsOut`

,`B`

] = outputDelay(`sysobj`

)`B`

over which the delay value is
within the default tolerance of 5% (in input sample units) of `D`

. That
is, $$\left|D(f)-D\right|\le 0.05/FsIn$$, where *f* is a frequency in the band
`B`

.

Use this syntax when `sysobj`

has filter stages that have a nonlinear
phase.

`[___] = outputDelay(`

specifies options using one or more name-value arguments in addition to the input arguments
in previous syntaxes. For example,
`sysobj`

,`Name=Value`

)`outputDelay`

(`sysobj`

,
`Tol`

=0.01) estimates the band of input frequencies over which the delay
value is within the tolerance of 1%.

## Examples

### Compute Output Delay of Filter Cascade

Compute the output delay of a cascade of `dsp.FIRRateConverter`

objects. Use this delay value to plot the input and resampled signals on the same plot in a time scope.

**Resample Input Signal**

First, let us inspect the delay and scaling that occurs in filtering. To do that, create a sinusoidal input signal. Initialize a cascade of `dsp.FIRRateConverter`

objects to resample the input signal.

n = (0:7*17-1)'; u = cos(6*pi*n/147);

src = cascade(dsp.FIRRateConverter(13,17), dsp.FIRRateConverter(18,7))

src = dsp.FilterCascade with properties: Stage1: [1x1 dsp.FIRRateConverter] Stage2: [1x1 dsp.FIRRateConverter] CloneStages: true

Resample the input signal by passing the signal through the cascade of `dsp.FIRRateConverter`

objects.

y = src(u);

**Plot the Input and Output Signals**

Initialize a time scope using the `timescope`

object to visualize the input and the resampled signals.

tsnosync = timescope(NumInputPorts=2,... ChannelNames={'Input','Output'});

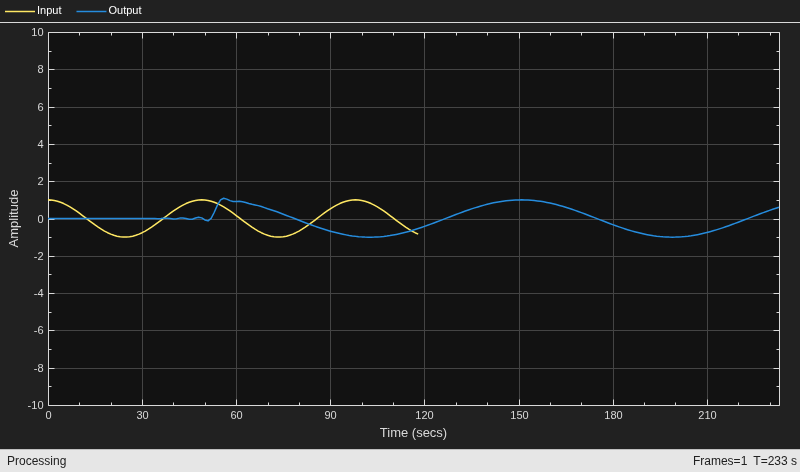

Plot the input and the resampled signals on the same plot in the time scope. You can see that the two signals are out of sync with respect to each other by a certain amount of delay and stretch over a different time scale

tsnosync(u,y);

**Using outputDelay to Synchronize Signals**

To plot the input and resampled signals on the same plot, you need to account for the output delay of the filter. To compute the output delay, use the `outputDelay`

function. The value of this delay depends on the filter structure and order, the rate conversion factor, and the signal input to the filter. In addition to the output delay, the rate conversion operation of the filter introduces scaling on the time domain. You must account for the output delay and the scaling.

Use the `outputDelay`

function to compute the delay and the output sample rate introduced by the multirate filter. You can optionally specify the input sample rate to the function. Apply the delay value to the output signal through the `TimeDisplayOffset`

property of the time scope.

To account for the scaling, specify the input and output sample rates through the `SampleRate`

property of the time scope. The inverse of the input and output sample rates vector determines the *x*-axis (time axis) spacing between points in the input signal and the output signal, respectively.

Initialize the time scope to use the updated `TimeDisplayOffet`

and `SampleRate`

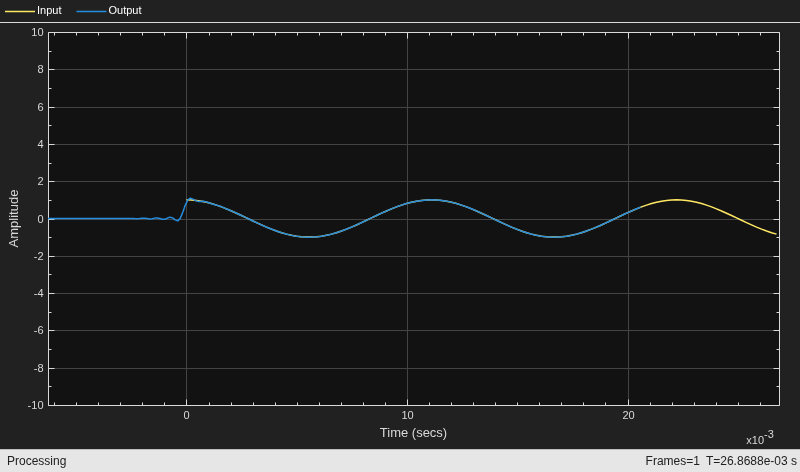

properties. Visualize the input and the resampled signals on the time scope. With the delay and scaling accounted for, you can see that signals are synchronized and have no delay with respect to each other.

FsIn = 44.1e2; [D,FsOut] = outputDelay(src,FsIn=FsIn); tssync = timescope(NumInputPorts=2,... SampleRate=[FsIn FsOut], ... TimeDisplayOffset=[0, -D],... ChannelNames={'Input','Output'}); tssync(u,y);

### Compute Output Delay for Farrow Rate Converter

Compute the output delay for a farrow rate converter, and use this delay value to plot the input sinusoidal signal and the rate converted signal on the same plot.

Create an input sinusoidal signal using the `sin`

function. Initialize the `dsp.FarrowRateConverter`

object to model the farrow rate converter.

u = sin(6*pi*(1:50)'/200); FsIn = 48000; frc = dsp.FarrowRateConverter(FsIn, 44100);

Compute the output delay of the rate converter using the `outputDelay`

function.

[D, FsOut] = outputDelay(frc)

D = 4.1667e-05

FsOut = 44100

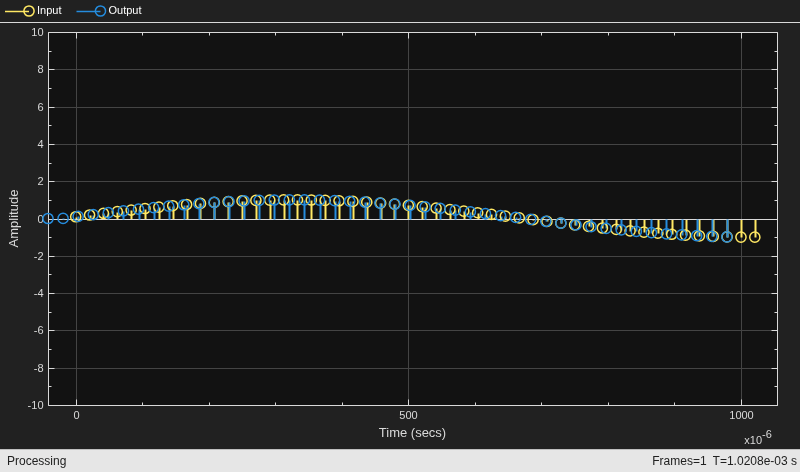

Resample the input using the farrow rate converter. Visualize the input signal and the resampled signal on the time scope. To account for the time delay and the scaling, set the `TimeDisplayOffset`

and `SampleRate`

properties of the time scope to [$0\text{\hspace{0.17em}}-\mathit{D}$] and [*FsIn* *FsOut*], respectively.

y = frc(u); ts = timescope(NumInputPorts = 2, SampleRate = [FsIn FsOut], ... TimeDisplayOffset = [0, -D],... ChannelNames = {'Input','Output'}, ... TimeSpan = length(y)*1.1/FsIn, ... PlotType = 'stem'); ts(u, y);

### Calculate Frequency Band for Nonlinear Phase Filters

Nonlinear phase filters have a group delay that depends on the input frequency. Due to the nonlinear phase nature, such filters distort input signals. Therefore, the output of these filters cannot be obtained by shifting and scaling the input on the time domain. To use the `outputDelay`

function to compute the output delay of such filters, the filters must have a relatively constant group delay over the input signal band.

Start by calculating the frequency band of two nonlinear fractional delay FIR filters with partially flat group delay. One filter has a higher bandwidth compared to the other filter. Note the effect of the higher bandwidth on the output delay and the input frequency band over which the function computes the delay.

Then, consider a multirate filter cascade that has a highly nonlinear group delay response over a given band but has a relatively flat group delay over other frequency bands. Increase the tolerance value that you specify to the `outputDelay`

function and see the effect on the input frequency band that the function returns.

**Fractional Delay FIR Filter with Nonlinear Phase and Partially Flat Group Delay**

Since the fractional delay FIR filter has a nonlinear phase response, specify a center frequency around which the `outputDelay`

function should compute the delay. When you specify the center frequency, the function returns an interval of frequencies (as the third output argument) over which the delay value is within the specified tolerance.

Design a fractional delay filter using the `designFracDelayFIR`

function. Specify the filter to have a fractional delay of `1.25e-3`

seconds and a passband coverage of 50%.

FsIn = 20; Fc = 1; FD = 1.25e-3; nlPhaseFilterObj1 = dsp.FIRFilter(designFracDelayFIR(FD*FsIn, 0.5));

Using the `outputDelay`

function, calculate the output delay around the center frequency of 1 Hz. Specify the input sample rate to 20 Hz and the tolerance to 0.01 (1%). In addition to the output delay, the function returns the input band over which the deviation in delay is upto 1% of `D1`

.

[D1,~,B1] = outputDelay(nlPhaseFilterObj1,FsIn=FsIn,Fc=Fc,Tol=0.01)

D1 = 0.1513

`B1 = `*1×2*
-6.3794 6.3794

Use the `grpdelay`

function to compute the group delay *G *of the filter and the frequencies *W *(in Hz) at which the group delay is evaluated. Specify the FFT length to 8192, and the sample rate to be the same as the input sample rate.

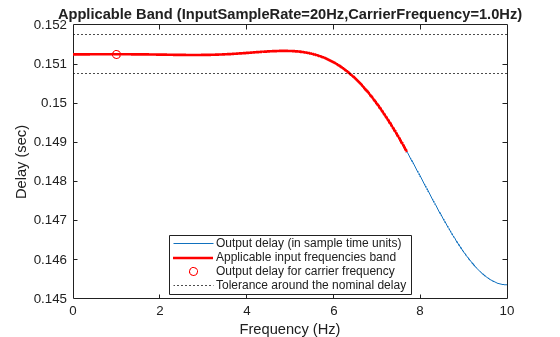

Plot the overall filter group delay. On the same figure, plot the input frequency band and the output delay value at the center frequency. The input frequency band indeed contains the center frequency.

[G1,W1] = nlPhaseFilterObj1.grpdelay(8192, FsIn); % Use 8192 FFT points to calculate the group delay I1 = W1>=B1(1) & W1<=B1(2); % Mask applicable frequencies plot(W1,G1/FsIn); hold on plot(W1(I1), G1(I1)/FsIn, 'r', LineWidth=2); plot(Fc, D1, 'ro'); yline(D1+0.01/FsIn*[-1 1],'k:'); title(sprintf('Applicable Band (FsIn=%iHz, Fc=%1.1fHz)',FsIn,Fc)) legend('Output delay (in sample time units)',... 'Applicable input frequencies band',... 'Output delay for Fc',... 'Tolerance around the nominal delay', Location='best') ylabel('Delay (sec)') xlabel('Frequency (Hz)') hold off

**Comparing with Higher Bandwidth Design**

Compare the previous design with a higher bandwidth fractional delay design. For more information on the bandwidth of a fractional-delay FIR filter, see `designFracDelayFIR`

.

Design a fractional-delay FIR filter with the same fractional delay (`1.25e-3`

seconds) as the previous design but with a 70% bandwidth coverage.

nlPhaseFilterObj2 = dsp.FIRFilter(designFracDelayFIR(FD*FsIn, 0.7));

Measure the output delay of this alternative design. The output delay *D2* is larger due to the longer FIR length, but the input band is also larger, allowing signals up to 7.2Hz (compared with only 6.4 Hz in the previous design).

[D2,~,B2] = outputDelay(nlPhaseFilterObj2,FsIn=FsIn,Fc=Fc,Tol=0.01)

D2 = 0.2512

`B2 = `*1×2*
-7.2217 7.2217

[G2,W2] = nlPhaseFilterObj2.grpdelay(8192, FsIn);

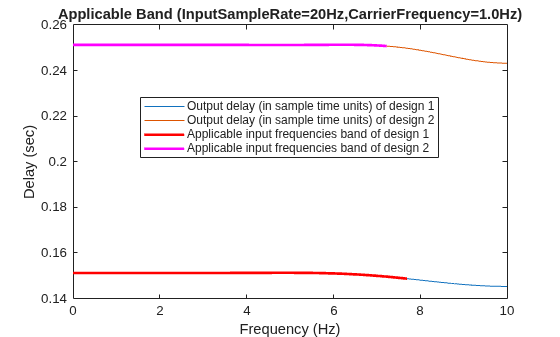

Plot the group delay response of the alternative design against the design with a 50% coverage.

I2 = W2>=B2(1) & W2<=B2(2); % Mask applicable frequencies plot(W1,G1/FsIn); hold on plot(W2,G2/FsIn); plot(W1(I1), G1(I1)/FsIn, 'r', LineWidth=2); plot(W2(I2), G2(I2)/FsIn, 'm', LineWidth=2); title(sprintf('Applicable Band (FsIn=%iHz, Fc=%1.1fHz)',FsIn,Fc)) legend('Output delay (in sample time units) of design 1',... 'Output delay (in sample time units) of design 2',... 'Applicable input frequencies band of design 1',... 'Applicable input frequencies band of design 2', ... Location='best') ylabel('Delay (sec)') xlabel('Frequency (Hz)') hold off

**Multirate Filter Cascade with Nonlinear Phase**

Design a two-stage filter cascade that contains a stable IIR lowpass (which has a nonlinear phase) followed by an FIR decimator with a rate conversion factor of 2.

```
FsIn = 10;
Fc = 1.5;
LP = dsp.LowpassFilter(FilterType='IIR',SampleRate=FsIn,PassbandFrequency=2.3,StopbandFrequency=2.7);
nlPhaseCascadeObj = cascade(LP, dsp.FIRDecimator(2));
```

Measure the output delay, output sample rate, and the input frequency band for this cascade using a narrowband input signal with a carrier frequency of 1.5Hz. Set the tolerance to 0.001 samples. The function returns an output sample rate of 5 Hz (which is half the input sample rate of 10 Hz, owing to the half-rate decimator).

[D,FsOut,B] = outputDelay(nlPhaseCascadeObj, Fc=Fc, Tol=0.001)

D = 2.9209

FsOut = 5

`B = `*1×2*
1.5000 1.5000

The band the function returns is a trivial band. That is, it contains a single point (the left and right boundaries are the same). This means that a tolerance value of 0.001 is too small.

To fix that, increase the tolerance to 0.05 seconds (0.5 of the input sample time). While the delay and the output sample rate do not change, the band is now nontrivial, and it contains the center frequency. The band is also relatively narrow due to the highly nonlinear phase nature of the IIR design.

[D1,FsOut1,B1] = outputDelay(nlPhaseCascadeObj, Fc=Fc, Tol=0.5)

D1 = 2.9209

FsOut1 = 5

`B1 = `*1×2*
1.3562 1.5967

Increase the tolerance value to 2. The band now increases even more as you have specified a more lax tolerance.

[D2,FsOut2,B2] = outputDelay(nlPhaseCascadeObj, Fc=Fc, Tol=2)

D2 = 2.9209

FsOut2 = 5

`B2 = `*1×2*
0.4565 1.7786

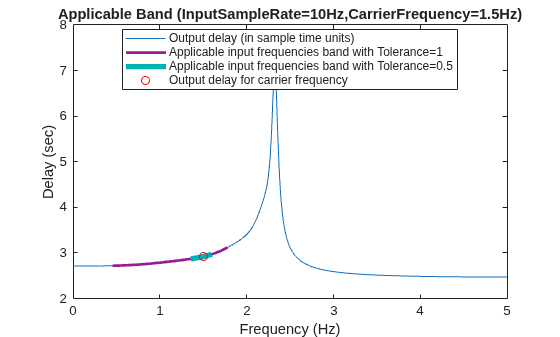

[G,W] = nlPhaseCascadeObj.grpdelay(8192, FsIn); I1 = W>=B1(1) & W<=B1(2); % Mask applicable frequencies I2 = W>=B2(1) & W<=B2(2); % Mask applicable frequencies plot(W,G/FsIn); hold on plot(W(I2), G(I2)/FsIn, Color=[0.6 0.1 0.6], LineWidth=2); plot(W(I1), G(I1)/FsIn, Color=[0 0.7 0.7], LineWidth=4); plot(Fc, D1, 'ro'); title(sprintf('Applicable Band (FsIn=%iHz, Fc=%1.1fHz)',FsIn,Fc)) legend('Output delay (in sample time units)',... 'Applicable input frequencies band with Tol=1',... 'Applicable input frequencies band with Tol=0.5',... 'Output delay for Fc',... Location='best') ylabel('Delay (sec)') xlabel('Frequency (Hz)') hold off

## Input Arguments

`sysobj`

— Input filter

filter System object™

Input filter, specified as one of the following filter System objects:

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **`FsIn=48000`

, `Fc=-10.3`

,
`Tol=0.01`

, `FFTLength=100`

`FsIn`

— Input sample rate

`1`

(default) | positive scalar

Input sample rate of the filter object `sysobj`

, specified as a
positive scalar.

If you do not specify `FsIn`

, the function uses the input
sample rate specified in the built-in input sample rate property of the filter object
if it exists, otherwise the function uses the default rate of
`1`

.

Specify `FsIn`

when you want to override the input sample rate
specified in the filter object.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`Fc`

— Carrier frequency

`0`

(default) | real scalar

Carrier frequency from which the function derives the group delay of the
convolution stages, specified as a real scalar. Specify `Fc`

when
the filter object `sysobj`

has stages with a nonlinear
phase.

For filters with a nonlinear phase (a varying group delay), the delay value
`D`

the `outputDelay`

function returns depends
on the input frequency. For more details, see Linear and Nonlinear Phase Filters. For an example, see
Calculate Frequency Band for Nonlinear Phase Filters.

If you do not specify `Fc`

, the function uses the default
center frequency of `0`

for most filters except the bandpass and
highpass filters. Make sure that the absolute value of the carrier frequency is not
larger than the Nyquist frequency. That is, $$\left|fc\right|\le FsIn/2$$, where *FsIn* is the input sample rate of the
filter object.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`Tol`

— Tolerance of estimated delay

`0.05`

(default) | real scalar

Tolerance of the estimated delay value `D`

, specified as a real
scalar. Specify `Tol`

when you want to calculate the input band
`B`

.

When you specify a tolerance `Tol`

, the function can estimate a
band of input frequencies `B`

for which the delay is close to
`D`

up to a given tolerance `Tol`

. That is, $$\left|D(f)-D\right|\le Tol/FsIn$$, where *f* is a frequency in the band given by the
`B`

vector.

When you use the following signature, the function uses the default
`5%`

tolerance (in input sample units) of
`D`

.

[D,FsOut,B] = outputDelay(sysobj,Fc=fc)

Alternatively, you can specify the tolerance value using the
`Tol`

argument.

[D,FsOut,B] = outputDelay(sysobj,Fc=fc,Tol=T)

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`FFTLength`

— FFT length

`8192`

(default) | nonnegative integer

FFT length, specified as a nonnegative integer. Specify
`FFTLength`

when you want to calculate the input band
`B`

.

This value determines the frequency resolution with which the function estimates
the input frequency band `B`

. Higher the FFT length, the higher is
the frequency resolution and accuracy of `B`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

## Output Arguments

`D`

— Output delay

nonnegative scalar

Output or resampling delay of the multirate filter, returned as a nonnegative scalar.

The delay value `D`

is determined by the group delay of the
convolution filter stages, and the value depends on the filter structure, filter order,
and rate conversion factors. When the filter has a nonlinear phase, the delay value also
depends on the input signal.

For filters with a linear phase (that is, a flat group delay), the value of
`D`

applies to all inputs. For filters with a nonlinear phase (that
is, a varying group delay), the delay value `D`

depends on the input
frequencies.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`FsOut`

— Output sample rate

positive scalar

Output sample rate of the multirate filter object for the given input sample rate
`FsIn`

, returned as a positive scalar.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`B`

— Estimated input frequency band

two-element row vector

Estimated input frequency band [*f*_{1}
*f*_{2}] over which the delay value is within
tolerance `Tol`

(in input sample units) of `D`

,
returned as a two-element row vector. If you do not specify `Tol`

,
the function uses a tolerance value of 0.05 (or 5%).

The frequency band stretches from *f*_{1}
counterclockwise to *f*_{2}. That is, if
*f*_{2} >
*f*_{1}, then the band is
{*f*_{1}<*f*<*f*_{2}}.
If *f*_{2} <
*f*_{1}, then the band wraps around the Nyquist
frequency, that is the union of
{−*FsIn*/2<*f*<*f*_{2}}
and
{*f*_{1}<*f*<*FsIn*/2}.
If
*f*_{1}=*f*_{2},
then the band has a single frequency due to the FFT resolution being too coarse. In such
cases, increase the value of `FFTLength`

or the tolerance
`Tol`

.

Band measurement is available only for systems that can be reduced to a rational
rate converter. For a linear phase system, the band `B`

is always
full, $$B=\left[-FsIn/2,\text{\hspace{0.17em}}\text{\hspace{0.17em}}FsIn/2\right]$$ and the delay `D`

is applicable for all input
frequencies (flat group delay).

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

## More About

### Multirate Filters

A multirate filter is any cascade combining upsampling, downsampling, and convolution filters (FIR or IIR).

Most filter System objects in DSP System Toolbox™ are multirate filters. For example, `dsp.FIRDecimator(5)`

is
the multirate filter *H*(*z*) followed by a downsampler
that has a downsampling ratio of 5.

Single-rate filters are special
cases of multirate filters with
a rate conversion factor of 1. Single-stage filters are special cases of cascades of
multirate filters. For example, `dsp.LowpassFilter`

is a single-rate,
single-stage filter of the form *H*(*z*).

**Multirate Filters as Resampling Systems**

The `outputDelay`

function assumes that the multirate filter
`sysobj`

models a resampling system. The output of the resampling
system is a filtered and resampled version of the input, and hence has a different rate
compared to the input.

A resampling system interpolates the input *u*(*n*)
to a continuous domain function *f*(*t*) that
approximates the input.

$$u(n)\approx f(n/FsIn)$$

The output is then sampled from
*f*(*t*) on a different time scale.

$$y(k)=f(k/FsOut-D)$$

The values `FsIn`

and `FsOut`

are
the input and output sample rates, respectively, and `D`

is the
resampling or output delay.

This graph overlays the input and output sequences on the same plot, shows the input and output sample times, and also shows the output delay that the function returns.

For examples that demonstrate the effect of the resampling delay and scaling in multirate filters, see Compute Output Delay of Filter Cascade and Time Delay and Scaling in Multirate DSP Filters.

### Output Delay and Group Delay

The output delay and the group delay are related to each other.

The output or resampling delay is the delay of the signal in time units as it goes
through a convolution filter (FIR or IIR). For a single-rate filter, the output delay
(`D`

) and the group delay ($${\tau}_{g}$$) are scaled by the sample rate, $$D={\tau}_{g}/FsIn$$. If the filter has a linear phase, both the output delay and the group
delay do not depend on the input frequency. However, if the filter has nonlinear phase, then
the group delay and the output delay depend on the input frequency.

This figure shows the impulse response of a symmetric 24-tap FIR filter. You can see that the output delay and the group delay are equivalent quantities in different scales.

If the filter is a multirate filter, the output delay is the total delay that the filter
accumulates on all stages of the cascade. The output sample rate `FsOut`

of each stage becomes the input sample rate `FsIn`

of the subsequent
stage. The function scales the delay values accumulated over each stage by the rate
conversion factors of the individual stages.

The group delay is defined only for single-rate filters while the output delay is defined for both single-rate and multirate filters.

The group delay refers to the average delay of the convolution filter (FIR or IIR) as a
function of frequency. It is computed as the negative first derivative of the phase response
of the filter. If the frequency response of a filter is *H*(*e*^{jω}), then the group delay is

$${\tau}_{g}(\omega )=-\frac{d\theta (\omega )}{d\omega},$$

where *θ*(*ω*) is the phase, or argument, of *H*(*e*^{jω}).

If the filter is a linear phase filter, the group delay response is flat. The output
delay `D`

does not depend on input frequency. If the filter is a
nonlinear phase filter, the group delay response varies with frequency and the delay value
`D`

is valid only for bandlimited inputs around a carrier frequency
`Fc`

. The function determines the edges of the frequency band
`B`

such that the group delay over this frequency region is
approximately constant. For more information, see Linear and Nonlinear Phase Filters. For an example, see Time Delay and Scaling in Multirate DSP Filters.

### Linear and Nonlinear Phase Filters

Depending on the group delay of the filter stages (whether flat or varies with
frequency), the `outputDelay`

function can operate in two modes.

If all the filter stages have a linear phase (flat group delay), then the
`outputDelay`

function operates in the full band mode. If the
individual filter stages have a nonlinear phase but can be reordered through noble identity
operations such that the equivalent stage has a linear phase, then the
`outputDelay`

function operates in the full band mode and you do not
need to specify the carrier frequency `Fc`

.

For an example of nonlinear filter stages having a linear phase equivalent, see A Nonlinear Phase Multirate Filter with Linear Phase Equivalent.

If one or more stages have a nonlinear phase, and the filter does not have a linear
phase equivalent, then the `outputDelay`

function operates in the bandlimited mode. In
the bandlimited mode, the function requires you to specify the input center frequency
`Fc`

in order to compute the delay.

**Full-Band Mode in Linear Phase Filters**

In the full band mode, the delay value `D`

applies to all inputs.
All symmetric filter designs work in this mode.

The `outputDelay`

function uses the group delay of the filter
stages to calculate the overall output delay. When the filters have a linear phase, the
group delay of the filter does not vary with frequency. The band `B`

is
always full (flat group delay).

For symmetric filters, the output delay (`D`

) can be thought of as
the center of mass of the impulse response (*h*[*k*]),
which can be obtained by the weighted sum:

$$\begin{array}{l}D=\frac{1}{FsIn}\cdot {\tau}_{g},\\ D=\frac{1}{FsIn}\cdot \frac{{\displaystyle \sum _{k=0}^{L-1}k\cdot h[k]}}{{\displaystyle \sum _{j=0}^{L-1}h[j]}}\end{array}$$

where $${\tau}_{g}$$ is the group delay of the filter, and *L* is the length
of the filter.

The function obtains the output delay by scaling the center of mass with the sample time. For an example, see Time Delay and Scaling in Multirate DSP Filters.

This center-of-mass delay formulation can be generalized for asymmetric filters, where it takes the form of group delay. Symmetric and anti-symmetric filters have a linear phase response, hence their group delay response is constant and does not depend on frequency. Filters with a varying group delay (nonlinear phase filters) can exhibit distortion on the time domain.

**Bandlimited Mode for Nonlinear Phase Filters**

In the bandlimited mode, the `outputDelay`

function calculates the
delay `D`

for the input frequency `Fc`

. The function
uses this mode with filters that have nonlinear phase stages. Many causal and stable
rational IIR filters have a nonlinear phase, and therefore have a varying group delay.
Generally, those filters distort input signals, which breaks the resampling model
described in Multirate Filters. In such cases, the
resampling model and the delay value `D`

are valid only for bandlimited
inputs around `Fc`

. The function determines the width of the frequency
band `B`

such that the group delay over this frequency region is
approximately constant. Use the `grpdelay`

function to inspect the flatness of
the group delay of the filter stages.

Assume that the input is a narrowband signal centered around some carrier frequency
ω_{c} = 2π`Fc`

. The resampling model is slightly
different in this case, where the input is

$$u(n)\approx f(n/FsIn)\cdot \mathrm{cos}\left({\omega}_{c}n\right),$$

and the output is given by

$$y(k)\approx f(k/FsOut-D)\cdot \mathrm{cos}\left({\omega}_{c}(k/FsOut-{D}_{p})\right).$$

The baseband is delayed by output delay `D`

, which is calculated
using the group delay specific to the input frequency. The carrier, however, experiences a
different delay, *D _{p}*, which is obtained by the
phase delay of the filter rather than its group delay.

You can specify the input carrier frequency through the input argument
`Fc`

. The `outputDelay`

function can also
calculate the interval of input frequencies `B`

that the value of
`D`

is applicable up to a certain tolerance. This band is returned as
the third return value of the function (with the second one being the output sample rate
`FsOut`

). The tolerance (in sample time units) can be specified using
the `Tol`

argument.

To determine if a filter object is linear, use the `islinphase`

function.

### A Nonlinear Phase Multirate Filter with Linear Phase Equivalent

Consider the multirate filter cascade below with nonlinear phase filter stages
*Q*(*z*) and
*R*(*z*).

The noble identify for decimation is given by:

Apply the noble identity for decimation on *R*(*z*).
The product
*Q*(*z*)*R*(*z*^{2})
is a linear phase system.

Even though the individual filter stages have a nonlinear phase, the combined equivalent
filter after applying the noble identify has a linear phase. The
`outputDelay`

function treats this filter as a linear phase
filter.

All combinations of nonlinear phase stages cannot be reordered to form linear phase equivalents. The function treats such filters as nonlinear filters and operates in the bandlimited mode.

## Version History

**Introduced in R2022a**

### R2023b: Support for `dsp.ParallelFilter`

and `dsp.Delay`

Objects

Starting in R2023b, the `outputDelay`

analysis function supports the
`dsp.ParallelFilter`

and the `dsp.Delay`

objects.

### R2023b: `dsp.BiquadFilter`

object will be removed

The `dsp.BiquadFilter`

object will be removed in a future release. Use
the `dsp.SOSFilter`

object
instead. For more information on how to replace your existing code, see the
**Compatibility Considerations** section in the `dsp.BiquadFilter`

reference page.

## Comando MATLAB

Hai fatto clic su un collegamento che corrisponde a questo comando MATLAB:

Esegui il comando inserendolo nella finestra di comando MATLAB. I browser web non supportano i comandi MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
