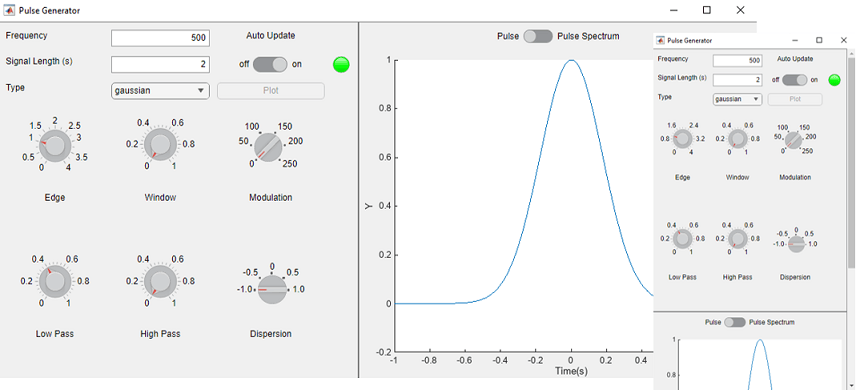

App That Uses Grid Layout to Manage Component Positions and Resizing

This app shows how to use a grid layout manager to control the alignment and resizing of knobs when the app is resized. The app also uses the following components to gather user input and plot the resulting wave form:

  • Numeric edit fields — allow users to enter the pulse frequency and length. MATLAB® automatically checks to make sure the values are numeric and within the range specified by the app.

  • Switches — allow users to control automatic plot updates and toggle between plots in the time and frequency domains.

  • Drop-down menu — allows users to select from a list of pulse shapes, such as Gaussian, sinc, and square.

  • Knobs — allow users to modify the pulse by specifying a window function, modulating the signal, or applying other enhancements.
