setvaropts

Set variable import options

Syntax

opts = setvaropts(opts,Name,Value)

opts = setvaropts(opts,selection,Name,Value)

Description

opts = setvaropts(opts,Name,Value) updates all the variables in the opts object based on the specifications in the Name,Value arguments and returns the opts object.

opts = setvaropts(opts,selection,Name,Value) updates and returns opts for the variables specified in the selection argument, based on the specifications in the Name,Value arguments.

Examples

Set Options for Selected Variables

Create an import options object, set the options for selected variables, and import the data using the tailored options and the readtable function.

Create an options object for the spreadsheet patients.xls.

opts = detectImportOptions('patients.xls');

Set the FillValue property for the Smoker, Diastolic, and Systolic variables.

opts = setvaropts(opts,'Smoker','FillValue',false);
opts = setvaropts(opts,{'Diastolic','Systolic'},'FillValue',0);

Select the variables you want to import.

opts.SelectedVariableNames = {'Smoker','Diastolic','Systolic'};

Import the variables and display a summary.

T = readtable('patients.xls',opts);
summary(T)

Variables:

    Smoker: 100x1 logical

        Values:

            True        34
            False       66

    Diastolic: 100x1 double

        Values:

            Min           68
            Median      81.5
            Max           99

    Systolic: 100x1 double

        Values:

            Min         109
            Median      122
            Max         138

Set Options for Numeric Data Containing Missing or Incomplete Records

Importing data that has missing or incomplete fields requires recognizing the missing instances and deciding how the missing instances will be imported. Use importOptions to capture both these decisions and fetch the data using readtable.

Create an import options object for the file, update properties that control the import of missing data, and then use readtable to import the data. Note that the dataset airlinesmall_subset.csv has two numeric variables ArrDelay and DepDelay, that contain missing data indicated by NA.

Create an import options object from the file.

opts = detectImportOptions("airlinesmall_subset.csv");

Use the TreatAsMissing property to specify the characters in the data that are place holders for missing instances. In this example, the two numeric variables ArrDelay and DepDelay contain missing fields that contain the text NA.

opts = setvaropts(opts,["ArrDelay","DepDelay"],"TreatAsMissing","NA");

Specify the action for the importing function to take when importing missing instances. See ImportOptions properties page for more options.

opts.MissingRule = "fill";

Specify the value to use when the importing function finds a missing instance. Here the missing instances in variables ArrDelay and DepDelay are replaced by 0.

opts = setvaropts(opts,["ArrDelay","DepDelay"],"FillValue",0);

Select the variables you want to work with and import them using readtable.

opts.SelectedVariableNames = ["ArrDelay","DepDelay"];
T = readtable("airlinesmall_subset.csv",opts);

Examine the values in ArrDelay and DepDelay. Verify that the importing function replaced the missing values denoted by NA.

T(42:55,:)

ans=14×2 table
    ArrDelay    DepDelay
    ________    ________

        3          -4
        0          -1
       11          11
        0           0
        0           0
        0           0
       -9           5
       -9          -3
        2           6
        0           0
        1           1
        0           4
        9           0
       -2           4

Set Options for Hexadecimal and Binary Numbers

The readtable function automatically detects hexadecimal and binary numbers with the 0x and 0b prefixes. To import such numbers when they do not have prefixes, use an import options object.

Create an import options object for the file hexAndBinary.txt. Its third column has hexadecimal numbers without the 0x prefix.

opts = detectImportOptions('hexAndBinary.txt')

opts =
  DelimitedTextImportOptions with properties:

   Format Properties:
                    Delimiter: {','}
                   Whitespace: '\b\t '
                   LineEnding: {'\n'  '\r'  '\r\n'}
                 CommentStyle: {}
    ConsecutiveDelimitersRule: 'split'
        LeadingDelimitersRule: 'keep'
       TrailingDelimitersRule: 'ignore'
                EmptyLineRule: 'skip'
                     Encoding: 'UTF-8'

   Replacement Properties:
                  MissingRule: 'fill'
              ImportErrorRule: 'fill'
             ExtraColumnsRule: 'addvars'

   Variable Import Properties: Set types by name using setvartype
                VariableNames: {'Var1', 'Var2', 'Var3' ... and 1 more}
                VariableTypes: {'auto', 'auto', 'char' ... and 1 more}
        SelectedVariableNames: {'Var1', 'Var2', 'Var3' ... and 1 more}
              VariableOptions: [1-by-4 matlab.io.VariableImportOptions]
	Access VariableOptions sub-properties using setvaropts/getvaropts
           VariableNamingRule: 'modify'

   Location Properties:
                    DataLines: [1 Inf]
            VariableNamesLine: 0
               RowNamesColumn: 0
            VariableUnitsLine: 0
     VariableDescriptionsLine: 0
	To display a preview of the table, use preview

To specify that the third column should be imported as hexadecimal values, despite the lack of a prefix, use the setvaropts function. Set the variable type of the third variable to int32. Set the number system for importing the third column to hex.

opts = setvaropts(opts,3,'NumberSystem','hex','Type','int32')

opts =
  DelimitedTextImportOptions with properties:

   Format Properties:
                    Delimiter: {','}
                   Whitespace: '\b\t '
                   LineEnding: {'\n'  '\r'  '\r\n'}
                 CommentStyle: {}
    ConsecutiveDelimitersRule: 'split'
        LeadingDelimitersRule: 'keep'
       TrailingDelimitersRule: 'ignore'
                EmptyLineRule: 'skip'
                     Encoding: 'UTF-8'

   Replacement Properties:
                  MissingRule: 'fill'
              ImportErrorRule: 'fill'
             ExtraColumnsRule: 'addvars'

   Variable Import Properties: Set types by name using setvartype
                VariableNames: {'Var1', 'Var2', 'Var3' ... and 1 more}
                VariableTypes: {'auto', 'auto', 'int32' ... and 1 more}
        SelectedVariableNames: {'Var1', 'Var2', 'Var3' ... and 1 more}
              VariableOptions: [1-by-4 matlab.io.VariableImportOptions]
	Access VariableOptions sub-properties using setvaropts/getvaropts
           VariableNamingRule: 'modify'

   Location Properties:
                    DataLines: [1 Inf]
            VariableNamesLine: 0
               RowNamesColumn: 0
            VariableUnitsLine: 0
     VariableDescriptionsLine: 0
	To display a preview of the table, use preview

Read the file and import the first three columns as numeric values. The readtable function automatically detects that the first and second columns contain hexadecimal and binary values. The import options object specifies that the third column also contains hexadecimal values.

T = readtable('hexAndBinary.txt',opts)

T=3×4 table
    Var1     Var2    Var3        Var4
    _____    ____    _____    ___________

      255    255     51193    {'Device1'}
      256      4      1471    {'Device2'}
    43981    129     61455    {'Device3'}

Set Options When Importing Text Data

Use the setvaropts function to update properties that control the import of text data. First, get the import options object for the file. Next, examine and update the options for the text variables. Finally, import the variables using the readtable function.

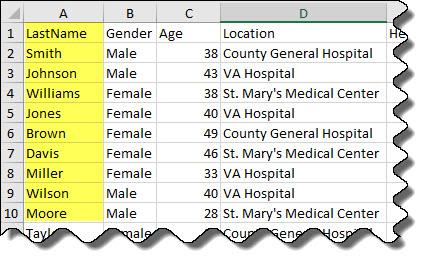

Preview the data in patients.xls. Notice the text data in the column LastName. Only a preview of the first 10 rows is shown here.

Get the import options object.

opts = detectImportOptions('patients.xls');

Get and examine the VariableImportOptions for variable LastName.

getvaropts(opts,'LastName')

ans =
  TextVariableImportOptions with properties:

   Variable Properties:
              Name: 'LastName'
              Type: 'char'
         FillValue: ''
    TreatAsMissing: {}
         QuoteRule: 'remove'
          Prefixes: {}
          Suffixes: {}
    EmptyFieldRule: 'missing'

   String Options:
    WhitespaceRule: 'trim'

Set the data type of the variable to string.

opts = setvartype(opts,'LastName','string');

Set the FillValue property of the variable to replace missing values with 'NoName'.

opts = setvaropts(opts,'LastName','FillValue','NoName');

Select, read, and display a preview of the first 10 rows of the variable.

opts.SelectedVariableNames = 'LastName';
T = readtable('patients.xls',opts);
T.LastName(1:10)

ans = 10x1 string
    "Smith"
    "Johnson"
    "Williams"
    "Jones"
    "Brown"
    "Davis"
    "Miller"
    "Wilson"
    "Moore"
    "Taylor"

Set Options When Importing Logical Data

Use the setvaropts function to update properties that control the import of logical data. First, get the import options object for the file. Next, examine and update the options for the logical variables. Finally, import the variables using the readtable function.

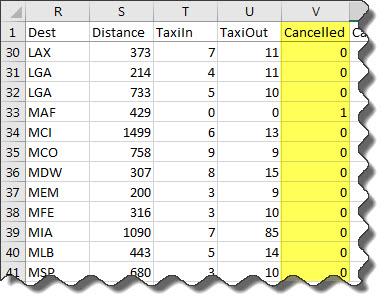

Preview the data in airlinesmall_subset.xlsx. Notice the logical data in the column Cancelled. Only a preview of rows 30 to 40 is shown here.

Get the import options object.

opts = detectImportOptions('airlinesmall_subset.xlsx');

Get and examine the VariableImportOptions for variable Cancelled.

getvaropts(opts,'Cancelled')

ans =
  NumericVariableImportOptions with properties:

   Variable Properties:
                  Name: 'Cancelled'
                  Type: 'double'
             FillValue: NaN
        TreatAsMissing: {}
             QuoteRule: 'remove'
              Prefixes: {}
              Suffixes: {}
        EmptyFieldRule: 'missing'

   Numeric Options:
     ExponentCharacter: 'eEdD'
      DecimalSeparator: '.'
    ThousandsSeparator: ''
        TrimNonNumeric: 0
          NumberSystem: 'decimal'

Set the data type of the variable to logical.

opts = setvartype(opts,'Cancelled','logical');

Set the FillValue property of the variable to replace missing values with true.

opts = setvaropts(opts,'Cancelled','FillValue',true);

Select, read, and display a summary of the variable.

opts.SelectedVariableNames = 'Cancelled';
T = readtable('airlinesmall_subset.xlsx',opts);
summary(T)

Variables:

    Cancelled: 1338x1 logical

        Values:

            True         29
            False      1309

Import Date and Time Data

Use DatetimeVariableImportOptions properties to control the import of datetime data. First, get the ImportOptions object for the file. Next, examine and update the VariableImportOptions for the datetime variables. Finally, import the variables using readtable.

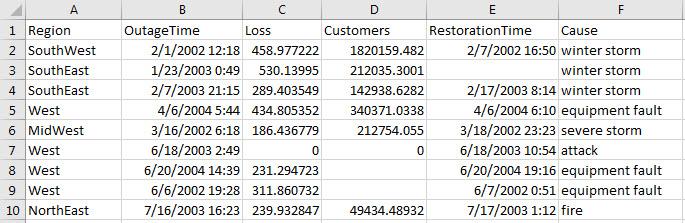

Preview of data in outages.csv. Notice the date and time data in the columns OutageTime and RestorationTime. Only the first 10 rows are shown here.

Get the import options object.

opts = detectImportOptions('outages.csv');

Get and examine the VariableImportOptions for datetime variables OutageTime and RestorationTime.

varOpts = getvaropts(opts,{'OutageTime','RestorationTime'})

varOpts =
  1x2 DatetimeVariableImportOptions array with properties:

    Name
    Type
    FillValue
    TreatAsMissing
    QuoteRule
    Prefixes
    Suffixes
    EmptyFieldRule
    DatetimeFormat
    DatetimeLocale
    TimeZone
    InputFormat

Set the FillValue property of the variables to replace missing values with current date and time.

opts = setvaropts(opts,{'OutageTime','RestorationTime'},...
                                           'FillValue','now');

Select, read, and preview the two variables. Notice the missing value in the second row of RestorationTime has been filled with current date and time.

opts.SelectedVariableNames = {'OutageTime','RestorationTime'};
T = readtable('outages.csv',opts);
T(1:10,:)

ans=10×2 table
       OutageTime       RestorationTime
    ________________    ________________

    2002-02-01 12:18    2002-02-07 16:50
    2003-01-23 00:49    2024-02-13 00:34
    2003-02-07 21:15    2003-02-17 08:14
    2004-04-06 05:44    2004-04-06 06:10
    2002-03-16 06:18    2002-03-18 23:23
    2003-06-18 02:49    2003-06-18 10:54
    2004-06-20 14:39    2004-06-20 19:16
    2002-06-06 19:28    2002-06-07 00:51
    2003-07-16 16:23    2003-07-17 01:12
    2004-09-27 11:09    2004-09-27 16:37

Set Options When Importing Categorical Data

Use the setvaropts function to update properties that control the import of categorical data. First, get the import options object for the file. Next, examine and update the options for the categorical variables. Finally, import the variables using the readtable function.

Preview the data in outages.csv. Notice the categorical data in the columns Region and Cause. This table shows only the first 10 rows.

Get the import options object.

opts = detectImportOptions('outages.csv');

Get and examine the options for the variables Region and Cause.

getvaropts(opts,{'Region','Cause'})

ans =
  1x2 TextVariableImportOptions array with properties:

    Name
    Type
    FillValue
    TreatAsMissing
    QuoteRule
    Prefixes
    Suffixes
    EmptyFieldRule
    WhitespaceRule

Set the data type of the variables to categorical.

opts = setvartype(opts,{'Region','Cause'},'categorical');

Set the FillValue property of the variables to replace missing values with category name 'Miscellaneous'. Set TreatAsMissing property to 'unknown'.

opts = setvaropts(opts,{'Region','Cause'},...
                                   'FillValue','Miscellaneous',...
                                   'TreatAsMissing','unknown');

Select, read, and display a summary of the two variables.

opts.SelectedVariableNames = {'Region','Cause'};
T = readtable('outages.csv',opts);
summary(T)

Variables:

    Region: 1468x1 categorical

        Values:

            MidWest        142
            NorthEast      557
            SouthEast      389
            SouthWest       26
            West           354

    Cause: 1468x1 categorical

        Values:

            Miscellaneous          24
            attack                294
            earthquake              2
            energy emergency      188
            equipment fault       156
            fire                   25
            severe storm          338
            thunder storm         201
            wind                   95
            winter storm          145

Remove Prefix or Suffix Characters from Variables

Import tabular data containing variables that have unwanted prefix and suffix characters. First, create an import options object and preview the data. Then, select the variables of interest and set their variable types and properties to remove the unwanted characters. Finally, import the data of interest.

Create import options for the file and preview the table.

filename = 'pref_suff_trim.csv';
opts = detectImportOptions(filename);
preview(filename,opts)

Warning: Column headers from the file were modified to make them valid MATLAB identifiers before creating variable names for the table. The original column headers are saved in the VariableDescriptions property.
Set 'VariableNamingRule' to 'preserve' to use the original column headers as table variable names.

ans=8×5 table
              Time                   DayOfWeek            Power         Total_Fees      Temperature
    _________________________    _________________    ______________    ___________    _____________

    {'Timestamp:1/1/06 0:00'}    {'& Sun %20'}    {'54.5448 MW'}    {'$1.23'  }    {'-7.2222 C'}
    {'Timestamp:1/2/06 1:00'}    {'& Thu %20'}    {'.3898 MW'  }    {'$300.00'}    {'-7.3056 C'}
    {'Timestamp:1/3/06 2:00'}    {'& Sun %20'}    {'51.6344 MW'}    {'£2.50'  }    {'-7.8528 C'}
    {'Timestamp:1/4/06 3:00'}    {'& Sun %20'}    {'51.5597 MW'}    {'$0.00'  }    {'-8.1778 C'}
    {'Timestamp:1/5/06 4:00'}    {'& Wed %20'}    {'51.7148 MW'}    {'¥4.00'  }    {'-8.9343 C'}
    {'Timestamp:1/6/06 5:00'}    {'& Sun %20'}    {'52.6898 MW'}    {'$0.00'  }    {'-8.7556 C'}
    {'Timestamp:1/7/06 6:00'}    {'& Mon %20'}    {'55.341 MW' }    {'$50.70' }    {'-8.0417 C'}
    {'Timestamp:1/8/06 7:00'}    {'& Sat %20'}    {'57.9512 MW'}    {'$0.00'  }    {'-8.2028 C'}

Select variables of interest, specify their types, and examine their variable import options values.

opts.SelectedVariableNames = {'Time','Total_Fees','Temperature'};
opts = setvartype(opts,'Time','datetime');
opts = setvaropts(opts,'Time','InputFormat','MM/dd/uu HH:mm'); % Specify datetime format
opts = setvartype(opts,{'Total_Fees','Temperature'},'double');
getvaropts(opts,{'Time','Total_Fees','Temperature'})

ans =
    1×3 VariableImportOptions array with properties:

   Variable Options:
                         (1) |          (2) |           (3)
            Name:     'Time' | 'Total_Fees' | 'Temperature'
            Type: 'datetime' |     'double' |      'double'
       FillValue:        NaT |          NaN |           NaN
  TreatAsMissing:         {} |           {} |            {}
  EmptyFieldRule:  'missing' |    'missing' |     'missing'
       QuoteRule:   'remove' |     'remove' |      'remove'
        Prefixes:         {} |           {} |            {}
        Suffixes:         {} |           {} |            {}

	To access sub-properties of each variable, use getvaropts

Set the Prefixes, Suffixes, and TrimNonNumeric properties of variable import options to remove 'Timestamp:' from the variable Time, remove suffix 'C' from variable Temperature, and remove all nonnumeric characters from variable Total_Fees. Preview the table with the new import options.

opts = setvaropts(opts,'Time','Prefixes','Timestamp:');
opts = setvaropts(opts,'Temperature','Suffixes','C');
opts = setvaropts(opts,'Total_Fees','TrimNonNumeric',true);
preview(filename,opts)

ans=8×3 table
         Time         Total_Fees    Temperature
    ______________    __________    ___________

    01/01/06 00:00       1.23         -7.2222
    01/02/06 01:00        300         -7.3056
    01/03/06 02:00        2.5         -7.8528
    01/04/06 03:00          0         -8.1778
    01/05/06 04:00          4         -8.9343
    01/06/06 05:00          0         -8.7556
    01/07/06 06:00       50.7         -8.0417
    01/08/06 07:00          0         -8.2028

Import the data using readtable.

T = readtable(filename,opts);

Manage Import of Empty Fields

Create an import options object for a file containing empty fields. Use the EmptyFieldRule parameter to manage the import of empty fields in your data. First, preview the data, and then set the EmptyFieldRule parameter for a specific variable. Finally, set EmptyFieldRule for all the variables and import the data.

Create an import options object for a file containing empty fields. Get the first eight rows of the table using the preview function. The default value for EmptyFieldRule is 'missing'. Therefore, the importing function treats empty fields as missing and replaces them with the FillValue value for that variable. Using VariableOptions for the third variable, preview the data. Here, the preview function imports the empty fields in the third variable as NaNs.

filename = 'DataWithEmptyFields.csv';
opts = detectImportOptions(filename);
opts.VariableOptions(3) % Display the Variable Options for the 3rd Variable

ans =
  NumericVariableImportOptions with properties:

   Variable Properties:
                  Name: 'Double'
                  Type: 'double'
             FillValue: NaN
        TreatAsMissing: {}
             QuoteRule: 'remove'
              Prefixes: {}
              Suffixes: {}
        EmptyFieldRule: 'missing'

   Numeric Options:
     ExponentCharacter: 'eEdD'
      DecimalSeparator: '.'
    ThousandsSeparator: ''
        TrimNonNumeric: 0
          NumberSystem: 'decimal'

preview(filename,opts)

ans=8×7 table
       Text       Categorical    Double     Datetime      Logical      Duration      String
    __________    ___________    ______    __________    __________    ________    __________

    {'abc'   }    {'a'     }        1      01/14/0018    {'TRUE'  }    00:00:01    {'abc'   }
    {0x0 char}    {'b'     }        2      01/21/0018    {'FALSE' }    09:00:01    {'def'   }
    {'ghi'   }    {0x0 char}        3      01/31/0018    {'TRUE'  }    02:00:01    {'ghi'   }
    {'jkl'   }    {'a'     }      NaN      02/23/2018    {'FALSE' }    03:00:01    {'jkl'   }
    {'mno'   }    {'a'     }        4             NaT    {'FALSE' }    04:00:01    {'mno'   }
    {'pqr'   }    {'b'     }        5      01/23/0018    {0x0 char}    05:00:01    {'pqr'   }
    {'stu'   }    {'b'     }        5      03/23/0018    {'FALSE' }         NaN    {'stu'   }
    {0x0 char}    {'a'     }        6      03/24/2018    {'TRUE'  }    07:00:01    {0x0 char}

Set EmptyFieldRule for the second variable in the table. First, select the variable, and then set EmptyFieldRule to 'auto'. Here, the readtable function imports empty fields of the categorical variable as <undefined>.

opts.SelectedVariableNames = 'Categorical';
opts = setvartype(opts,'Categorical','categorical');
opts = setvaropts(opts,'Categorical','EmptyFieldRule','auto');
T = readtable(filename,opts)

T=10×1 table
    Categorical
    ___________

    a
    b
    <undefined>
    a
    a
    b
    b
    a
    a
    <undefined>

Next, set the EmptyFieldRule parameter for all the variables in the table. First, update the data types of the variables appropriately. For this example, set the data type of the fifth and seventh variables to logical and string, respectively. Then, set EmptyFieldRule for all the variables to 'auto'. The importing function imports the empty fields based on data type of the variable. Here, the readtable function imports empty fields of the logical variable as 0 and empty fields of the categorical variable as <undefined>.

VariableNames = opts.VariableNames;
opts.SelectedVariableNames =  VariableNames; % select all variables
opts = setvartype(opts,{'Logical','String'},{'logical','string'});
opts = setvaropts(opts,VariableNames,'EmptyFieldRule','auto');
T = readtable(filename,opts)

T=10×7 table
       Text       Categorical    Double     Datetime     Logical    Duration     String
    __________    ___________    ______    __________    _______    ________    _________

    {'abc'   }    a                 1      01/14/0018     true      00:00:01    "abc"
    {0x0 char}    b                 2      01/21/0018     false     09:00:01    "def"
    {'ghi'   }    <undefined>       3      01/31/0018     true      02:00:01    "ghi"
    {'jkl'   }    a               NaN      02/23/2018     false     03:00:01    "jkl"
    {'mno'   }    a                 4             NaT     false     04:00:01    "mno"
    {'pqr'   }    b                 5      01/23/0018     false     05:00:01    "pqr"
    {'stu'   }    b                 5      03/23/0018     false          NaN    "stu"
    {0x0 char}    a                 6      03/24/2018     true      07:00:01    ""
    {0x0 char}    a                 7      03/25/2018     true      08:00:01    <missing>
    {'xyz'   }    <undefined>     NaN             NaT     true      06:00:01    "xyz"

In addition to 'missing' and 'auto', you can also set the EmptyFieldRule parameter to 'error'. When you set it to 'error', the readtable function imports empty fields by following the procedure specified in the ImportErrorRule parameter.

Input Arguments

opts — File import options

SpreadsheetImportOptions | DelimitedTextImportOptions | FixedWidthImportOptions

File import options, specified as a SpreadsheetImportOptions, DelimitedTextImportOptions, or a FixedWidthImportOptions object created by the detectImportOptions function. The opts object contains properties that control the data import process, such as variable properties, data location properties, replacement rules, and others.

selection — Selected variables

character vector | string scalar | cell array of character vector | string array | array of indices | logical array

Selected variables, specified as a character vector, string scalar, cell array of character vectors, string array, array of numeric indices, or a logical array.

Variable names (or indices) must be a subset of the names contained in the VariableNames property of the opts object.

Example: 'Height'

Example: {'Height','LastName'}

Example: [5 9]

Data Types: char | string | cell | uint64 | logical

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: opts = setvaropts(opts,'Weight','FillValue',0) sets the FillValue for the variable Weight to 0.

Common Options for All Variable Types

Type — Data type of variables

'char' | 'string' | 'single' | 'double' | 'int8' | 'int16' | ...

Data type of variables, specified as a data type listed in the table.

Data Type	Description
'char' 'string'	Text.
'single' 'double'	Single- or double-precision floating point numbers.
'int8', 'int16', 'int32', 'int64' 'uint8', 'uint16', 'uint32', 'uint64'	Signed or unsigned integers, stored as 8-, 16-, 32-, or 64-bit integers. The integer data types do not define values corresponding to the floating-point numbers NaN, -Inf, and +Inf. Therefore when you import floating-point data as an array of integers, the importing function converts the undefined floating-point numbers: NaN is converted to 0. -Inf is converted to the smallest integer for the specified integer data type using the intmin function. +Inf is converted to the largest integer for the specified integer data type using the intmax function.
'logical'	True or false values (for example, true, false, 1, or 0).
'datetime'	Dates and times that specify points in time (for example, 2019-12-10 09:12:56 specifying December 10, 2019, 9:12:56 a.m.).
'duration'	Lengths of time (for example, 05:13:45 specifying 5 hours, 13 minutes, and 45 seconds).
'categorical'	Numeric or text data that specify categories (for example, 'red', 'green', and 'blue' specifying the names of three categories).

FillValue — Replacement value for missing data

character vector | string scalar | scalar numeric value | true | false

Replacement value for missing data, depending on the type of the variable, specified as a character vector, string scalar, scalar numeric, or a logical value true or false.

Type of Variable	Description
Text	Replacement text specified as a character vector or string scalar. Example: 'not applicable'
Numeric	Scalar numeric to replace missing instances The importing function converts the input for FillValue to the data type specified by the Type property of the variable. For example, if Type property value is uint8, then the importing function also converts the value of the FillValue property to uint8. Example: 0
Logical	true or false. Example: false
Datetime	Character vector or string scalar, or a scalar value representing date and time data. For more information on valid datetime inputs, see the datetime function page. Example: 'now' sets the missing datetime instances to the current date and time. Example: [1998 12 1] sets the missing datetime instances to the date December 1st, 1998.
Duration	Character vector or string scalar, or a scalar value representing duration data. For more information on valid duration inputs, see the duration function page. Example: '12:30:16' sets the missing duration instances to the duration of 12 hours, 30 minutes, and 16 seconds.
Categorical	Character vector or string scalar containing the name to use for the replacement category. Example: 'Miscellaneous' assigns the category name Miscellaneous to missing instances in the categorical data.

To direct the import of data that is missing, unconvertible, or that causes errors, use these four properties together: FillValue, TreatAsMissing, MissingRule, and ErrorRule. The importing function uses the value specified in the FillValue property when:

• Data is unconvertible or matches a value in TreatAsMissing.

• MissingRule or the ErrorRule is set to fill.

TreatAsMissing — Text to interpret as missing data

character vector | string scalar | cell array of character vectors | string array

Text to interpret as missing data, specified as a character vector, string scalar, cell array of character vectors, or string array.

When the importing function finds missing instances, it uses the specification in the MissingRule property to determine the appropriate action.

Example: 'TreatAsMissing',{'NA','TBD'} instructs the importing function to treat any occurrence of NA or TBD as a missing fields.

Data Types: char | string | cell

QuoteRule — Process to manage double quotation marks

'remove' | 'keep' | 'error'

Process to manage double quotation marks in the data, specified as one of the values in this table.

Quote Rule	Process
'remove'	After removing leading white space, if double quotes (") surround characters, then the importing function removes both the opening double quote and the next occurring double quote, which would be interpreted as the closing double quote. Example: "The" Example Text is imported as The Example Text. Example: The "Example" Text is imported as The "Example" Text. If two sets of double quotes ("") surround characters, then the importing function removes the first two occurrences. Example: ""abc"" is imported as abc"". Example: "The" "Example" Text is imported as The "Example" Text. Example: The "Example" "Text" is imported as The "Example" "Text". If a pair of opening and closing quotes surrounding characters is followed by a single lone unpaired double quotes, then the importing function ignores the lone unpaired double quote. Example: "abc"" is imported as abc". Example: "abc"def" is imported as abcdef". Escaped double quotes within an outer pair of double quotes will be replaced with singular double quotes. Example: "The ""Example"" ""Text""" is imported as The "Example" "Text".
'keep'	Retain all quotation marks.
'error'	Report an error when converting data which begins with a double quotation mark ("). Use this setting if the field should never be quoted.

Data Types: char | string

EmptyFieldRule — Procedure to manage empty fields

'missing' (default) | 'error' | 'auto'

Procedure to manage empty fields in the data, specified as one of these values:

• 'missing' — Treat empty fields as missing values and follow the procedure specified in the MissingRule property.

• 'error' — Treat empty fields as import errors and follow the procedure specified in the ImportErrorRule property.

• 'auto' — Import empty fields based on the data type of the variable. Import an empty text value as an empty (zero length) character vector or string. Import an empty categorical value as an undefined categorical value. Import all other data types using the procedure specified by the ImportErrorRule property.

Example: opts = setvaropts(opts,'RestorationTime','EmptyFieldRule','auto');

Data Types: char | string

Prefixes — Text to remove from prefix position

character vector | cell array of character vectors | string scalar | string array

Text to remove from the prefix position of a variable value, specified as a character vector, cell array of character vectors, string scalar, or string array.

Example: opts = setvaropts(opts,'Var1','Prefixes','$') sets the Prefixes option for the variable Var1. If Var1 contains a value of '$500', then readtable reads it as '500'.

Data Types: char | string | cell

Suffixes — Text to remove from suffix position

character vector | cell array of character vectors | string scalar | string array

Text to remove from the suffix position of a variable value, specified as a character vector, cell array of character vectors, string scalar, or string array.

Example: opts = setvaropts(opts,'Var1','Suffixes','/-') sets the Suffixes option for the variable Var1. If Var1 contains a value of '$500/-' , then readtable reads it as '$500'.

Data Types: char | string | cell

Text Variable Options

WhiteSpaceRule — Procedure to manage leading and trailing white spaces

'trim' (default) | 'trimleading' | 'trimtrailing' | 'preserve'

Procedure to manage leading and trailing white spaces when importing text data, specified as one of the values in the table.

White Space Rule	Process
'trim'	Remove any leading or trailing white spaces from the text. Interior white space is unaffected. Example: ' World Time ' is imported as 'World Time'
'trimleading'	Remove only the leading white spaces. Example: ' World Time ' is imported as 'World Time '
'trimtrailing'	Remove only the trailing white spaces. Example: ' World Time ' is imported as ' World Time'
'preserve'	Preserve white spaces. Example: ' World Time ' is imported as ' World Time '

Data Types: char | string

Numeric Variable Options

ExponentCharacter — Characters indicating exponent

character vector | string scalar

Characters indicating the exponent, specified as a character vector or string scalar. The importing function uses the ExponentCharacter property to recognize the characters indicating the exponent for a number expressed in the scientific notation.

Example: If varOpts.ExponentCharacter = 'a', then the importing function imports the text "1.2a3" as the number 1200.

Data Types: char | string

DecimalSeparator — Characters indicating decimal separator

character vector | string scalar

Characters indicating the decimal separator in numeric variables, specified as a character vector or string scalar. The importing function uses the characters specified in the DecimalSeparator name-value pair to distinguish the integer part of a number from the decimal part.

When converting to integer data types, numbers with a decimal part are rounded to the nearest integer.

Example: If name-value pair is specified as 'DecimalSeparator',',', then the importing function imports the text "3,14159" as the number 3.14159.

Data Types: char | string

ThousandsSeparator — Characters that indicate thousands grouping

character vector | string scalar

Characters that indicate the thousands grouping in numeric variables, specified as a character vector or string scalar. The thousands grouping characters act as visual separators, grouping the number at every three place values. The importing function uses the characters specified in the ThousandsSeparator name-value pair to interpret the numbers being imported.

Example: If name-value pair is specified as 'ThousandsSeparator',',', then the importing function imports the text "1,234,000" as 1234000.

Data Types: char | string

TrimNonNumeric — Remove nonnumeric characters

false (default) | true

Remove nonnumeric characters from a numeric variable, specified as a logical true or false.

Example: If name-value pair is specified as 'TrimNonNumeric',true, then the importing function reads '$500/-' as 500.

Data Types: logical

NumberSystem — System for interpreting numeric variables

'decimal' (default) | 'hex' | 'binary'

System for interpreting numeric variables, specified as 'decimal', 'hex', or 'binary'.

Value of 'NumberSystem'	Description
'decimal'	Treats input numeric variables as having decimal values. Interprets values as having the data type specified by the 'Type' name-value pair, or 'double' if 'Type' is not specified.
'hex'	Treats input numeric variables as having hexadecimal (base-16) values. Input values can have '0x' or '0X' as prefixes, but the prefixes are not required. Interprets values as having the integer data type specified by the 'Type' name-value pair.
'binary'	Treats input numeric variables as having binary (base-2) values. Input values can have '0b' or '0B' as prefixes, but the prefixes are not required. Interprets values as having the integer data type specified by the 'Type' name-value pair.

Logical Variable Options

TrueSymbols — Text to treat as logical value true

character vector | string scalar | cell array of character vectors | string array

Text to treat as the logical value true, specified as a character vector, string scalar, cell array of character vectors, or a string array.

Example: If varOpts.TrueSymbols = {'t','TRUE'}, then the importing function imports any fields containing t or TRUE as the logical value true.

Data Types: char | string | cell

FalseSymbols — Text to treat as logical value false

character vector | string scalar | cell array of character vectors | string array

Text to treat as the logical value false, specified as a character vector, string scalar, cell array of character vectors, or a string array.

Example: If varOpts.FalseSymbols = {'f','FALSE'}, then the importing function imports any fields containing f or FALSE as the logical value false.

Data Types: char | string | cell

CaseSensitive — Indicator to match case

true | false

Indicator to match case, specified as a logical value true or false.

To interpret the input data as missing, true, or false, the importing function matches the data to values specified in TreatAsMissing, TrueSymbols, and FalseSymbols.

Datetime Variable Options

DatetimeFormat — Display format

'default' | 'defaultdate' | 'preserveinput' | custom format | character vector | string scalar

Display format, specified as a character vector or string scalar. The DatetimeFormat property controls the display format of dates and times in the output. Specify DatetimeFormat as one of these values.

Value of DatetimeFormat	Description
'default'	Use the default display format.
'defaultdate'	Use the default display format for datetime values created without time components.
'preserveinput'	Use the format specified by the input format, InputFormat.
Custom formats	Use the letters A-Z and a-z to construct a custom value for DatetimeFormat. These letters correspond to the Unicode® Locale Data Markup Language (LDML) standard for dates. You can include non-ASCII or nonletter characters such as a hyphen, space, or colon to separate the fields. To include the letters A-Z and a-z as literal characters in the format, enclose them with single quotes.

The factory default format depends on your system locale. To change the default display format, see Default datetime Format.

Data Types: char | string

InputFormat — Format of input text

character vector | string scalar

Format of the input text representing dates and times, specified as a character vector or string scalar that contains letter identifiers.

This table shows several common input formats and examples of the formatted input for the date, Saturday, April 19, 2014 at 9:41:06 PM in New York City.

Value of InputFormat	Example
'yyyy-MM-dd'	2014-04-19
'dd/MM/yyyy'	19/04/2014
'dd.MM.yyyy'	19.04.2014
'yyyy年 MM月 dd日'	2014年 04月 19日
'MMMM d, yyyy'	April 19, 2014
'eeee, MMMM d, yyyy h:mm a'	Saturday, April 19, 2014 9:41 PM
'MMMM d, yyyy HH:mm:ss Z'	April 19, 2014 21:41:06 -0400
'yyyy-MM-dd''T''HH:mmXXX'	2014-04-19T21:41-04:00

For a complete list of valid letter identifiers, see the Format property for datetime arrays.

Example: 'InputFormat','eeee, MMMM d, yyyy HH:mm:ss'

Data Types: char | string

DatetimeLocale — Locale to interpret dates

character vector | string scalar

Locale to interpret dates, specified as a character vector or string scalar. The DatetimeLocale value determines how the importing function interprets text that represents dates and times.

Set the DatetimeLocale to one of these values:

• 'system' — Specify your system locale.

• Character vector or string scalar — Use the form xx_YY, where xx is a lowercase ISO 639-1 two-letter code that specifies a language, and YY is an uppercase ISO 3166-1 alpha-2 code that specifies a country.

This table lists some common values for the locale.

Locale	Language	Country
'de_DE'	German	Germany
'en_GB'	English	United Kingdom
'en_US'	English	United States
'es_ES'	Spanish	Spain
'fr_FR'	French	France
'it_IT'	Italian	Italy
'ja_JP'	Japanese	Japan
'ko_KR'	Korean	Korea
'nl_NL'	Dutch	Netherlands
'zh_CN'	Chinese (simplified)	China

Example: varOpts.DatetimeLocale = 'de_DE' sets the date time locale to German.

Note

The Locale value determines how input values are interpreted. The display format and language is specified by the Locale option in the Datetime format section of the Preferences window. To change the default datetime locale, see Set Command Window Preferences.

Data Types: char | string

TimeZone — Time zone

'' (default) | character vector | string scalar

Time zone, specified as a character vector or string scalar. The value of TimeZone specifies the time zone that the importing function uses to interpret the input data. TimeZone also specifies the time zone of the output array. If the input data are character vectors that include a time zone, then the importing function converts all values to the specified time zone.

TimeZone use any of these values:

• '', to create “unzoned” datetime values that do not belong to a specific time zone.

• A time zone region from the IANA Time Zone Database; for example, 'America/Los_Angeles'. The name of a time zone region accounts for the current and historical rules for standard and daylight offsets from UTC that are observed in a geographic region.

• An ISO 8601 character vector of the form +HH:mm or -HH:mm. For example, '+01:00', specifies a time zone that is a fixed offset from UTC.

• 'UTC', to create datetime values in Coordinated Universal Time.

• 'UTCLeapSeconds', to create datetime values in Coordinated Universal Time that account for leap seconds.

This table lists some common names of time zone regions from the IANA Time Zone Database.

Value of TimeZone	UTC Offset	UTC DST Offset
'Africa/Johannesburg'	+02:00	+02:00
'America/Chicago'	−06:00	−05:00
'America/Denver'	−07:00	−06:00
'America/Los_Angeles'	−08:00	−07:00
'America/New_York'	−05:00	−04:00
'America/Sao_Paulo'	−03:00	−02:00
'Asia/Hong_Kong'	+08:00	+08:00
'Asia/Kolkata'	+05:30	+05:30
'Asia/Tokyo'	+09:00	+09:00
'Australia/Sydney'	+10:00	+11:00
'Europe/London'	+00:00	+01:00
'Europe/Zurich'	+01:00	+02:00

Datetime arrays with no specified TimeZone cannot be compared or combined with arrays that have their TimeZone property set to a specific time zone.

Data Types: char | string

Categorical Variable Options

Categories — Expected categories

cell array of character vectors | string array

Expected categories, specified as a cell array of character vectors or string array containing a list of category names.

Names in the input fields must match one of the names specified in the Categories property to avoid a conversion error.

Example: varOpts.Categories = {'BareLand','Forest','Water','Roads','Buildings'};

Protected — Category protection indicator

true | false

Category protection indicator, specified as a logical true or false. The categories of ordinal categorical arrays are always protected. If the Ordinal property is set to true, then the default value for Protected is true. Otherwise, the value for Protected is false. For more information on categorical arrays, see the categorical function reference page.

Ordinal — Mathematical ordering indicator

false (default) | true | 0 | 1

Mathematical ordering indicator, specified as either false, true, 0, or 1. For more information on categorical arrays, see the categorical function reference page.

Duration Variable Options

InputFormat — Format of input text

character vector | string scalar

Format of the input text representing duration data, specified as a character vector or string array.

Specify InputFormat as any of the following formats, where dd, hh, mm, and ss represent days, hours, minutes, and seconds, respectively:

• 'dd:hh:mm:ss'

• 'hh:mm:ss'

• 'mm:ss'

• 'hh:mm'

• Any of the first three formats, with up to nine S characters to indicate fractional second digits, such as 'hh:mm:ss.SSSS'

Example: varOpts.InputFormat = 'dd:hh:mm:ss'

Data Types: char | string

DurationFormat — Display format for duration data

character vector | string scalar

Display format for duration data, specified as a character vector or string scalar.

For numbers with time units, specify one of these values:

• 'y' — Fixed-length years, where 1 year equals 365.2425 days

• 'd' — Fixed-length days, where 1 day equals 24 hours

• 'h' — Hours

• 'm' — Minutes

• 's' — Seconds

For the digital timer, specify one of these formats:

• 'dd:hh:mm:ss'

• 'hh:mm:ss'

• 'mm:ss'

• 'hh:mm'

• Any of the first three formats, with up to nine S characters to indicate fractional second digits, such as 'hh:mm:ss.SSSS'

Example: DurationFormat can be either a single number with time units (such as 0.5 yr) or a digital timer (such as 10:30:15 for 10 hours, 30 minutes, and 15 seconds).

Data Types: char | string

DecimalSeparator — Characters separating fractional seconds

. (default) | character vector | string scalar

Characters separating fractional seconds, specified as a character vector or string scalar. The importing function uses the DecimalSeparator property to distinguish the integer part of the duration value from the fractional seconds part.

Data Types: char | string

FieldSeparator — Characters indicating field separation

: (default) | character vector | string scalar

Characters indicating field separation in the duration data, specified as a character vector or string scalar.

Data Types: char | string

Version History

Introduced in R2016b
