# streamparticles

Plot stream particles

## Syntax

```streamparticles(vertices) streamparticles(vertices,n) streamparticles(...,'PropertyName',PropertyValue,...) streamparticles(ax,...) streamparticles(line_handle,...) h = streamparticles(...) ```

## Description

`streamparticles(vertices)` draws stream particles of a vector field. Stream particles are usually represented by markers and can show the position and velocity of a streamline. `vertices` is a cell array of 2-D or 3-D vertices (as if produced by `stream2` or `stream3`).

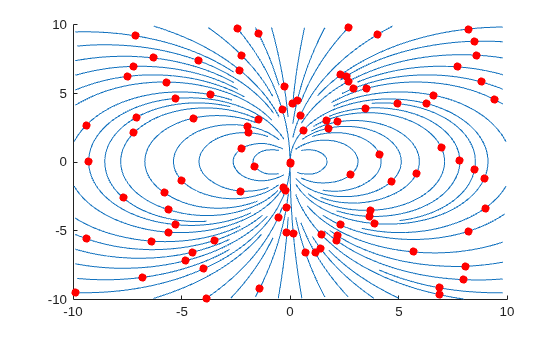

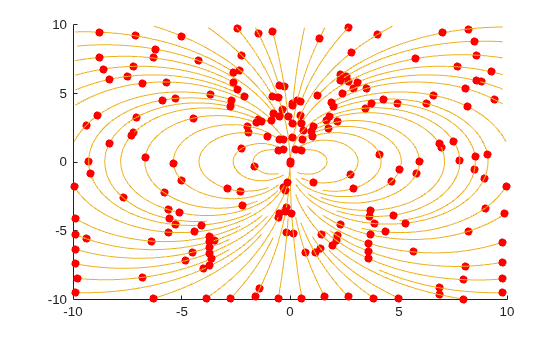

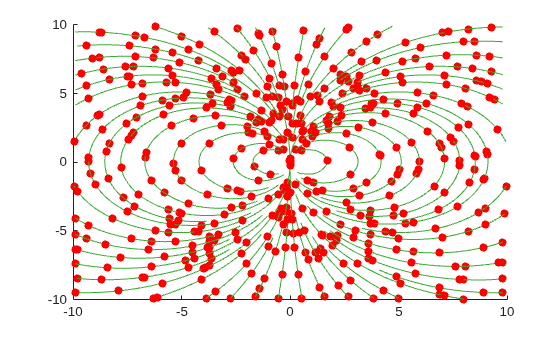

`streamparticles(vertices,n)` uses `n` to determine how many stream particles to draw. The `ParticleAlignment` property controls how `n` is interpreted.

• If `ParticleAlignment` is set to `off` (the default) and `n` is greater than `1`, approximately `n` particles are drawn evenly spaced over the streamline vertices.

If `n` is less than or equal to `1`, `n` is interpreted as a fraction of the original stream vertices; for example, if `n` is `0.2`, approximately 20% of the vertices are used.

`n` determines the upper bound for the number of particles drawn. The actual number of particles can deviate from `n` by as much as a factor of 2.

• If `ParticleAlignment` is `on`, `n` determines the number of particles on the streamline having the most vertices and sets the spacing on the other streamlines to this value. The default value is `n = 1`.

`streamparticles(...,'PropertyName',PropertyValue,...)` controls the stream particles using named properties and specified values. Any unspecified properties have default values. MATLAB® ignores the case of property names.

`streamparticles(ax,...)` creates the stream particles in the axes specified by `ax` instead of in the current axes (`gca`). The option `ax` can precede any of the input argument combinations in the previous syntaxes.

### Stream Particle Properties

`Animate` — Stream particle motion [nonnegative integer]

The number of times to animate the stream particles. The default is `0`, which does not animate. `Inf` animates until you enter Ctrl+C.

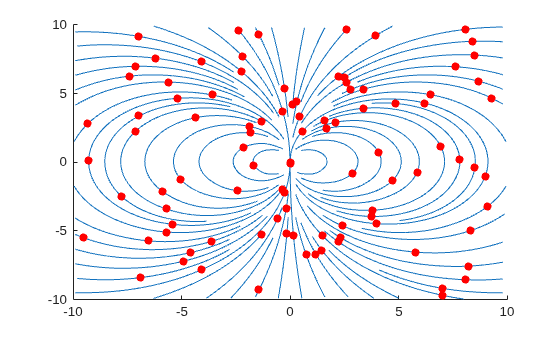

`FrameRate` — Animation frames per second [nonnegative integer]

This property specifies the number of frames per second for the animation. `Inf`, the default, draws the animation as fast as possible. Note that the speed of the animation might be limited by the speed of the computer. In such cases, the value of `FrameRate` cannot necessarily be achieved.

`ParticleAlignment` — Align particles with streamlines [ `on` | `{off}` ]

Set this property to `on` to draw particles at the beginning of each streamline. This property controls how `streamparticles` interprets the argument `n` (number of stream particles).

Stream particles are primitive line objects. In addition to stream particle properties, you can specify any line property, such as `Marker`. `streamparticles` sets the following line properties when called.

Line Property

Value Set by streamparticles

`LineStyle``'none'`
`Marker``'o'`
`MarkerEdgeColor``'none'`
`MarkerFaceColor``'red'`

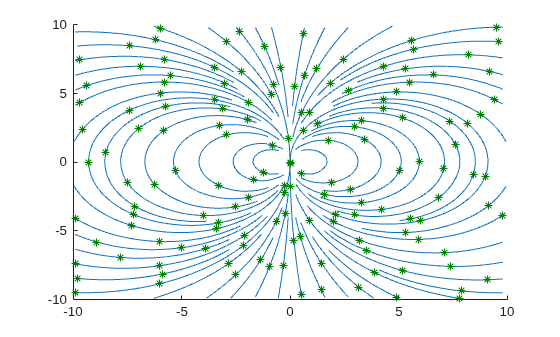

You can override any of these properties by specifying a property name and value as arguments to `streamparticles`. For example, this statement uses RGB values to set the `MarkerFaceColor` to medium gray:

```streamparticles(vertices,'MarkerFaceColor',[.5 .5 .5]) ```

`streamparticles(line_handle,...)` uses the line object identified by `line_handle` to draw the stream particles.

`h = streamparticles(...)` returns a vector of handles to the primitive line objects it creates. For a list of properties, see Line Properties.

## Examples

collapse all

This example uses streamlines in the `z = 5` plane to animate the flow along these lines with stream particles.

```load wind figure daspect([1,1,1]); view(2) [verts,averts] = streamslice(x,y,z,u,v,w,[],[],5); sl = streamline([verts averts]); axis tight manual off; set(sl,'Visible','off') iverts = interpstreamspeed(x,y,z,u,v,w,verts,.05); zlim([4.9,5.1]); streamparticles(iverts, 200, ... 'Animate',15,'FrameRate',40, ... 'MarkerSize',10,'MarkerFaceColor',[0 .5 0])```

## Version History

Introduced before R2006a
