Create coupled microstrip transmission line
coupledMicrostripLine object to create a coupled
microstrip transmission line. Coupled microstrip transmission lines are used to design
directional couplers and filters. The combination of even and odd mode impedances determines
the coupling ratio between the direct arm and the coupled arm.
coupledmicrostrip = coupledMicrostripLine creates a default
coupled microstrip transmission line with a Teflon substrate. The default properties are
for a resonating frequency of 1.5 GHz.
Length — Length of coupled microstrip line
0.0271 (default) | positive scalar
Length of the coupled microstrip line in meters, specified as a positive scalar.
Width — Width of coupled microstrip line
0.0051 (default) | positive scalar
Width of the coupled microstrip line in meters, specified as a positive scalar.
Spacing — Distance between the direct arm and the coupled arm
0.0046 (default) | positive scalar
Distance between the direct arm and the coupled arm of the coupled microstrip transmission line, specified as a positive scalar in meters.
Height — Height of coupled microstrip line
0.0016 (default) | positive scalar
Height of the coupled microstrip line from the ground plane, specified as a positive
scalar in meters. In the case of a multilayer substrate, use the
Height property to create a coupled microstrip line at the
interface of the two dielectrics.
GroundPlaneWidth — Width of ground plane
0.0300 (default) | positive scalar
Width of the ground plane in meters, specified as a positive scalar.
Substrate — Type of dielectric material
''Teflon'' (default) |
Type of the dielectric material used as a substrate, specified as a
object. The thickness of the default dielectric material Teflon is
0.0016 m or the same as the
d = dielectric("FR4");
coupledmicrostrip = coupledMicrostripLine(Substrate=d)
Conductor — Type of metal used in conducting layers
''PEC'' (default) |
Type of metal used in the conducting layers, specified as a
m = metal("PEC");
|Calculate and plot charge distribution|
|Calculate and plot current distribution|
|Design coupled microstrip transmission line around particular frequency|
|Calculate current at feed port|
|Calculate characteristic impedance of transmission line|
|Plot all metal layers and board shape|
|Change and view mesh properties of metal or dielectric in PCB component|
|Extract all metal layer shapes of PCB component|
|Display PCB component structure or PCB shape|
|Calculate S-parameters for RF PCB objects|
Default Coupled Microstrip Line
Create a default coupled microstrip line.
cml = coupledMicrostripLine
cml = coupledMicrostripLine with properties: Length: 0.0271 Width: 0.0051 Spacing: 0.0046 Height: 0.0016 GroundPlaneWidth: 0.0300 Substrate: [1x1 dielectric] Conductor: [1x1 metal]

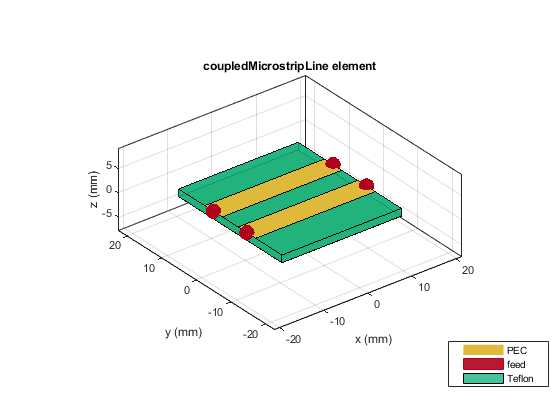

View the coupled microstrip line.
Multilayer Coupled Microstrip Line

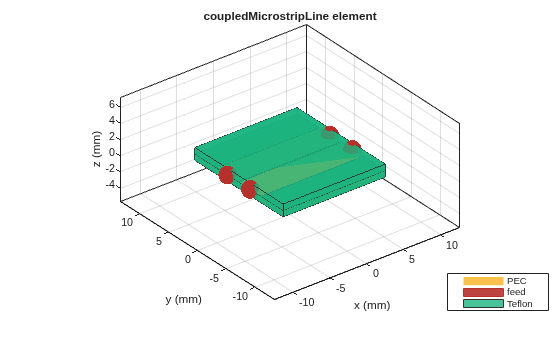

Design and view a coupled microstrip line at the interface of a multilayer dielectric.
cml = design(coupledMicrostripLine,4e9,Z0e=75,Z0o=36); cml.Substrate = dielectric(Name=["Teflon","Teflon"],EpsilonR=[2.1 2.1], ... LossTangent=[0 0],Thickness=[0.8e-3 0.8e-3]); cml.Height = 0.8e-3; show(cml)

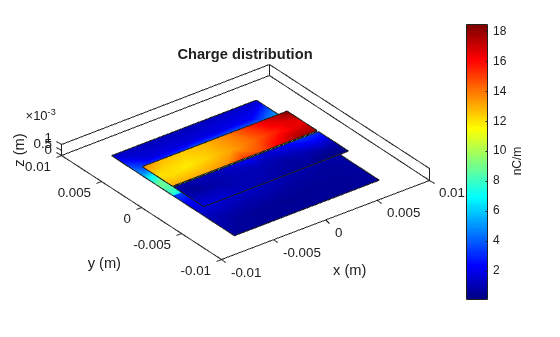

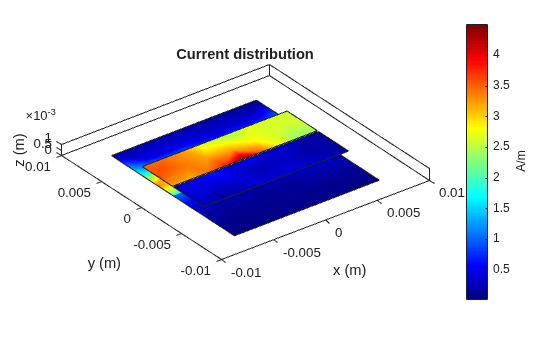

Plot the current and charge distribution on the transmission line.
design function to change the even
Zoe) and the odd impedance
Zoo) of the coupled microstrip line.
Increasing the difference between the even impedance (
Zoe) and the odd impedance (
Zoo) decreases the distance between the lines.
Increasing the difference between
Zooincreases the power at the coupled ports.
The impedance of the coupled lines
Zois the geometric mean of
Zoo. If the even and odd impedance values do not satisfy this condition, then calculate the S-parameters using
Zoto get a proper match.
 Pozar, David M. Microwave Engineering. 4th ed. Hoboken, NJ: Wiley, 2012.
 “Microwaves101 | Coupled Line Couplers.” Accessed July 7, 2021. https://www.microwaves101.com/encyclopedias/coupled-line-couplers.
Introduced in R2021b
