trim

Find trim point of dynamic system

The trim function provides only basic trimming functionality. For full trimming functionality, use Simulink^® Control Design™ software. For more information, see Compute Steady-State Operating Points (Simulink Control Design).

Syntax

[x,u,y,dx] = trim(sys)

[x,u,y,dx] = trim(sys,x0,u0,y0)

[x,u,y,dx] = trim(sys,x0,u0,y0,ix,iu,iy)

[x,u,y,dx] = trim(sys,x0,u0,y0,ix,iu,iy,dx0,idx)

[x,u,y,dx,options] = trim(sys,x0,u0,y0,ix,iu,iy,dx0,idx,options)

[x,u,y,dx,options] = trim(sys,x0,u0,y0,ix,iu,iy,dx0,idx,options,t)

Description

The trim function starts from an initial point and searches using a sequential quadratic programming algorithm until it finds the nearest trim point. You must supply the initial point implicitly or explicitly. If the trim function cannot find a trim point, the function returns the point encountered in its search where the state derivatives are closest to zero in a min-max sense. In other words, the function returns the point that minimizes the maximum deviation from zero of the derivatives. The trim function can find trim points that meet specific input, output, or state conditions, and the function can find points where a system is changing in a specified manner, that is, points where the system state derivatives equal specific nonzero values.

Caution

When you use the trim function to find a trim point near a specified initial operating point, the trim function returns only a local value. Other, more suitable trim points might exist. To find the most suitable trim point for a particular application, as a best practice, try a number of initial guesses for the initial state, input, and output values.

[x,u,y,dx] = trim(sys) finds the equilibrium point of the model specified by sys nearest to the initial state, x0. Specifically, the trim function finds the equilibrium point that minimizes the maximum absolute value of [x-x0,u,y]. If trim cannot find an equilibrium point near the system's initial state, it returns the point at which the system is nearest to equilibrium. Specifically, it returns the point that minimizes abs(dx), where dx represents the derivative of the system. You can obtain x0 using this command: [sizes,x0,xstr] = sys([],[],[],0).

[x,u,y,dx] = trim(sys,x0,u0,y0) finds the trim point nearest to the x0, u0, y0, which is the point that minimizes the maximum value of abs([x-x0; u-u0; y-y0]).

[x,u,y,dx] = trim(sys,x0,u0,y0,ix,iu,iy) finds the trim point closest to x0, u0, y0 that satisfies a specified set of state, input, and/or output conditions. The integer vectors ix, iu, and iy select the values in x0, u0, and y0 that must be satisfied. If the trim function cannot find an equilibrium point that satisfies the specified set of conditions exactly, it returns the nearest point that satisfies the conditions, namely, abs([x(ix)-x0(ix); u(iu)-u0(iu); y(iy)-y0(iy)]).

[x,u,y,dx] = trim(sys,x0,u0,y0,ix,iu,iy,dx0,idx) finds specific nonequilibrium points, that is, points at which the system's state derivatives have some specified nonzero value. Here, dx0 specifies the state derivative values at the search's starting point and idx selects the values in dx0 that the search must satisfy exactly.

[x,u,y,dx,options] = trim(sys,x0,u0,y0,ix,iu,iy,dx0,idx,options) specifies an array of optimization parameters that the trim function passes to the optimization function that it uses to find trim points. The optimization function, in turn, uses this array to control the optimization process and to return information about the process. The trim function returns the options array at the end of the search process. By exposing the underlying optimization process in this way, the trim function allows you to monitor and fine-tune the search for trim points.

[x,u,y,dx,options] = trim(sys,x0,u0,y0,ix,iu,iy,dx0,idx,options,t) sets the time to t if the system is dependent on time.

If you fix any of the state, input, or output values, the trim function uses the unspecified free variables to derive the solution that satisfies the specified constraints.

Examples

Find Equilibrium Point

Open the example model named EquilibriumPoints that models a linear state-space system by using a State-Space block.

sys = "EquilibriumPoints";
open_system(sys)

The State-Space block specifies these matrices:

• A = [-0.09 -0.01;1 0]

• B = [0 -7;0 -2]

• C = [0 2;1 -5]

• D = [-3 0; 1 0]

To find an equilibrium point in the model, call the trim function and specify only the model name as an input argument.

[x,u,y,dx,options] = trim(sys)

x = 2×1

     0
     0

u = 2×1

     0
     0

y = 2×1

     0
     0

dx = 2×1

     0
     0

options = 1×18

         0    0.0001    0.0001    0.0000         0         0    1.0000         0         0    7.0000    2.0000         0    2.0000  500.0000         0    0.0000    0.1000    1.0000

Find Steady-State Points

The Simulink® trim function uses a model to determine steady-state points of a dynamic system that satisfy specified input, output, and state conditions.

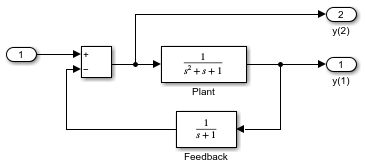

Open the example model named SteadyStatePoints.

sys = "SteadyStatePoints";
open_system(sys)

To find the values of the input and the states that result in a value of 1 for both output values, use the trim function.

Create variables named x and u to store values that represent initial guesses of the state variable values and input values, respectively. Then, create a variable named y to store the desired output value.

x = [0; 0; 0];
u = 0;
y = [1; 1];

Create index variables to specify which variables are fixed and which can vary. To specify that the state and input values can vary, assign an empty matrix ([]) to the index variables ix and iu. To specify that the output values are fixed, specify the value of the index variable iy as [1;2].

ix = [];      % Don't fix any of the states
iu = [];      % Don't fix the input
iy = [1;2];   % Fix both output 1 and output 2

To find the values of states and inputs that result in the desired output value, call the trim function. The values the trim function returns might differ due to rounding error.

[x,u,y,dx] = trim(sys,x,u,y,ix,iu,iy)

x = 3×1

   -0.0000
    1.0000
    1.0000

u =
2

y = 2×1

    1.0000
    1.0000

dx = 3×1
10-15 ×

    0.1110
   -0.0000
   -0.1110

Equilibrium point problems might not have a solution. In that case, the trim function first tries setting the derivatives to 0 and then returns a solution that minimizes the maximum deviation from the desired result.

Find Equilibrium Point Near Operating Point

Open the example model named EquilibriumPoints that models a linear state-space system by using a State-Space block.

sys = "EquilibriumPoints";
open_system(sys)

The State-Space block specifies these matrices:

• A = [-0.09 -0.01;1 0]

• B = [0 -7;0 -2]

• C = [0 2;1 -5]

• D = [-3 0; 1 0]

To find an equilibrium point near an operating point defined by state and input values, call the trim function and specify additional input arguments that contain the state and input values to define the operating point.

x0 = [1;1];
u0 = [1;1];
[x,u,y,dx,options] = trim(sys,x0,u0)

x = 2×1
10-13 ×

   -0.5751
   -0.5744

u = 2×1

    0.3333
   -0.0000

y = 2×1

   -1.0000
    0.3333

dx = 2×1
10-12 ×

    0.2195
    0.0036

options = 1×18

         0    0.0001    0.0001    0.0000         0         0    1.0000    1.0000         0   25.0000    5.0000         0    2.0000  500.0000         0    0.0000    0.1000    1.0000

Check the options return argument to see the number of iterations required to identify the equilibrium point near the specified operating point.

options(10)

ans =
25

To find an equilibrium point at which both output values are fixed, specify additional input arguments to indicate the target output value and that the output values are fixed.

y = [1;1];
iy = [1;2];
[x,u,y,dx] = trim(sys,[],[],y,[],[],iy)

x = 2×1

    0.0009
   -0.3075

u = 2×1

   -0.5383
    0.0004

y = 2×1

    1.0000
    1.0000

dx = 2×1
10-16 ×

   -0.0260
    0.4348

To find an equilibrium point with specified derivative values at which both outputs are fixed, specify additional input arguments for the derivative values, the target output value, and that the output values are fixed.

y = [1;1];
iy = [1;2];
dx = [0;1];
idx = [1;2];
[x,u,y,dx,options] = trim(sys,[],[],y,[],[],iy,dx,idx)

x = 2×1

    0.9752
   -0.0827

u = 2×1

   -0.3884
   -0.0124

y = 2×1

    1.0000
    1.0000

dx = 2×1

     0
     1

options = 1×18

         0    0.0001    0.0001    0.0000         0         0    1.0000         0         0   13.0000    3.0000         0    2.0000  500.0000         0    0.0000    0.1000    1.0000

Check the options return argument to see the number of iterations required to identify the equilibrium point near the specified operating point.

options(10)

ans =
13

Input Arguments

sys — Simulink model

string | character vector

Simulink model, specified as a string or character vector.

Data Types: char | string

x0 — Initial guesses for state variable values

[] (default) | vector

Initial guesses for state variable values, specified as a vector.

u0 — Initial guesses for input values

[] (default) | scalar | vector

Initial guesses for input values, specified as a scalar or vector.

y0 — Desired output value

[] (default) | vector

Desired output value, specified as a vector.

ix — Index variable that specifies fixed states

[] (default) | integer vector

Index variable that specifies fixed states, specified as an integer vector.

To specify that the values can vary, specify an empty matrix ([]).

iu — Index variable that specifies fixed inputs

[] (default) | integer vector

Index variable that specifies fixed inputs, specified as an integer vector.

To specify that the values can vary, specify an empty matrix ([]).

iy — Index variable that specifies fixed outputs

[] (default) | integer vector

Index variable that specifies fixed outputs, specified as an integer vector.

To specify that the values can vary, specify an empty matrix ([]).

dx0 — State derivative values at start of search

[] (default) | vector

State derivative values at start of search, specified as a vector.

idx — State derivative values that search must satisfy exactly

[] (default) | vector

State derivative values that search must satisfy exactly, specified as a vector.

options — Optimization parameters

[] (default) | array

Optimization parameters, specified as an array.

Array elements 1, 2, 3, 4, and 10 are particularly useful for finding trim points.

This table describes how each element affects the search for a trim point.

No.	Default	Description
1	0	Display options. 0 specifies no display, 1 specifies tabular output, and -1 suppresses warning messages.
2	10–4	Precision the computed trim point must attain to terminate the search.
3	10–4	Precision the trim search goal function must attain to terminate the search.
4	10–6	Precision the state derivatives must attain to terminate the search.
5	N/A	Not used.
6	N/A	Not used.
7	N/A	Used internally.
8	N/A	Value of the trim search goal function (λ in goal attainment).
9	N/A	Not used.
10	N/A	Number of iterations used to find a trim point.
11	N/A	Number of function gradient evaluations.
12	0	Not used.
13	0	Number of equality constraints.
14	100*(Number of variables)	Maximum number of function evaluations to use to find a trim point.
15	N/A	Not used.
16	10–8	Used internally.
17	0.1	Used internally.
18	N/A	Step length.

t — Time of time-dependent system

[] (default) | scalar

Time of time-dependent system, specified as a scalar.

Output Arguments

x — Trim point

vector

Trim point, returned as a vector.

u — Trim point

vector

Trim point, returned as a vector.

y — Trim point

vector

Trim point, returned as a vector.

dx — Derivative of system

vector

Derivative of system, returned as a vector.

options — Optimization parameters

array

Optimization parameters, returned as an array.

This table describes how each element affects the search for a trim point.

No.	Default	Description
1	0	Display options. 0 specifies no display, 1 specifies tabular output, and -1 suppresses warning messages.
2	10–4	Precision the computed trim point must attain to terminate the search.
3	10–4	Precision the trim search goal function must attain to terminate the search.
4	10–6	Precision the state derivatives must attain to terminate the search.
5	N/A	Not used.
6	N/A	Not used.
7	N/A	Used internally.
8	N/A	Value of the trim search goal function (λ in goal attainment).
9	N/A	Not used.
10	N/A	Number of iterations used to find a trim point.
11	N/A	Number of function gradient evaluations.
12	0	Not used.
13	0	Number of equality constraints.
14	100*(Number of variables)	Maximum number of function evaluations to use to find a trim point.
15	N/A	Not used.
16	10–8	Used internally.
17	0.1	Used internally.
18	N/A	Step length.

More About

Trim point

A trim point, also known as an equilibrium point, is a point in the parameter space of a dynamic system at which the system is in a steady state. For example, a trim point of an aircraft is a setting of its controls that causes the aircraft to fly straight and level. Mathematically, a trim point is a point where the system state derivatives equal zero.

Algorithms

The trim function uses a sequential quadratic programming algorithm to find trim points. For a description of this algorithm, see Sequential Quadratic Programming (SQP) (Optimization Toolbox).

Version History

Introduced before R2006a
