move

Move lifeline within an interaction

Since R2024b

Syntax

move(lifeline, Before=beforeLifeline)

move(lifeline, After=afterLifeline)

Description

move(lifeline, Before=beforeLifeline) places the lifeline lifeline immediately before the beforeLifeline lifeline.

move(lifeline, After=afterLifeline) places the lifeline lifeline immediately after the afterLifeline lifeline.

Examples

Move Lifelines in Sequence Diagrams

You can programmatically move lifelines in a sequence diagram. This example assumes you have the TLExample model open from the Create Sequence Diagrams Programmatically example and uses the move function to place the poller lifeline immediately before the source lifeline.

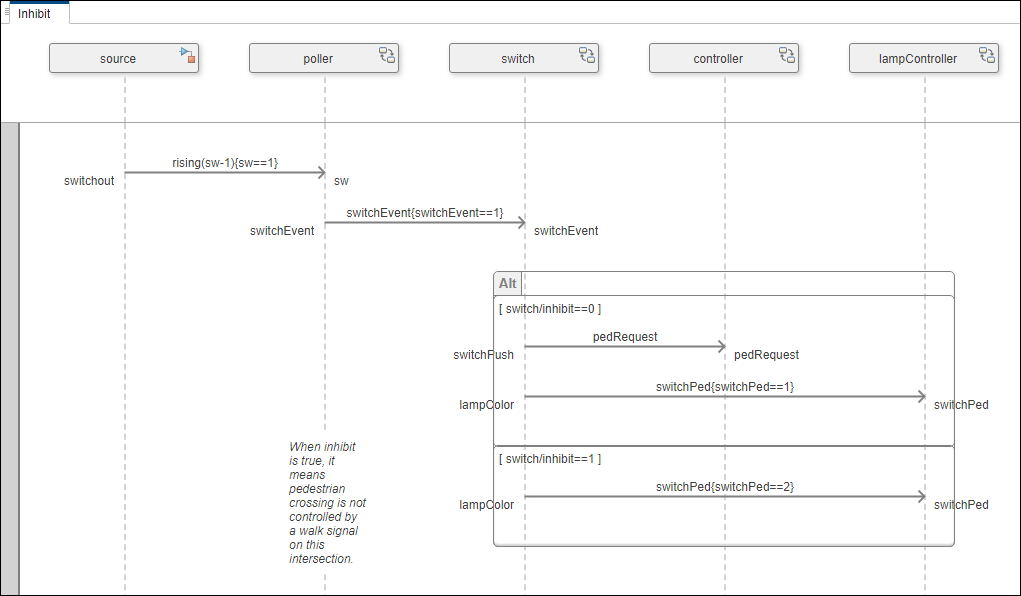

Open Inhibit sequence diagram.

model = systemcomposer.openModel("TLExample");
diagram = getInteraction(model, "Inhibit");

Get the poller lifeline and the source lifeline from the interaction.

pollerLifeline = findLifeline(diagram, Name="poller");
sourceLifeline = findLifeline(diagram, Name="source");

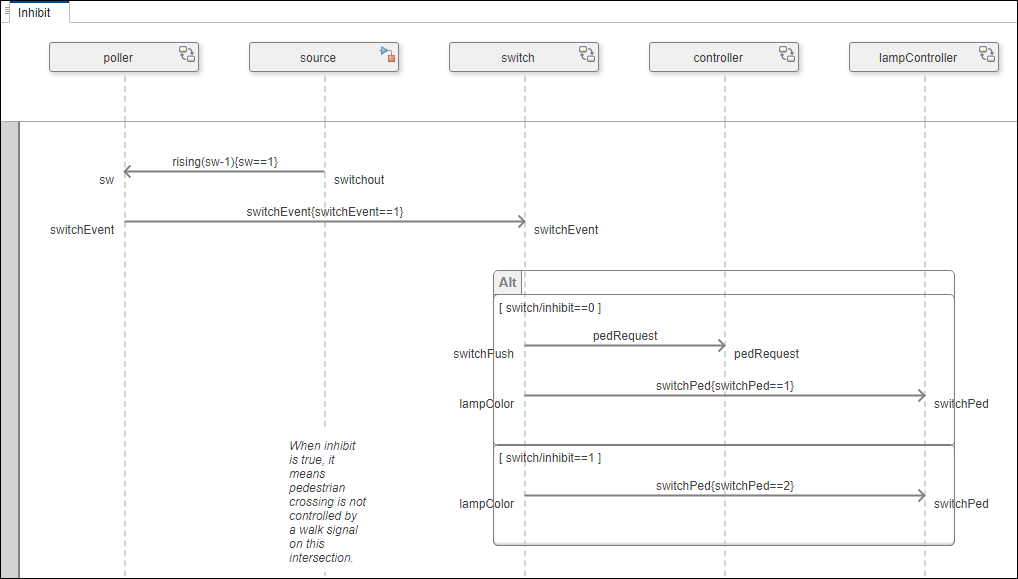

Place pollerLifeline immediately before the sourceLifeline.

move(pollerLifeline, Before=sourceLifeline);

save(model);

Input Arguments

lifeline — Lifeline to be moved

lifeline object

Lifeline object specified as a systemcomposer.interaction.Lifeline object.

beforeLifeline — Existing lifeline in interaction to place lifeline before

lifeline object

Lifeline object specified as a systemcomposer.interaction.Lifeline object. This lifeline must be in the same interaction as the lifeline lifeline and have the same parent lifeline as the lifeline lifeline.

afterLifeline — Existing lifeline in interaction to place lifeline after

lifeline object

Lifeline object specified as a systemcomposer.interaction.Lifeline object. This lifeline must be in the same interaction as the lifeline lifeline and have the same parent lifeline as the lifeline lifeline.

More About

Definitions

Term	Definition	Application	More Information
sequence diagram	A sequence diagram represents the expected interaction between structural elements of an architecture as a sequence of message exchanges.	Use sequence diagrams to describe how the parts of a system interact.	Describe System Behavior Using Sequence Diagrams
lifeline	A lifeline is represented by a head and a timeline that proceeds down a vertical dotted line.	The head of a lifeline represents a component in an architecture model.	Add Lifelines and Messages
message	A message sends information from one lifeline to another. Messages are specified with a message label.	A message label has a trigger, an optional guard, and an optional constraint where a trigger represents the identifying event for this message, a guard represents an additional condition to determine whether the message occurs, and a constraint is an expression that is expected to be true when this message occurs.	Create Messages in Sequence Diagram
gate	A gate represents the root architecture of the corresponding architecture model.	Connect messages to gates to represent architecture ports.	Create Sequence Diagram Gates
annotation	An annotation describes the elements of a sequence diagram.	Use annotations to provide detailed explanations of elements or workflows captured by sequence diagrams.	Use Annotations to Describe Elements of Sequence Diagram
fragment	A fragment indicates how a group of messages execute or interact.	A fragment is used to model complex sequences, such as alternatives, in a sequence diagram.	Author Sequence Diagram Fragments
operand	An operand is a region in a fragment. Fragments have one or more operands depending on the kind of fragment. Operands can contain messages and additional fragments.	Each operand can include a constraint to specify whether the messages inside the operand execute. You can express the precondition of an operand as a MATLAB® Boolean expression using the input signal of a lifeline.	Add Fragments and Operands

Version History

Introduced in R2024b
