802.11ax Packet Error Rate Simulation for Single-User Format

This example shows how to measure the packet error rate of an IEEE® 802.11ax™ (Wi-Fi 6) high efficiency (HE) single user format link.

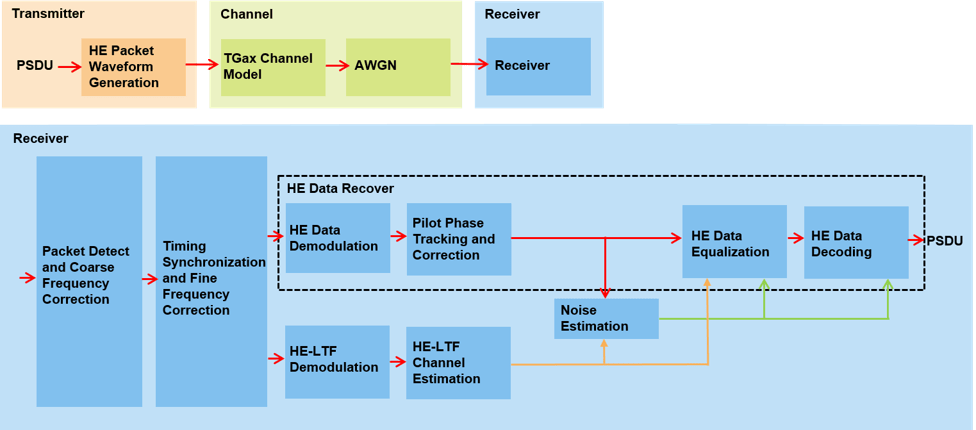

In this example, an end-to-end simulation is used to determine the packet error rate for an 802.11ax [ 1 ] single user format link for a selection of SNR points. At each SNR point, multiple packets are transmitted through a noisy TGax indoor channel, demodulated and the PSDUs recovered. The PSDUs are compared to those transmitted to determine the packet error rate. The processing for each packet is summarized in the following diagram.

Waveform Configuration

An HE single user (SU) packet is a full-band transmission to a single user. The transmit parameters for the HE SU format are configured using an wlanHESUConfig object. The properties of the object contain the configuration. In this example, the object is configured for a 20 MHz channel bandwidth, 2 transmit antennas, 2 space-time streams, no space time block coding and 16-QAM rate-1/2 (MCS 3).

cfgHE = wlanHESUConfig;
cfgHE.ChannelBandwidth = 'CBW20';  % Channel bandwidth
cfgHE.NumSpaceTimeStreams = 2;     % Number of space-time streams
cfgHE.NumTransmitAntennas = 2;     % Number of transmit antennas
cfgHE.APEPLength = 1e3;            % Payload length in bytes
cfgHE.ExtendedRange = false;       % Do not use extended range format
cfgHE.Upper106ToneRU = false;      % Do not use upper 106 tone RU
cfgHE.PreHESpatialMapping = false; % Spatial mapping of pre-HE fields
cfgHE.GuardInterval = 0.8;         % Guard interval duration
cfgHE.HELTFType = 4;               % HE-LTF compression mode
cfgHE.ChannelCoding = 'LDPC';      % Channel coding
cfgHE.MCS = 3;                     % Modulation and coding scheme

Channel Configuration

In this example, a TGax NLOS indoor channel model is used with delay profile Model-B. Model-B is considered NLOS when the distance between transmitter and receiver is greater than or equal to 5 meters. This is described further in wlanTGaxChannel. A 2x2 MIMO channel is simulated in this example.

% Create and configure the TGax channel
chanBW = cfgHE.ChannelBandwidth;
tgaxChannel = wlanTGaxChannel;
tgaxChannel.DelayProfile = 'Model-B';
tgaxChannel.NumTransmitAntennas = cfgHE.NumTransmitAntennas;
tgaxChannel.NumReceiveAntennas = 2;
tgaxChannel.TransmitReceiveDistance = 5; % Distance in meters for NLOS
tgaxChannel.ChannelBandwidth = chanBW;
tgaxChannel.LargeScaleFadingEffect = 'None';
tgaxChannel.NormalizeChannelOutputs = false;
fs = wlanSampleRate(cfgHE);
tgaxChannel.SampleRate = fs;

Simulation Parameters

For each SNR point (dB) in the snr vector a number of packets are generated, passed through a channel and demodulated to determine the packet error rate.

snr = 10:5:35;

The number of packets tested at each SNR point is controlled by two parameters:

  1. maxNumErrors is the maximum number of packet errors simulated at each SNR point. When the number of packet errors reaches this limit, the simulation at this SNR point is complete.

  2. maxNumPackets is the maximum number of packets simulated at each SNR point and limits the length of the simulation if the packet error limit is not reached.

The numbers chosen in this example will lead to a very short simulation. For statistically meaningful results we recommend increasing these numbers.

maxNumErrors = 10;   % The maximum number of packet errors at an SNR point
maxNumPackets = 100; % The maximum number of packets at an SNR point

Processing SNR Points

For each SNR point a number of packets are tested and the packet error rate calculated. The pre-HE preamble of 802.11ax is backwards compatible with 802.11ac™, therefore in this example the front-end synchronization components for a VHT waveform are used to synchronize the HE waveform at the receiver. For each packet the following processing steps occur:

  1. A PSDU is created and encoded to create a single packet waveform.

  2. The waveform is passed through an indoor TGax channel model. Different channel realizations are modeled for different packets.

  3. AWGN is added to the received waveform to create the desired average SNR per active subcarrier after OFDM demodulation.

  4. The packet is detected.

  5. Coarse carrier frequency offset is estimated and corrected.

  6. Fine timing synchronization is established. The L-STF, L-LTF and L-SIG samples are provided for fine timing to allow for packet detection at the start or end of the L-STF.

  7. Fine carrier frequency offset is estimated and corrected.

  8. The HE-LTF is extracted from the synchronized received waveform. The HE-LTF is OFDM demodulated and channel estimation is performed.

  9. The data field is extracted from the synchronized received waveform and OFDM demodulated.

  10. Common phase error pilot tracking is performed to track any residual carrier frequency offset.

  11. Noise estimation is performed using the demodulated data field pilots and single-stream channel estimate at pilot subcarriers.

  12. The phase corrected OFDM symbols are equalized with the channel estimate.

  13. The equalized symbols are demodulated and decoded to recover the PSDU.

A parfor loop can be used to parallelize processing of the SNR points. To enable the use of parallel computing for increased speed comment out the 'for' statement and uncomment the 'parfor' statement below.

numSNR = numel(snr); % Number of SNR points
packetErrorRate = zeros(1,numSNR);

% Get occupied subcarrier indices and OFDM parameters
ofdmInfo = wlanHEOFDMInfo('HE-Data',cfgHE);

% Indices to extract fields from the PPDU
ind = wlanFieldIndices(cfgHE);

%parfor isnr = 1:numSNR % Use 'parfor' to speed up the simulation
for isnr = 1:numSNR
    % Set random substream index per iteration to ensure that each
    % iteration uses a repeatable set of random numbers
    stream = RandStream('combRecursive','Seed',99);
    stream.Substream = isnr;

    % Convert the SNR per active subcarrier to system SNR to account for
    % noise energy in nulls
    packetSNR = convertSNR(snr(isnr),"snrsc","snr",...

    % Loop to simulate multiple packets
    numPacketErrors = 0;
    numPkt = 1; % Index of packet transmitted
    while numPacketErrors<=maxNumErrors && numPkt<=maxNumPackets
        % Generate a packet with random PSDU
        psduLength = getPSDULength(cfgHE); % PSDU length in bytes
        txPSDU = randi([0 1],psduLength*8,1);
        tx = wlanWaveformGenerator(txPSDU,cfgHE);

        % Add trailing zeros to allow for channel delay
        txPad = [tx; zeros(50,cfgHE.NumTransmitAntennas)];

        % Pass through a fading indoor TGax channel
        reset(tgaxChannel); % Reset channel for different realization
        rx = tgaxChannel(txPad);

        % Pass the waveform through AWGN channel
        rx = awgn(rx,packetSNR);

        % Packet detect and determine coarse packet offset
        coarsePktOffset = wlanPacketDetect(rx,chanBW);
        if isempty(coarsePktOffset) % If empty no L-STF detected; packet error
            numPacketErrors = numPacketErrors+1;
            numPkt = numPkt+1;
            continue; % Go to next loop iteration

        % Extract L-STF and perform coarse frequency offset correction
        lstf = rx(coarsePktOffset+(ind.LSTF(1):ind.LSTF(2)),:);
        coarseFreqOff = wlanCoarseCFOEstimate(lstf,chanBW);
        rx = frequencyOffset(rx,fs,-coarseFreqOff);

        % Extract the non-HT fields and determine fine packet offset
        nonhtfields = rx(coarsePktOffset+(ind.LSTF(1):ind.LSIG(2)),:);
        finePktOffset = wlanSymbolTimingEstimate(nonhtfields,chanBW);

        % Determine final packet offset
        pktOffset = coarsePktOffset+finePktOffset;

        % If packet detected outwith the range of expected delays from
        % the channel modeling; packet error
        if pktOffset>50
            numPacketErrors = numPacketErrors+1;
            numPkt = numPkt+1;
            continue; % Go to next loop iteration

        % Extract L-LTF and perform fine frequency offset correction
        rxLLTF = rx(pktOffset+(ind.LLTF(1):ind.LLTF(2)),:);
        fineFreqOff = wlanFineCFOEstimate(rxLLTF,chanBW);
        rx = frequencyOffset(rx,fs,-fineFreqOff);

        % HE-LTF demodulation and channel estimation
        rxHELTF = rx(pktOffset+(ind.HELTF(1):ind.HELTF(2)),:);
        heltfDemod = wlanHEDemodulate(rxHELTF,'HE-LTF',cfgHE);
        [chanEst,pilotEst] = wlanHELTFChannelEstimate(heltfDemod,cfgHE);

        % Data demodulate
        rxData = rx(pktOffset+(ind.HEData(1):ind.HEData(2)),:);
        demodSym = wlanHEDemodulate(rxData,'HE-Data',cfgHE);

        % Pilot phase tracking
        demodSym = wlanHETrackPilotError(demodSym,chanEst,cfgHE,'HE-Data');

        % Estimate noise power in HE fields
        nVarEst = wlanHEDataNoiseEstimate(demodSym(ofdmInfo.PilotIndices,:,:),pilotEst,cfgHE);

        % Extract data subcarriers from demodulated symbols and channel
        % estimate
        demodDataSym = demodSym(ofdmInfo.DataIndices,:,:);
        chanEstData = chanEst(ofdmInfo.DataIndices,:,:);

        % Equalization and STBC combining
        [eqDataSym,csi] = wlanHEEqualize(demodDataSym,chanEstData,nVarEst,cfgHE,'HE-Data');

        % Recover data
        rxPSDU = wlanHEDataBitRecover(eqDataSym,nVarEst,csi,cfgHE,'LDPCDecodingMethod','norm-min-sum');

        % Determine if any bits are in error, i.e. a packet error
        packetError = ~isequal(txPSDU,rxPSDU);
        numPacketErrors = numPacketErrors+packetError;
        numPkt = numPkt+1;

    % Calculate packet error rate (PER) at SNR point
    packetErrorRate(isnr) = numPacketErrors/(numPkt-1);
    disp(['MCS ' num2str(cfgHE.MCS) ','...
          ' SNR ' num2str(snr(isnr)) ...
          ' completed after ' num2str(numPkt-1) ' packets,'...
          ' PER:' num2str(packetErrorRate(isnr))]);
MCS 3, SNR 10 completed after 11 packets, PER:1
MCS 3, SNR 15 completed after 17 packets, PER:0.64706
MCS 3, SNR 20 completed after 51 packets, PER:0.21569
MCS 3, SNR 25 completed after 100 packets, PER:0.03
MCS 3, SNR 30 completed after 100 packets, PER:0
MCS 3, SNR 35 completed after 100 packets, PER:0

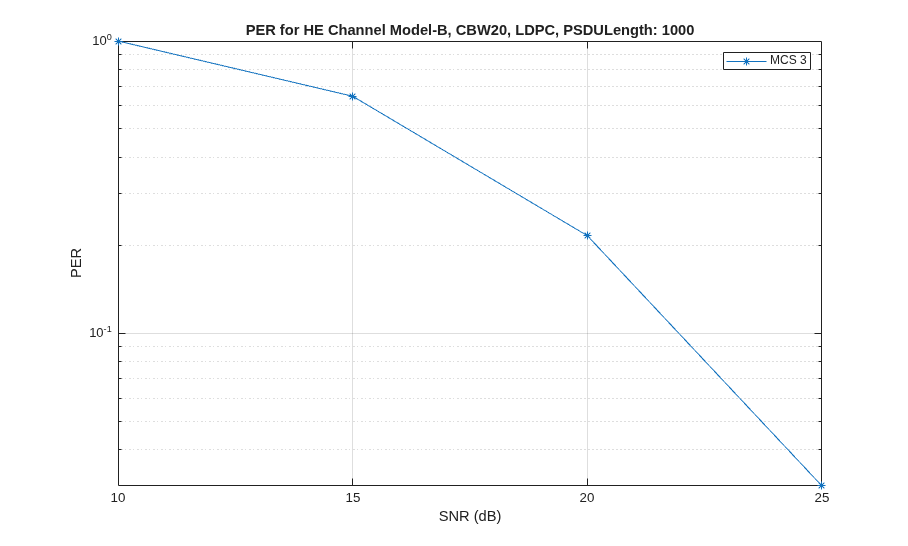

Plot Packet Error Rate vs SNR

hold on;
grid on;
xlabel('SNR (dB)');
dataStr = arrayfun(@(x)sprintf('MCS %d',x),cfgHE.MCS,'UniformOutput',false);
title(sprintf('PER for HE Channel %s, %s, %s, PSDULength: %d',tgaxChannel.DelayProfile,cfgHE.ChannelBandwidth,cfgHE.ChannelCoding,cfgHE.APEPLength));

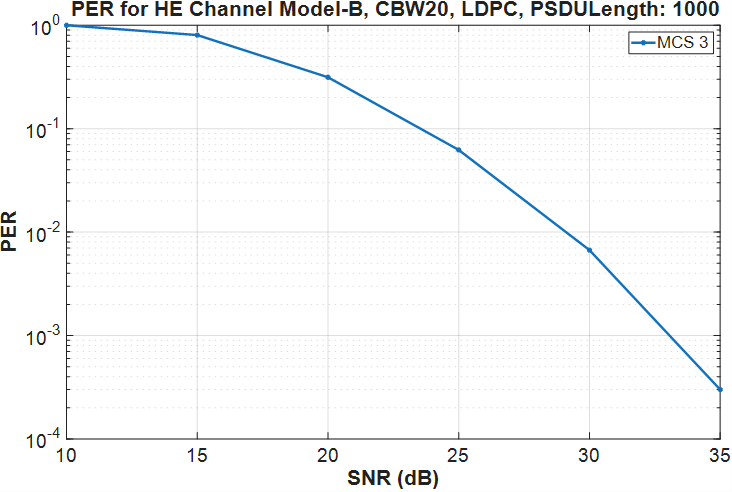

The number of packets tested at each SNR point is controlled by two parameters: maxNumErrors and maxNumPackets. For meaningful results, these values should be larger than those presented in this example. As an example, the figure below was created by running a longer simulation with maxNumErrors:1e3 and maxNumPackets:1e4.

Selected Bibliography

  1. IEEE Std 802.11ax™-2021. IEEE Standard for Information Technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications - Amendment 1: Enhancements for High-Efficiency WLAN.
