802.11be Multi-Link Operation in System-Level Simulation

This example uses:

Open Live Script

This example shows how to simulate an IEEE® 802.11be™ (Wi-Fi® 7) [1] multi-link operation (MLO) between an access point (AP) multi-link device (MLD) and a station (STA) MLD by using WLAN Toolbox™ and the Communications Toolbox™ Wireless Network Simulation Library.

Using this example, you can:

  • Simulate MLO communication between an AP MLD and a STA MLD.

  • Visualize the time spent by each link within the MLD in the Idle, Contention, Transmission, and Reception states.

  • Capture the application layer (APP), medium access control layer (MAC), and physical layer (PHY) statistics for each node.

The simulation results show performance metrics such as MAC throughput, MAC packet loss, and application packet latency captured at each node. The results also show how to calculate the throughput and packet loss ratio obtained on each link within an MLD node.

Additionally, you can further explore the example by performing these tasks.

802.11be Multi-Link Operation

The multi-link operation capability introduced in the IEEE 802.11be standard plays an important role in enhancing data rates, reducing latency, and improving reliability. An 802.11be device, whether an access point or a station, qualifies as an MLD if it possesses the capability to facilitate MLO communication across multiple links. These links, within an MLD, operate on different frequencies.

An MLD, when equipped with multiple 802.11be radios, can operate in either the simultaneous transmit and receive (STR) mode or the non-simultaneous transmit and receive (NSTR) mode. This operation depends on the ability of the MLD to concurrently transmit and receive packets across different links.

Additionally, a station MLD can support more advanced multi-link operating modes, such as enhanced multi-link single-radio (EMLSR) or enhanced multi-link multi-radio (EMLMR). A station MLD can operate in EMLSR mode if it possesses a single 802.11be radio and one or more low-capability radios that have the ability to perform clear channel assessment (CCA) and receive control frames. Conversely, a station MLD that has multiple 802.11be radios and the ability to dynamically reconfigure spatial multiplexing across multiple links can operate in EMLMR mode.

MLO System-Level Simulation Scenario

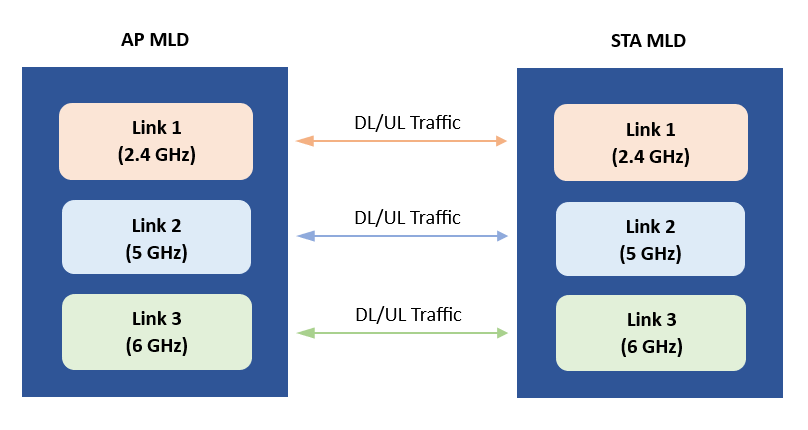

This example simulates an 802.11be network consisting of an AP MLD and a STA MLD operating in STR mode. The AP MLD and the STA MLD maintain three associated links, operating at frequency bands of 2.4 GHz, 5 GHz, and 6 GHz. This scenario configures bidirectional data traffic, enabling data flow from the AP to the STA and from the STA to the AP. At the end of the simulation, capture the statistics and compute the transmission throughput for the AP and STA.

Bidirectional data traffic is configured between the AP and STA MLDs, enabling data flow over corresponding frequency bands.

Check for Support Package Installation

Check if the Communications Toolbox Wireless Network Simulation Library support package is installed. If the support package is not installed, MATLAB® returns an error with a link to download and install the support package.

wirelessnetworkSupportPackageCheck

Configure Simulation Parameters

Set the seed for the random number generator to 1. The seed value controls the pattern of random number generation. The random number generated by the seed value impacts several processes within the simulation, including backoff counter selection at the MAC layer and predicting packet reception success at the physical layer. To improve the accuracy of your simulation results after running the simulation, you can change the seed value, run the simulation again, and average the results over multiple simulations.

rng(1,"combRecursive")

Specify the simulation time in seconds. To visualize a live state transition plot for all of the nodes, set the enablePacketVisualization variable to true. To view the node performance visualization, set the enableNodePerformancePlot variable to true.

simulationTime = 1;
enablePacketVisualization = true;
enableNodePerformancePlot = true;

Configure WLAN Scenario

Initialize the wireless network simulator.

networkSimulator = wirelessNetworkSimulator.init;

Nodes

Specify the [band channel] pairs for each link in the MLD node.

bandAndChannel = [2.4 1; 5 36; 6 1];
numLinks = size(bandAndChannel,1);

Create and configure an AP MLD and a STA MLD by using the wlanNode, wlanMultilinkDeviceConfig, and wlanLinkConfig objects.

Create a wlanLinkConfig object for each link of the AP MLD and of the STA MLD, specifying the BandAndChannel, MCS, MPDUAggregationLimit, and TransmitPower property values. Note that both the AP and STA link configuration objects must have the same MPDUAggreggationLimit value.

for linkIdx = 1:numLinks
    apLinkCfg(linkIdx) = wlanLinkConfig(BandAndChannel=bandAndChannel(linkIdx,:),MCS=2,MPDUAggregationLimit=100,TransmitPower=15);
    staLinkCfg(linkIdx) = wlanLinkConfig(BandAndChannel=bandAndChannel(linkIdx,:),MCS=3,MPDUAggregationLimit=100,TransmitPower=15); %#ok<*SAGROW>
end

Specify the MLD level configuration parameters for the AP MLD and the STA MLD by using the wlanMultilinkDeviceConfig object. Create two separate WLAN multi-link device configuration objects: one for the AP MLD and another for the STA MLD. Configure an MLD as an AP or a STA by setting the Mode property of the wlanMultilinkDeviceConfig object to "AP" or "STA", respectively.

apMLDCfg = wlanMultilinkDeviceConfig(Mode="AP",LinkConfig=apLinkCfg);

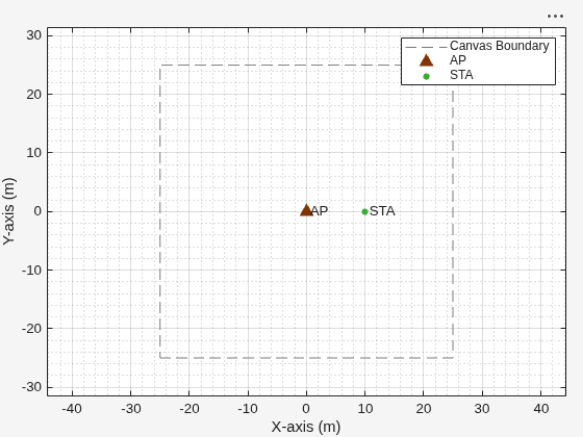

apMLD = wlanNode(Position=[0 0 0],Name="AP",DeviceConfig=apMLDCfg);

staMLDCfg = wlanMultilinkDeviceConfig(Mode="STA",LinkConfig=staLinkCfg);
staMLD = wlanNode(Position=[10 0 0],Name="STA",DeviceConfig=staMLDCfg);

nodes = [apMLD staMLD];

To ensure all the nodes are configured properly, use the hCheckWLANNodesConfiguration helper function.

hCheckWLANNodesConfiguration(nodes)

Association

Associate the STA MLD to the AP MLD by using the associateStations object function of the wlanNode object. To configure uplink and downlink application traffic between the AP and STA, specify the FullBufferTraffic argument of the associateStations object function.

associateStations(apMLD,staMLD,FullBufferTraffic="on")

Wireless Channel

To model a random TGax fading channel between each node, this example uses the hSLSTGaxMultiFrequencySystemChannel helper function. Add the channel model to the wireless network simulator by using the addChannelModel object function of the wirelessNetworkSimulator object.

channel = hSLSTGaxMultiFrequencySystemChannel(nodes);
addChannelModel(networkSimulator,channel.ChannelFcn)

Simulation and Results

Add the nodes to the wireless network simulator.

addNodes(networkSimulator,nodes)

To view the state transition plot, use the hPlotPacketTransitions helper object. To disable the subplot of packet communication over frequency, set the FrequencyPlotFlag property of the hPlotPacketTransitions helper object to false.

if enablePacketVisualization
    packetVisObj = hPlotPacketTransitions(nodes,simulationTime,FrequencyPlotFlag=false);
end

To view the node performance visualization, use the hPerformanceViewer helper object.

perfViewerObj = hPerformanceViewer(nodes,simulationTime);

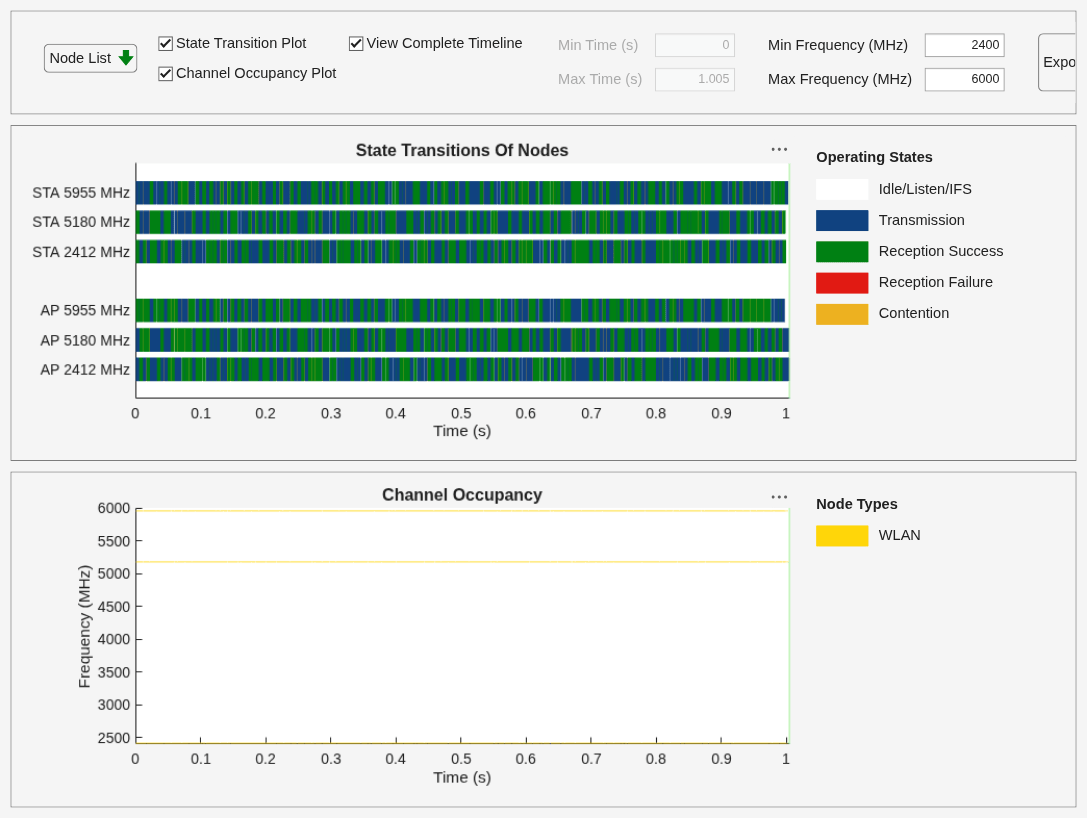

Run the network simulation for the specified simulation time. The runtime visualization shows the time spent by the AP and the STA in the Idle, Contention, Transmission, and Reception states.

run(networkSimulator,simulationTime)

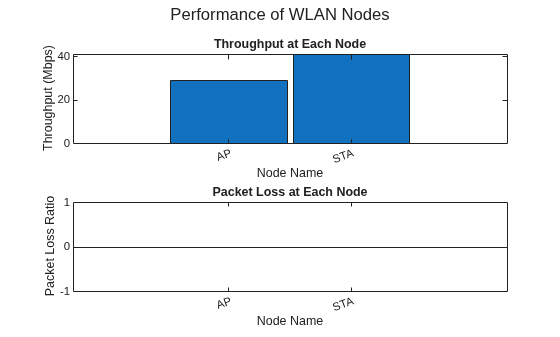

The plotNetworkStats object function displays these simulation plots.

  • MAC throughput (in Mbps) at each transmitter (AP MLD and STA MLD).

  • MAC packet loss ratio (ratio of unsuccessful data transmissions to the total data transmissions) at each transmitter (AP MLD and STA MLD).

  • Average application packet latency incurred at each receiver (AP MLD and STA MLD). The average application packet latency shows the average latency that the STA MLD incurs to receive the downlink traffic from the AP MLD and the average latency that the AP MLD incurs to receive uplink traffic from the STA MLD.

if enableNodePerformancePlot
    plotNetworkStats(perfViewerObj)
end

Statistics for Each Link in MLD

Retrieve the APP, MAC, and PHY statistics at each node by using the statistics object function of the wlanNode object. You can also access the statistics for each link of the MLD node from within the MAC and PHY substructures of the statistics structure. To retrieve the statistics for each link, specify the "all" argument to the statistics object function.

stats = statistics(nodes,"all");

The Link substructure within the MAC and PHY layer statistics structures contains the link-level statistics of the MLD node. For more information about the statistics, see WLAN System-Level Simulation Statistics.

stats(1).MAC.Link
ans=1×3 struct array with fields:
    TransmittedDataFrames
    TransmittedPayloadBytes
    SuccessfulDataTransmissions
    RetransmittedDataFrames
    TransmittedAMPDUs
    TransmittedRTSFrames
    TransmittedMURTSFrames
    TransmittedCTSFrames
    TransmittedMUBARFrames
    TransmittedAckFrames
    TransmittedBlockAckFrames
    TransmittedBasicTriggerFrames
    TransmittedBeaconFrames
    ReceivedDataFrames
    ReceivedPayloadBytes
    ReceivedAMPDUs
    ReceivedRTSFrames
    ReceivedMURTSFrames
    ReceivedCTSFrames
    ReceivedMUBARFrames
    ReceivedAckFrames
    ReceivedBlockAckFrames
    ReceivedBasicTriggerFrames
    ReceivedFCSValidFrames
    ReceivedFCSFails
    ReceivedDelimiterCRCFails
    ReceivedBeaconFrames
    AccessCategories
      ⋮

Calculate the MAC throughput (in Mbps) at the MLD node and at each link in the MLD node by using the throughput object function of hPerformanceViewer helper object.

apMLDThroughput = throughput(perfViewerObj,apMLD.ID)
apMLDThroughput = 30.1320

apLink1Throughput = throughput(perfViewerObj,apMLD.ID,LinkID=1)
apLink1Throughput = 10.2600

apLink2Throughput = throughput(perfViewerObj,apMLD.ID,LinkID=2)
apLink2Throughput = 9.7200

apLink3Throughput = throughput(perfViewerObj,apMLD.ID,LinkID=3)
apLink3Throughput = 10.1520

Calculate the MAC packet loss ratio at the MLD node and at each link in the MLD node by using the packetLossRatio object function of hPerformanceViewer helper object.

apMLDPLR = packetLossRatio(perfViewerObj,apMLD.ID)
apMLDPLR = 0

apLink1PLR = packetLossRatio(perfViewerObj,apMLD.ID,LinkID=1)
apLink1PLR = 0

apLink2PLR = packetLossRatio(perfViewerObj,apMLD.ID,LinkID=2)
apLink2PLR = 0

apLink3PLR = packetLossRatio(perfViewerObj,apMLD.ID,LinkID=3)
apLink3PLR = 0

Further Exploration

You can use this example to further explore these functionalities.

Impact of Variable Number of Links in MLD on Throughput and Latency

Generate MAC throughput and application latency results for scenarios consisting of an AP MLD and two associated STA MLDs by using the hSimulateMLOWithVaryingLinks helper function. Using this helper function, you can perform these tasks.

  • Simulate scenarios with variable number of links and application traffic data rates.

  • Plot the throughput and latency results as a function of the application traffic data rates.

By default, this helper function plots the stored throughput and latency values. To reproduce these results, set the plotStoredThroughputValues value to false.

plotStoredThroughputValues = true;
hSimulateMLOWithVaryingLinks(plotStoredThroughputValues)

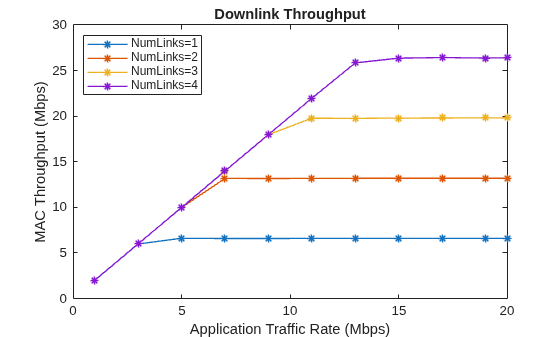

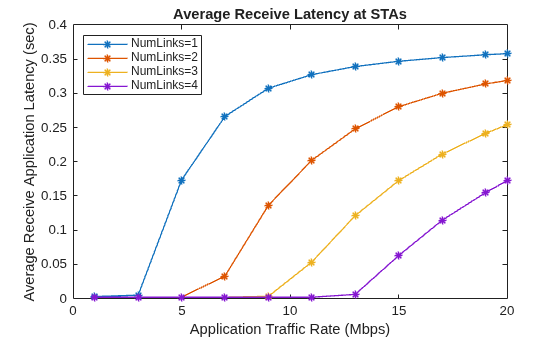

These plots compare throughput and latency by considering a variable number of links in the MLD. Due to an increase in simultaneous transmissions, the AP MLD achieves higher throughput under significant traffic loads and with more available links. Likewise, as you increase the number of links between the AP MLD and STA MLD, the average latency that the receiving stations experience decreases. This decrease in latency becomes more noticeable with an increase in traffic load.

Faster Execution Using Parallel Simulation Runs

If you want to run multiple simulations, you can speed up the simulations by enabling parallel computing using the parfor loop. The parfor loop is an alternative to the for loop that enables you to execute multiple simulation runs in parallel, thereby reducing total execution time. To use parfor, you must have a Parallel Computing Toolbox™ license. For more information about running multiple simulations by using a parfor loop, see the hSimulateMLOWithVaryingLinks helper function.

Appendix

The example uses these helpers:

References

  1. “IEEE Draft Standard for Information Technology–Telecommunications and Information Exchange between Systems Local and Metropolitan Area Networks–Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications Amendment: Enhancements for Extremely High Throughput (EHT).” IEEE P802.11be/D3.0, January 2023, March 2023, 1–999. https://ieeexplore.ieee.org/document/10058126
