# expmv

Matrix exponential multiplied by vector

Since R2023b

## Syntax

``F = expmv(A,b,t)``
``F = expmv(A,b)``
``F = expmv(A,b,tvals)``

## Description

example

````F = expmv(A,b,t)` calculates the product of a matrix exponential and a vector. This function computes `expm(t*A)*b` without explicitly forming the matrix exponential `expm(t*A)`. Here, `A` is an `n`-by-`n` square matrix, `b` is an `n`-by-`1` column vector, and `t` is a scalar. The output `F` is an `n`-by-1 column vector.`A` can also be a function handle, where `A(flag,X)` must accept an input matrix `X`, create a square matrix `Am` with an order that is equal to the column length of `X`, and return the following values for the indicated flag: `A("real",X)` returns logical `1` (`true`) if the square matrix `Am` is real and returns logical `0` (`false`) otherwise.`A("notransp",X)` returns `Am*X`.`A("transp",X)` returns `Am'*X`. ```

example

````F = expmv(A,b)` computes `expm(A)*b` without explicitly forming the matrix exponential `expm(A)`. This syntax is the same as `expmv(A,b,1)`.```

example

````F = expmv(A,b,tvals)` computes `expm(t*A)*b` without explicitly forming `expm(t*A)` for each element `t` in `tvals`. Here, `tvals` is a vector of length `m` and the output `F` is an `n`-by-`m` matrix such that each column of `F` is `F(:,j) = expm(tvals(j)*A)*b` for ```j = 1:m```.For an equally spaced `tvals`, such as a time vector with a fixed time step, `expmv` uses an efficient algorithm that reuses information based on the spacing pattern of `tvals`. MATLAB® uses the `isuniform` function to check whether `tvals` is equally spaced.```

## Examples

collapse all

Find the matrix exponential times a vector: ${\mathit{e}}^{\mathit{t}\text{\hspace{0.17em}}\mathbit{A}}\stackrel{\to }{\mathit{b}}$.

First, create the scalar `t`, the square matrix `A`, and the column vector `b`.

```t = 0.25; A = [1 1i 0; 0 0 2i; 0 0 -1]; b = [2; 1; 3];```

Compute the matrix exponential times a vector without explicitly forming ${\mathit{e}}^{\mathit{t}\text{\hspace{0.17em}}\mathbit{A}}$.

`F = expmv(A,b,t)`
```F = 3×1 complex 2.3796 + 0.2840i 1.0000 + 1.3272i 2.3364 + 0.0000i ```

To form ${\mathit{e}}^{\mathit{t}\text{\hspace{0.17em}}\mathbit{A}}$ explicitly, use `expm`.

`C = expm(t*A)`
```C = 3×3 complex 1.2840 + 0.0000i 0.0000 + 0.2840i -0.0628 + 0.0000i 0.0000 + 0.0000i 1.0000 + 0.0000i 0.0000 + 0.4424i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.7788 + 0.0000i ```

Show that the result of `expm(t*A)*b` is equal to `expmv(A,b,t)` within round-off error.

```F2 = C*b; norm(F - F2)```
```ans = 8.8991e-16 ```

Find the matrix exponential times a vector: ${\mathit{e}}^{\mathit{t}\text{\hspace{0.17em}}\mathbit{A}}\stackrel{\to }{\mathit{b}}$, where $\mathbit{A}$ is a magic square with an order that is determined by the length of vector $\stackrel{\to }{\mathit{b}}$.

Create a function in a file named `Afunction.m`. This function accepts an input matrix `X` and creates a magic square `Am` with an order that is equal to the column length of `X`. This function also accepts an input `flag` and returns the following values for the indicated flag:

• `Afunction("real",X)` returns logical `1` (`true`) if the square matrix `Am` is real and returns logical `0` (`false`) otherwise.

• `Afunction("notransp",X)` returns `Am*X`.

• `Afunction("transp",X)` returns `Am'*X`.

```function Y = Afunction(flag,X) n = size(X,1); Am = magic(n); switch flag case "real" Y = isreal(Am); case "notransp" Y = Am*X; case "transp" Y = Am'*X; end end ```

Create a function handle to `Afunction`.

`A = @(flag,X) Afunction(flag,X);`

Use the function handle as an input to `expmv` to compute ${\mathit{e}}^{\mathit{t}\text{\hspace{0.17em}}\mathbit{A}}\stackrel{\to }{\mathit{b}}$.

```t = 0.03; b = [1; 2; 4; 5]; F = expmv(A,b,t)```
```F = 4×1 6.1135 7.4895 9.4533 10.2221 ```

Find the matrix exponential times a vector: ${\mathit{e}}^{\mathbit{A}}\stackrel{\to }{\mathit{b}}$, where $\mathbit{A}$ is a sparse matrix.

Create a tridiagonal sparse square matrix `A` and a column vector `b`.

```A = gallery("tridiag",10000,1,-2,1); b = (1:size(A,1))';```

First, compute the matrix exponential of `A` explicitly and multiply it by `b`. Use a pair of `tic` and `toc` calls to measure the time required for this computation.

```tic F = expm(A)*b; toc```
```Elapsed time is 18.533127 seconds. ```

For comparison, use `expmv` to compute the matrix exponential of `A` times `b`. This computation is significantly faster because `expmv` does not compute the matrix exponential explicitly.

```tic F = expmv(A,b); toc```
```Elapsed time is 0.040429 seconds. ```

Given a system of ordinary differential equations (ODEs) that has the form

$\frac{\mathrm{d}}{\mathrm{dt}}\stackrel{\to }{\mathit{X}}\left(\mathit{t}\right)=\mathbit{A}\text{\hspace{0.17em}}\stackrel{\to }{\mathit{X}}\left(\mathit{t}\right)$,

the solution is a matrix exponential times a vector

$\stackrel{\to }{\mathit{X}}\left(\mathit{t}\right)={\mathit{e}}^{\mathit{t}\text{\hspace{0.17em}}\mathbit{A}}\stackrel{\to }{{\mathit{X}}_{0}}$.

To compute $\stackrel{\to }{\mathit{X}}\left(\mathit{t}\right)$ efficiently for a range of time values $\mathit{t}$ that are equally spaced with a fixed time step, you can use `expmv`.

For example, find the solution of the following system of ODEs for 100 evenly spaced time values in the interval `[0,10]`.

```X0 = [5; -1; 1]; A = [0 5 0; 0 -5 2; 0 2 -1]; tvals = linspace(0,10,100); F = expmv(A,X0,tvals);```

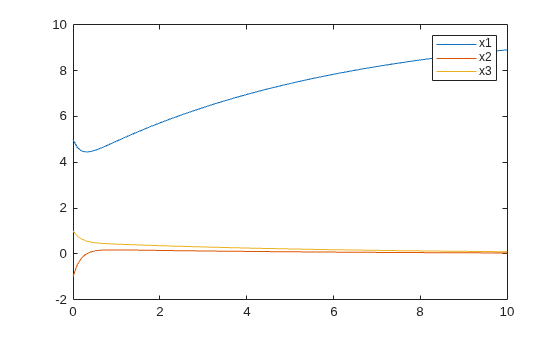

Plot the solution as a function of time.

```plot(tvals,F) legend("x1","x2","x3")```

## Input Arguments

collapse all

Input matrix, specified as a square matrix or a function handle.

Data Types: `single` | `double` | `function_handle`
Complex Number Support: Yes

Input vector, specified as a column vector. If the size of `A` is `n`-by-`n`, then the size of `b` must be `n`-by-`1`.

Data Types: `single` | `double`
Complex Number Support: Yes

Exponential scaling factor, specified as a real scalar.

Data Types: `single` | `double`

Exponential scaling factor or time vector, specified as a real vector.

Data Types: `single` | `double`

## References

[1] Al-Mohy, Awad H., and Nicholas J. Higham. “Computing the Action of the Matrix Exponential, with an Application to Exponential Integrators.” SIAM Journal on Scientific Computing 33, no. 2 (January 2011): 488–511. https://doi.org/10.1137/100788860.

## Version History

Introduced in R2023b
