choose

Class: matlab.uitest.TestCase
Namespace: matlab.uitest

Perform choose gesture on UI component

Syntax

choose(testCase,comp,option)

choose(testCase,compNoOpts)

choose(testCase,uit,indices)

choose(testCase,uit,indices,option)

choose(testCase,compsm,elements,SelectionMode=mode)

Description

Components

choose(testCase,comp,option) performs a choose gesture on the UI component comp using the specified option.

choose(testCase,compNoOpts) performs a choose gesture on a UI component that does not require additional information, such as a tab or a tree node. For example, use this syntax to choose a specific tab, but use the previous syntax to select a particular tab from a tab group.

Table Cells

choose(testCase,uit,indices) performs a choose gesture on the uneditable table cell specified by indices within the table UI component uit.

choose(testCase,uit,indices,option) performs a choose gesture on the editable table cell specified by indices. The method uses option to modify the contents of the cell.

Multiple Elements

choose(testCase,compsm,elements,SelectionMode=mode) uses the specified selection mode to select multiple elements within the component compsm. For example, choose(testCase,uit,[1 1; 3 3],SelectionMode="contiguous") selects the cells with indices (1, 1) and (3, 3) and all cells in between these cells from the specified table.

Input Arguments

testCase — Test case

matlab.uitest.TestCase object

Test case, specified as a matlab.uitest.TestCase object.

comp — Component under test

UI component object

Component under test, specified as a UI component object that supports a choose gesture. This table shows the components that support choose gestures.

Supported Component	Typical Creation Function
Button group	uibuttongroup
Check box	uicheckbox
Discrete knob	uiknob
Drop-down list	uidropdown
Knob	uiknob
List box	uilistbox
Radio button	uiradiobutton
Slider	uislider
State button	uibutton
Switch (rocker, slider, toggle)	uiswitch
Tab group	uitabgroup
Toggle button	uitogglebutton
Toggle tool	uitoggletool

option — Option to choose within component

numeric scalar | string scalar | logical scalar | ...

Option to choose within the UI component, specified as a value that depends on the type of component being tested. For example, if the component is a switch, option can be a text or numeric value from the Items property of the switch. If the component is a check box or toggle tool, option can be a logical value. For a table UI component with editable cells, option can be a logical value or a drop-down item corresponding to the data contained in the cell.

When a component has an Items property, option can be the value of an element in Items or the index to an element in Items. For example, for a default discrete knob, you can choose the Medium knob value by specifying option as either "Medium" or 3.

compNoOpts — Component with no options

Tab object | TreeNode object

Component with no options, specified as a Tab or TreeNode object. This table shows the components that support a choose gesture and do not require additional information.

Supported Component	Typical Creation Function
Tab	uitab
Tree node	uitreenode

uit — Target table UI component

Table object

Target table UI component, specified as a Table object. Table UI components are created using the uitable function.

indices — Indices of table cell to select

1-by-2 numeric vector

Indices of the table cell to select, specified as a 1-by-2 numeric vector. The first and second elements of the vector correspond to the row and column indices of the table cell, respectively.

Example: [1 2]

compsm — Component from which to select multiple elements

ListBox object | Table object

Component from which to select multiple elements, specified as a ListBox or Table object. This table shows the components that support using a choose gesture that selects multiple elements.

Supported Component	Typical Creation Function
List box	uilistbox
Table	uitable

Example: uilistbox(Multiselect="on")

Example: uitable(Data=randi(100,10,3))

elements — Component elements to select

numeric array | string vector | cell vector of character vectors

Component elements to select, specified as a numeric array, string vector, or cell vector of character vectors. The type and shape of elements depend on the component and selection mode.

Component	Selection Mode
	Discontiguous	Contiguous
List Box	An N-element numeric vector, string vector, or cell vector of character vectors, where N is the number of list box items to select. You can specify either the names or the indices of the items.	A two-element numeric vector, string vector, or cell vector of character vectors that specifies the range of list box items to select. You can specify either the names or the indices of the first and last items in the range. The method performs a choose gesture on the specified items as well as all items between them.
Table	An N-by-2 numeric matrix, where N is the number of table cells to select. Each matrix row corresponds to the row and column indices of a cell to select.	A 2-by-2 numeric matrix that specifies the boundaries of the block of table cells to select. Each matrix row corresponds to the row and column indices of a cell. The method performs a choose gesture on the specified cells as well as all cells between them.

Example: [1 3 4] (discontiguous selection of three list box items)

Example: ["Item 1" "Item 4"] (discontiguous selection of two list box items, or contiguous selection of four list box items)

Example: [2 3; 2 4; 5 1] (discontiguous selection of three table cells)

Example: [1 1; 3 3] (discontiguous selection of two table cells, or contiguous selection of nine table cells)

mode — Selection mode

"discontiguous" (default) | "contiguous"

Selection mode, specified as one of the following values. This input controls how multiple elements are selected within a component:

• "discontiguous" — The method performs a choose gesture on only the elements specified in the elements input argument. An example of discontiguous selection is clicking a table cell, holding Ctrl (Command on macOS systems), and then clicking one or more noncontiguous cells.

• "contiguous" — The method performs a choose gesture on the elements specified in the elements input argument and all elements between them. An example of contiguous selection is clicking a table cell, holding Shift, and then clicking another cell to select all the cells between them.

Data Types: string | char

Attributes

Sealed

true

To learn about attributes of methods, see Method Attributes.

Examples

Choose Value on Discrete Knob

Create a discrete knob.

knob = uiknob("discrete");

Create an interactive test case and choose the High knob value. An animated blue dot indicates the programmatic choose gesture.

testCase = matlab.uitest.TestCase.forInteractiveUse;
testCase.choose(knob,"High")

View the value of the Items property of the knob.

knob.Items

ans =

  1×4 cell array

    {'Off'}    {'Low'}    {'Medium'}    {'High'}

Choose the Low knob value by index. The knob moves from High to Low.

testCase.choose(knob,2)

Choose Slider Value and Verify Change

Create a slider.

s = uislider;

Create an interactive test case and verify that the value of the slider button is 0.

testCase = matlab.uitest.TestCase.forInteractiveUse;
testCase.verifyEqual(s.Value,0)

Verification passed.

Choose a new slider value and verify that the slider value changes. Because the method simulates a user manipulating the component to an arbitrarily precisioned value, it is a best practice to use a tolerance to compare the actual and expected slider values.

expVal = 50;
testCase.choose(s,expVal)
testCase.verifyEqual(s.Value,expVal,AbsTol=1)

Verification passed.

Select Tab from Group and Verify Change

Create a figure with two tabs.

fig = uifigure;
group = uitabgroup(fig);
tab1 = uitab(group,Title="Tab #1");
tab2 = uitab(group,Title="Tab #2");

Create an interactive test case and verify that the selected tab title contains the substring "#1".

testCase = matlab.uitest.TestCase.forInteractiveUse;
testCase.verifySubstring(group.SelectedTab.Title,"#1")

verification passed.

Select the second tab and verify the change in selection.

testCase.choose(group,"Tab #2")
testCase.verifyEqual(group.SelectedTab,tab2)

Verification passed.

Select Single Table Cell

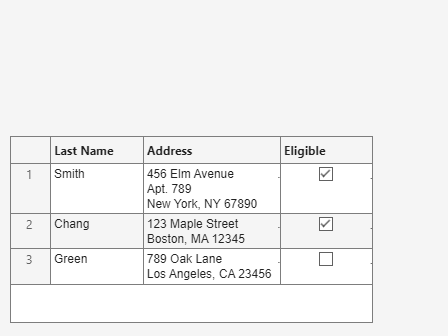

Create a table UI component that contains text and logical values.

name = {'Smith'; 'Chang'; 'Green'};
address = { ...
    sprintf('456 Elm Avenue\nApt. 789\nNew York, NY 67890'); ...
    sprintf('123 Maple Street\nBoston, MA 12345'); ...
    sprintf('789 Oak Lane\nLos Angeles, CA 23456')};
eligibility = {true; true; false};

fig = uifigure;
uit = uitable( ...
    Parent=fig, ...
    Position=[20 20 400 200], ...
    Data=[name address eligibility], ...
    ColumnName=["Last Name" "Address" "Eligible"], ...
    ColumnEditable=[false false true]);

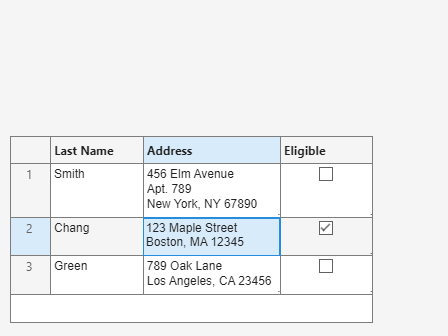

Create a test case for interactive testing and select the table cell with indices (2, 2). The choose method makes a selection by pressing at the center of the cell.

testCase = matlab.uitest.TestCase.forInteractiveUse;
testCase.choose(uit,[2 2])

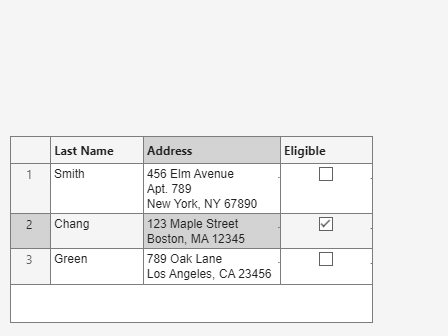

Clear the check box in the table cell with indices (1, 3) by selecting that cell. Because the specified table cell contains a logical value, the choose method interacts with the check box instead of pressing at the center of the cell.

testCase.choose(uit,[1 3])

Select Multiple Table Cells

Create a table UI component that displays a 10-by-3 array of random integers.

fig = uifigure;
uit = uitable(fig,Data=randi(100,10,3));

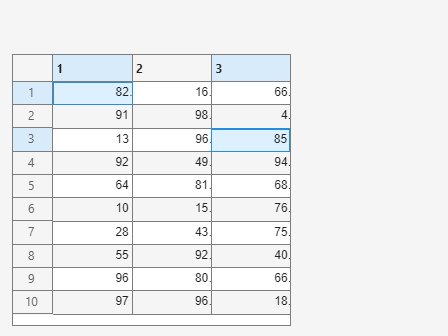

Create an interactive test case and select the cells with indices (1, 1) and (3, 3).

testCase = matlab.uitest.TestCase.forInteractiveUse;
testCase.choose(uit,[1 1; 3 3])

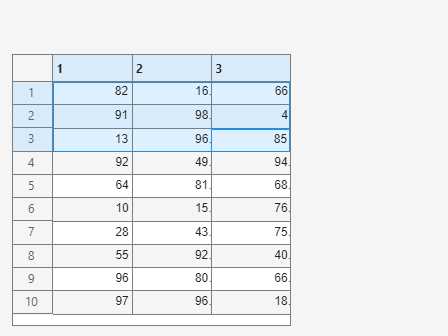

Now, select the cells with indices (1, 1) and (3, 3) and all the cells between them.

testCase.choose(uit,[1 1; 3 3],SelectionMode="contiguous")

Select Multiple Items in List Box

Create a list box that supports multiple item selection.

fig = uifigure;
listbox = uilistbox(fig,Multiselect="on");

Create an interactive test case and select the first and third items in the list box. You can specify the items to select either by their names in the Items property (["Item 1" "Item 3"]) or by their indices ([1 3]).

testCase = matlab.uitest.TestCase.forInteractiveUse;
testCase.choose(listbox,[1 3])

Now, select items 1 through 3 by simulating a Shift+click action.

testCase.choose(listbox,[1 3],SelectionMode="contiguous")

Version History

Introduced in R2018a

R2026a: Select range of list box items

You can simulate a Shift+click action to select a range of list box items. To programmatically select a range of contiguous items in a list box, specify two elements to select and specify the mode input argument as "contiguous".

R2024a: Node expanded callback executes when gestures programmatically expand tree nodes

To better mimic a user who must expand tree nodes to interact with a nested node, the node expanded callback executes when you perform a gesture on a collapsed tree node by using the choose method. You can specify the callback by setting the NodeExpandedFcn property of the tree.

For example, perform a choose gesture on a nested node in a tree, and display the text of any programmatically expanded nodes.

fig = uifigure;
t = uitree(fig);
t.NodeExpandedFcn = @(src,event) disp(event.Node.Text);

parent = uitreenode(t,"Text","Runners");
child1 = uitreenode(parent,"Text","Joe");
child2 = uitreenode(parent,"Text","Linda");

testCase = matlab.uitest.TestCase.forInteractiveUse;
testCase.choose(child2)

If you do not want the callback to execute, preserving the behavior in R2023b and earlier, expand the tree node before performing the gesture. In this code, the callback does not execute.

fig = uifigure;
t = uitree(fig);
t.NodeExpandedFcn = @(src,event) disp(event.Node.Text);

parent = uitreenode(t,"Text","Runners");
child1 = uitreenode(parent,"Text","Joe");
child2 = uitreenode(parent,"Text","Linda");

testCase = matlab.uitest.TestCase.forInteractiveUse;
expand(parent)
testCase.choose(child2)

R2021a: Perform gestures on table UI components

You can perform choose gestures in tests on table UI components. The choose method has new syntaxes to test a choose gesture on a single table cell or multiple table cells.

R2020b: Perform gestures on toggle tools

You can perform choose gestures in tests on toggle tools.

R2020b: Indexing order has changed in choose gestures within button groups

When you choose a radio button or toggle button using an index, the app testing framework indexes into the Buttons property of the ButtonGroup object. In previous releases, the framework indexes into the Children property of the ButtonGroup object. For example, create a button group that has six toggle buttons:

f = uifigure;
bg = uibuttongroup(f);
tb1 = uitogglebutton(bg,'Position',[11 165 140 22],'Text','One');
tb2 = uitogglebutton(bg,'Position',[11 140 140 22],'Text','Two');
tb3 = uitogglebutton(bg,'Position',[11 115 140 22],'Text','Three');
tb4 = uitogglebutton(bg,'Position',[11 90 140 22],'Text','Four');
tb5 = uitogglebutton(bg,'Position',[11 65 140 22],'Text','Five');
tb6 = uitogglebutton(bg,'Position',[11 40 140 22],'Text','Six');

This table shows the outcome of the choose gesture on a toggle button that is specified with index 2:

Test	Starting in R2020b	R2020a and Earlier
tc = matlab.uitest.TestCase.forInteractiveUse; tc.choose(bg,2)	MATLAB® chooses toggle button tb2, which is the second element of the bg.Buttons array. The tc.choose(bg,2) syntax is equivalent to tc.choose(bg,'Two').	MATLAB chooses toggle button tb5, which is the second element of the bg.Children array. The tc.choose(bg,2) syntax is equivalent to tc.choose(bg,'Five').
