Train Autoencoders for CSI Feedback Compression

Since R2022b

This example uses:

This example shows how to train an autoencoder neural network to compress downlink channel state information (CSI) over a clustered delay line (CDL) channel.

In this example, you:

Define and Train Neural Network Model for CSI feedback autoencoding.
Test Trained Network of a complete CSI compression system, which includes preprocessing, encoding, decoding, and postprocessing.
Test the Effect of Quantized Codewords on the system performance.

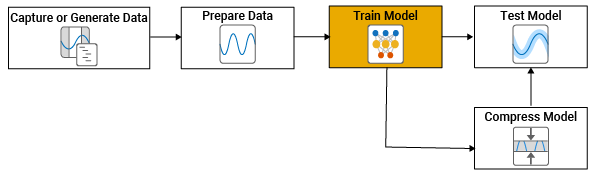

AI Workflow for CSI Feedback

Steps in the AI-based CSI feedback workflow include data generation, data preparation, model training, and model testing. You can run each step independently or work through the steps in order. Train Model is the focus of this example.

For a description of the CSI feedback process and AI workflow, see AI-Based CSI Feedback. Briefly, the workflow steps are:

1. Generate Data - Generate channel estimate data, as shown in the Generate MIMO OFDM Channel Realizations for AI-Based Systems example.

2. Prepare Data - Data preparation, as shown in the Preprocess Data for AI-Based CSI Feedback Compression example.

3. Train Model - Model training inputs preprocessed channel estimate data to neural networks to reconstruct CSI data, which begins in the Define and Train Neural Network Model section of this example.

4. Test Model - Model testing is the primary focus of the Test AI-based CSI Compression Techniques for Enhanced PDSCH Throughput example.

For a list of additional examples that train, compress, and test autoencoder models, see the Further Exploration section.

Define and Train Neural Network Model

If the required data is not present in the workspace, generate and prepare the data. After preprocessing the data, you can view the system configuration by inspecting outputs (inputData, systemParams, dataOptions, channel, and carrier) of the prepareData function.

if ~exist("inputData","var") || ~exist("systemParams","var") ...
        || ~exist("dataOptions","var") || ~exist("channel","var") ...
        || ~exist("carrier","var")
    numSamples = 1000;
[inputData,systemParams,dataOptions,channel,carrier] = ...
prepareData(numSamples);
end

Starting channel realization generation
6 worker(s) running
00:00:13 - 100% Completed
Starting CSI data preprocessing
6 worker(s) running
00:00:02 - 100% Completed

Define Neural Network Model Variables

Initialize variables that define the neural network model. The inputData variable contains $N_{s a m p l e s}$ samples of $D_{m a x}$ -by- $N_{t x}$ -by- 2 arrays.

[maxDelay,nTx,Niq,Nsamples] = size(inputData)

maxDelay =
28

nTx =
8

Niq =
2

Nsamples =
2000

systemParams.MaxDelay = maxDelay;

Separate the data into training, validation, and test sets.

N = size(inputData, 4);
numTrain = floor(N*10/15)

numTrain =
1333

numVal = floor(N*3/15)

numVal =
400

numTest = floor(N*2/15)

numTest =
266

inputDataT = inputData(:,:,:,1:numTrain);
inputDataV = inputData(:,:,:,numTrain+(1:numVal));
inputDataTest = inputData(:,:,:,numTrain+numVal+(1:numTest));

This example uses a modified version of the autoencoder neural network proposed in [1].

inputSize = [maxDelay nTx 2]; % 3rd dim for real and imaginary
nLinear = prod(inputSize);
nEncoded = 64;

autoencoderNet = dlnetwork([ ...
    % Encoder
    imageInputLayer(inputSize, ...
        "Normalization","none","Name","Enc_Input")

    convolution2dLayer([3 3],2, ...
        "Padding","same","Name","Enc_Conv")
    batchNormalizationLayer("Epsilon",0.001,"Name","Enc_BN")
    leakyReluLayer(0.3,"Name","Enc_leakyRelu")

    flattenLayer("Name","Enc_flatten")

    fullyConnectedLayer(nEncoded,"Name","Enc_FC")

    sigmoidLayer("Name","Enc_Sigmoid")

    % Decoder
    fullyConnectedLayer(nLinear,"Name","Dec_FC")

    functionLayer(@(x)dlarray(reshape(x,maxDelay,nTx,2,[]),'SSCB'), ...
      "Formattable",true,"Acceleratable",true,"Name","Dec_Reshape")
    ]);

autoencoderNet = ...
  helperCSINetAddResidualLayers(autoencoderNet, "Dec_Reshape");

autoencoderNet = addLayers(autoencoderNet, ...
    [convolution2dLayer([3 3],2,"Padding","same","Name","Dec_Conv") ...
    sigmoidLayer("Name","Dec_Sigmoid")]);
autoencoderNet = ...
  connectLayers(autoencoderNet,"leakyRelu_2_3","Dec_Conv");

figure
plot(autoencoderNet)
title('CSI Compression Autoencoder')

Figure contains an axes object. The axes object with title CSI Compression Autoencoder contains an object of type graphplot.

Train Neural Network

Set the training options for the autoencoder neural network and train the network using the trainnet (Deep Learning Toolbox) function. Training takes less than 13 minutes on an Intel® Xeon® W-2133 CPU @ 3.60GHz with NVIDIA GeForce RTX 3080 GPU. Set trainNow to false to load the pretrained network. Note that the saved network works for the following settings. If you change any of these settings, set trainNow to true.

txAntennaSize = [2 2 2 1 1]; % rows, columns, polarizations, panels
rxAntennaSize = [2 1 1 1 1]; % rows, columns, polarizations, panels
rmsDelaySpread = 300e-9;     % s
maxDoppler = 5;              % Hz
nSizeGrid = 52;              % Number resource blocks (RB)
                             % 12 subcarriers per RB
subcarrierSpacing = 15;

trainNow = false;

miniBatchSize = 1000;
trainOptions = trainingOptions("adam", ...
InitialLearnRate=0.01, ...
LearnRateSchedule="piecewise", ...
LearnRateDropPeriod=138, ...
LearnRateDropFactor=0.7456, ...
Epsilon=1e-7, ...
MaxEpochs=1000, ...
MiniBatchSize=miniBatchSize, ...
Shuffle="every-epoch", ...
ValidationData={inputDataV,inputDataV}, ...
ValidationFrequency=20, ...
ValidationPatience=20, ...
Metrics="rmse", ...
Verbose=true, ...
OutputNetwork="best-validation-loss", ...
ExecutionEnvironment="auto", ...
Plots='none')

trainOptions =
  TrainingOptionsADAM with properties:

             GradientDecayFactor: 0.9000
                       MaxEpochs: 1000
                InitialLearnRate: 0.0100
               LearnRateSchedule: 'piecewise'
             LearnRateDropFactor: 0.7456
             LearnRateDropPeriod: 138
                   MiniBatchSize: 1000
                         Shuffle: 'every-epoch'
         CheckpointFrequencyUnit: 'epoch'
        PreprocessingEnvironment: 'serial'
                         Verbose: 1
                VerboseFrequency: 50
                  ValidationData: {[28×8×2×400 single]  [28×8×2×400 single]}
             ValidationFrequency: 20
              ValidationPatience: 20
                         Metrics: 'rmse'
             ObjectiveMetricName: 'loss'
            ExecutionEnvironment: 'auto'
                           Plots: 'none'
                       OutputFcn: []
                  SequenceLength: 'longest'
            SequencePaddingValue: 0
        SequencePaddingDirection: 'right'
                InputDataFormats: "auto"
               TargetDataFormats: "auto"
         ResetInputNormalization: 1
       ResetInverseNormalization: 1
                NormalizeTargets: 0
    BatchNormalizationStatistics: 'auto'
                   OutputNetwork: 'best-validation-loss'
                    Acceleration: "auto"
                  CheckpointPath: ''
             CheckpointFrequency: 1
        CategoricalInputEncoding: 'integer'
       CategoricalTargetEncoding: 'auto'
                L2Regularization: 1.0000e-04
         GradientThresholdMethod: 'l2norm'
               GradientThreshold: Inf
      SquaredGradientDecayFactor: 0.9990
                         Epsilon: 1.0000e-07

lossFunc = @(x,t) nmseLossdB(x,t);

Use the normalized mean squared error (NMSE) between the network inputs and outputs in dB as the training loss function to find the best set of weights for the autoencoder.

if trainNow
  [net,trainInfo] = ...
    trainnet(inputDataT,inputDataT,autoencoderNet,lossFunc,trainOptions); %#ok<UNRCH>
  save("csiTrainedNetwork_" ...
    + string(datetime("now","Format","dd_MM_HH_mm")), ...
    'net','trainInfo','systemParams','dataOptions','trainOptions')
else
  systemParamsCached = systemParams;
load("csiTrainedNetwork202507",'net','trainInfo','systemParams','trainOptions')
  if ~checkSystemCompatibility(systemParams,systemParamsCached)
    error("CSIExample:Missmatch", ...
      "Saved network does not match settings. Set trainNow to true.")
  end
end

Test Trained Network

Use the predict (Deep Learning Toolbox) function to process the test data.

Hhat = predict(net,inputDataTest);

Calculate the cosine similarity and NMSE between the input and output of the autoencoder network. The cosine similarity is defined as

$s = \frac{{h_{}^{ˆ}}_{m}^{H} . h_{n}}{\sqrt{({h_{}^{ˆ}}_{m}^{H} . {h_{}^{ˆ}}_{m}) (h_{n}^{H} . h_{n})}}$

where $h_{n}$ is the channel estimate at the input of the autoencoder and ${h_{}^{ˆ}}_{n}$ is the channel estimate at the output of the autoencoder. For more information on cosine similarity, see the Cosine Similarity As a Channel Estimate Quality Metric example. NMSE is defined as

$N M S E = E {\frac{{‖ H - H_{}^{ˆ} ‖}_{2}^{2}}{{‖ H ‖}_{2}^{2}}}$

where $H$ is the channel estimate at the input of the autoencoder and $H_{}^{ˆ}$ is the channel estimate at the output of the autoencoder.

cossim = zeros(numTest,1);
nmse = zeros(numTest,1);
for n=1:numTest
    in = inputDataTest(:,:,1,n) + 1i*(inputDataTest(:,:,2,n));
    out = Hhat(:,:,1,n) + 1i*(Hhat(:,:,2,n));

    % Calculate correlation
    cossim(n) = helperComplexCosineSimilarity(in,out);

    % Calculate NMSE
    mse = mean(abs(in-out).^2,'all');
    nmse(n) = 10*log10(mse / mean(abs(in).^2,'all'));
end
figure
tiledlayout(3,1)
nexttile
histogram(abs(cossim),"Normalization","probability")
grid on
title(sprintf("Cosine Similarity Magnitude (Mean = %1.2f)", ...
mean(abs(cossim),'all')))
xlabel("Cosine Similarity Magnitude"); ylabel("PDF")
nexttile
histogram(angle(cossim),"Normalization","probability")
grid on
title(sprintf("Cosine Similarity Angle (Mean = %1.2f)", ...
mean(angle(cossim),'all')))
xlabel("Cosine Similarity Angle"); ylabel("PDF")
nexttile
histogram(nmse,"Normalization","probability")
grid on
title(sprintf("NMSE (Mean NMSE = %1.2f dB)", ...
mean(nmse,'all')))
xlabel("NMSE (dB)"); ylabel("PDF")

Complete CSI Feedback System

This figure shows the complete processing of channel estimates for CSI feedback. The UE uses the CSI-RS signal to estimate the channel response for one slot, $H_{e s t}$ . The preprocessed channel estimate, $H_{t r}$ , is encoded by using the encoder portion of the autoencoder to produce a 1-by- $N_{e n c}$ compressed array. The compressed array is decompressed by the decoder portion of the autoencoder to obtain ${H_{t r}}_{}^{ˆ}$ . Postprocessing ${H_{t r}}_{}^{ˆ}$ produces ${H_{e s t}}_{}^{ˆ}$ .

End-to-end CSI compression

To obtain the encoded array, split the autoencoder into two parts: the encoder network and the decoder network.

[encNet,decNet] = helperCSINetSplitEncoderDecoder(net,"Enc_Sigmoid");
plotNetwork(net,encNet,decNet)

Figure contains 3 axes objects. Axes object 1 with title Autoencoder contains an object of type graphplot. Axes object 2 with title Encoder contains an object of type graphplot. Axes object 3 with title Decoder contains an object of type graphplot.

Generate channel estimates.

numFrames = 100;
nRx = prod(systemParams.RxAntennaSize);

Hest = helper3GPPChannelRealizations(...
  numFrames, ...
  channel, ...
  carrier, ...
  UseParallel           = false, ...
  SaveData              = false, ...
  Verbose               = false, ...
  ResetChannelPerFrame  = true, ...
  NumSlotsPerFrame      = 1);

Encode and decode the channel estimates.

codeword = helperCSINetEncode(encNet,Hest,systemParams);
Hhat = helperCSINetDecode(decNet,codeword,systemParams);

Calculate the cosine similarity and NMSE for the complete CSI feedback system.

H = squeeze(mean(Hest,2));
nmseE2E = zeros(nRx,numFrames);
cossimE2E = zeros(nRx,numFrames);
for rx=1:nRx
    for n=1:numFrames
        out = Hhat(:,rx,:,n);
        in = H(:,rx,:,n);
        cossimE2E(rx,n) = mean(helperComplexCosineSimilarity(in,out));
        nmseE2E(rx,n) = helperNMSE(in,out);
    end
end
figure
tiledlayout(3,1)
nexttile
histogram(abs(cossimE2E),"Normalization","probability")
grid on
title(sprintf("Complete Cosine Similarity Magnitude (Mean = %1.2f)", ...
mean(abs(cossimE2E),'all')))
xlabel("Cosine Similarity Magnitude"); ylabel("PDF")
nexttile
histogram(angle(cossimE2E),"Normalization","probability")
grid on
title(sprintf("Complete Cosine Similarity Angle (Mean = %1.2f)", ...
mean(angle(cossimE2E),'all')))
xlabel("Cosine Similarity Angle"); ylabel("PDF")
nexttile
histogram(nmseE2E,"Normalization","probability")
grid on
title(sprintf("Complete NMSE (Mean NMSE = %1.2f dB)", ...
mean(nmseE2E,'all')))
xlabel("NMSE (dB)"); ylabel("PDF")

Effect of Quantized Codewords

Practical systems require quantizing the encoded codeword by using a small number of bits. Simulate the effect of quantization across the range of [2,10] bits. The results show that 6-bits is enough to closely approximate the single-precision performance.

CSI compression with autoencoder and quantization

maxVal = 1;
minVal = -1;
idxBits = 1;
nBitsVec = 2:10;
rhoQ = zeros(nRx,numFrames,length(nBitsVec));
nmseQ = zeros(nRx,numFrames,length(nBitsVec));
for numBits = nBitsVec
disp("Running for " + numBits + " bit quantization")

    % Quantize between 0:2^n-1 to get bits
    qCodeword = uencode(double(codeword*2-1), numBits);

    % Get back the floating point, quantized numbers
    codewordRx = (single(udecode(qCodeword,numBits))+1)/2;
    Hhat = helperCSINetDecode(decNet,codewordRx,systemParams);
    H = squeeze(mean(Hest,2));
    for rx=1:nRx
        for n=1:numFrames
            out = Hhat(:,rx,:,n);
            in = H(:,rx,:,n);
            rhoQ(rx,n,idxBits) = helperCSINetCorrelation(in,out);
            nmseQ(rx,n,idxBits) = helperNMSE(in,out);
        end
    end
    idxBits = idxBits + 1;
end

Running for 2 bit quantization
Running for 3 bit quantization
Running for 4 bit quantization
Running for 5 bit quantization
Running for 6 bit quantization
Running for 7 bit quantization
Running for 8 bit quantization
Running for 9 bit quantization
Running for 10 bit quantization

figure
tiledlayout(2,1)
nexttile
plot(nBitsVec,squeeze(mean(rhoQ,[1 2])),'*-')
title("Correlation (Codeword-" + size(codeword,3) + ")")
xlabel("Number of Quantization Bits"); ylabel("\rho")
grid on
nexttile
plot(nBitsVec,squeeze(mean(nmseQ,[1 2])),'*-')
title("NMSE (Codeword-" + size(codeword,3) + ")")
xlabel("Number of Quantization Bits"); ylabel("NMSE (dB)")
grid on

$Figure contains 2 axes objects. Axes object 1 with title Correlation (Codeword-64), xlabel Number of Quantization Bits, ylabel \rho contains an object of type line. Axes object 2 with title NMSE (Codeword-64), xlabel Number of Quantization Bits, ylabel NMSE (dB) contains an object of type line.$

Further Exploration

The autoencoder compresses a [624 8] single-precision complex channel estimate array into a [64 1] single-precision array with a mean correlation factor of 0.99 and a NMSE of –19.55 dB. Using 6-bit quantization requires only 384 bits of CSI feedback data, which equates to a compression ratio of approximately 800:1.

display("Compression ratio is " + (624*8*32*2)/(64*6) + ":" + 1)

    "Compression ratio is 832:1"

Investigate the effect of truncationFactor on the system performance. Vary the 5G system parameters, channel parameters, and number of encoded symbols and then find the optimum values for the defined channel.

The NR PDSCH Throughput Using Channel State Information Feedback example shows how to use channel state information (CSI) feedback to adjust the physical downlink shared channel (PDSCH) parameters and measure throughput. Replace the CSI feedback algorithm with the CSI compression autoencoder and compare performance.

This example shows how to design, train, and evaluate an autoencoder for CSI compression and reconstruction. To explore other task-specific processes, see these examples :

CSI Feedback with Transformer Autoencoder — Design, train, and evaluate a transformer autoencoder for CSI compression and reconstruction.
Optimize CSI Feedback Autoencoder Training Using MATLAB Parallel Server and Experiment Manager — Accelerate determining the optimal training hyperparameters of an autoencoder model that simulates channel state information (CSI) compression by using a MATLAB® Parallel Server™ and the Experiment Manager app.
CSI Feedback with Autoencoders Implemented on an FPGA (Deep Learning HDL Toolbox) — Deploy an implemented CSI autoencoder to an FPGA by using the Deep Learning HDL Toolbox™.

You can also explore how to train and test MATLAB-hosted PyTorch and Keras based neural networks:

Helper Functions

Explore the helper functions to see the detailed implementation of the system.

Training Data Generation

helper3GPPChannelRealizations

Network Definition and Manipulation

helperCSINetDLNetwork

helperCSINetAddResidualLayers

helperCSINetSplitEncoderDecoder

CSI Processing

helperPreprocess3GPPChannelData

helperPostprocess3GPPChannelData

helperCSINetEncode

helperCSINetDecode

Performance Measurement

helperComplexCosineSimilarity

helperNMSE

Appendix: Optimize Hyperparameters with Experiment Manager

Use the Experiment Manager app to find the optimal parameters. CSITrainingProject.mlproj is a preconfigured project. Extract the project.

projectName = "CSITrainingProject";
if ~exist(projectName,"dir")
  projRoot = helperCSINetExtractProject(projectName);
else
  projRoot = fullfile(exRoot(),projectName);
end

To open the project, start the Experiment Manager app and open the following file.

disp(fullfile(".","CSITrainingProject","CSITrainingProject.prj"))

.\CSITrainingProject\CSITrainingProject.prj

Save input data and autoencoder options to use during hyperparameter optimization.

dataDir = fullfile(pwd,"Data","processed");
if ~isfolder(dataDir)
  mkdir(dataDir)
end
save(fullfile(dataDir,"nr_channel_preprocessed.mat"), ...
    "inputData","systemParams")
save('data_folder.mat', "dataDir");

The Optimize Hyperparameters experiment uses Bayesian optimization with hyperparameter search ranges specified as in the following figure. After you open the project, you can use the experiment setup function CSIAutoEncNN_setup and the custom metric function is E2E_NMSE.

The optimal parameters are 0.01 for initial learning rate, 156 iterations for the learning rate drop period, and 0.5916 for learning rate drop factor. After finding the optimal hyperparameters, train the network with same parameters multiple times to find the best trained network.

The ninth trial produced the best E2E_NMSE. This example uses this trained network as the saved network.

Configuring Batch Mode

When execution Mode is set to Batch Sequential or Batch Simultaneous, training data must be accessible to the workers in a location defined by the dataDir variable in the Prepare Data in Bulk section. Set dataDir to a network location that is accessible by the workers. For more information, see Offload Experiments as Batch Jobs to a Cluster (Deep Learning Toolbox).

Local Functions

function [inputData,systemParams,dataOptions,channel,carrier] = prepareData(numSamples)
carrier = nrCarrierConfig;
nSizeGrid = 52;                                         % Number resource blocks (RB)
systemParams.SubcarrierSpacing = 15;  % 15, 30, 60, 120 kHz
carrier.NSizeGrid = nSizeGrid;
carrier.SubcarrierSpacing = systemParams.SubcarrierSpacing;
waveInfo = nrOFDMInfo(carrier);
systemParams.TxAntennaSize = [2 2 2 1 1];   % rows, columns, polarization, panels
systemParams.RxAntennaSize = [2 1 1 1 1];   % rows, columns, polarization, panels
systemParams.MaxDoppler = 5;                % Hz
systemParams.RMSDelaySpread = 300e-9;       % s
systemParams.DelayProfile = "CDL-C"; % CDL-A, CDL-B, CDL-C, CDL-D, CDL-D, CDL-E
systemParams.NumSubcarriers = carrier.NSizeGrid*12;
channel = nrCDLChannel;
channel.DelayProfile = systemParams.DelayProfile;
channel.DelaySpread = systemParams.RMSDelaySpread;     % s
channel.MaximumDopplerShift = systemParams.MaxDoppler; % Hz
channel.RandomStream = "Global stream";
channel.TransmitAntennaArray.Size = systemParams.TxAntennaSize;
channel.ReceiveAntennaArray.Size = systemParams.RxAntennaSize;
channel.ChannelFiltering = false;
channel.SampleRate = waveInfo.SampleRate;
samplesPerSlot = ...
  sum(waveInfo.SymbolLengths(1:waveInfo.SymbolsPerSlot));
channel.NumTimeSamples = samplesPerSlot; % 1 slot worth of samples
systemParams.NumSymbols = 14;
useParallel = true;
saveData =  true;
dataDir = fullfile(pwd,"Data");
dataFilePrefix = "nr_channel_est";
numSlotsPerFrame = 1;
resetChannel = true;
sdsChan = helper3GPPChannelRealizations(...
  numSamples, ...
  channel, ...
  carrier, ...
  UseParallel=useParallel, ...
  SaveData=saveData, ...
  DataDir=dataDir, ...
  dataFilePrefix=dataFilePrefix, ...
  NumSlotsPerFrame=numSlotsPerFrame, ...
  ResetChannelPerFrame=resetChannel);

dataOptions.DataDomain = "Frequency-Spatial (FS)";
dataOptions.TruncationFactor = 10;
Tdelay = 1/(systemParams.NumSubcarriers*carrier.SubcarrierSpacing*1e3);
rmsDelaySpreadSamples = channel.DelaySpread/Tdelay;
[data,dataOptions] = helperPreprocess3GPPChannelData( ...
  sdsChan, ...
  TrainingObjective          = "autoencoding", ...
  AverageOverSlots           = true, ...
  TruncateChannel            = true, ...
  ExpectedDelaySpreadSamples = rmsDelaySpreadSamples, ...
  TruncationFactor           = dataOptions.TruncationFactor, ...
  DataComplexity             = "real (2D)", ...
  IQDimension                = 3, ...
  DataDomain                 = dataOptions.DataDomain, ...
  UseParallel                = useParallel, ...
  SaveData                   = false);
meanVal = mean(data{1},'all');
stdVal = std(data{1},[],'all');
inputData = (data{1}-meanVal) / stdVal;
targetStd = 0.0212;
inputData = inputData*targetStd+0.5;
systemParams.Normalization = "mean-variance";
systemParams.MeanValue = meanVal;
systemParams.StandardDeviationValue = stdVal;
systemParams.TargetStandardDeviation = targetStd;
systemParams.ExpectedDelaySpreadSamples = dataOptions.ExpectedDelaySpreadSamples;
end

function compatible = checkSystemCompatibility(systemParams,systemParamsCached)
compatible = false;
if systemParams.SubcarrierSpacing ~= systemParamsCached.SubcarrierSpacing
  return
end
if any(systemParams.TxAntennaSize ~= systemParamsCached.TxAntennaSize)
  return
end
if any(systemParams.RxAntennaSize ~= systemParamsCached.RxAntennaSize)
  return
end
if systemParams.MaxDoppler ~= systemParamsCached.MaxDoppler
  return
end
if systemParams.RMSDelaySpread ~= systemParamsCached.RMSDelaySpread
  return
end
if systemParams.DelayProfile ~= systemParamsCached.DelayProfile
  return
end
if systemParams.NumSubcarriers ~= systemParamsCached.NumSubcarriers
  return
end
if systemParams.NumSymbols ~= systemParamsCached.NumSymbols
  return
end
if abs(systemParams.MeanValue - systemParamsCached.MeanValue) > 3e-2
  return
end
if (systemParams.StandardDeviationValue - systemParamsCached.StandardDeviationValue) > 3e-2
  return
end
if systemParams.TargetStandardDeviation ~= systemParamsCached.TargetStandardDeviation
  return
end
if systemParams.ExpectedDelaySpreadSamples ~= systemParamsCached.ExpectedDelaySpreadSamples
  return
end
if systemParams.MaxDelay ~= systemParamsCached.MaxDelay
  return
end
compatible = true;
end

function plotNetwork(net,encNet,decNet)
%plotNetwork Plot autoencoder network
%   plotNetwork(NET,ENC,DEC) plots the full autoencoder network together
%   with encoder and decoder networks.
fig = figure;
t1 = tiledlayout(1,2,'TileSpacing','Compact');
t2 = tiledlayout(t1,1,1,'TileSpacing','Tight');
t3 = tiledlayout(t1,2,1,'TileSpacing','Tight');
t3.Layout.Tile = 2;
nexttile(t2)
plot(net)
title("Autoencoder")
nexttile(t3)
plot(encNet)
title("Encoder")
nexttile(t3)
plot(decNet)
title("Decoder")
pos = fig.Position;
pos(3) = pos(3) + 200;
pos(4) = pos(4) + 300;
pos(2) = pos(2) - 300;
fig.Position = pos;
end

function rootDir = exRoot()
%exRoot Example root directory
rootDir = fileparts(which("helperCSINetDLNetwork"));
end

function loss = nmseLossdB(x,xHat)
%nmseLossdB NMSE loss in dB
in = complex(x(:,:,1,:),x(:,:,2,:));
out = complex(xHat(:,:,1,:),xHat(:,:,2,:));
nmsePerObservation = helperNMSE(in,out);
loss = mean(nmsePerObservation);
end

References

[1] Wen, Chao-Kai, Wan-Ting Shih, and Shi Jin. “Deep Learning for Massive MIMO CSI Feedback.” IEEE Wireless Communications Letters 7, no. 5 (October 2018): 748–51. https://doi.org/10.1109/LWC.2018.2818160.
