shape.Polygon

Create polygon on xy-plane

Since R2023b

Description

The shape.Polygon lets you create a polygon with metal material properties on the xy-plane, centered at the origin. Use this polygon along with the other shapes and the geometric operations to create a shape for the custom antenna.

Creation

Syntax

poly = shape.Polygon

poly = shape.Polygon(Name=Value)

Description

poly = shape.Polygon creates a polygon shape on the xy-plane.

poly = shape.Polygon(Name=Value) sets additional Properties using one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as Name1=Value1, ..., NameN=ValueN. Properties that you do not specify retain their default values.

Properties

Name — Name of polygon

"mypolygon" (default) | string

Name of the polygon, specified as a string.

Example: "Polygon1"

Data Types: string

Vertices — Cartesian coordinates of polygon vertices

3-by-3 matrix (default) | N-by-3 matrix

Cartesian coordinates of the polygon vertices, specified as a N-by-3 matrix in meters, where N is the number of points.

Example: [-1 0 0; -0.5 0.2 0; 0 0 0]

Data Types: double

Metal — Metal material of shape

"PEC" (default) | string

Metal material of the shape, specified as a metal name string from the Metal Catalog.

Example: "Copper"

Data Types: string

Color — Color of shape

"y" (default) | character scalar | "Individual" | three-element real vector of RGB triplet

Color of shape, specified as either a character for color short name or a three-element real vector of RGB triplets. The default shape color is yellow. See the Types of Color Values supported by this property. When you unite two shapes of different colors, use "Individual" value to retain the colors of the original shapes in the resultant shape.

Example: "r"

Example: [0 0.447 0.741]

Data Types: double | string | char

Transparency — Transparency of shape

1 (default) | positive scalar within (0,1)

Transparency of shape, specified as a scalar in the (0,1) range, where 0 corresponds to full transparency while 1 corresponds to full opaqueness.

Example: 0.75

Data Types: double

EdgeColor — Color of shape edges

"k" (default) | character scalar | "Individual" | three-element real vector of RGB triplet

Color of shape edges, specified as either a character for color short name or a three-element real vector of RGB triplets. The default edge color is black. See the Types of Color Values supported by this property. When you unite two shapes of different edge colors, use "Individual" value to retain the edge colors of the original shapes in the resultant shape.

Example: "b"

Example: [0.4940 0.1840 0.5560]

Data Types: double | string | char

Object Functions

add	Boolean unite operation on two shapes
subtract	Boolean subtraction operation on two shapes
intersect	Intersection of shape1 and shape2
plus	Join two shapes
minus	Carve a shape from other shape
and	Boolean intersection operation on two shapes
area	Calculate area of 2-D shapes in square meters
show	Display antenna, array structures, shapes, or platform
plot	Plot boundary of 2-D shape
mesh	Mesh properties of metal, dielectric antenna, or array structure
rotate	Rotate shape about axis by angle
rotateX	Rotate shape about x-axis by angle
rotateY	Rotate shape about y-axis by angle
rotateZ	Rotate shape about z-axis by angle
translate	Move shape to new location
scale	Change size of shape by fixed factor
imprintShape	Imprint 2-D shape on another shape
createHole	Create a 2-D hole on custom shape
extrude	Extrude 2-D shape on another shape
extrudeLinear	Linearly extrude 2-D shape along specified direction
extrudeRotate	Extrude 2-D shape by angle about z-axis
removeSlivers	Remove sliver outliers from boundary of shape

Examples

Create and Mesh Polygons

Create a polygon with vertices at (-0.2,0,0), (0.4,0,0), and (0,0.5,0). Mesh it with a maximum edge length of 6 cm.

poly = shape.Polygon('Vertices',[-0.2,0,0;0.4,0,0;0,0.5,0]);

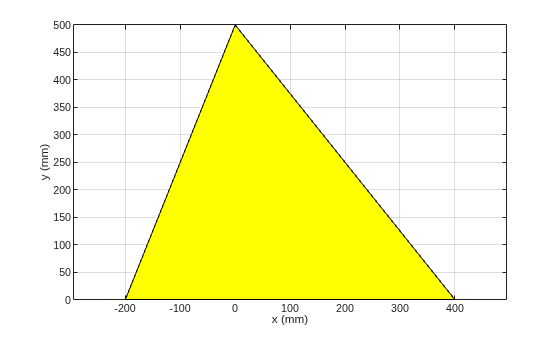

show(poly)

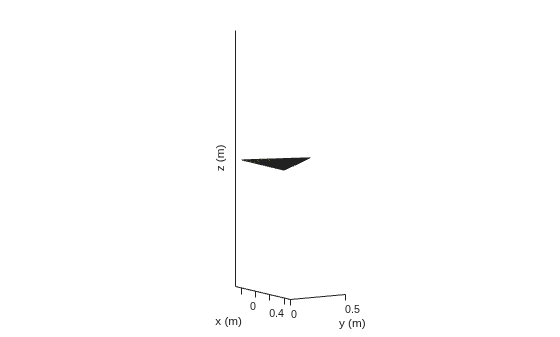

mesh(poly,MaxEdgeLength=6e-2);

Add a rectangle and circle to create a polygon shape. Mesh it with a maximum edge length of 6 cm.

polyS = shape.Rectangle + shape.Circle;

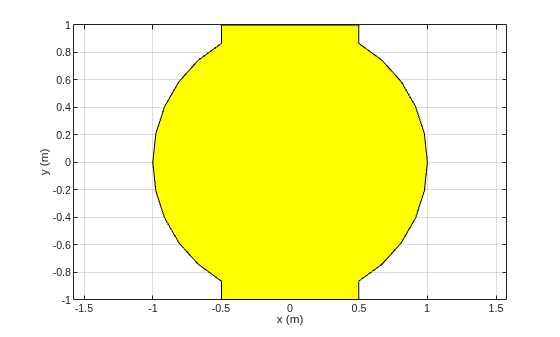

show(polyS)

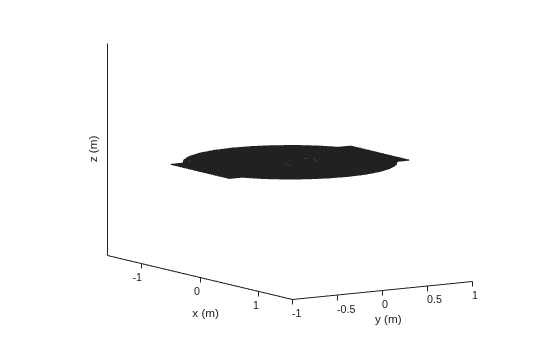

mesh(polyS,MaxEdgeLength=6e-2);

Version History

Introduced in R2023b
