# imwrite

Write image to graphics file

## Syntax

``imwrite(A,filename)``
``imwrite(A,map,filename)``
``imwrite(___,fmt)``
``imwrite(___,Name,Value)``

## Description

example

````imwrite(A,filename)` writes image data `A` to the file specified by `filename`, inferring the file format from the extension. `imwrite` creates the new file in your current folder. The bit depth of the output image depends on the data type of `A` and the file format. For most formats:If `A` is of data type `uint8`, then `imwrite` outputs 8-bit values.If `A` is of data type `uint16` and the output file format supports 16-bit data (JPEG, PNG, and TIFF), then `imwrite` outputs 16-bit values. If the output file format does not support 16-bit data, then `imwrite` returns an error.If `A` is a grayscale or RGB color image of data type `double` or `single`, then `imwrite` assumes that the dynamic range is [0, 1] and automatically scales the data by 255 before writing it to the file as 8-bit values. If the data in `A` is `single`, convert `A` to `double` before writing to a GIF or TIFF file.If `A` is of data type `logical`, then `imwrite` assumes that the data is a binary image and writes it to the file with a bit depth of 1, if the format allows it. BMP, PNG, or TIFF formats accept binary images as input arrays.If `A` contains indexed image data, you should additionally specify the `map` input argument.```

example

````imwrite(A,map,filename)` writes the indexed image in `A` and its associated colormap `map` to the file specified by `filename`.If `A` is an indexed image of data type `double` or `single`, then `imwrite` converts the indices to zero-based indices by subtracting 1 from each element, and then writes the data as `uint8`. If the data in `A` is `single`, convert `A` to `double` before writing to a GIF or TIFF file.```
````imwrite(___,fmt)` writes the image in the format specified by `fmt`, regardless of the file extension in `filename`. You can specify `fmt` after the input arguments in any of the previous syntaxes.```

example

````imwrite(___,Name,Value)` specifies additional parameters for output GIF, HDF, JPEG, PBM, PGM, PNG, PPM, and TIFF files, using one or more name-value arguments. For example, you can add a comment to an image in PNG format.```

## Examples

collapse all

Write a 50-by-50 array of grayscale values to a PNG file in the current folder.

```A = rand(50); imwrite(A,"myGray.png")```

Write an indexed image array and its associated colormap to a PNG file.

Load sample image data from the file `earth.mat`.

`load earth.mat`

The image array `X` and its associated colormap `map` are loaded into the workspace.

Write the data to a new PNG file.

`imwrite(X,map,"myearth.png")`

`imwrite` creates the file `myearth.png` in your current folder.

View the new PNG file using `imshow`.

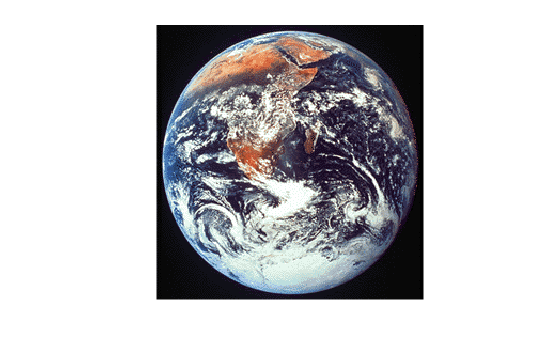

`imshow("myearth.png")`

Write image data to a new PNG file with the built-in MATLAB colormap `copper`.

Load sample image data from the file `earth.mat`.

`load earth.mat`

The image array `X` and its associated colormap `map` are loaded into the workspace. `map` is a matrix of 64 RGB vectors.

Create a copper-tone colormap with 64 RGB vectors. Then write the image data to a PNG file using the new colormap.

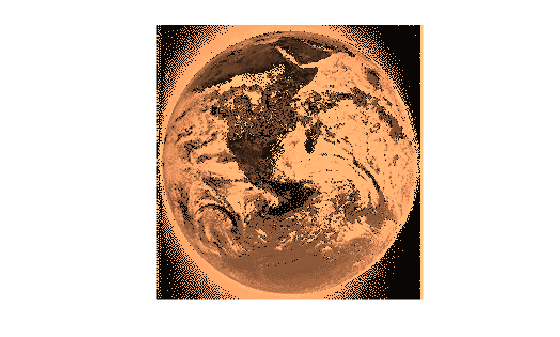

```newmap = copper(64); imwrite(X,newmap,"copperearth.png");```

`imwrite` creates the file `copperearth.png` in your current folder.

View the new PNG file using `imshow`.

`imshow("copperearth.png")`

Create and write truecolor image data to a JPEG file.

Create a 49-by-49-by-3 array of random RGB values.

`A = rand(49,49,3);`

Write the image data to a JPEG file. `imwrite` automatically chooses this format when you use the `.jpg` file extension. Add a comment to the file using the `Comment` name-value argument.

`imwrite(A,"newImage.jpg","Comment","My JPEG file")`

View information about the new file.

```info = imfinfo("newImage.jpg"); info.ColorType```
```ans = 'truecolor' ```
`[info.Height,info.Width,info.NumberOfSamples,info.BitDepth]`
```ans = 1×4 49 49 3 24 ```
`info.Comment`
```ans = 1x1 cell array {'My JPEG file'} ```

Write multiple images to a single multipage TIFF file.

Create two sets of random image data, `im1` and `im2`.

```im1 = rand(50,40,3); im2 = rand(50,50,3);```

Write the first image to a new TIFF file. Then, append the second image to the same file.

```imwrite(im1,"myMultipageFile.tiff") imwrite(im2,"myMultipageFile.tiff","WriteMode","append")```

Draw a series of plots, capture them as images, and write them into one animated GIF file.

Plot $y={x}^{n}$ for $n=3$.

```x = 0:0.01:1; n = 3; y = x.^n; plot(x,y,"LineWidth",3) title("y = x^n, n = " + num2str(n))```

Capture a series of plots for increasing values of $n$.

```n = 1:0.5:5; nImages = length(n); fig = figure; for idx = 1:nImages y = x.^n(idx); plot(x,y,"LineWidth",3) title("y = x^n, n = " + num2str(n(idx))) drawnow frame = getframe(fig); im{idx} = frame2im(frame); end close;```

Display the series of images in one figure.

```figure; for idx = 1:nImages subplot(3,3,idx) imshow(im{idx}); end```

Save the nine images into a GIF file. Because three-dimensional data is not supported for GIF files, call `rgb2ind` to convert the RGB data in the image to an indexed image `A` with a colormap `map`. To append multiple images to the first image, call `imwrite` with the name-value argument `WriteMode` set to `"append"`.

```filename = "testAnimated.gif"; % Specify the output file name for idx = 1:nImages [A,map] = rgb2ind(im{idx},256); if idx == 1 imwrite(A,map,filename,"gif","LoopCount",Inf,"DelayTime",1); else imwrite(A,map,filename,"gif","WriteMode","append","DelayTime",1); end end```

`imwrite` writes the GIF file to your current folder. Setting `LoopCount` to `Inf` causes the animation to loop continuously. Setting `DelayTime` to `1` specifies a 1-second delay between the display of each image in the animation.

## Input Arguments

collapse all

Image data, specified as a full (nonsparse) matrix.

• For grayscale images, `A` can be m-by-n.

• For indexed images, `A` can be m-by-n. Specify the associated colormap in the `map` input argument.

• For truecolor images, `A` must be m-by-n-by-3. `imwrite` does not support writing RGB images to GIF files.

For TIFF files, `A` can be an m-by-n-by-4 array containing color data that uses the CMYK color space.

For multiframe GIF files, `A` can be an m-by-n-by-1-by-p array containing grayscale or indexed images, where p is the number of frames to write. RGB images are not supported in this case.

Data Types: `double` | `single` | `uint8` | `uint16` | `logical`

Name of the output file, specified as a string scalar or character vector.

Depending on the location you are writing to, `filename` can take on one of these forms.

Location

Form

Current folder

To write to the current folder, specify the name of the file in `filename`.

`filename` must include the file extension. For a list of the image types that `imwrite` can write, see the description for the `fmt` input argument.

Example: `"myImage.jpg"`

Other folders

To write to a folder different from the current folder, specify the full or relative path name in `filename`.

Example: `"C:\myFolder\myImage.ext"`

Example: `"\imgDir\myImage.ext"`

Remote Location

To write to a remote location, `filename` must contain the full path of the file specified as a uniform resource locator (URL) of the form:

`scheme_name://path_to_file/my_file.ext`

Based on the remote location, `scheme_name` can be one of the values in this table.

Remote Location`scheme_name`
Amazon S3™`s3`
Windows Azure® Blob Storage`wasb`, `wasbs`
HDFS™`hdfs`

Example: `"s3://bucketname/path_to_file/my_image.jpg"`

Data Types: `char` | `string`

Colormap associated with indexed image data in `A`, specified as an m-by-3 array. `map` must be a valid MATLAB® colormap. See `colormap` for a list of built-in MATLAB colormaps. Most image file formats do not support colormaps with more than 256 entries.

Example: `[0,0,0; 0.5,0.5,0.5; 1,1,1]`

Example: `jet(60)`

Data Types: `double`

Format of the output file, specified as one of the formats in this table.

This table also summarizes the types of images that `imwrite` can write. The MATLAB file format registry determines which file formats are supported. See `imformats` for more information about this registry.

For certain formats, `imwrite` can accept additional name-value arguments. To view these arguments, click the linked format names below.

Value of `fmt`

Format of Output File

Description

`"bmp"`

Windows® Bitmap (BMP)

1-bit, 8-bit, and 24-bit uncompressed images

`"gif"`

GIF — Graphics Interchange Format

8-bit images

`"hdf"`

HDF4 — Hierarchical Data Format

8-bit raster image data sets with or without associated colormap, 24-bit raster image data sets

`"jpg"` or `"jpeg"`

JPEG — Joint Photographic Experts Group

8-bit, 12-bit, and 16-bit Baseline JPEG images

Note

`imwrite` converts indexed images to RGB before writing data to JPEG files, because the JPEG format does not support indexed images.

`"jp2"` or `"jpx"`

JPEG 2000— Joint Photographic Experts Group 2000

1-bit, 8-bit, and 16-bit JPEG 2000 images

`"pbm"`

Portable Bitmap (PBM)

Any 1-bit PBM image, ASCII (plain) or raw (binary) encoding

`"pcx"`

Windows Paintbrush (PCX)

8-bit images

`"pgm"`

Portable Graymap (PGM)

Any standard PGM image; ASCII (plain) encoded with arbitrary color depth; raw (binary) encoded with up to 16 bits per gray value

`"png"`

PNG — Portable Network Graphics

1-bit, 2-bit, 4-bit, 8-bit, and 16-bit grayscale images; 8-bit and 16-bit grayscale images with alpha channels; 1-bit, 2-bit, 4-bit, and 8-bit indexed images; 24-bit and 48-bit truecolor images; 24-bit and 48-bit truecolor images with alpha channels

Note

The `imwrite` function does not support writing of indexed PNG files that have insufficient colormap entries.

`"pnm"`

Portable Anymap (PNM)

Any of the PPM/PGM/PBM formats, chosen automatically

`"ppm"`

Portable Pixmap (PPM)

Any standard PPM image: ASCII (plain) encoded with arbitrary color depth or raw (binary) encoded with up to 16 bits per color component

`"ras"`

Any RAS image, including 1-bit bitmap, 8-bit indexed, 24-bit truecolor, and 32-bit truecolor with alpha

`"tif"` or `"tiff"`

Tagged Image File Format (TIFF)

Baseline TIFF images, including:

• 1-bit, 8-bit, 16-bit, 24-bit, and 48-bit uncompressed images and images with packbits, LZW, or Deflate compression

• 1-bit images with CCITT 1D, Group 3, and Group 4 compression

• CIELAB, ICCLAB, and CMYK images

`"xwd"`

X Windows Dump (XWD)

8-bit ZPixmaps

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `imwrite(A,"myFile.png",BitDepth=8)` writes the data in `A` using 8 bits to represent each pixel.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `imwrite(A,"myFile.png","BitDepth",8)` writes the data in `A` using 8 bits to represent each pixel.

GIF — Graphics Interchange Format

collapse all

Color to use as background color for the indexed image, specified as a nonnegative integer scalar corresponding to the colormap index.

The background color is used for some disposal methods in animated GIFs.

• If image data `A` is `uint8` or `logical`, then the colormap index is zero-based.

• If image data `A` is `double`, then the colormap index is one-based.

The default background color corresponds to the first color in the colormap.

Example: `"BackgroundColor",15`

Comment to add to the image, specified as a string scalar, a character vector, a 1-by-n string array, or a 1-by-n cell array of character vectors. For a string array or cell array of character vectors, `imwrite` adds a carriage return after each entry.

Example: ```"Comment",["Sample #314","January 5, 2013"]```

Data Types: `string` | `char` | `cell`

Delay before displaying next image, in seconds, specified as a scalar value in the range [0, 655].

Tip

To achieve a high animation rate, set `DelayTime` to `0.02`. Setting `DelayTime` to a lower value will slow down the actual animation rate in many image viewers and web browsers.

Example: `"DelayTime",60`

Disposal method of an animated GIF, specified as one of the methods in this table.

Value of `DisposalMethod` Result
`"doNotSpecify"` (default)Replace one full-size, nontransparent frame with another.
`"leaveInPlace"`Any pixels not covered up by the next frame continue to display.
`"restoreBG"`The background color or background tile shows through transparent pixels.
`"restorePrevious"`Restore to the state of a previous, undisposed frame.

Example: `"DisposalMethod","restoreBG"`

Offset of the screen relative to the image, measured from the top-left corner of each, specified as a two-element vector. The first vector element specifies the offset from the top, and the second element specifies the offset from the left, in pixels.

Example: `"Location",[10,15]`

Data Types: `double`

Number of times to repeat the animation, specified as either an integer in the range [0, 65,535] or the value `Inf`. If you specify the value `0`, the animation plays once; if you specify the value `1`, the animation plays twice, and so on. A `LoopCount` value of `Inf` causes the animation to loop continuously.

To enable animation within Microsoft® PowerPoint®, specify a value for `LoopCount` within the range [1, 65,535]. Some Microsoft applications interpret the value 0 to mean not to loop at all.

Example: `"LoopCount",3`

Height and width of the frame, specified as a two-element vector. You can use `ScreenSize` argument with `Location` to write frames to the image that are smaller than the whole frame. `DisposalMethod` determines the fill value for pixels outside the frame.

Example: `"ScreenSize",[1000 1060]`

Data Types: `double`

Color to use as transparent color for the image, specified as a nonnegative integer scalar corresponding to the colormap index.

• If image data `A` is `uint8` or `logical`, then indexing begins at 0.

• If image data `A` is `double`, then indexing begins at 1.

Example: `"TransparentColor",20`

Writing mode, specified as `"overwrite"` or `"append"`. In `"overwrite"` mode, `imwrite` overwrites an existing file, `filename`. In `"append"` mode, `imwrite` adds a single frame to the existing file.

Example: `"WriteMode","append"`

HDF4 — Hierarchical Data Format

collapse all

Compression scheme, specified as one of the options in this table.

Value of `Compression` Result
`"none"` (default)No compression
`"jpeg"`JPEG compression. Valid only for grayscale and RGB images.
`"rle"`Run-length encoding. Valid only for grayscale and indexed images.

Example: `"Compression","jpeg"`

Quality of the JPEG-compressed file, specified as a scalar in the range [0, 100], where 0 is lower quality and higher compression, and 100 is higher quality and lower compression. This parameter applies only if `Compression` is `"jpeg"`.

Example: `"Quality",25`

Writing mode, specified as `"overwrite"` or `"append"`. In `"overwrite"` mode, `imwrite` overwrites an existing file, `filename`. In `"append"` mode, `imwrite` adds a single frame to the existing file.

Example: `"WriteMode","append"`

JPEG — Joint Photographic Experts Group

collapse all

Number of bits per pixel, specified as a scalar.

• For grayscale images, the `BitDepth` value can be `8`, `12`, or `16`. The default value is `8`. For 16-bit images, the `Mode` name-value argument must be `"lossless"`.

• For color images, the `BitDepth` value is the number of bits per plane, and can be `8` or `12`. The default is 8 bits per plane.

Example: `"BitDepth",12`

Comment to add to the image, specified as a string scalar, a character vector, an n-by-1 string array, or an n-by-1 cell array of character vectors. For a string array or cell array of character vectors, `imwrite` writes each row of input as a comment in the JPEG file.

Example: ```"Comment",["First comment";"second comment";"third comment"]```

Data Types: `string` | `char` | `cell`

Type of compression, specified as `"lossy"` or `"lossless"`.

Example: `"Mode","lossless"`

Quality of the output file, specified as a scalar in the range [0, 100], where 0 is lower quality and higher compression, and 100 is higher quality and lower compression. A `Quality` value of 100 does not write a lossless JPEG image. Instead, set the `Mode` name-value argument to `"lossless"`.

Example: `"Quality",100`

JPEG 2000— Joint Photographic Experts Group 2000

collapse all

Comment to add to the image, specified as a string scalar, a character vector, a string array, or a cell array of character vectors. For a string array or cell array of character vectors, `imwrite` writes each entry as a comment in the JPEG 2000 file, in column-major order.

Example: ```"Comment",["First comment";"second comment";"third comment"]```

Example: ```"Comment",{'First comment','second comment','third comment'}```

Data Types: `string` | `char` | `cell`

Target compression ratio, specified as a positive scalar greater than or equal to 1. The compression ratio is the ratio of the input image size to the output compressed size. For example, a value of 2 implies that the output image size is half of the input image size or less. A higher value implies a smaller file size and more reduced image quality. The compression ratio does not take into account the header size.

Specifying `CompressionRatio` is valid only when `Mode` is `"lossy"`.

Example: `"CompressionRatio",3`

Type of compression, specified as `"lossy"` or `"lossless"`.

Example: `"Mode","lossless"`

Order of packets in the code stream, specified as one of these options:

• `"LRCP"`

• `"RLCP"`

• `"RPCL"`

• `"PCRL"`

• `"CPRL"`

The characters represent these packets: `L` = layer, `R` = resolution, `C` = component, and `P` = position.

Example: `"ProgressionOrder","RLCP"`

Number of quality layers, specified as an integer in the range [1, 20].

Example: `"QualityLayers",8`

Number of reduction levels, or wavelet decomposition levels, specified as an integer in the range [1, 8].

Example: `"ReductionLevels",6`

Tile height and width, specified as a two-element vector. The minimum size you can specify is `[128 128]`.

Example: `"TileSize",[130 130]`

PBM, PGM, and PPM — Portable Bitmap, Graymap, Pixmap

collapse all

Encoding, specified as `"rawbits"` for binary encoding or `"ASCII"` for plain encoding.

Example: `"Encoding","ASCII"`

Maximum gray or color value, specified as a positive integer scalar.

Specify this name-value argument only for PGM and PPM files. For PBM files, this value is always `1`.

If the image array is `uint16`, then the default value for `MaxValue` is `65535`. Otherwise, the default value is `255`.

Example: `"MaxValue",510`

PNG — Portable Network Graphics

collapse all

Transparency of each pixel, specified as a matrix of values in the range [0, 1]. The row and column dimensions of the `Alpha` matrix must be the same as those of the image data array. You can specify `Alpha` only for grayscale (m-by-n) and truecolor (m-by-n-by-3) image data.

Note

You cannot specify both `Alpha` and `Transparency` at the same time.

Data Types: `double` | `uint8` | `uint16`

Author information, specified as a string scalar or character vector.

Example: `"Author","Ann Smith"`

Data Types: `string` | `char`

Background color when compositing transparent pixels, specified as a value dependent on the image data, as shown in this table.

Image TypeForm of `Background` Value
Grayscale imageScalar in the range [0, 1].
Indexed imageInteger in the range [1, P], where P is the colormap length. For example, `"Background",50` sets the background color to the color specified by the 50th index in the colormap.
Truecolor imageThree-element vector of RGB intensities in the range [0, 1]. For example, `"Background",[0 1 1]` sets the background color to cyan.

Data Types: `double`

Number of bits per pixel, specified as a scalar. Depending on the output image, the scalar can be one of these values.

Image TypeAllowed Values for `BitDepth`
Grayscale image`1`, `2`, `4`, `8`, or `16`
Grayscale image with an alpha channel`8` or `16`
Indexed image`1`, `2`, `4`, or `8`
Truecolor image`8` or `16`
• If the image is of type `double` or `uint8`, then the default bit depth is 8 bits per pixel.

• If the image is of type `uint16`, then the default is 16 bits per pixel.

• If the image is of type `logical`, then the default is 1 bit per pixel.

Example: `"BitDepth",4`

Reference white point and primary chromaticities, specified as an eight-element vector of the form `[wx wy rx ry gx gy bx by]`. The elements `wx` and `wy` are the chromaticity coordinates of the white point, and the elements `rx`, `ry`, `gx`, `gy`, `bx`, and `by` are the chromaticity coordinates of red, green, and blue, respectively.

If you specify `Chromaticities`, you should also specify the `Gamma` name-value argument.

Example: `"Chromaticities",[0.312,0.329,0.002,0.002,0.001,0.001,0.115,0.312]`

Data Types: `double`

Comment to add to the image, specified as a string scalar or character vector.

Time of original image creation, specified as either a datetime, or a string scalar or character vector that represents a point in time. If you specify `CreationTime` as a `datetime` value with a time zone, then `imwrite` stores the time zone as part of the value.

Example: ```"CreationTime",datetime("1955-11-12 10:04 PM","TimeZone","America/Los_Angeles")```

Description of the image, specified as a string scalar or character vector.

Legal disclaimer, specified as a string scalar or character vector.

File gamma, specified as a numeric scalar.

Example: `"Gamma",2.2`

Time of last image modification, specified as either a datetime, or a string scalar or character vector that represents a point in time. If you specify `ImageModTime` as a `datetime` value with a time zone other than UTC, then `imwrite` converts the value to UTC before storing it. If you specify `ImageModTime` as a `datetime` value without a time zone, then `imwrite` interprets the value as UTC.

The default `ImageModTime` value is the time when you call `imwrite`.

Example: ```"ImageModTime",datetime("2018-04-01 9:00 AM","TimeZone","Europe/Rome")```

Interlacing scheme, specified as `"none"` for no interlacing or `"adam7"` to use the Adam7 algorithm.

Example: `"InterlaceType","adam7"`

Unit for image resolution, specified as `"unknown"` or `"meter"`. If you specify `ResolutionUnit`, you must include at least one of the `XResolution` and `YResolution` name-value arguments. When the value of `ResolutionUnit` is `"meter"`, the `XResolution` and `YResolution` values are interpreted as pixels per meter.

Example: `"ResolutionUnit","meter","XResolution",1000`

Number of bits in the data array to regard as significant, specified as a scalar or a vector in the range [1, `BitDepth`]. Depending on the output image type, the value must be in the following form.

Image TypeForm of `SignificantBits` Value
Grayscale image without an alpha channelScalar
Grayscale image with an alpha channel2-element vector
Indexed image3-element vector
Truecolor image without an alpha channel3-element vector
Truecolor image with an alpha channel4-element vector

Example: `"SignificantBits",[2,3]`

Software used to create the image, specified as a string scalar or character vector.

Device used to create the image, specified as a string scalar or character vector.

Pixels to consider transparent when no alpha channel is used, specified as a scalar or vector. Depending on the output image, the value must be in the following form.

Image TypeForm of `Transparency` Value
Grayscale imageScalar in the range [0, 1], indicating the grayscale color to be considered transparent.
Indexed imageQ-element vector of values in the range [0, 1], where Q is no larger than the colormap length and each value indicates the transparency associated with the corresponding colormap entry. In most cases, Q is `1`.
Truecolor imageThree-element vector of RGB intensities in the range [0, 1], indicating the truecolor color to consider transparent.

Note

You cannot specify both `Transparency` and `Alpha` at the same time.

Example: `"Transparency",[1 1 1]`

Data Types: `double`

Warning of nature of content, specified as a string scalar or character vector.

Image resolution in the horizontal direction, in pixels/unit, specified as a numeric scalar. Define the unit by specifying the `ResolutionUnit` name-value argument.

If you do not also specify `YResolution`, then the `XResolution` value applies to both the horizontal and vertical directions.

Example: `"XResolution",900`

Image resolution in the vertical direction, in pixels/unit, specified as a numeric scalar. Define the unit by specifying the `ResolutionUnit` name-value argument.

If you do not also specify `XResolution`, then the `YResolution` value applies to both the vertical and horizontal directions.

Example: `"YResolution",900`

In addition to the listed name-value arguments for PNG, you can use any parameter name that satisfies the PNG specification for keywords. That is, the name uses only printable characters, contains 80 or fewer characters, and does not contain leading or trailing spaces. The value corresponding to these user-specified names must be a string scalar or character vector that contains no control characters other than linefeeds.

RAS — Sun Raster Graphic

collapse all

Transparency of each pixel, specified as a matrix with row and column dimensions the same as those of the image data array.

This name-value argument is valid only for truecolor (m-by-n-by-3) image data.

Data Types: `double` | `single` | `uint8` | `uint16`

Image type, specified as one of the options in this table.

Value of `Type`Description
`"standard"` (default)Uncompressed, B-G-R color order for truecolor images
`"rgb"`Uncompressed, R-G-B color order for truecolor images
`"rle"`Run-length encoding of 1-bit and 8-bit images

Example: `"Type","rgb"`

TIFF — Tagged Image File Format

collapse all

Color space representing the color data, specified as `"rgb"`, `"cielab"`, or `"icclab"`.

This name-value argument is valid only when the image data array, `A`, is truecolor (m-by-n-by-3). To use the CMYK color space in a TIFF file, do not use the `ColorSpace` name-value argument. Instead, specify an m-by-n-by-4 image data array.

`imwrite` can write color image data that uses the L*a*b* color space to TIFF files. The 1976 CIE L*a*b* specification defines numeric values that represent luminance (L*) and chrominance (a* and b*) information. To store L*a*b* color data in a TIFF file, the values must be encoded to fit into either 8-bit or 16-bit storage. `imwrite` can store L*a*b* color data in a TIFF file using these encodings:

• CIELAB encodings — 8-bit and 16-bit encodings defined by the TIFF specification

• ICCLAB encodings — 8-bit and 16-bit encodings defined by the International Color Consortium

The output class and encoding used by `imwrite` depends on the class of the input image data array and the `ColorSpace` value, as shown in this table. (The 8-bit and 16-bit CIELAB encodings cannot be input arrays because they use a mixture of signed and unsigned values and cannot be represented as a single MATLAB array.)

Input Class and Encoding

Value of `ColorSpace`

Output Class and Encoding

8-bit ICCLAB

Values are integers in the range [0, 255]. L* values are multiplied by `2.55`.
`128` is added to both the a* and b* values.

`"icclab"`

8-bit ICCLAB

`"cielab"`

8-bit CIELAB

16-bit ICCLAB

Values are integers in the range [0, 65,280]. L* values are multiplied by `652.8`.
`32768` is added to both the a* and b* values, which are represented as integers in the range [0, 65,535].

`"icclab"`

16-bit ICCLAB

`"cielab"`

16-bit CIELAB

Double-precision 1976 CIE L*a*b* values

L* is in the dynamic range [0, 100]. a* and b* can take any value. Setting a* and b* to `0` (zero) produces a neutral color (gray).

`"icclab"`

8-bit ICCLAB

`"cielab"`

8-bit CIELAB

Example: `"ColorSpace","cielab"`

Compression scheme, specified as one of these options:

• `"packbits"` (default for nonbinary images)

• `"none"`

• `"lzw"`

• `"deflate"`

• `"jpeg"`

• `"ccitt"` (binary images only, and the default for such images)

• `"fax3"` (binary images only)

• `"fax4"` (binary images only)

`"jpeg"` is a lossy compression scheme; other compression modes are lossless. Also, if you specify `"jpeg"` compression, you must specify the `RowsPerStrip` name-value argument and the value must be a multiple of 8.

Example: `"Compression","none"`

Image description, specified by a string scalar or character vector. This description is the text that `imfinfo` returns in the `ImageDescription` field for the output image.

Example: `"Description","Sample 2A301"`

X- and Y-resolution, specified as a scalar indicating both X-resolution and Y-resolution, or a two-element vector containing the X-resolution and the Y-resolution.

Example: `"Resolution",80`

Example: `"Resolution",[320,72]`

Data Types: `double`

Number of rows to include in each strip, specified as a scalar. The default value is such that each strip is about 8 kilobytes.

You must specify `RowsPerStrip` if you specify `"jpeg"` compression. In this case, the value must be a multiple of 8.

Example: `"RowsPerStrip",16`

Data Types: `double` | `single` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Writing mode, specified as `"overwrite"` or `"append"`. In `"overwrite"` mode, `imwrite` overwrites an existing file. In `"append"` mode, `imwrite` adds a page to the existing file.

Example: `"WriteMode","append"`

## Version History

Introduced before R2006a

expand all
