Applicazioni automotive
Simulink consente di modellare e simulare una serie di sistemi automobilistici. È possibile modellare e simulare il veicolo e l’ambiente, nonché sviluppare algoritmi di controllo per le applicazioni automotive. Questi modelli di esempio illustrano le applicazioni automotive.
Inoltre, i seguenti prodotti ampliano l'ambiente di Simulink per le applicazioni automotive:
Powertrain Blockset fornisce modelli applicativi di riferimento completamente assemblati di propulsori automobilistici, compresi i sistemi a benzina, diesel, ibridi ed elettrici.
Vehicle Dynamics Blockset fornisce modelli applicativi di riferimento completamente assemblati che simulano manovre di guida in un ambiente tridimensionale.
Automated Driving Toolbox fornisce algoritmi e strumenti per la progettazione, la simulazione e il collaudo di sistemi ADAS e di guida autonoma.
Model-Based Calibration Toolbox fornisce app e strumenti di progettazione per calibrare in modo ottimale motori complessi e sottosistemi di propulsione.
Argomenti
- Getting Started with Powertrain Blockset (Powertrain Blockset)
Run the conventional vehicle reference application and examine the final drive gear ratio impact on fuel economy and tailpipe emissions.
- Yaw Stability on Varying Road Surfaces (Vehicle Dynamics Blockset)
To study yaw stability on different road surfaces, use the vehicle dynamics double-lane change reference application.
- Simulate Simple Driving Scenario and Sensor in Unreal Engine Environment (Automated Driving Toolbox)
Learn the basics of configuring and simulating scenes, vehicles, and sensors in a virtual environment rendered using the Unreal Engine® from Epic Games®.
- Predict Engine Torque Using Two-Stage Modeling (Model-Based Calibration Toolbox)
Create a statistical engine model that predicts engine brake torque as a function of spark angle.
- Migration to Service-Oriented Architecture Using Model-Based Design
Use model-based design to migrate a monolithic Simulink model to a service-oriented architecture.
- PASSAGGIO 1: Generate Baseline Tests
- PASSAGGIO 2: Refactor Monolithic Model into Software Application with Services
- PASSAGGIO 3: Create Architecture Model and Service Interface
- PASSAGGIO 4: Create Simulink Behavior Models
- PASSAGGIO 5: Validate Migrated Model
- PASSAGGIO 6: Generate Code
Esempi in primo piano

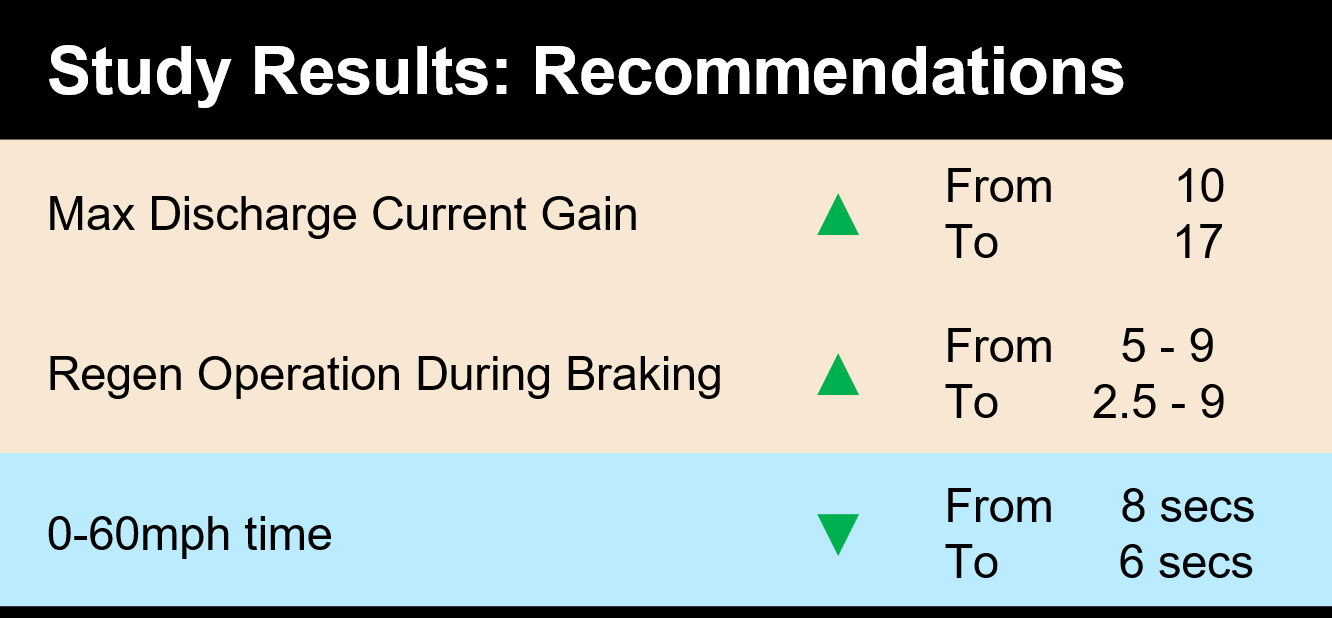

Scaling Virtual Calibration and System Design with parsim and AWS
Use Amazon Web Services (AWS) and the parsim function to
scale virtual calibration and system design to run simulations in the
cloud.
Model Fault-Tolerant Fuel Control System
Combine Stateflow® and Simulink® capabilities to model hybrid systems. This type of modeling is particularly useful for systems that have numerous possible operational modes based on discrete events. Traditional signal flow is handled in Simulink while changes in control configuration are implemented in Stateflow. The model described in this example represents a fuel control system for a gasoline engine. The system is robust in that it detects individual sensor failures, and the control system is dynamically reconfigured for uninterrupted operation.
Using a Data Dictionary to Manage the Data for a Fuel Control System

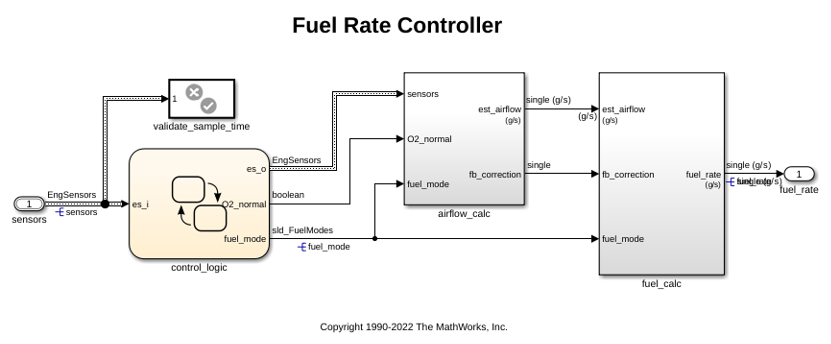

Use data dictionaries to manage the data for a fuel rate control system designed using Simulink® and Stateflow®.
Model Engine Timing Using Triggered Subsystems
Model a four-cylinder spark ignition internal combustion engine from the throttle to the crankshaft output using triggered subsystems. In this example, the sldemo_engine model is based on [1].
Engine Timing Model with Closed Loop Control
Develop and implement a closed loop control algorithm for the open loop engine model described in Model Engine Timing Using Triggered Subsystems. In this example, the model sldemo_enginewc contains a controller that regulates engine speed using a fast throttle actuator such that changes in load torque have minimal effect. The controller is implemented using a discrete PI controller.
Building a Clutch Lock-Up Model
Use Simulink® to model and simulate a rotating clutch system. Although modeling a clutch system is difficult because of topological changes in the system dynamics during lockup, this example shows how enabled subsystem can easily handle such problems. We illustrate how to employ important Simulink modeling concepts in the creation of the clutch simulation. Designers can apply these concepts to many models with strong discontinuities and constraints that may change dynamically.
Modeling Clutch Lock-Up Using If Blocks
Use If/Else subsystems to build a clutch model. An 'If' subsystem models the clutch dynamics in the locked position while an 'Else' subsystem models the unlocked position. One or the other is enabled using the 'If' block. The dot-dashed lines from the 'If' block denote control signals, which are used to enable If/Else (or other conditional) subsystems. Checking any of the boxes on the GUI produces a plot of any of the selected variables (versus time).
Modellazione di un sistema antibloccaggio dei freni
Questo esempio mostra come modellare un sistema antibloccaggio dei freni (ABS) semplice. Il modello simula il comportamento dinamico di un veicolo in condizioni di frenata brusca. Il modello rappresenta una singola ruota, che può essere replicata più volte per creare un modello di veicolo a più ruote.
Sospensioni automotive

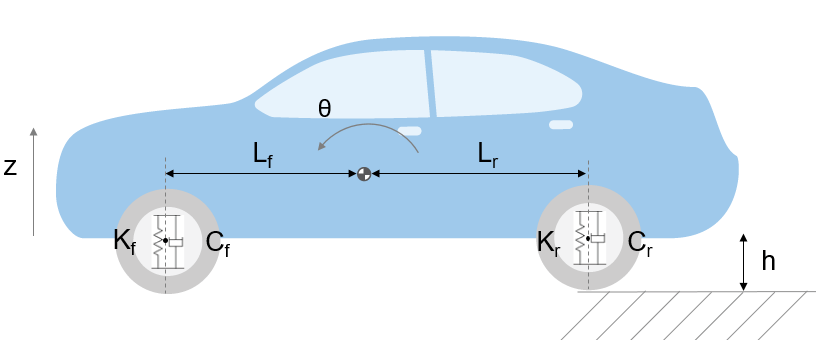

Questo esempio mostra come modellare un sistema semplificato di mezza automobile che include sospensioni verticali anteriori e posteriori indipendenti. Il modello incorpora anche i gradi di libertà di beccheggio e rimbalzo della carrozzeria. L'esempio fornisce una descrizione del modello per dimostrare come la simulazione possa essere utilizzata per esaminare le caratteristiche di guida. È possibile utilizzare questo modello insieme a una simulazione del gruppo propulsore per studiare lo slittamento longitudinale derivante dalle variazioni dell'impostazione dell'acceleratore.
Model an Automatic Transmission Controller
Model an automotive drivetrain using Simulink®. In this model, a Stateflow® chart implements the transmission control logic and integrates directly with the Simulink model, combining control logic and drivetrain dynamics in a clear and intuitive structure.
Vehicle Electrical System
Simulate the electrical system of a vehicle using Simulink® and Simscape™ Electrical™.
Simulating Automatic Climate Control Systems
Simulate an automatic climate control system in a car using Simulink® and Stateflow®.
Vehicle Electrical and Climate Control Systems

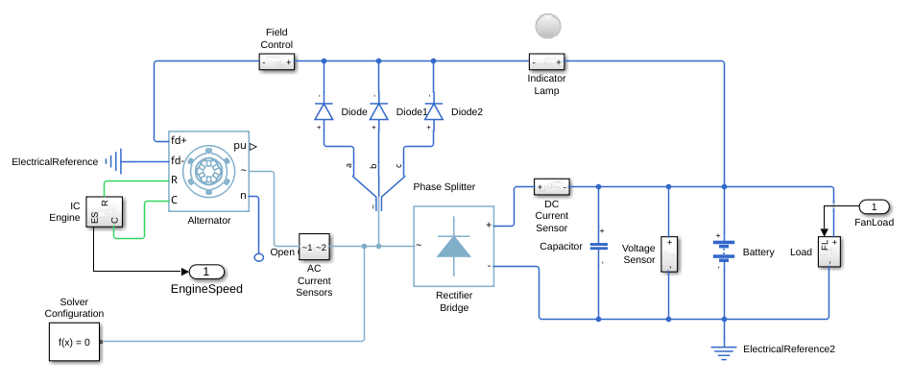

Model a vehicle climate control system with an electrical system. Use the model to examine the loading effects of the climate control system on the entire vehicle electrical system.
Wireless Tire Pressure Monitoring System with Fault Logging

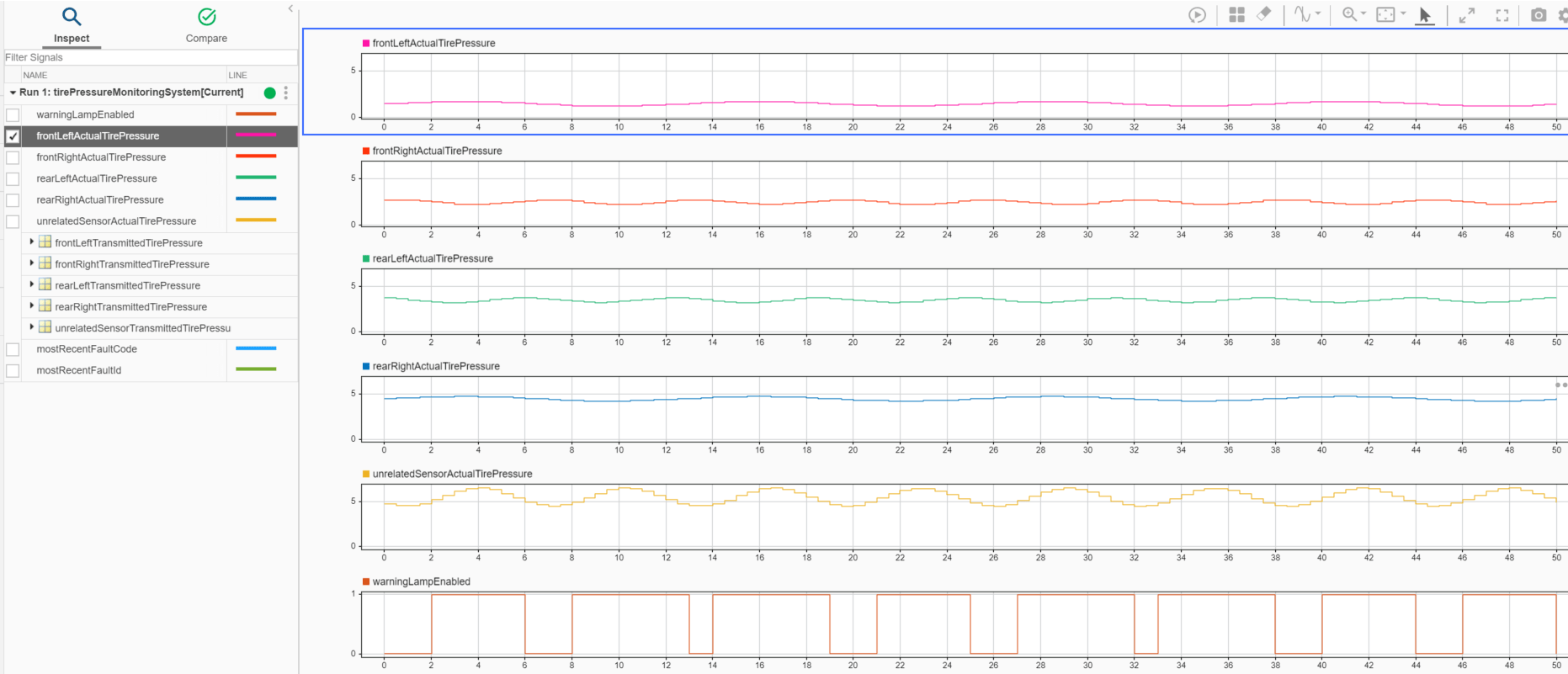

Model a wireless tire pressure monitoring system with fault logging using message communication.
