cameraIntrinsicsFromOpenCV

Convert camera intrinsic parameters from OpenCV to MATLAB

Since R2021b

Syntax

intrinsics = cameraIntrinsicsFromOpenCV(intrinsicMatrix,distortionCoefficients,imageSize)

Description

intrinsics = cameraIntrinsicsFromOpenCV(intrinsicMatrix,distortionCoefficients,imageSize) converts the OpenCV intrinsics, specified by the input arguments, into a MATLAB^® object intrinsics, which can be cameraIntrinsics or cameraIntrinsicsKB.

The OpenCV spatial coordinate system specifies the upper-left pixel center at (0,0), whereas the MATLAB spatial coordinate system specifies the pixel center at (1,1). The cameraIntrinsicsFromOpenCV function compensates for this difference by adding 1 to both of the x and y-values for the converted principal point.

Examples

Undistort Image in MATLAB Using Camera Intrinsics from OpenCV

Define OpenCV camera intrinsic parameters in the workspace.

intrinsicMatrix = [729.4644    0       570.6455;
                     0       728.8196  346.0108;
                     0         0         1  ];
distortionCoefficients = [-0.4262  0.5460  0.0038  -0.0051  -0.6176];

Define the image size returned by the camera.

imageSize = [712 1072];

Convert the intrinsic parameters from OpenCV to MATLAB format.

intrinsics = cameraIntrinsicsFromOpenCV(intrinsicMatrix, ...
                                       distortionCoefficients,imageSize);

Load the image to undistort.

filename = fullfile(toolboxdir("vision"),"visiondata","calibration", ...
                        "mono","image01.jpg");
I = imread(filename);

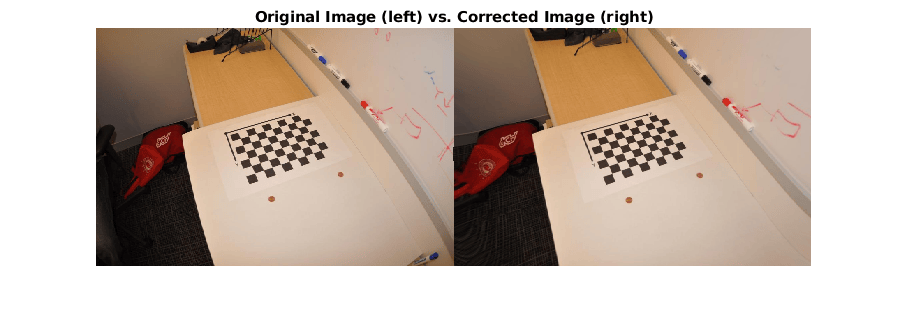

Undistort the image and diplay the results.

J = undistortImage(I,intrinsics);
imshowpair(I,J,"montage");
title("Original Image (left) vs. Corrected Image (right)");

Undistort Image Using Fisheye Camera Parameters from OpenCV

Define OpenCV fisheye parameters in the workspace.

intrinsicMatrix = [875.88  0.00   1005.62; ...
                   0.00    874.76 741.52; ...
                   0.00,   0.00,  1.00];
distortionCoeffs = [0.08, -0.16, 0.35, -0.26];

Define the image size returned by the camera.

imageSize =[1500 2000];

Import the intrinsic camera parameters for a fisheye lens from OpenCV.

intrinsicsKB = cameraIntrinsicsFromOpenCV(intrinsicMatrix,distortionCoeffs,imageSize)

intrinsicsKB =
  cameraIntrinsicsKB with properties:

               FocalLength: [875.8800 874.7600]
            PrincipalPoint: [1.0066e+03 742.5200]
                 ImageSize: [1500 2000]
    DistortionCoefficients: [0.0800 -0.1600 0.3500 -0.2600]
                         K: [3x3 double]

Load an image to undistort.

filename = fullfile(toolboxdir("vision"),"visiondata", ...
    "calibration","gopro","gopro01.jpg");
I = imread(filename);

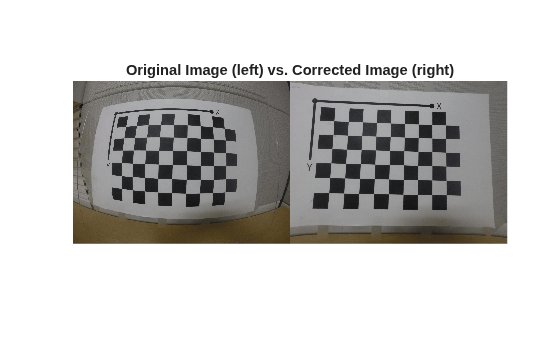

Undistort the image and display the results.

J = undistortImage(I,intrinsicsKB);
imshowpair(I,J,"montage");
title("Original Image (left) vs. Corrected Image (right)");

Import Camera Intrinsic Parameters from ROS

The ROS camera calibration package estimates camera intrinsic parameters using the OpenCV camera calibration tools [1]. After calibrating a camera in ROS, you can import its intrinsic parameters to a YAML file using the camera calibration parser in ROS. To use the calibrated camera with Computer Vision Toolbox™ functions, such as undistortImage, you must read the camera parameters from the YAML file and then convert them into a cameraIntrinsics object using cameraIntrinsicsFromOpenCV.

Note: The cameraIntrinsicsFromOpenCV function supports importing camera intrinsic parameters for only those pinhole camera models that use the ROS plumb-bob distortion model.

Read Camera Intrinsic Parameters from a ROS YAML File

Read the camera parameters stored in cameraParams.yaml using the helper function helperReadYAML.

intrinsicsParams = helperReadYAML('cameraParams.yaml');

Create cameraIntrinsics Object Using cameraIntrinsicsFromOpenCV

Use the cameraIntrinsicsFromOpenCV function to create a cameraIntrinsics object from the camera matrix and the distortion coefficients.

imageSize = [intrinsicsParams.image_height intrinsicsParams.image_width];
intrinsicMatrix = intrinsicsParams.camera_matrix;
distortionCoefficients = intrinsicsParams.distortion_coefficients;

intrinsicsObj = cameraIntrinsicsFromOpenCV(intrinsicMatrix,distortionCoefficients,imageSize);

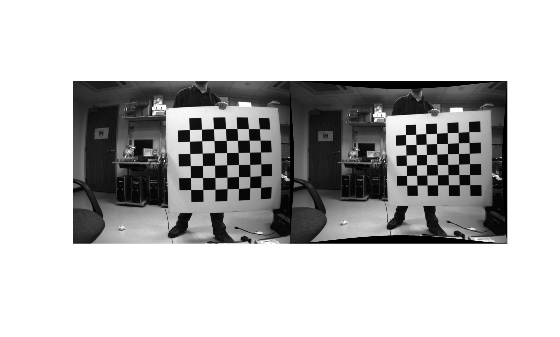

Undistort Image

Use the imported camera intrinsics with undistortImage to undistort an image captured using the calibrated camera.

% Load the captured image.
imageName = fullfile(toolboxdir('vision'),'visiondata','calibration','stereo','left','left01.png');
I = imread(imageName);

% Undistort the image.
J = undistortImage(I,intrinsicsObj,'OutputView','full');

% Display the result.
figure
montage({I,J})

Supporting Functions

helperReadYAML

The helperReadYAML function reads the monocular camera parameters from the input YAML file that was exported from ROS.

function cameraParams = helperReadYAML(filename)
% helperReadYAML reads a ROS YAML file, filename, and returns a structure
% with these fields: image_width, image_height, camera_name,
% camera_matrix, distortion_model, distortion_coefficients,
% rectification_matrix, and projection_matrix. These fields are stored
% in the YAML file colon separated from their values in different lines.

    f = fopen(filename,'r');
    stringFields = {'camera_name','distortion_model'};

    while ~feof(f)

        [name,value,isEmptyLine] = helperReadYAMLLine(f);
        if isEmptyLine
            continue
        end

        if ~isempty(value)
            % Convert all values to numbers except for known string
            % fields.
            if ~any(contains(name, stringFields))
                value = str2num(value); %#ok
            end
        else
            % An empty value in ROS YAML files indicates a matrix in
            % upcoming lines. Read the matrix from the upcoming lines.
            value = helperReadYAMLMatrix(f);
        end

        % Store post-processed value.
        cameraParams.(name) = value;
    end

    fclose(f);
end

helperReadYAMLMatrix

The helperReadYAMLMatrix function reads the rows, columns and data fields of a matrix in the ROS YAML file.

function matrix = helperReadYAMLMatrix(f)
%   helperReadYAMLMatrix reads a matrix from the ROS YAML file. A matrix in
%   a ROS YAML file has three fields: rows, columns and data. rows and col
%   describe the matrix size. data is a continguous array of the matrix
%   elements in row-major order. This helper function assumes the presence
%   of all three fields of a matrix to return the correct matrix.

    numRows = 0;
    numCols = 0;
    data = [];

    % Read numRows, numCols and matrix data.
    while ~feof(f)
        [name,value,isEmptyLine] = helperReadYAMLLine(f);

        if isEmptyLine
            continue
        end

        switch name
            case 'rows'
                numRows = str2num(value); %#ok
            case 'cols'
                numCols = str2num(value); %#ok
            case 'data'
                data    = str2num(value); %#ok

                % Terminate the while loop as data is the last
                % field of a matrix in the ROS YAML file.
                break
            otherwise
                % Terminate the while loop if any other field is
                % encountered.
                break
        end
    end

    if numel(data) == numRows*numCols
        % Reshape the matrix using row-major order.
        matrix = reshape(data,[numCols numRows])';
    end
end

helperReadYAMLLine

The helperReadYAMLLine function reads a line of a ROS YAML file.

function [name,value,isEmptyLine] = helperReadYAMLLine(f)

    % Read line from file.
    line = fgetl(f);

    % Trim leading and trailing whitespaces.
    line = strtrim(line);

    if isempty(line) || line(1)=='#'
        % Empty line or comment.
        name = '';
        value = '';
        isEmptyLine = true;
    else
        % Split the line to get name and value.
        c = strsplit(line,':');
        assert(length(c)==2,'Unexpected file format')

        name = c{1};
        value = strtrim(c{2}); % Trim leading whitespace.
        isEmptyLine = false;
    end
end

References

[1] ROS.org Camera Calibration

Input Arguments

intrinsicMatrix — Camera intrinsic matrix

3-by-3 matrix

Camera intrinsic matrix from OpenCV, specified as a 3-by-3 matrix of the form:

$$\left[\begin{array}{ccc}fx& 0& cx\\ 0& fy& cy\\ 0& 0& 1\end{array}\right]$$

where fx and fy are the focal lengths in the x and y-directions, and (cx,cy) is the principal point in OpenCV.

distortionCoefficients — Camera distortion coefficients

4-element vector | 5-element vector | 8-element vector

Camera distortion coefficients from OpenCV, specified as a 4-, 5-, or 8-element vector. The function returns a cameraIntrinsics object when using extended pinhole model distortion coefficients and a cameraIntrinsicsKB object for fisheye distortion coefficients.

• Extended pinhole model — 5-element vector of the form [k1 k2 p1 p2 k3] or an 8-element vector of the form [k1 k2 p1 p2 k3 k4 k5 k6].

  The values of k1, k2, …, k6 describe the radial distortion and p1 and p2 describe the tangential distortion, specified in OpenCV.

• Kannala-Brandt model [1] — 4-element vector of the form [k1 k2 k3 k4]. These values are the distortion coefficients from the OpenCV fisheye camera model.

imageSize — Image size

2-element vector

Image size, specified as a 2-element vector in the form [mrows,ncols].

Output Arguments

intrinsics — Camera intrinsic parameters

cameraIntrinsics object | cameraIntrinsicsKB object

Camera intrinsic parameters, returned as a cameraIntrinsics or cameraIntrinsicsKB object. The function returns a cameraIntrinsics object when using extended pinhole model distortion coefficients and a cameraIntrinsicsKB object for fisheye distortion coefficients.

• cameraIntrinsics object — Contains OpenCV intrinsics for a pinhole camera model. In cases where the OpenCV pinhole model uses more than eight distortion coefficients, which cannot be converted to a cameraIntrinsics object, you can recalibrate your camera using the Camera Calibrator app as an alternative solution.

• cameraIntrinsicsKB object — Contains camera intrinsic calibration parameters for a fisheye lens, using the Kannala-Brandt model.

References

[1] Juho Kannala and Sami Brandt. A generic camera model and calibration method for conventional, wide-angle, and fish-eye lenses. IEEE transactions on pattern analysis and machine intelligence, 28:1335–40, 09 2006.

Version History

Introduced in R2021b

R2024b: Import OpenCV pinhole camera model with six radial distortion coefficients

The cameraIntrinsicsFromOpenCV has been updated to support OpenCV pinhole camera model with 6 radial distortion coefficients.
